Leica V-LUX 5 vs Olympus E-PL1
The Leica V-LUX 5 and the Olympus PEN E-PL1 are two digital cameras that were officially introduced, respectively, in July 2019 and February 2010. The V-LUX 5 is a fixed lens compact, while the E-PL1 is a mirrorless interchangeable lens camera. The cameras are based on an one-inch (V-LUX 5) and a Four Thirds (E-PL1) sensor. The Leica has a resolution of 20 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica V-LUX 5 and the Olympus PEN E-PL1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

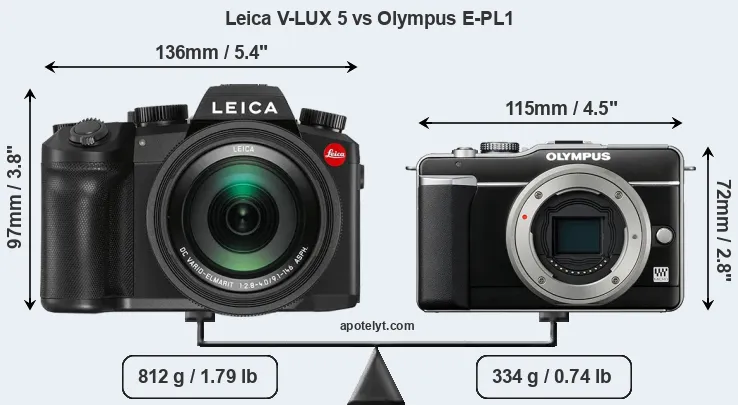

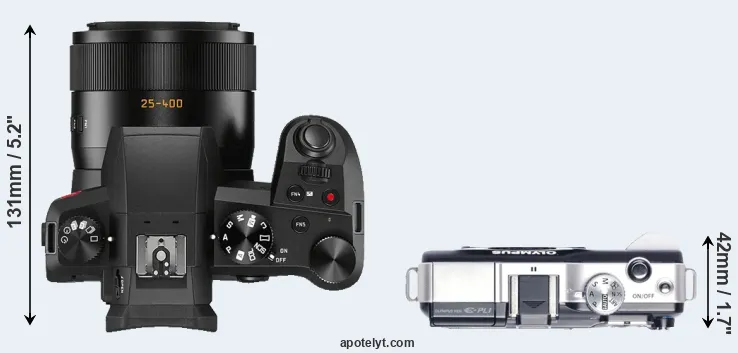

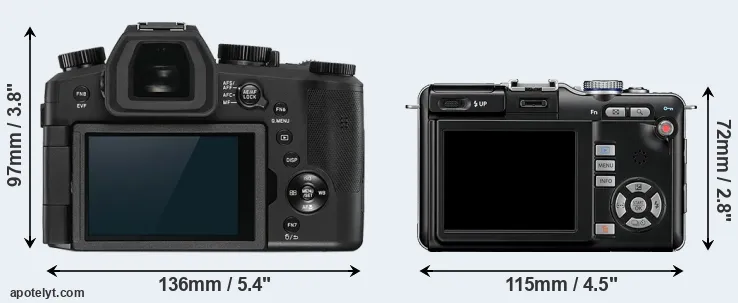

The side-by-side display below illustrates the physical size and weight of the Leica V-LUX 5 and the Olympus E-PL1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The E-PL1 can be obtained in four different colors (black, blue, yellow, white), while the V-LUX 5 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL1 is considerably smaller (37 percent) than the Leica V-LUX 5. In this context, it is worth noting that neither the V-LUX 5 nor the E-PL1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the V-LUX 5 has a lens built in, whereas the E-PL1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL1 and their specifications in the Micro Four Thirds Lens Catalog.
Concerning battery life, the V-LUX 5 gets 350 shots out of its BP-DC12 battery, while the E-PL1 can take 290 images on a single charge of its BLS-1 power pack. The power pack in the V-LUX 5 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Leica V-LUX 5||136 mm||97 mm||131 mm||812 g||350||n||Jul 2019||1,249|
|2.||Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599|
|3.||Canon SX740||110 mm||64 mm||40 mm||299 g||265||n||Jul 2018||399|
|4.||Leica D-LUX 7||115 mm||66 mm||65 mm||392 g||300||n||Nov 2018||1,195|
|5.||Leica C-LUX||113 mm||67 mm||46 mm||340 g||370||n||Jun 2018||1,049|
|6.||Leica V-LUX Typ 114||137 mm||99 mm||131 mm||830 g||360||n||Sep 2014||1,349|
|7.||Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799|
|8.||Olympus E-PL2||114 mm||72 mm||42 mm||362 g||280||n||Jan 2011||599|
|9.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|10.||Olympus E-P1||121 mm||70 mm||36 mm||355 g||300||n||Jun 2009||799|
|11.||Olympus E-P2||121 mm||70 mm||36 mm||355 g||300||n||Nov 2009||799|
|12.||Panasonic FZ1000 II||136 mm||97 mm||131 mm||810 g||350||n||Feb 2019||899|
|13.||Panasonic TZ95||112 mm||69 mm||42 mm||327 g||380||n||Feb 2019||449|
|14.||Panasonic LX100 II||115 mm||66 mm||65 mm||392 g||300||n||Aug 2018||999|
|15.||Panasonic FZ2000||138 mm||102 mm||135 mm||915 g||350||n||Sep 2016||1,199|
|16.||Sony RX100 VII||102 mm||58 mm||43 mm||302 g||260||n||Jul 2019||1,199|
|17.||Sony RX100 VI||102 mm||58 mm||43 mm||301 g||240||n||Jun 2018||1,199|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Leica V-LUX 5 features an one-inch sensor and the Olympus E-PL1 a Four Thirds sensor. The sensor area in the E-PL1 is 94 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 2.0. The sensor in the V-LUX 5 has a native 3:2 aspect ratio, while the one in the E-PL1 offers a 4:3 aspect.

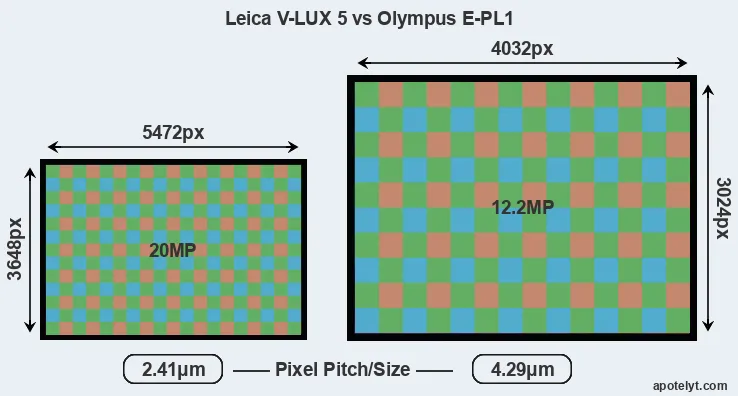

Despite having a smaller sensor, the Leica V-LUX 5 offers a higher resolution of 20 megapixels, compared with 12.2 MP of the Olympus E-PL1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 4.29μm for the E-PL1). However, it should be noted that the V-LUX 5 is much more recent (by 9 years and 5 months) than the E-PL1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Leica V-LUX 5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the V-LUX 5 for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Olympus E-PL1 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The Leica V-LUX 5 has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 80-25600. The corresponding ISO settings for the Olympus PEN E-PL1 are ISO 200 to ISO 3200 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|1.||Leica V-LUX 5||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|2.||Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|4.||Leica D-LUX 7||Four Thirds||16.8||4736||3552||4K/30p||..||..||..||..|
|6.||Leica V-LUX Typ 114||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|7.||Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|8.||Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|9.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|10.||Olympus E-P1||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55|
|11.||Olympus E-P2||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56|
|12.||Panasonic FZ1000 II||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|14.||Panasonic LX100 II||Four Thirds||16.8||4736||3552||4K/30p||..||..||..||..|
|16.||Sony RX100 VII||1-inch||20.0||5472||3648||4K/30p||21.8||12.4||418||63|
|17.||Sony RX100 VI||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the V-LUX 5 provides a higher video resolution than the E-PL1. It can shoot video footage at 4K/30p, while the Olympus is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the V-LUX 5 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL1 relies on live view and the rear LCD for framing. That said, the E-PL1 can be equipped with an optional viewfinder – the VF-2. The adjacent table lists some of the other core features of the Leica V-LUX 5 and Olympus E-PL1 along with similar information for a selection of comparators.
|1.||Leica V-LUX 5||2360||n||3.0||1240||swivel||Y||1/4000s||12.0||Y||Y|
|4.||Leica D-LUX 7||2764||n||3.0||1240||fixed||Y||1/4000s||11.0||n||Y|
|6.||Leica V-LUX Typ 114||2359||n||3.0||921||swivel||n||1/4000s||12.0||Y||Y|
|12.||Panasonic FZ1000 II||2360||n||3.0||1240||swivel||Y||1/4000s||12.0||Y||Y|
|14.||Panasonic LX100 II||2764||n||3.0||1240||fixed||Y||1/4000s||11.0||n||Y|
|16.||Sony RX100 VII||2359||n||3.0||921||tilting||Y||1/2000s||90.0||Y||Y|
|17.||Sony RX100 VI||2359||n||3.0||1229||tilting||Y||1/2000s||24.0||Y||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The V-LUX 5 has a touchscreen, while the E-PL1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The V-LUX 5 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-PL1 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the V-LUX 5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Leica V-LUX 5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The V-LUX 5 writes its imaging data to SDXC cards, while the E-PL1 uses SDHC cards. The V-LUX 5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PL1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica V-LUX 5 and Olympus PEN E-PL1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Leica V-LUX 5||Y||stereo||mono||-||-||micro||2.0||Y||-||Y|
|4.||Leica D-LUX 7||Y||stereo||mono||-||-||micro||2.0||Y||-||Y|
|6.||Leica V-LUX Typ 114||Y||stereo||mono||Y||-||micro||2.0||Y||Y||-|
|12.||Panasonic FZ1000 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y|
|14.||Panasonic LX100 II||Y||stereo||mono||-||-||micro||2.0||Y||-||Y|
|16.||Sony RX100 VII||-||stereo||mono||Y||-||micro||2.0||Y||Y||Y|
|17.||Sony RX100 VI||-||stereo||mono||-||-||micro||2.0||Y||Y||Y|
It is notable that the V-LUX 5 offers wifi support, while the E-PL1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
The V-LUX 5 is a recent model that features in the current product line-up of Leica. In contrast, the E-PL1 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-PL1 was succeeded by the Olympus E-PL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Olympus websites.
So how do things add up? Which of the two cameras – the Leica V-LUX 5 or the Olympus E-PL1 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Leica V-LUX 5:
- More detail: Offers more megapixels (20 vs 12.2MP) with a 30% higher linear resolution.
- Better video: Provides higher definition movie capture (4K/30p vs 720/30p).
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1240k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (12 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Has a lens built-in, whereas the E-PL1 requires a separate lens.
- Longer lasting: Can take more shots (350 versus 290) on a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More modern: Reflects 9 years and 5 months of technical progress since the E-PL1 launch.
Advantages of the Olympus PEN E-PL1:
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- More compact: Is smaller (115x72mm vs 136x97mm) and will fit more readily into a bag.
- More heavily discounted: Has been around for much longer (launched in February 2010).
If the count of relative strengths (bullet points above) is taken as a measure, the V-LUX 5 is the clear winner of the match-up (20 : 3 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Leica V-LUX 5 and the Olympus E-PL1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the V-LUX 5 or the E-PL1. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Leica V-LUX 5||..||..||..||4/5||4/5||Jul 2019||1,249|
|2.||Olympus E-PL1||..||86/100||69/100||4/5||4.5/5||Feb 2010||599|
|3.||Canon SX740||..||+||..||4/5||4/5||Jul 2018||399|
|4.||Leica D-LUX 7||..||..||..||..||4.5/5||Nov 2018||1,195|
|5.||Leica C-LUX||..||..||..||4.5/5||4/5||Jun 2018||1,049|
|6.||Leica V-LUX Typ 114||..||..||..||..||5/5||Sep 2014||1,349|
|7.||Olympus E-P3||..||83/100||74/100||4.5/5||4.5/5||Jun 2011||799|
|8.||Olympus E-PL2||3/5||83/100||71/100||4.5/5||4.5/5||Jan 2011||599|
|9.||Olympus E-PL3||3/5||+ +||72/100||4.5/5||4/5||Jun 2011||599|
|10.||Olympus E-P1||..||+||66/100||4/5||4.5/5||Jun 2009||799|
|11.||Olympus E-P2||3/5||+||69/100||4/5||4.5/5||Nov 2009||799|
|12.||Panasonic FZ1000 II||..||..||83/100||4.5/5||4.5/5||Feb 2019||899|
|13.||Panasonic TZ95||..||+ +||..||4.5/5||..||Feb 2019||449|
|14.||Panasonic LX100 II||4.5/5||+||82/100||4.5/5||4.5/5||Aug 2018||999|
|15.||Panasonic FZ2000||..||+||82/100||4.5/5||5/5||Sep 2016||1,199|
|16.||Sony RX100 VII||4.5/5||..||..||4/5||5/5||Jul 2019||1,199|
|17.||Sony RX100 VI||4.5/5||+ +||83/100||4/5||4.5/5||Jun 2018||1,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Leica V-LUX 5 vs Olympus E-PL1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica V-LUX 5||Olympus E-PL1|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||25-400mm f/2.8-4.0||Micro Four Thirds lenses|
|Launch Date||July 2019||February 2010|
|Launch Price||USD 1,249||USD 599|
|Sensor Specs||Leica V-LUX 5||Olympus E-PL1|
|Sensor Format||1" Sensor||Four Thirds Sensor|
|Sensor Size||13.2 x 8.8 mm||17.3 x 13.0 mm|
|Sensor Area||116.16 mm2||224.9 mm2|
|Sensor Diagonal||15.9 mm||21.6 mm|
|Sensor Resolution||20 Megapixels||12.2 Megapixels|
|Image Resolution||5472 x 3648 pixels||4032 x 3024 pixels|
|Pixel Pitch||2.41 μm||4.29 μm|
|Pixel Density||17.18 MP/cm2||5.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||720/30p Video|
|ISO Setting||125 - 12,800 ISO||200 - 3,200 ISO|
|ISO Boost||80 - 25,600 ISO||no Enhancement|
|DXO Sensor Quality (score)||..||54|
|DXO Color Depth (bits)||..||21.5|
|DXO Dynamic Range (EV)||..||10.1|
|DXO Low Light (ISO)||..||487|
|Screen Specs||Leica V-LUX 5||Olympus E-PL1|
|Viewfinder Type||Electronic viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||2.7inch|
|LCD Resolution||1240k dots||230k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Leica V-LUX 5||Olympus E-PL1|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||12 shutter flaps/s||3 shutter flaps/s|
|Electronic Shutter||up to 1/16000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||Lens-based stabilization||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Leica V-LUX 5||Olympus E-PL1|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Leica V-LUX 5||Olympus E-PL1|
|Battery Life (CIPA)||350 shots per charge||290 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
136 x 97 x 131 mm
(5.4 x 3.8 x 5.2 in)
115 x 72 x 42 mm
(4.5 x 2.8 x 1.7 in)
|Camera Weight||812 g (28.6 oz)||334 g (11.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
