Olympus E-P2 Comparison Review

The Olympus PEN E-P2 is a mirrorless interchangeable lens camera that was revealed to the public in November 2009 and is equipped with a Four Thirds sensor. It offers a resolution of 12.2 megapixel.

camera

Is the Olympus E-P2 a good camera? The E-P2 has a Camera Elo of 1348. This rating puts the E-P2 below average of all mirrorless interchangeable lens cameras. In terms of its sensor size category (Four Thirds cameras), the E-P2 also ranks below average. – Well, the Olympus E-P2 is more than 9 years old, and there have been many other good digital cameras released since 2009.

Headline Specifications
Olympus E-P2
Mirrorless system camera
Micro Four Thirds lenses
12.2 MP, Four Thirds Sensor
720/30p Video
ISO 100-6400
Viewfinder optional
3.0" LCD, 230k dots
Fixed screen (not touch-sensitive)
3 shutter flaps per second
In-body stabilization
300 shots per battery charge
121 x 70 x 36 mm, 355 g


badge

Read on to find out more about the camera's size, sensor, features, reception by expert reviewers, and how it compares to other digital cameras.

Body comparison with a credit card

The physical dimensions of the Olympus E-P2 relative to a credit card are illustrated in the side-by-side display below. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

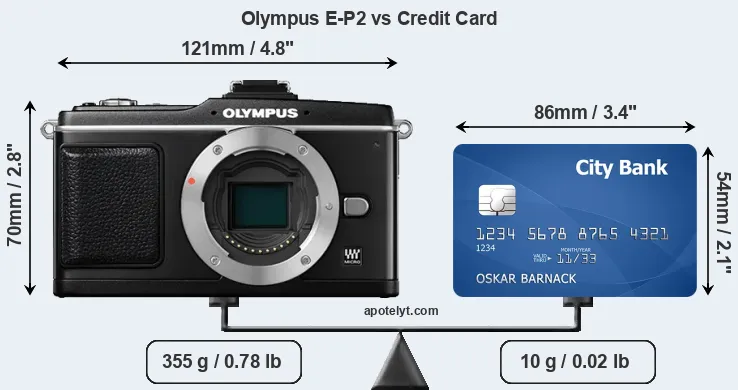

Olympus E-P2 vs credit card front

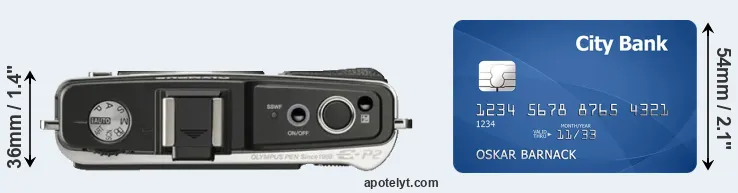

E-P2 versus credit card top view
E-P2 and credit card rear side

The table below summarizes the key physical specs of the Olympus E-P2 alongside a set of comparators. If you want to review a camera pair side-by-side, just select a right-side comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Olympus E-P2 4.8 in 2.8 in 1.4 in 12.5 oz 300 n Nov 2009 799- i Olympus E-P2

Olympus E-P3« » 4.8 in 2.7 in 1.3 in 13.0 oz 330 n Jun 2011 799- i Olympus E-P3

Olympus E-PL2« » 4.5 in 2.8 in 1.7 in 12.8 oz 280 n Jan 2011 599- i Olympus E-PL2

Olympus E-PL3« » 4.3 in 2.5 in 1.5 in 11.0 oz 300 n Jun 2011 599- i Olympus E-PL3

Olympus E-PL1« » 4.5 in 2.8 in 1.7 in 11.8 oz 290 n Feb 2010 599- i Olympus E-PL1

Olympus E-620« » 5.1 in 3.7 in 2.4 in 18.4 oz 500 n Feb 2009 699- i Olympus E-620

Olympus E-P1« » 4.8 in 2.8 in 1.4 in 12.5 oz 300 n Jun 2009 799- i Olympus E-P1

Olympus E-520« » 5.4 in 3.6 in 2.7 in 18.9 oz 750 n May 2008 699- i Olympus E-520

Panasonic G10« » 4.9 in 3.3 in 2.9 in 13.7 oz 380 n Mar 2010 499- i Panasonic G10

Panasonic GF1« » 4.7 in 2.8 in 1.4 in 13.6 oz 380 n Sep 2009 749- i Panasonic GF1

Panasonic GH1« » 4.9 in 3.5 in 1.8 in 13.6 oz 300 n Mar 2009 899- i Panasonic GH1
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Olympus E-P2 was launched in the US market at a price of $799. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Olympus E-P2:
Check Ebay offers

Sensor comparison with a 35mm slide

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tent to lead to bigger and heavier cameras and lenses.

The Olympus E-P2 features a Four Thirds sensor and has a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the Olympus E-P2 among the medium-sized sensor cameras that aim to strike a balance between image quality and portability.

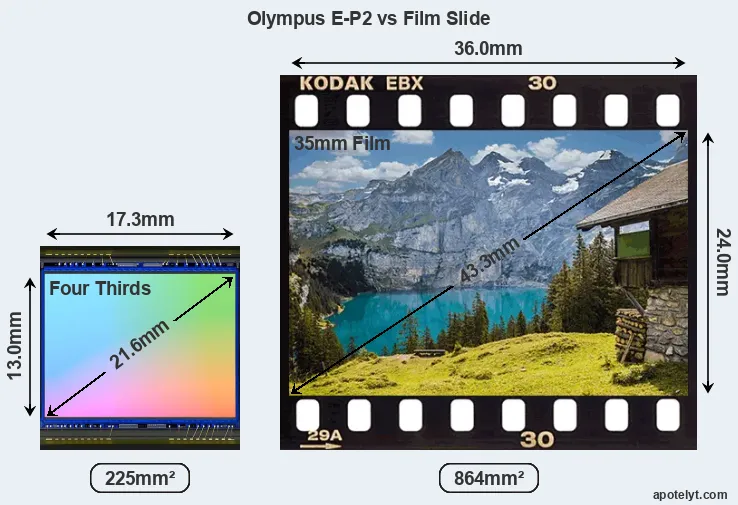

Olympus E-P2 sensor measures

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Olympus E-P2 Four Thirds 12.2 4032 3024720/30p21.510.450556Olympus E-P2

Olympus E-P3« » Four Thirds 12.2 4032 30241080/60i20.810.153651Olympus E-P3

Olympus E-PL2« » Four Thirds 12.2 4032 3024720/30p21.410.257355Olympus E-PL2

Olympus E-PL3« » Four Thirds 12.2 4032 30241080/60i20.910.349952Olympus E-PL3

Olympus E-PL1« » Four Thirds 12.2 4032 3024720/30p21.510.148754Olympus E-PL1

Olympus E-620« » Four Thirds 12.2 4032 3024-21.310.353655Olympus E-620

Olympus E-P1« » Four Thirds 12.2 4032 3024720/30p21.410.453655Olympus E-P1

Olympus E-520« » Four Thirds 10.0 3648 2736-21.410.454855Olympus E-520

Panasonic G10« » Four Thirds 12.0 4000 3000720/30p21.210.141152Panasonic G10

Panasonic GF1« » Four Thirds 12.0 4000 3000720/30p21.210.351354Panasonic GF1

Panasonic GH1« » Four Thirds 12.0 4000 30001080/24p21.611.677264Panasonic GH1

Many modern cameras are not only capable of taking still images, but can also record movies. The E-P2 indeed provides movie recording capabilities. The highest resolution format that the E-P2 can use is 720/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The tables below summarize some of the other core capabilities of the Olympus E-P2 in connection with corresponding information for a sample of similar cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Olympus E-P2- n 3.0 230 fixed n 1/4000s 3.0 n Y Olympus E-P2

Olympus E-P3« »- n 3.0 614 fixed Y 1/4000s 3.0 Y Y Olympus E-P3

Olympus E-PL2« »- n 3.0 460 fixed n 1/4000s 3.0 Y Y Olympus E-PL2

Olympus E-PL3« »- n 3.0 460 tilting n 1/4000s 5.5 n Y Olympus E-PL3

Olympus E-PL1« »- n 2.7 230 fixed n 1/2000s 3.0 Y Y Olympus E-PL1

Olympus E-620« »optical n 2.7 230 swivel n 1/4000s 4.0 Y Y Olympus E-620

Olympus E-P1« »- n 3.0 230 fixed n 1/4000s 3.0 n Y Olympus E-P1

Olympus E-520« »optical n 2.7 215 fixed n 1/4000s 3.5 Y Y Olympus E-520

Panasonic G10« »202 n 3.0 460 fixed n 1/4000s 2.6 Y n Panasonic G10

Panasonic GF1« »- n 3.0 460 fixed n 1/4000s 3.0 Y n Panasonic GF1

Panasonic GH1« »1440 n 3.0 460 swivel n 1/4000s 3.0 Y n Panasonic GH1

One feature that differentiates the E-P2 from many other cameras is in-body image stabilization (IBIS). The E-P2 reduces the risk of handshake-induced blur with all attached lenses, while cameras without IBIS have to rely on optical image stabilization in OIS-equipped lenses to achieve the same effect.



Connection comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-P2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Olympus E-P2Ystereo---mini2.0---Olympus E-P2

Olympus E-P3« »Ystereo---mini2.0---Olympus E-P3

Olympus E-PL2« »Ystereo---mini2.0---Olympus E-PL2

Olympus E-PL3« »Ystereo---mini2.0---Olympus E-PL3

Olympus E-PL1« »Ystereo---mini2.0---Olympus E-PL1

Olympus E-620« »Y-----2.0---Olympus E-620

Olympus E-P1« »Ystereo---mini2.0---Olympus E-P1

Olympus E-520« »Y-----2.0---Olympus E-520

Panasonic G10« »Ymono---mini2.0---Panasonic G10

Panasonic GF1« »Ymonomono--mini2.0---Panasonic GF1

Panasonic GH1« »Ystereo-Y-mini2.0---Panasonic GH1


Expert reviews

While the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the E-P2 handle or perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased. This is why hands-on reviews by experts are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog).

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Olympus E-P2+69/1004/54.5/54.5/5 Nov 2009 799- i Olympus E-P2

Olympus E-P3« »83/10074/1004.5/54.5/54.5/5 Jun 2011 799- i Olympus E-P3

Olympus E-PL2« »83/10071/1004.5/54.5/54.5/5 Jan 2011 599- i Olympus E-PL2

Olympus E-PL3« »+ +72/1004.5/5-4/5 Jun 2011 599- i Olympus E-PL3

Olympus E-PL1« »86/10069/1004/54.5/54.5/5 Feb 2010 599- i Olympus E-PL1

Olympus E-620« »88/10072/1004.5/5o5/5 Feb 2009 699- i Olympus E-620

Olympus E-P1« »+66/1004/54/54.5/5 Jun 2009 799- i Olympus E-P1

Olympus E-520« »87/100+ +4.5/54/54.5/5 May 2008 699- i Olympus E-520

Panasonic G10« »-70/1004/5-4/5 Mar 2010 499- i Panasonic G10

Panasonic GF1« »85/10069/1004.5/54.5/54.5/5 Sep 2009 749- i Panasonic GF1

Panasonic GH1« »+ +72/1004.5/55/54.5/5 Mar 2009 899- i Panasonic GH1
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Olympus E-P2 FAQ

Below are some additional questions and answers concerning some particular features of the E-P2.

What technology is the imaging sensor in the E-P2 based on?

The camera is build around a CMOS (Complementary Metal–Oxide–Semiconductor) sensor.

Which image processing chip is used to convert the raw signal into an image file and perform noise reduction and image sharpening?

Olympus equipped the E-P2 with the TruePic V image processor.

What is the ISO sensitivity range of the E-P2?

The camera has a native sensitivity range from ISO 100 to ISO 6400.

Can the camera be equipped with an optional viewfinder?

Yes, Olympus provides the VF-2 as an accessory (here on amazon) that can be mounted on the hotshoe.

What is the life expectancy of the shutter in the Olympus PEN E-P2?

Olympus does not publish a shutter rating for the E-P2. Yet, shutters in comparable cameras from other manufacturers are said to be good for at least 100 000 actuations. It should be noted, though, that this number represents a Mean Time before Failure. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust an expected shutter life of 100 000 shots over, say, three years, one would have to take about 100 pictures each and every day.

What is the fastest shutter speed that can be used with flash?

The E-P2's flash sync speed is 1/180 sec.

Which battery does the E-P2 use?

The camera gets its power from the BLS-1 (here at amazon), which is a rechargeable Lithium-Ion power pack.

Camera to camera comparisons

In case you would like to check on the differences and similarities with other camera models, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    Specifications Summary
    Camera Model Olympus E-P2
    Camera Type Mirrorless system camera
    Camera Lens Micro Four Thirds lenses
    Launch Date November 2009
    Launch Price USD 799
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm
    Sensor Area 224.9 mm2
    Sensor Diagonal 21.6 mm
    Crop Factor 2.0x
    Sensor Resolution 12.2 Megapixels
    Image Resolution 4032 x 3024 pixels
    Pixel Pitch 4.29 μm
    Pixel Density 5.42 MP/cm2
    Moiré control Anti-Alias filter
    Movie Capability 720/30p Video
    ISO Setting 100-6400 ISO
    Image Processor TruePic V
    DXO Sensor Quality (score) 56
    DXO Color Depth (bits) 21.5
    DXO Dynamic Range (EV) 10.4
    DXO Low Light (ISO) 505
    Screen Specs
    Viewfinder Type Viewfinder optional
    LCD Framing Live View
    Rear LCD Size 3.0 inch
    LCD Resolution 230k dots
    LCD Attachment Fixed screen
    Shooting Specs
    Autofocus System Contrast-detect AF
    Manual Focusing AidNo Peaking Feature
    Maximum Shutter Speed 1/4000s
    Continuous Shooting 3 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent Shootingno E-Shutter
    Time Lapse Photographyno Intervalometer
    Image StabilizationIn-body stabilization
    Fill Flash no On-Board Flash
    Storage Medium SDHC cards
    Second Storage Option Single card slot
    UHS card support no
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port mini HDMI
    Wifi Support no Wifi
    Body Specs
    Battery Type BLS-1 power pack
    Battery Life (CIPA)300 shots per charge
    Body Dimensions 121 x 70 x 36 mm
    (4.8 x 2.8 x 1.4 in)
    Camera Weight 355 g (12.5 oz)
