Canon 77D vs Panasonic GX8

The Canon EOS 77D and the Panasonic Lumix DMC-GX8 are two digital cameras that were officially introduced, respectively, in February 2017 and July 2015. The 77D is a DSLR, while the GX8 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (77D) and a Four Thirds (GX8) sensor. The Canon has a resolution of 24 megapixels, whereas the Panasonic provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 77D
versus
Panasonic GX8
Canon 77D   Panasonic GX8
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Micro Four Thirds lenses
24 MP – APS-C sensor 20.2 MP – Four Thirds sensor
1080/60p Video 4K/30p Video
ISO 100-25,600 (100 - 51,200) ISO 200-25,600
Optical viewfinder Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots 3.0" LCD – 1040k dots
Swivel touchscreen Swivel touchscreen
6 shutter flaps per second 10 shutter flaps per second
Lens stabilization onlyIn-body stabilization
not weather sealedWeathersealed body
600 shots per battery charge330 shots per battery charge
131 x 100 x 76 mm, 540 g 133 x 78 x 63 mm, 487 g
logo
Check 77D offers at
ebay.com
logo
Check GX8 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 77D and the Panasonic Lumix DMC-GX8? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

An illustration of the physical size and weight of the Canon 77D and the Panasonic GX8 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The GX8 can be obtained in two different colors (black, silver), while the 77D is only available in black.

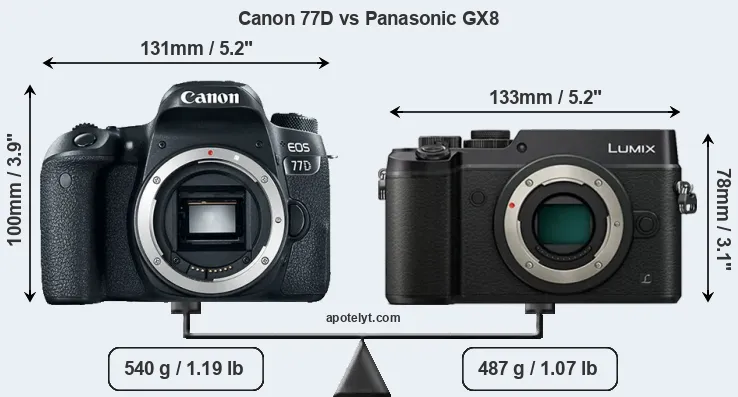

Size Canon 77D vs Panasonic GX8

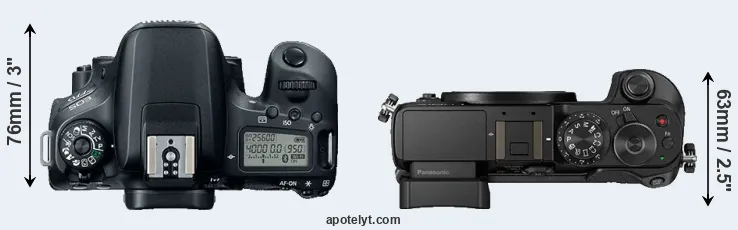

Compare 77D versus GX8 top

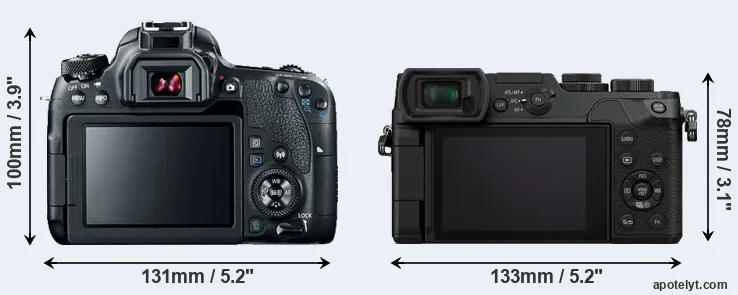

Comparison 77D or GX8 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GX8 is notably smaller (21 percent) than the Canon 77D. Moreover, the GX8 is markedly lighter (10 percent) than the 77D. It is noteworthy in this context that the GX8 is splash and dust-proof, while the 77D does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (77D) and the Micro Four Thirds Lens Catalog (GX8). Mirrorless cameras, such as the GX8, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the 77D gets 600 shots out of its Canon LP-E17 battery, while the GX8 can take 330 images on a single charge of its Panasonic DMW-BLC12 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 77D 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 899ebay.com
2.

Panasonic GX8 133 mm 78 mm 63 mm 487 g 330 Y Jul 2015 1,199ebay.com
3.

Canon T8i 131 mm 103 mm 76 mm 515 g 800 n Feb 2020 749ebay.com
4.

Canon T7 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 amazon.com
5.

Canon M6 112 mm 68 mm 45 mm 390 g 295 n Feb 2017 779ebay.com
6.

Canon SL2 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549ebay.com
7.

Canon T7i 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749ebay.com
8.

Canon M5 116 mm 89 mm 61 mm 427 g 295 n Sep 2016 979ebay.com
9.

Canon T6 129 mm 101 mm 78 mm 485 g 500 n Mar 2016 449ebay.com
10.

Canon T6i 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749ebay.com
11.

Canon T6s 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649ebay.com
12.

Canon T4i 133 mm 100 mm 79 mm 575 g 440 n Jun 2012 849ebay.com
13.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 1,099ebay.com
14.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 1,399ebay.com
15.

Panasonic G95 130 mm 94 mm 77 mm 536 g 290 Y Apr 2019 999ebay.com
16.

Panasonic GX9 124 mm 72 mm 47 mm 407 g 260 n Feb 2018 849ebay.com
17.

Panasonic GX7 123 mm 71 mm 55 mm 402 g 350 n Aug 2013 999ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 77D was launched at a somewhat lower price (by 25 percent) than the GX8, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 77D features an APS-C sensor and the Panasonic GX8 a Four Thirds sensor. The sensor area in the GX8 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 77D has a native 3:2 aspect ratio, while the one in the GX8 offers a 4:3 aspect.

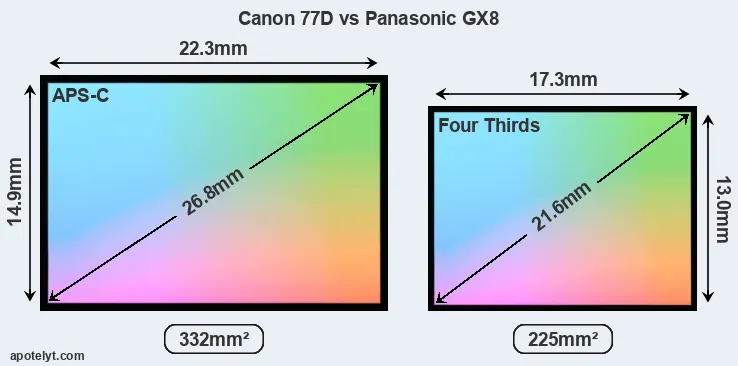

Canon 77D and Panasonic GX8 sensor measures

With 24MP, the 77D offers a higher resolution than the GX8 (20.2MP), but the 77D nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 3.34μm for the GX8) due to its larger sensor. Moreover, the 77D is a somewhat more recent model (by 1 year and 7 months) than the GX8, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 77D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 77D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic GX8 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

The 77D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 77D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Panasonic Lumix DMC-GX8 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

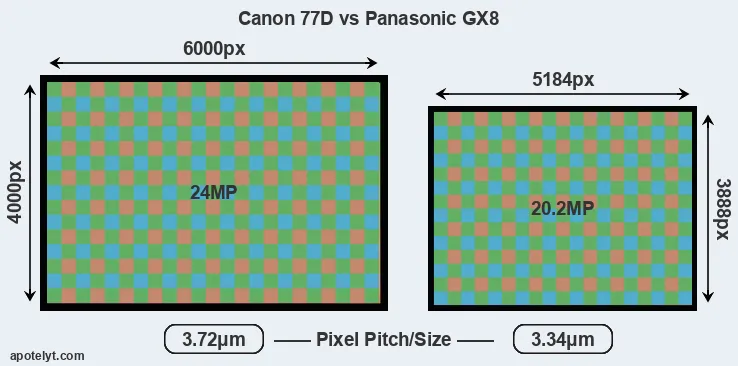

77D versus GX8 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 77D APS-C 24.0 6000 40001080/60p23.613.397178
2.

Panasonic GX8 Four Thirds 20.2 5184 38884K/30p23.512.680675
3.

Canon T8i APS-C 24.0 6000 40004K/24p24.013.5187383
4.

Canon T7 APS-C 24.0 6000 40001080/30p23.813.3168481
5.

Canon M6 APS-C 24.0 6000 40001080/60p23.412.6131778
6.

Canon SL2 APS-C 24.0 6000 40001080/60p23.613.4104179
7.

Canon T7i APS-C 24.0 6000 40001080/60p23.713.1158680
8.

Canon M5 APS-C 24.0 6000 40001080/60p23.412.4126277
9.

Canon T6 APS-C 17.9 5184 34561080/30p22.011.778166
10.

Canon T6i APS-C 24.0 6000 40001080/30p22.712.091971
11.

Canon T6s APS-C 24.0 6000 40001080/30p22.612.091570
12.

Canon T4i APS-C 17.9 5184 34561080/30p21.711.272262
13.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
14.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
15.

Panasonic G95 Four Thirds 20.2 5184 38884K/30p23.213.0127375
16.

Panasonic GX9 Four Thirds 20.2 5184 38884K/30p23.112.8116374
17.

Panasonic GX7 Four Thirds 15.8 4592 34481080/60p22.612.271870
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the GX8 provides a better video resolution than the 77D. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the GX8 has an electronic viewfinder (2360k dots), while the 77D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the GX8 offers a wider field of view (100%) than the one in the 77D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the GX8 has a higher magnification (0.77x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 77D, the Panasonic GX8, and comparable cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 77Doptical Y3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
2.

Panasonic GX82360 n3.0 / 1040 swivel Y 1/8000s 10.0/s n Y
3.

Canon T8ioptical n3.0 / 1040 swivel Y 1/4000s 7.5/s Y n
4.

Canon T7optical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
5.

Canon M6optional n3.0 / 1040 tilting Y 1/4000s 9.0/s Y n
6.

Canon SL2optical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
7.

Canon T7ioptical n3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
8.

Canon M52360 n3.2 / 1620 tilting Y 1/4000s 9.0/s Y n
9.

Canon T6optical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
10.

Canon T6ioptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
11.

Canon T6soptical Y3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
12.

Canon T4ioptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
13.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
14.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
15.

Panasonic G952360 n3.0 / 1240 swivel Y 1/4000s 9.0/s Y Y
16.

Panasonic GX92760 n3.0 / 1240 tilting Y 1/4000s 9.0/s Y Y
17.

Panasonic GX72760 n3.0 / 1040 tilting Y 1/8000s 5.0/s Y Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One difference between the cameras concerns the presence of an on-board flash. The 77D has one, while the GX8 does not. While the built-in flash of the 77D is not very powerful, it can at times be useful as a fill-in light.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GX8 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon 77D and the Panasonic GX8 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 77D and the GX8 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 77D and Panasonic Lumix DMC-GX8 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 77DYstereo / monoY-mini2.0YYY
2.

Panasonic GX8Ystereo / monoY-micro2.0YY-
3.

Canon T8iYstereo / monoY-mini2.0Y-Y
4.

Canon T7Ymono / mono--mini2.0YY-
5.

Canon M6Ystereo / monoY-mini2.0YYY
6.

Canon SL2Ystereo / monoY-mini2.0YYY
7.

Canon T7iYstereo / monoY-mini2.0YYY
8.

Canon M5Ystereo / monoY-mini2.0YYY
9.

Canon T6Ymono / mono--mini2.0YY-
10.

Canon T6iYstereo / monoY-mini2.0YY-
11.

Canon T6sYstereo / monoY-mini2.0YY-
12.

Canon T4iYstereo / monoY-mini2.0---
13.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
14.

Olympus E-M1Ystereo / monoY-micro2.0Y--
15.

Panasonic G95Ystereo / monoYYmicro2.0Y-Y
16.

Panasonic GX9Ystereo / mono--micro2.0Y-Y
17.

Panasonic GX7Ystereo / mono--mini2.0YY-
padding

Both the 77D and the GX8 have been discontinued, but can regularly be found used on ebay. The GX8 was replaced by the Panasonic GX9, while the 77D does not have a direct successor. Further information on the features and operation of the 77D and GX8 can be found, respectively, in the Canon 77D Manual (free pdf) or the online Panasonic GX8 Manual.

ad

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon 77D and the Panasonic GX8? Which camera is better? The listing below highlights the relative strengths of the two models.

ilogo

Arguments in favor of the Canon EOS 77D:

  • More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
  • More dynamic range: Captures a larger spectrum of light and dark details (0.7 EV of extra DR).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Longer lasting: Can take more shots (600 versus 330) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More affordable: Was introduced into a lower priced segment (25 percent cheaper at launch).
  • More modern: Is somewhat more recent (announced 1 year and 7 months after the GX8).

ilogo

Reasons to prefer the Panasonic Lumix DMC-GX8:

  • Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.77x vs 0.51x).
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (10 vs 6 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • More compact: Is smaller (133x78mm vs 131x100mm) and will fit more readily into a bag.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • More heavily discounted: Has been on the market for longer (launched in July 2015).

If the count of relative strengths (bullet points above) is taken as a measure, the GX8 emerges as the winner of the match-up (12 : 10 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

77D 10:12 GX8

How about other alternatives? Do the specifications of the Canon 77D and the Panasonic GX8 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 77D and the GX8 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 77D4.5/5..4/582/1004.5/54/5 Feb 2017 899ebay.com
2.

Panasonic GX85/5+..82/1004.5/54.5/5 Jul 2015 1,199ebay.com
3.

Canon T8i4.5/5+3/580/1004/53.5/5 Feb 2020 749ebay.com
4.

Canon T7..o3.5/5..3.5/53.5/5 Feb 2018 449 amazon.com
5.

Canon M6......80/1004/54/5 Feb 2017 779ebay.com
6.

Canon SL24/5+ +4/578/1004.5/54.5/5 Jun 2017 549ebay.com
7.

Canon T7i4.5/5..3.5/580/1004.5/54/5 Feb 2017 749ebay.com
8.

Canon M54/5+4/582/1004/54/5 Sep 2016 979ebay.com
9.

Canon T64/5o4/573/1004/54/5 Mar 2016 449ebay.com
10.

Canon T6i5/5....75/1004.5/54.5/5 Feb 2015 749ebay.com
11.

Canon T6s5/5+..77/1004.5/54.5/5 Feb 2015 649ebay.com
12.

Canon T4i4/5+ +..77/1004.5/54.5/5 Jun 2012 849ebay.com
13.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 1,099ebay.com
14.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 1,399ebay.com
15.

Panasonic G954.5/5+4.5/583/1004.5/54.5/5 Apr 2019 999ebay.com
16.

Panasonic GX94/5+4/584/1004.5/54.5/5 Feb 2018 849ebay.com
17.

Panasonic GX74/5+..79/1005/55/5 Aug 2013 999ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check 77D offers at
ebay.com
logo
Check GX8 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications: Canon 77D vs Panasonic GX8

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 77D Panasonic GX8
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Micro Four Thirds lenses
    Launch Date February 2017 July 2015
    Launch Price USD 899 USD 1,199
    Sensor Specs Canon 77D Panasonic GX8
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 22.3 x 14.9 mm 17.3 x 13.0 mm
    Sensor Area 332.27 mm2 224.9 mm2
    Sensor Diagonal 26.8 mm 21.6 mm
    Crop Factor 1.6x 2.0x
    Sensor Resolution 24 Megapixels 20.2 Megapixels
    Image Resolution 6000 x 4000 pixels 5184 x 3888 pixels
    Pixel Pitch 3.72 μm 3.34 μm
    Pixel Density 7.22 MP/cm2 8.96 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/60p Video 4K/30p Video
    ISO Setting 100 - 25,600 ISO 200 - 25,600 ISO
    ISO Boost 100 - 51,200 ISO 100 - 25,600 ISO
    Image Processor DIGIC 7 Venus
    DXO Sensor Quality (score) 78 75
    DXO Color Depth (bits) 23.6 23.5
    DXO Dynamic Range (EV) 13.3 12.6
    DXO Low Light (ISO) 971 806
    Screen Specs Canon 77D Panasonic GX8
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.51x 0.77x
    Viewfinder Resolution 2360k dots
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1040k dots 1040k dots
    LCD Attachment Swivel screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon 77D Panasonic GX8
    Focus System Phase-detect AF Contrast-detect AF
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/4000s 1/8000s
    Continuous Shooting 6 shutter flaps/s 10 shutter flaps/s
    Electronic Shutterno E-Shutterup to 1/16000s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support UHS-I UHS-I
    Connectivity Specs Canon 77D Panasonic GX8
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port External MIC port External MIC port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication NFC built-in NFC built-in
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Canon 77D Panasonic GX8
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type Canon LP-E17 Panasonic DMW-BLC12
    Battery Life (CIPA)600 shots per charge330 shots per charge
    Body Dimensions 131 x 100 x 76 mm
    (5.2 x 3.9 x 3.0 in)
    133 x 78 x 63 mm
    (5.2 x 3.1 x 2.5 in)
    Camera Weight 540 g (19.0 oz) 487 g (17.2 oz)
    logo
    Check 77D offers at
    ebay.com
    logo
    Check GX8 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 77D vs Panasonic GX8
