Canon 80D Comparison Review

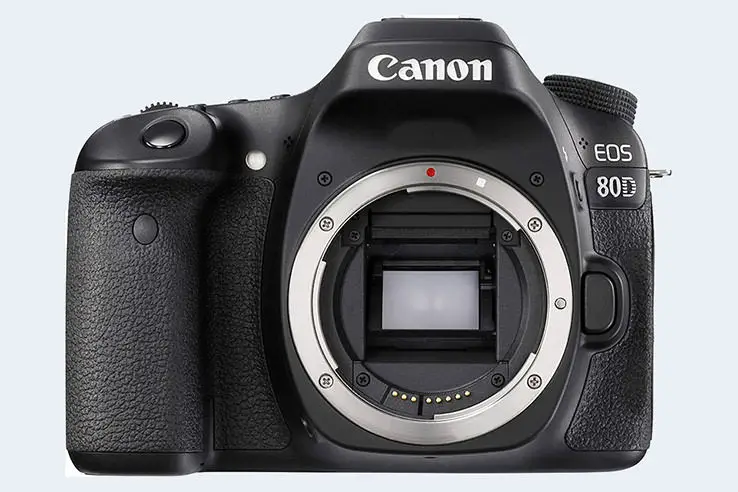

The Canon EOS 80D is a DSLR (Digital Single Lens Reflex) camera that was officially introduced in February 2016 and is equipped with an APS-C sensor. It offers a resolution of 24 megapixel.

camera

Is the Canon 80D a good camera? The 80D has a Camera Elo of 2332. This rating puts the 80D among the top 20 percent of all digital single lens reflex cameras. In terms of its sensor size category (APS cameras), the 80D ranks among the top 30 percent. Based on its within category standings, the camera earns a 4.5-star performance rating.

Headline Specifications
Canon 80D
Digital single lens reflex
Canon EF mount lenses
24 MP, APS-C Sensor
1080/60p Video
ISO 100 - 16 000 (100 - 25 600)
Optical viewfinder
3.0 LCD, 1040k dots

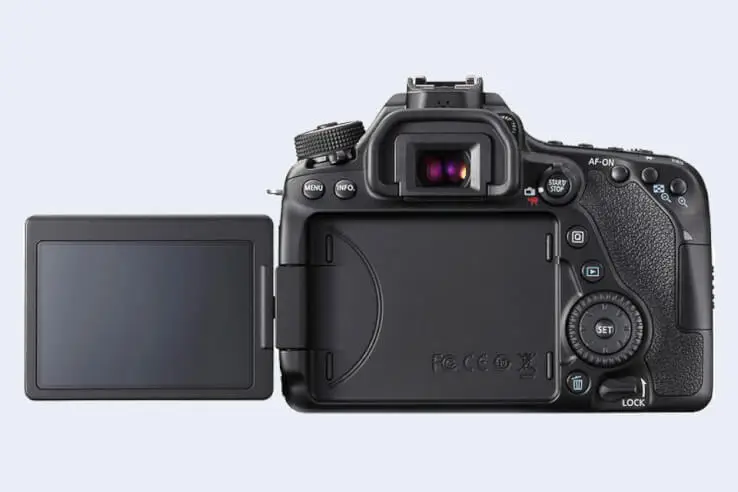

Swivel touchscreen
7 shutter flaps per second
Weathersealed body
960 shots per battery charge
139 x 105 x 79 mm, 730 g


badge

Read on to find out more about the camera's size, sensor, features, reception by expert reviewers, and how it compares to other digital cameras.

Body comparison with a credit card

An illustration of the physical dimensions of the Canon 80D vis-à-vis a credit card is provided in the side-by-side display below. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

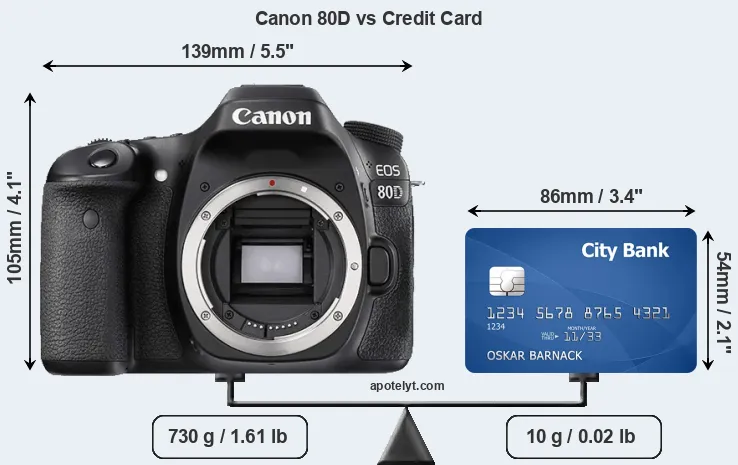

Canon 80D vs credit card front

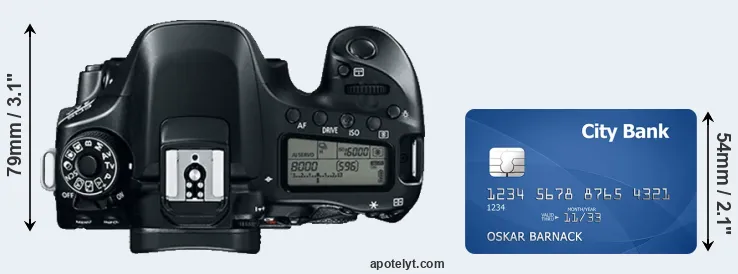

80D versus credit card top view

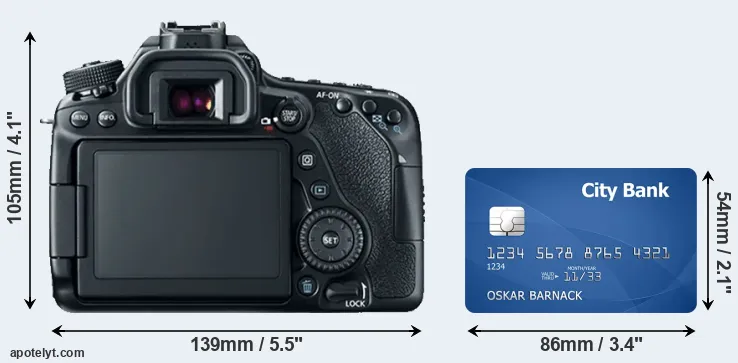

80D and credit card rear side

The table below summarizes the key physical specs of the Canon 80D alongside a set of comparators. If you want to review a camera pair side-by-side, just select a right-side comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.

scroll hint
Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life 1
Weather
Sealing
Camera
Launch 2
Launch
Price (USD)
Street
Price

Canon 80D 5.5 in 4.1 in 3.1 in 25.8 oz 960 Y Feb 2016 1,199i

Canon 90D 5.6 in 4.1 in 3.0 in 24.7 oz 1300 Y Aug 2019 1,199 i

Canon 6D Mark II 5.7 in 4.4 in 3.0 in 27.0 oz 1200 Y Jun 2017 1,999 i

Canon G3 X 4.8 in 3.0 in 4.1 in 25.9 oz 300 Y Jun 2015 999 i

Canon T6i 5.2 in 4.0 in 3.1 in 19.6 oz 440 n Feb 2015 749i

Canon T6s 5.2 in 4.0 in 3.1 in 19.9 oz 440 n Feb 2015 649i

Canon 7D II 5.9 in 4.4 in 3.1 in 32.1 oz 670 Y Sep 2014 1,799 i

Canon 70D 5.5 in 4.1 in 3.1 in 26.6 oz 920 Y Jul 2013 1,199i

Canon 60D 5.7 in 4.2 in 3.1 in 26.6 oz 1100 Y Aug 2010 1,399i

Nikon D7500 5.4 in 4.1 in 2.9 in 25.4 oz 950 Y Apr 2017 1,299 i

Nikon D7200 5.4 in 4.2 in 3.0 in 27.0 oz 1110 Y Mar 2015 1,199i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.

The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Canon 80D was launched in the US market at a price of $1,199. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Canon 80D:
Check Ebay offers

Sensor comparison with a 35mm slide

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

The Canon 80D features an APS-C sensor and has a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the Canon 80D among the medium-sized sensor cameras that aim to strike a balance between image quality and portability.

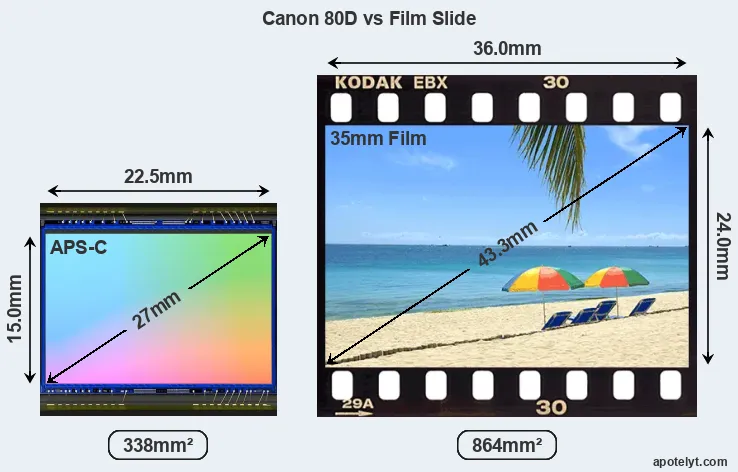

Canon 80D sensor measures

Consistent information on actual sensor performance is available from DXO Mark for most cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall

Canon 80D APS-C 24.0 6000 40001080/60p23.613.2113579

Canon 90D APS-C 32.3 6960 46404K/30p........

Canon 6D Mark II Full Frame 26.0 6240 41601080/60p24.411.9286285

Canon G3 X 1-inch 20.0 5472 36481080/60p21.412.352163

Canon T6i APS-C 24.0 6000 40001080/30p22.712.091971

Canon T6s APS-C 24.0 6000 40001080/30p22.612.091570

Canon 7D II APS-C 20.0 5472 36481080/60p22.411.8108270

Canon 70D APS-C 20.0 5472 36481080/30p22.511.692668

Canon 60D APS-C 17.9 5184 34561080/30p22.211.581366

Nikon D7500 APS-C 20.7 5568 37124K/30p24.314.0148386

Nikon D7200 APS-C 24.0 6000 40001080/60p24.514.6133387

Many modern cameras cannot only take still pictures, but also record videos. The 80D indeed provides movie recording capabilities. The highest resolution format that the 80D can use is 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 80D has an optical viewfinder that provides a field of view of 100% and a magnification of 0.59x. The following tables report on some other key feature differences and similarities of the Canon 80D and comparable cameras.

scroll hint
Core Features
  Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
(000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab

Canon 80Doptical Y 3.0 1040 swivel Y 1/8000s 7.0 Y n

Canon 90Doptical Y 3.0 1040 swivel Y 1/8000s 11.0 Y n

Canon 6D Mark IIoptical Y 3.0 1040 swivel Y 1/4000s 6.5 n n

Canon G3 Xoptional n 3.2 1620 tilting Y 1/2000s 5.9 Y Y

Canon T6ioptical n 3.0 1040 swivel Y 1/4000s 5.0 Y n

Canon T6soptical Y 3.0 1040 swivel Y 1/4000s 5.0 Y n

Canon 7D IIoptical Y 3.0 1040 fixed n 1/8000s 10.0 Y n

Canon 70Doptical Y 3.0 1040 swivel Y 1/8000s 7.0 Y n

Canon 60Doptical Y 3.0 1040 swivel n 1/8000s 5.3 Y n

Nikon D7500optical Y 3.2 922 tilting Y 1/8000s 8.0 Y n

Nikon D7200optical Y 3.2 1229 fixed n 1/8000s 6.0 Y n

One convenient feature of the 80D is the presence of an on-board flash. While this built-in flash is not very powerful, it can at times be useful as a fill-in light to brighten deep shadow areas.

Connection comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 80D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support

Canon 80DYstereomonoYYmini2.0YY-

Canon 90DYstereomonoYYmini2.0Y-Y

Canon 6D Mark IIYstereomonoY-mini2.0YYY

Canon G3 XYstereomonoYYmini2.0YY-

Canon T6iYstereomonoY-mini2.0YY-

Canon T6sYstereomonoY-mini2.0YY-

Canon 7D IIYstereomonoYYmini3.0---

Canon 70DYstereomonoY-mini2.0Y--

Canon 60DYmonomonoY-mini2.0---

Nikon D7500YstereomonoYYmini2.0Y-Y

Nikon D7200YstereomonoYYmini2.0YY-

It is notable that the 80D has a microphone port. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Expert reviews

While the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it says nothing about, for example, the handling, responsiveness, and overall imaging quality of the 80D in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate. This is where reviews by experts come in. The table below summarizes the assessments of some of the best known camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog).

scroll hint
Review Scores
  Camera
Model
camera
  labs
dp
review
ephoto
  zine
imaging
resource
photography
  blog
Camera
Launch
Launch
Price (USD)
Street
Price

Canon 80D+ +84/1004.5/54.5/54.5/5 Feb 2016 1,199i

Canon 90D+85/1004.5/54.5/54.5/5 Aug 2019 1,199 i

Canon 6D Mark II+80/1004.5/54/54/5 Jun 2017 1,999 i

Canon G3 X+..4.5/53.5/54/5 Jun 2015 999 i

Canon T6i..75/1004.5/54.5/54.5/5 Feb 2015 749i

Canon T6s+77/1004.5/54.5/54.5/5 Feb 2015 649i

Canon 7D II+84/1004/55/54.5/5 Sep 2014 1,799 i

Canon 70D+ +83/1004.5/54.5/55/5 Jul 2013 1,199i

Canon 60D+79/1004/55/54.5/5 Aug 2010 1,399i

Nikon D7500+ +86/1005/54.5/54.5/5 Apr 2017 1,299 i

Nikon D7200+ +84/1004.5/54/54.5/5 Mar 2015 1,199i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Canon 80D FAQ

Below are some additional questions and answers concerning some particular features of the 80D.

What technology is the imaging sensor in the 80D based on?

The camera has a CMOS (Complementary Metal–Oxide–Semiconductor) sensor at its core.

Which image processing chip is used to convert the raw signal into an image file and perform noise reduction and image sharpening?

Canon equipped the 80D with the DIGIC 6 image processor.

What is the ISO sensitivity range of the 80D?

The camera has a native sensitivity range from ISO 100 to ISO 16000.

Does the camera have a selfie-friendly screen?

Yes, the LCD-screen of the 80D is flexible and can be turned to be front-facing for capturing selfies.

What is the life expectancy of the shutter in the Canon EOS 80D?

Canon mentions a shutter rating of 100 000 actuations for the 80D. This number represents a Mean Time before Failure, that is an average value. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust the expected shutter life of the 80D over, say, three years, one would have to take about 100 pictures each and every day.

Do I need to purchase an external camera trigger to shoot time-lapse sequences?

No, the Canon EOS 80D has an intervalometer built-in, so that low frequency shooting (for example, flower blooming, sunset, moon rise) can be undertaken without the need to purchase a separate external intervalometer and related software.

Does the Canon 80D feature an autofocus assist light?

Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.

What is the fastest shutter speed that can be used with flash?

The 80D's flash sync speed is 1/250 sec.

Does the Canon 80D support the Ultra High Speed (UHS) bus interface for SD cards?

Yes, the camera can indeed use UHS-I cards (data transfer speed of up to 104 MB/s).

Which battery does the 80D use?

The camera gets its power from the LP-E6N (here at amazon), which is a rechargeable Lithium-Ion power pack.

Is there a vertical grip available for the 80D?

Yes, Canon offers the BG-E14 as an optional accessory to facilitate shooting in portrait orientation and to provide additional battery power.

Where can I find the best deals for the 80D?

Grey imports from Asia, as found on eBay, are often very attractively priced. However, these cameras come without a warranty from Canon.

Camera to camera comparisons

In case you would like to check on the differences and similarities with other camera models, just use the search menu below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    Specifications Summary
    Camera Model Canon 80D
    Camera Type Digital single lens reflex
    Camera Lens Canon EF mount lenses
    Launch Date February 2016
    Launch Price USD 1 199
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format APS-C Sensor
    Sensor Size 22.5 x 15.0 mm
    Sensor Area 338 mm2
    Sensor Diagonal 27 mm
    Crop Factor 1.6x
    Sensor Resolution 24 Megapixels
    Image Resolution 6 000 x 4 000 pixels
    Pixel Pitch 3.75 μm
    Pixel Density 7.11 MP/cm2
    Moiré control Anti-Alias filter
    Movie Capability 1080/60p Video
    ISO Setting 100 - 16 000 ISO
    ISO Boost 100 - 25 600 ISO
    Image Processor DIGIC 6
    DXO Sensor Quality (score) 79
    DXO Color Depth (bits) 23.6
    DXO Dynamic Range (EV) 13.2
    DXO Low Light (ISO) 1135
    Screen Specs
    Viewfinder Type Optical viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.59x
    Top-Level Screen Control Panel
    LCD Framing Live View
    LCD Size 1040k dots
    LCD Attachment Swivel screen
    Touch Input Touchscreen
    Shooting Specs
    Focus System Phase-detect AF
    Manual Focusing Aidno Peaking Feature
    Maximum Shutter Speed 1/8000s
    Continuous Shooting 7 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent Shootingno E-Shutter
    Time Lapse PhotographyIntervalometer Built-in
    Fill Flash Build-in Flash
    Storage Medium SDXC cards
    Second Storage Option Single card slot
    UHS card support UHS-I
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port mini HDMI
    Microphone Port External MIC port
    Headphone Socket Headphone port
    Wifi Support Wifi built-in
    Near-Field Communication NFC built-in
    Body Specs
    Environmental SealingWeathersealed body
    Battery Type LP-E6N power pack
    Battery Life (CIPA)960 shots per charge
    Body Dimensions 139 x 105 x 79 mm
    (5.5 x 4.1 x 3.1 in)
    Camera Weight 730 g (25.8 oz)
