Canon 80D vs Sony A5100

The Canon EOS 80D and the Sony Alpha A5100 are two digital cameras that were announced, respectively, in February 2016 and August 2014. The 80D is a DSLR, while the A5100 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 80D		Sony A5100
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Sony E mount lenses
24 MP – APS-C sensor		24 MP – APS-C sensor
1080/60p Video		1080/60p Video
ISO 100-16,000 (100 - 25,600)		ISO 100-25,600
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 922k dots
Swivel touchscreen		Tilting touchscreen
7 shutter flaps per second		6 shutter flaps per second
Weathersealed body		not weather sealed
960 shots per battery charge		400 shots per battery charge
139 x 105 x 79 mm, 730 g		110 x 63 x 36 mm, 283 g

Check 80D offers at
ebay.com
Check A5100 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 80D and the Sony Alpha A5100? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

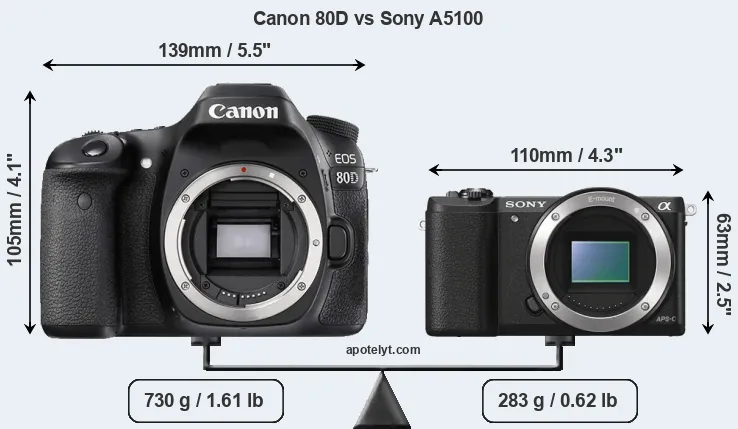

An illustration of the physical size and weight of the Canon 80D and the Sony A5100 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The A5100 can be obtained in two different colors (black, white), while the 80D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A5100 is considerably smaller (53 percent) than the Canon 80D. Moreover, the A5100 is substantially lighter (61 percent) than the 80D. It is worth mentioning in this context that the 80D is splash and dust resistant, while the A5100 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (80D) and the Sony E-Mount Lens Catalog (A5100). Mirrorless cameras, such as the A5100, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the 80D gets 960 shots out of its Canon LP-E6N battery, while the A5100 can take 400 images on a single charge of its Sony NP-FW50 power pack. The power pack in the A5100 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
2.		Sony A5100	110 mm	63 mm	36 mm	283 g	400	n	Aug 2014	US$ 549	ebay.com
3.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
4.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	US$ 1 799	ebay.com
5.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
6.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	US$ 1 199	ebay.com
7.		Canon 90D	141 mm	105 mm	77 mm	701 g	1300	Y	Aug 2019	US$ 1 199	amazon.com
8.		Canon G3 X	123 mm	77 mm	105 mm	733 g	300	Y	Jun 2015	US$ 999	ebay.com
9.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
10.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
11.		Nikon D7200	136 mm	107 mm	76 mm	765 g	1110	Y	Mar 2015	US$ 1 199	ebay.com
12.		Nikon D7500	136 mm	104 mm	73 mm	720 g	950	Y	Apr 2017	US$ 1 299	amazon.com
13.		Sony A3000	128 mm	91 mm	85 mm	411 g	470	n	Aug 2013	US$ 329	ebay.com
14.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	US$ 449	ebay.com
15.		Sony A6000	120 mm	67 mm	45 mm	344 g	360	n	Feb 2014	US$ 599	ebay.com
16.		Sony NEX-3	117 mm	62 mm	33 mm	297 g	330	n	May 2010	US$ 599	ebay.com
17.		Sony NEX-3N	110 mm	62 mm	35 mm	269 g	480	n	Feb 2013	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The A5100 was launched at a markedly lower price (by 54 percent) than the 80D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the A5100 is 9 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (80D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Even though the A5100 has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the A5100 has a lower pixel density and larger individual pixels (with a pixel pitch of 3.91μm versus 3.75μm for the 80D), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the 80D is a somewhat more recent model (by 1 year and 6 months) than the A5100, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size.

The Canon EOS 80D has a native sensitivity range from ISO 100 to ISO 16000, which can be extended to ISO 100-25600. The corresponding ISO settings for the Sony Alpha A5100 are ISO 100 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
2.		Sony A5100	APS-C	24.0	6000	4000	1080/60p	23.8	12.7	1347	80
3.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
4.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
5.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
6.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
7.		Canon 90D	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
8.		Canon G3 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	521	63
9.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
10.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
11.		Nikon D7200	APS-C	24.0	6000	4000	1080/60p	24.5	14.6	1333	87
12.		Nikon D7500	APS-C	20.7	5568	3712	4K/30p	24.3	14.0	1483	86
13.		Sony A3000	APS-C	19.8	5456	3632	1080/60i	23.7	12.8	1068	78
14.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79
15.		Sony A6000	APS-C	24.0	6000	4000	1080/60p	24.1	13.1	1347	82
16.		Sony NEX-3	APS-C	14.0	4592	3056	720/30p	22.1	12.0	830	68
17.		Sony NEX-3N	APS-C	16.0	4912	3264	1080/60i	22.8	12.5	1067	74
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/60p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the 80D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the A5100 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 80D, the Sony A5100, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
2.		Sony A5100	none	n	3.0 / 922	tilting	Y	1/4000s	6.0/s	Y	n
3.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
4.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
5.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
6.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
7.		Canon 90D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	11.0/s	Y	n
8.		Canon G3 X	optional	n	3.2 / 1620	tilting	Y	1/2000s	5.9/s	Y	Y
9.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Nikon D7200	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
12.		Nikon D7500	optical	Y	3.2 / 922	tilting	Y	1/8000s	8.0/s	Y	n
13.		Sony A3000	202	n	3.0 / 230	fixed	n	1/4000s	2.5/s	Y	n
14.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
15.		Sony A6000	1440	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
16.		Sony NEX-3	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
17.		Sony NEX-3N	optional	n	3.0 / 460	tilting	n	1/4000s	4.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 80D, but is missing on the A5100 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Canon 80D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 80D writes its imaging data to SDXC cards, while the A5100 uses SDXC or Memory Stick PRO Duo cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 80D and Sony Alpha A5100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
2.		Sony A5100	-	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
5.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
6.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
7.		Canon 90D	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
8.		Canon G3 X	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
9.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Nikon D7200	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
12.		Nikon D7500	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
13.		Sony A3000	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony A6000	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony NEX-3	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony NEX-3N	-	stereo / mono	-	-	micro	2.0	-	-	-

It is notable that the 80D has a hotshoe, while the A5100 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the 80D and the A5100 have been discontinued, but can regularly be found used on ebay. The 80D was replaced by the Canon 90D, while the A5100 does not have a direct successor. Further information on the features and operation of the 80D and A5100 can be found, respectively, in the Canon 80D Manual (free pdf) or the online Sony A5100 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon 80D or the Sony A5100 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS 80D:

• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (7 vs 6 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Can take more shots (960 versus 400) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More modern: Is somewhat more recent (announced 1 year and 6 months after the A5100).

Reasons to prefer the Sony Alpha A5100:

• More compact: Is smaller (110x63mm vs 139x105mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 447g or 61 percent) and is thus easier to take along.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More affordable: Was introduced into a lower priced category (54 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in August 2014).

If the count of relative strengths (bullet points above) is taken as a measure, the 80D is the clear winner of the match-up (13 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 80D and the Sony A5100 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 80D or the A5100 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
2.		Sony A5100	4.5/5	+	..	..	4.5/5	5/5	Aug 2014	US$ 549	ebay.com
3.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
4.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	US$ 1 799	ebay.com
5.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
6.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	US$ 1 199	ebay.com
7.		Canon 90D	4/5	+	4.5/5	85/100	4.5/5	4.5/5	Aug 2019	US$ 1 199	amazon.com
8.		Canon G3 X	3.5/5	+	..	..	4.5/5	4/5	Jun 2015	US$ 999	ebay.com
9.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
10.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
11.		Nikon D7200	4/5	+ +	..	84/100	4.5/5	4.5/5	Mar 2015	US$ 1 199	ebay.com
12.		Nikon D7500	4.5/5	+ +	4.5/5	86/100	5/5	4.5/5	Apr 2017	US$ 1 299	amazon.com
13.		Sony A3000	3/5	+	..	..	4/5	4/5	Aug 2013	US$ 329	ebay.com
14.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	US$ 449	ebay.com
15.		Sony A6000	5/5	+	4.5/5	80/100	4.5/5	5/5	Feb 2014	US$ 599	ebay.com
16.		Sony NEX-3	..	..	..	70/100	4.5/5	4/5	May 2010	US$ 599	ebay.com
17.		Sony NEX-3N	3/5	..	..	..	4.5/5	4.5/5	Feb 2013	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
