Canon 760D Comparison Review

The Canon EOS 760D (called Canon T6s in some regions) is a DSLR (Digital Single Lens Reflex) camera that was announced in February 2015 and is equipped with an APS-C sensor. It offers a resolution of 24 megapixel.

camera

The Canon 760D has a Camera Elo of 2304. This rating puts the 760D among the top 20 percent of all digital single lens reflex cameras. In terms of its sensor size category (APS cameras), the 760D falls among the top 30 percent. Based on its within category standings, the camera earns a 4.5-star performance rating.

Headline Specifications
Canon 760D
Digital single lens reflex
Canon EF mount lenses
24 MP, APS-C Sensor
1080/30p Video
ISO 100-12800 (100-25600)
Optical viewfinder
3.0" LCD, 1040k dots
Swivel touchscreen
5 shutter flaps per second
440 shots per battery charge
132 x 101 x 78 mm, 565 g


badge

Read on to find out more about the camera's size, sensor, features, reception by expert reviewers, and how it compares to other digital cameras.

Body comparison with a credit card

An illustration of the physical dimensions of the Canon 760D vis-à-vis a credit card is provided in the side-by-side display below. Three consecutive perspectives from the front, the top, and the back are presented. All width, height and depth dimensions are rounded to the nearest millimeter.

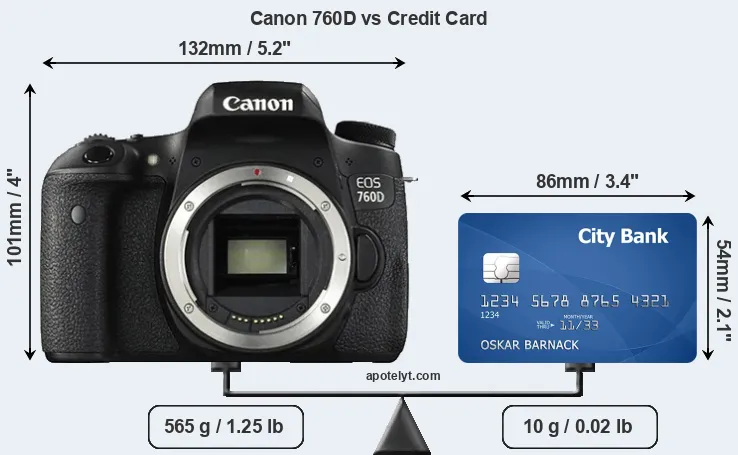

Canon 760D vs credit card front

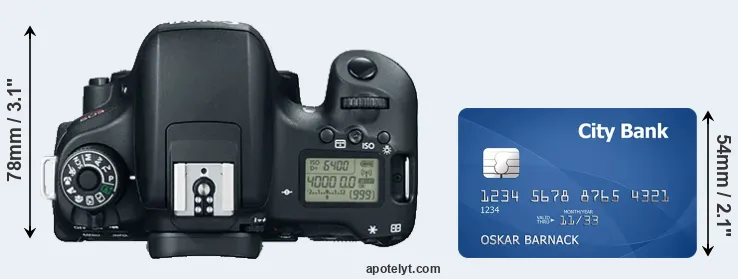

760D versus credit card top view

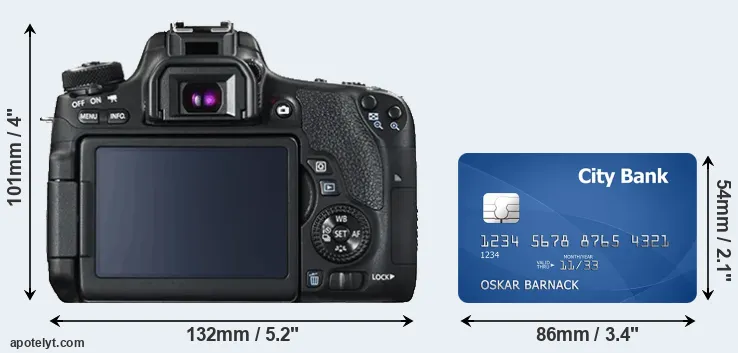

760D and credit card rear side

The table below summarizes the key physical specs of the Canon 760D alongside a set of comparators. If you want to review a camera pair side-by-side, just select a right-side comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon 760D 5.2 in 4.0 in 3.1 in 19.9 oz 440 n Feb 2015 649- i Canon 760D

Canon 2000D« » 5.1 in 4.0 in 3.1 in 16.8 oz 500 n Feb 2018 449 i i Canon 2000D

Canon 77D« » 5.2 in 3.9 in 3.0 in 19.0 oz 600 n Feb 2017 899 i i Canon 77D

Canon 800D« » 5.2 in 3.9 in 3.0 in 18.8 oz 600 n Feb 2017 749 i i Canon 800D

Canon M5« » 4.6 in 3.5 in 2.4 in 15.1 oz 295 n Sep 2016 979 i i Canon M5

Canon 750D« » 5.2 in 4.0 in 3.1 in 19.6 oz 440 n Feb 2015 749- i Canon 750D

Canon 1200D« » 5.1 in 3.9 in 3.1 in 16.9 oz 500 n Feb 2014 449- i Canon 1200D

Canon G1 X Mark II« » 4.6 in 2.9 in 2.6 in 19.5 oz 240 n Feb 2014 799 i i Canon G1 X Mark II

Canon G7 X« » 4.1 in 2.4 in 1.6 in 10.7 oz 210 n Sep 2014 699- i Canon G7 X

Canon 650D« » 5.2 in 3.9 in 3.1 in 20.3 oz 440 n Jun 2012 849- i Canon 650D

Nikon D5600« » 4.9 in 3.8 in 2.8 in 16.4 oz 970 n Nov 2016 699 i i Nikon D5600

The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Canon 760D was launched in the US market at a price of $649. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Canon 760D:
Check Ebay offers

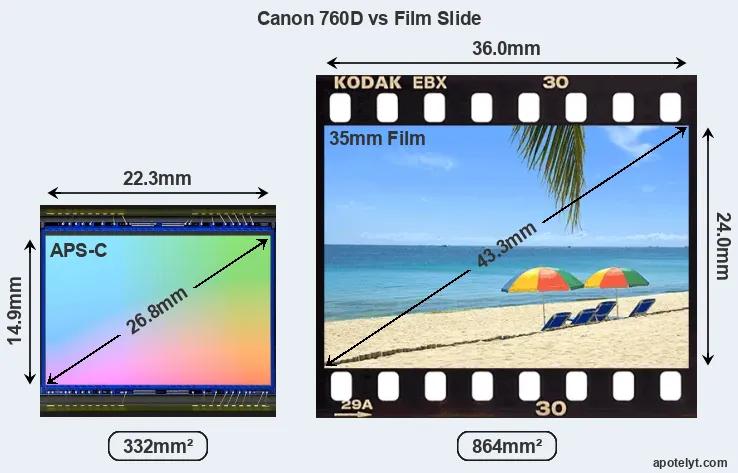

Sensor comparison with a 35mm slide

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tent to lead to bigger and heavier cameras and lenses.

The Canon 760D features an APS-C sensor and has a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the Canon 760D among the medium-sized sensor cameras that aim to strike a balance between image quality and portability.

Canon 760D sensor measures

For most cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Canon 760D APS-C 24.0 6000 40001080/30p22.612.091570Canon 760D

Canon 2000D« » APS-C 24.0 6000 40001080/30p22.611.9100971Canon 2000D

Canon 77D« » APS-C 24.0 6000 40001080/60p23.613.397178Canon 77D

Canon 800D« » APS-C 24.0 6000 40001080/60p----Canon 800D

Canon M5« » APS-C 24.0 6000 40001080/60p23.412.4126277Canon M5

Canon 750D« » APS-C 24.0 6000 40001080/60p22.712.091971Canon 750D

Canon 1200D« » APS-C 17.9 5184 34561080/30p21.911.372463Canon 1200D

Canon G1 X Mark II« » 1.5-inch 13.0 4160 31201080/30p21.510.858158Canon G1 X Mark II

Canon G7 X« » 1-inch 20.0 5472 36481080/60p23.012.755671Canon G7 X

Canon 650D« » APS-C 17.9 5184 34561080/30p21.711.272262Canon 650D

Nikon D5600« » APS-C 24.0 6000 40001080/60p24.114.0130684Nikon D5600

Many modern cameras cannot only take still pictures, but also record videos. The 760D indeed provides movie recording capabilities. The highest resolution format that the 760D can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the 760D has an optical viewfinder that provides a field of view of 95% and a magnification of 0.51x. The tables below summarize some of the other core capabilities of the Canon 760D in connection with corresponding information for a sample of similar cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Canon 760Doptical Y 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon 760D

Canon 2000D« »optical n 3.0 920 fixed n 1/4000s 3.0 Y n Canon 2000D

Canon 77D« »optical Y 3.0 1040 swivel Y 1/4000s 6.0 Y n Canon 77D

Canon 800D« »optical n 3.0 1040 swivel Y 1/4000s 6.0 Y n Canon 800D

Canon M5« »2360 n 3.2 1620 tilting Y 1/4000s 9.0 Y n Canon M5

Canon 750D« »optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon 750D

Canon 1200D« »optical n 3.0 460 fixed n 1/4000s 3.0 Y n Canon 1200D

Canon G1 X Mark II« »- n 3.0 1040 tilting Y 1/4000s 5.2 Y Y Canon G1 X Mark II

Canon G7 X« »- n 3.0 1040 tilting Y 1/2000s 6.5 Y Y Canon G7 X

Canon 650D« »optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon 650D

Nikon D5600« »optical n 3.2 1037 swivel Y 1/4000s 5.0 Y n Nikon D5600

One convenient feature of the 760D is the presence of an on-board flash. While this built-in flash is not very powerful, it can at times be useful as a fill-in light to brighten deep shadow areas.



Connection comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 760D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Canon 760DYstereomonoY-mini2.0YY-Canon 760D

Canon 2000D« »Ymonomono--mini2.0YY-Canon 2000D

Canon 77D« »YstereomonoY-mini2.0YYYCanon 77D

Canon 800D« »YstereomonoY-mini2.0YYYCanon 800D

Canon M5« »YstereomonoY-mini2.0YYYCanon M5

Canon 750D« »YstereomonoY-mini2.0YY-Canon 750D

Canon 1200D« »Ymonomono--mini2.0---Canon 1200D

Canon G1 X Mark II« »Ystereomono--mini2.0YY-Canon G1 X Mark II

Canon G7 X« »-stereomono--micro2.0YY-Canon G7 X

Canon 650D« »YstereomonoY-mini2.0---Canon 650D

Nikon D5600« »YstereomonoY-mini2.0YYYNikon D5600

It is notable that the 760D has a microphone port. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.



Expert reviews

While the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the 760D. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is why expert reviews are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog).

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon 760D+77/1004.5/54.5/54.5/5 Feb 2015 649- i Canon 760D

Canon 2000D« »o-3.5/5-3.5/5 Feb 2018 449 i i Canon 2000D

Canon 77D« »-82/1004.5/54.5/54/5 Feb 2017 899 i i Canon 77D

Canon 800D« »-80/1004.5/54/54/5 Feb 2017 749 i i Canon 800D

Canon M5« »+82/1004/54.5/54/5 Sep 2016 979 i i Canon M5

Canon 750D« »-75/1004.5/54.5/54.5/5 Feb 2015 749- i Canon 750D

Canon 1200D« »+-4/54/54.5/5 Feb 2014 449- i Canon 1200D

Canon G1 X Mark II« »+77/1004/54/54.5/5 Feb 2014 799 i i Canon G1 X Mark II

Canon G7 X« »++77/1004.5/53.5/54.5/5 Sep 2014 699- i Canon G7 X

Canon 650D« »++77/1004.5/54.5/54.5/5 Jun 2012 849- i Canon 650D

Nikon D5600« »-79/1004.5/54.5/54/5 Nov 2016 699 i i Nikon D5600
Notes: ++) highly recommended; +) recommended; o) reviewed; -) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Canon 760D FAQ

Below are some additional questions and answers concerning some particular features of the 760D.

What is the technology behind the imaging sensor in the 760D?

The camera is build around a CMOS (Complementary Metal–Oxide–Semiconductor) sensor.

Which image processing chip is used to convert the raw signal into an image file and perform noise reduction and image sharpening?

Canon equipped the 760D with the DIGIC 6 image processor.

What is the ISO sensitivity range of the 760D?

The camera has a native sensitivity range from ISO 100 to ISO 12800.

Does the camera have a selfie-friendly screen?

Yes, the LCD-screen of the 760D is flexible and can be turned to be front-facing for capturing selfies.

What is the life expectancy of the shutter in the Canon EOS 760D?

Canon mentions a shutter rating of 100 000 actuations for the 760D. This number represents a Mean Time before Failure, that is an average value. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust the expected shutter life of the 760D over, say, three years, one would have to take about 100 pictures each and every day.

Does the Canon 760D feature an autofocus assist light?

Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.

What is the fastest shutter speed that can be used with flash?

The 760D's flash sync speed is 1/200 sec.

Does the Canon 760D support the Ultra High Speed (UHS) bus interface for SD cards?

Yes, the camera can indeed use UHS-I cards (data transfer speed of up to 104 MB/s).

Which battery does the 760D use?

The camera gets its power from the LP-E17 (here at amazon), which is a rechargeable Lithium-Ion power pack.

Is there a vertical grip available for the 760D?

Yes, Canon offers the BG-E18 as an optional accessory to facilitate shooting in portrait orientation and to provide additional battery power.

Camera to camera comparisons

If you would like to see a side-by-side review of this and another camera, just make a corresponding selection in the search boxes below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    Specifications Summary
    Camera Model Canon 760D
    Camera Type Digital single lens reflex
    Camera Lens Canon EF mount lenses
    Launch Date February 2015
    Launch Price USD 649
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format APS-C Sensor
    Sensor Size 22.3 x 14.9 mm
    Sensor Area 332.27 mm2
    Sensor Diagonal 26.8 mm
    Crop Factor 1.6x
    Sensor Resolution 24 Megapixels
    Image Resolution 6000 x 4000 pixels
    Pixel Pitch 3.72 μm
    Pixel Density 7.22 MP/cm2
    Moiré control Anti-Alias filter
    Movie Capability 1080/30p Video
    ISO Setting 100-12800 ISO
    ISO Boost 100-25600 ISO
    Image Processor DIGIC 6
    DXO Sensor Quality (score) 70
    DXO Color Depth (bits) 22.6
    DXO Dynamic Range (EV) 12.0
    DXO Low Light (ISO) 915
    Screen Specs
    Viewfinder Type Optical viewfinder
    Viewfinder Field of View 95%
    Viewfinder Magnification 0.51x
    Top-Level Screen Control Panel
    LCD Framing Live View
    Rear LCD Size 3.0 inch
    LCD Resolution 1040k dots
    LCD Attachment Swivel screen
    Touch Input Touchscreen
    Shooting Specs
    Autofocus System Phase-detect AF
    Manual Focusing AidNo Peaking Feature
    Maximum Shutter Speed 1/4000s
    Continuous Shooting 5 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent Shootingno E-Shutter
    Time Lapse Photographyno Intervalometer
    Fill Flash Build-in Flash
    Storage Medium SDXC cards
    Second Storage Option Single card slot
    UHS card support UHS-I
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port mini HDMI
    Microphone Port External MIC port
    Wifi Support Wifi built-in
    Near-Field Communication NFC built-in
    Body Specs
    Battery Type LP-E17 power pack
    Battery Life (CIPA)440 shots per charge
    Body Dimensions 132 x 101 x 78 mm
    (5.2 x 4.0 x 3.1 in)
    Camera Weight 565 g (19.9 oz)
