Canon 77D Comparison Review

The Canon EOS 77D is a DSLR (Digital Single Lens Reflex) camera that was revealed to the public in February 2017 and is equipped with an APS-C sensor. It offers a resolution of 24 megapixel.

camera

Is the Canon 77D a good camera? The 77D has a Camera Elo of 2381. This rating puts the 77D among the top 20 percent of all digital single lens reflex cameras. In terms of its sensor size category (APS cameras), the 77D ranks among the top 30 percent. Based on its within category standings, the camera earns a 4.5-star performance rating.

Headline Specifications
Canon 77D
Digital single lens reflex
Canon EF mount lenses
24 MP, APS-C Sensor
1080/60p Video
ISO 100 - 25 600 (100 - 51 200)
Optical viewfinder
3.0 LCD, 1040k dots
Swivel touchscreen
6 shutter flaps per second
600 shots per battery charge
131 x 100 x 76 mm, 540 g

Read on to find out more about the camera's size, sensor, features, reception by expert reviewers, and how it compares to other digital cameras.

ad

Body comparison with a credit card

The side-by-side display below illustrates the physical size of the Canon 77D vis-à-vis a credit card. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

Canon 77D vs credit card front
77D versus credit card top view
77D and credit card rear side

The table below summarizes the key physical specs of the Canon 77D alongside a set of similar cameras. If you want to review a particular camera pair side-by-side, just move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.

scroll hint
Body Specifications
#   Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 77D 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 899ebay.com
2.

Canon 850D 131 mm 103 mm 76 mm 515 g 800 n Feb 2020 749 amazon.com
3.

Canon 2000D 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 amazon.com
4.

Canon 200D 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549ebay.com
5.

Canon 800D 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749ebay.com
6.

Canon M6 112 mm 68 mm 45 mm 390 g 295 n Feb 2017 779ebay.com
7.

Canon 80D 139 mm 105 mm 79 mm 730 g 960 Y Feb 2016 1,199ebay.com
8.

Canon 1300D 129 mm 101 mm 78 mm 485 g 500 n Mar 2016 449ebay.com
9.

Canon M5 116 mm 89 mm 61 mm 427 g 295 n Sep 2016 979ebay.com
10.

Canon 750D 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749ebay.com
11.

Canon 760D 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Canon 77D was launched in the US market at a price of $899. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

logo
Check 77D offers at
ebay.com

Sensor comparison with a 35mm slide

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

The Canon 77D features an APS-C sensor and has a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the Canon 77D among the medium-sized sensor cameras that aim to strike a balance between image quality and portability.

Canon 77D sensor measures

For most cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
#   Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 77D APS-C 24.0 6000 40001080/60p23.613.397178
2.

Canon 850D APS-C 24.0 6000 40004K/24p24.013.5187383
3.

Canon 2000D APS-C 24.0 6000 40001080/30p22.611.9100971
4.

Canon 200D APS-C 24.0 6000 40001080/60p23.613.4104179
5.

Canon 800D APS-C 24.0 6000 40001080/60p23.713.1158680
6.

Canon M6 APS-C 24.0 6000 40001080/60p23.412.6131778
7.

Canon 80D APS-C 24.0 6000 40001080/60p23.613.2113579
8.

Canon 1300D APS-C 17.9 5184 34561080/30p22.011.778166
9.

Canon M5 APS-C 24.0 6000 40001080/60p23.412.4126277
10.

Canon 750D APS-C 24.0 6000 40001080/30p22.712.091971
11.

Canon 760D APS-C 24.0 6000 40001080/30p22.612.091570
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 77D indeed provides movie recording capabilities. The highest resolution format that the 77D can use is 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 77D has an optical viewfinder that provides a field of view of 95% and a magnification of 0.51x. The following tables report on some other key feature differences and similarities of the Canon 77D and comparable cameras.

scroll hint
Core Features
#   Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 77Doptical Y3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
2.

Canon 850Doptical n3.0 / 1040 swivel Y 1/4000s 7.5/s Y n
3.

Canon 2000Doptical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
4.

Canon 200Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
5.

Canon 800Doptical n3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
6.

Canon M6optional n3.0 / 1040 tilting Y 1/4000s 9.0/s Y n
7.

Canon 80Doptical Y3.0 / 1040 swivel Y 1/8000s 7.0/s Y n
8.

Canon 1300Doptical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
9.

Canon M52360 n3.2 / 1620 tilting Y 1/4000s 9.0/s Y n
10.

Canon 750Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
11.

Canon 760Doptical Y3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

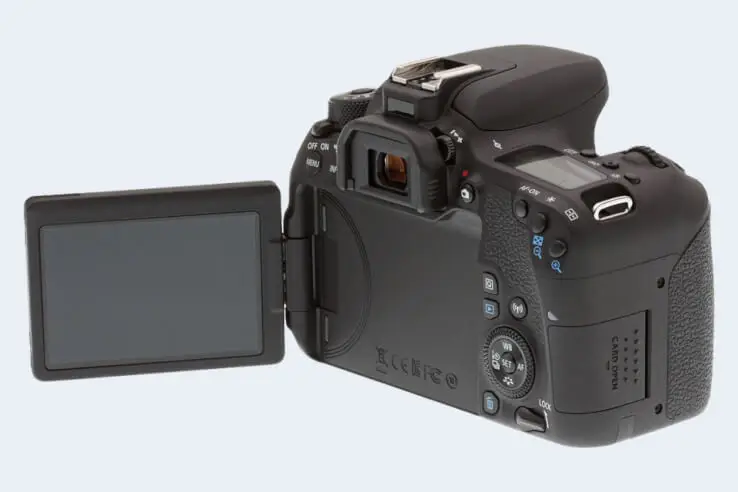

The LCD screen on the Canon EOS 77D is flexibly attached to the body. In particular, the LCD is hinged on the side and can be flipped out for odd-angle shots in both portrait and landscape orientation. Also, this fully articulated, swivel type of LCD attachment is often appreciated by videographers for its flexibility. Moreover, v-loggers like the design because the screen can be turned to be front-facing.

articulated screen
Flexible screen on the 77D

One convenient feature of the 77D is the presence of an on-board flash. While this built-in flash is not very powerful, it can at times be useful as a fill-in light to brighten deep shadow areas.

ad

Connection comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 77D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
#   Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 77DYstereo / monoY-mini2.0YYY
2.

Canon 850DYstereo / monoY-mini2.0Y-Y
3.

Canon 2000DYmono / mono--mini2.0YY-
4.

Canon 200DYstereo / monoY-mini2.0YYY
5.

Canon 800DYstereo / monoY-mini2.0YYY
6.

Canon M6Ystereo / monoY-mini2.0YYY
7.

Canon 80DYstereo / monoYYmini2.0YY-
8.

Canon 1300DYmono / mono--mini2.0YY-
9.

Canon M5Ystereo / monoY-mini2.0YYY
10.

Canon 750DYstereo / monoY-mini2.0YY-
11.

Canon 760DYstereo / monoY-mini2.0YY-
padding

It is notable that the 77D has a microphone port. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Further information on the features and operation of the 77D can be found in the free online Canon 77D Manual or on the Canon support site.

ad

Expert reviews

While the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the 77D. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is why hands-on reviews by experts are important. The table below summarizes the assessments of some of the best known camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]).

scroll hint
Review Scores
#    Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 77D4.5/5..4/582/1004.5/54/5 Feb 2017 899ebay.com
2.

Canon 850D4/5+3/580/1004/53.5/5 Feb 2020 749 amazon.com
3.

Canon 2000D3/5o3.5/5..3.5/53.5/5 Feb 2018 449 amazon.com
4.

Canon 200D4/5+ +4/578/1004.5/54.5/5 Jun 2017 549ebay.com
5.

Canon 800D4.5/5..3.5/580/1004.5/54/5 Feb 2017 749ebay.com
6.

Canon M6......80/1004/54/5 Feb 2017 779ebay.com
7.

Canon 80D4/5+ +4.5/584/1004.5/54.5/5 Feb 2016 1,199ebay.com
8.

Canon 1300D4/5o4/573/1004/54/5 Mar 2016 449ebay.com
9.

Canon M54/5+4/582/1004/54/5 Sep 2016 979ebay.com
10.

Canon 750D5/5....75/1004.5/54.5/5 Feb 2015 749ebay.com
11.

Canon 760D5/5+..77/1004.5/54.5/5 Feb 2015 649ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check 77D offers at
ebay.com

Canon 77D FAQ

Below are some additional questions and answers concerning some particular features of the 77D.

What technology is the imaging sensor in the Canon 77D based on?

The camera has a CMOS (Complementary Metal–Oxide–Semiconductor) sensor at its core.

Which image processing chip is used in the Canon 77D to convert the raw signal into an image file and perform noise reduction and image sharpening?

Canon equipped the 77D with the DIGIC 7 image processor.

What is the ISO sensitivity range of the Canon 77D?

The camera has a native sensitivity range from ISO 100 to ISO 25600.

Does the Canon 77D have a selfie-friendly screen?

Yes, the LCD-screen of the 77D is flexible and can be turned to be front-facing for capturing selfies.

What is the life expectancy of the shutter in the Canon EOS 77D?

Canon mentions a shutter rating of 100 000 actuations for the 77D. This number represents a Mean Time before Failure, that is an average value. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust the expected shutter life of the 77D over, say, three years, one would have to take about 100 pictures each and every day.

How do I find the shutter count on my Canon 77D?

Canon embeds the number of shutter actuations in the camera firmware. You can check the number of shots that your 77D has taken up to now by using a third-party app, as described on the Canon 77D shutter count page.

Do I need to purchase an external camera trigger to shoot time-lapse sequences with the Canon 77D?

No, the Canon EOS 77D has an intervalometer built-in, so that low frequency shooting (for example, flower blooming, sunset, moon rise) can be undertaken without the need to purchase a separate external intervalometer and related software.

Does the Canon 77D feature an autofocus assist light?

Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.

What is the fastest shutter speed that can be used with the Canon 77D for flash photography?

The 77D's flash sync speed is 1/200 sec.

Does the Canon 77D support the Ultra High Speed (UHS) bus interface for SD cards?

Yes, the camera can indeed use UHS-I cards (data transfer speed of up to 104 MB/s).

Which battery does the Canon 77D use?

The camera gets its power from the LP-E17 (here at amazon), which is a rechargeable Lithium-Ion power pack.

Is there a vertical grip available for the Canon 77D?

Canon does not offer an optional battery grip, but third party suppliers do (see here on ebay).

Where can I find the best deals for the Canon 77D?

Grey imports from Asia, as found on ebay, are often very attractively priced. However, these cameras come without a warranty from Canon.

Camera to camera comparisons

In case you would like to check on the differences and similarities with other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad
    Specifications Summary
    Camera Model Canon 77D
    Camera Type Digital single lens reflex
    Camera Lens Canon EF mount lenses
    Launch Date February 2017
    Launch Price USD 899
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format APS-C Sensor
    Sensor Size 22.3 x 14.9 mm
    Sensor Area 332 mm2
    Sensor Diagonal 26.8 mm
    Crop Factor 1.6x
    Sensor Resolution 24 Megapixels
    Image Resolution 6 000 x 4 000 pixels
    Pixel Pitch 3.72 μm
    Pixel Density 7.22 MP/cm2
    Moiré control Anti-Alias filter
    Movie Capability 1080/60p Video
    ISO Setting 100 - 25 600 ISO
    ISO Boost 100 - 51 200 ISO
    Image Processor DIGIC 7
    DXO Sensor Quality (score) 78
    DXO Color Depth (bits) 23.6
    DXO Dynamic Range (EV) 13.3
    DXO Low Light (ISO) 971
    Screen Specs
    Viewfinder Type Optical viewfinder
    Viewfinder Field of View 95%
    Viewfinder Magnification 0.51x
    Top-Level Screen Control Panel
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 1040k dots
    LCD Attachment Swivel screen
    V-logging Friendliness Front-flip possible
    Touch Input Touchscreen
    Shooting Specs
    Focus System Phase-detect AF
    Manual Focusing Aidno Peaking Feature
    Maximum Shutter Speed 1/4000s
    Continuous Shooting 6 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent Shootingno E-Shutter
    Time Lapse PhotographyIntervalometer Built-in
    Fill Flash Built-in Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-I
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port mini HDMI
    Microphone Port External MIC port
    Wifi Support Wifi built-in
    Near-Field Communication NFC built-in
    Bluetooth Support Bluetooth built-in
    Body Specs
    Battery Type LP-E17 power pack
    Battery Life (CIPA)600 shots per charge
    Body Dimensions 131 x 100 x 76 mm
    (5.2 x 3.9 x 3.0 in)
    Camera Weight 540 g (19.0 oz)
