Canon 77D vs 800D

The Canon EOS 77D and the Canon EOS 800D (labelled Canon T7i in some countries) are two digital cameras that were officially introduced in February 2017. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 77D
versus
Canon 800D
Canon 77D   Canon 800D
Digital single lens reflex Digital single lens reflex
Canon EF mount lenses Canon EF mount lenses
24 MP – APS-C sensor 24 MP – APS-C sensor
1080/60p Video 1080/60p Video
ISO 100-25,600 (100 - 51,200) ISO 100-25,600 (100 - 51,200)
Optical viewfinder Optical viewfinder
3.0" LCD – 1040k dots 3.0" LCD – 1040k dots
Swivel touchscreen Swivel touchscreen
6 shutter flaps per second 6 shutter flaps per second
600 shots per battery charge600 shots per battery charge
131 x 100 x 76 mm, 540 g 131 x 100 x 76 mm, 532 g
logo
Check 77D offers at
ebay.com
logo
Check 800D offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 77D and the Canon EOS 800D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon 77D and the Canon 800D. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

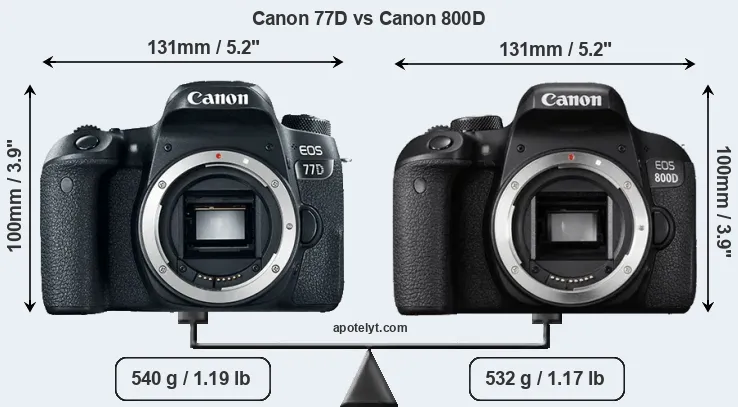

Size Canon 77D vs Canon 800D

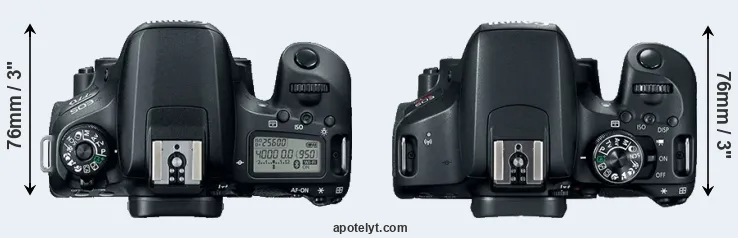

Compare 77D versus 800D top

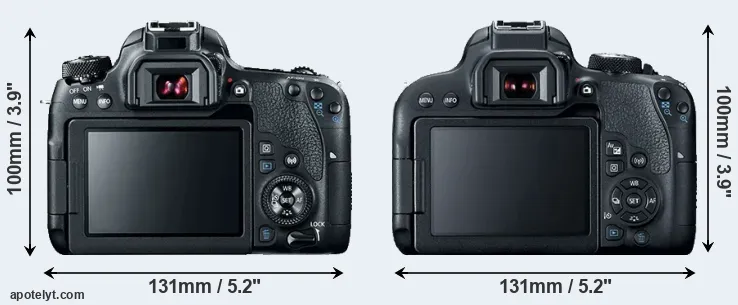

Comparison 77D or 800D rear

In this particular case, the Canon 77D and the Canon 800D have exactly the same width and height, and, thus, have identically-sized bodies. However, the 800D is slightly lighter (1 percent) than the 77D. In this context, it is worth noting that neither the 77D nor the 800D are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 77D 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 899ebay.com
2.

Canon 800D 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749ebay.com
3.

Canon T8i 131 mm 103 mm 76 mm 515 g 800 n Feb 2020 749 amazon.com
4.

Canon 850D 131 mm 103 mm 76 mm 515 g 800 n Feb 2020 749 amazon.com
5.

Canon T7 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 amazon.com
6.

Canon 200D 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549ebay.com
7.

Canon M6 112 mm 68 mm 45 mm 390 g 295 n Feb 2017 779ebay.com
8.

Canon SL2 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549ebay.com
9.

Canon T7i 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749ebay.com
10.

Canon M5 116 mm 89 mm 61 mm 427 g 295 n Sep 2016 979ebay.com
11.

Canon T6 129 mm 101 mm 78 mm 485 g 500 n Mar 2016 449ebay.com
12.

Canon 750D 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749ebay.com
13.

Canon 760D 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649ebay.com
14.

Canon T6i 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749ebay.com
15.

Canon T6s 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649ebay.com
16.

Canon T4i 133 mm 100 mm 79 mm 575 g 440 n Jun 2012 849ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 800D was launched at a somewhat lower price (by 17 percent) than the 77D, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

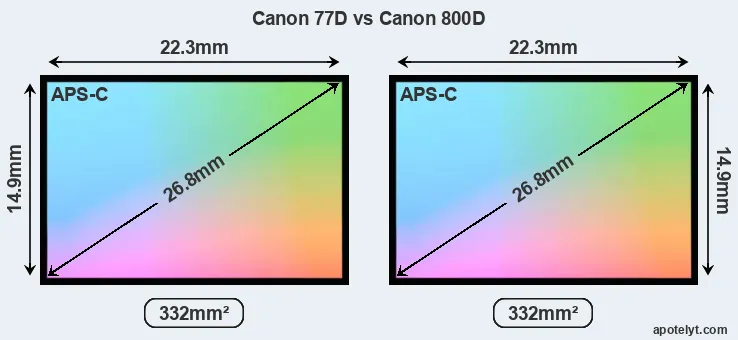

Canon 77D and Canon 800D sensor measures

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 24 megapixels. This similarity in sensor specs implies that both the 77D and the 800D have the same pixel density, as well as the same pixel size. Moreover, the two cameras were released in close succession, so that their sensors are from the same technological generation.

The Canon EOS 77D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The Canon EOS 800D offers exactly the same ISO settings.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

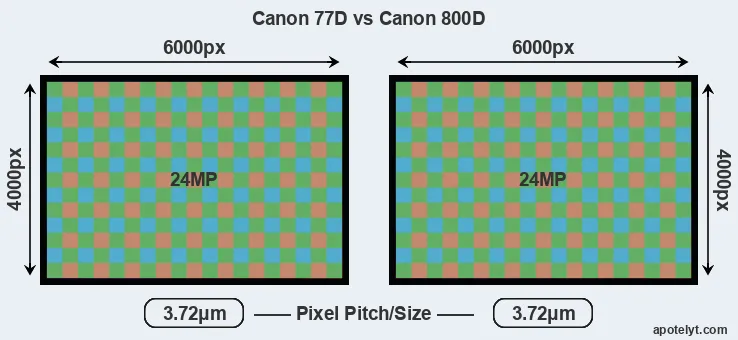

77D versus 800D MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 77D APS-C 24.0 6000 40001080/60p23.613.397178
2.

Canon 800D APS-C 24.0 6000 40001080/60p23.713.1158680
3.

Canon T8i APS-C 24.0 6000 40004K/24p24.013.5187383
4.

Canon 850D APS-C 24.0 6000 40004K/24p24.013.5187383
5.

Canon T7 APS-C 24.0 6000 40001080/30p23.813.3168481
6.

Canon 200D APS-C 24.0 6000 40001080/60p23.613.4104179
7.

Canon M6 APS-C 24.0 6000 40001080/60p23.412.6131778
8.

Canon SL2 APS-C 24.0 6000 40001080/60p23.613.4104179
9.

Canon T7i APS-C 24.0 6000 40001080/60p23.713.1158680
10.

Canon M5 APS-C 24.0 6000 40001080/60p23.412.4126277
11.

Canon T6 APS-C 17.9 5184 34561080/30p22.011.778166
12.

Canon 750D APS-C 24.0 6000 40001080/30p22.712.091971
13.

Canon 760D APS-C 24.0 6000 40001080/30p22.612.091570
14.

Canon T6i APS-C 24.0 6000 40001080/30p22.712.091971
15.

Canon T6s APS-C 24.0 6000 40001080/30p22.612.091570
16.

Canon T4i APS-C 17.9 5184 34561080/30p21.711.272262
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/60p).

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The 77D and the 800D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), as well as the same magnification (0.51x). The table below summarizes some of the other core capabilities of the Canon 77D and Canon 800D in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 77Doptical Y3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
2.

Canon 800Doptical n3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
3.

Canon T8ioptical n3.0 / 1040 swivel Y 1/4000s 7.5/s Y n
4.

Canon 850Doptical n3.0 / 1040 swivel Y 1/4000s 7.5/s Y n
5.

Canon T7optical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
6.

Canon 200Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
7.

Canon M6optional n3.0 / 1040 tilting Y 1/4000s 9.0/s Y n
8.

Canon SL2optical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
9.

Canon T7ioptical n3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
10.

Canon M52360 n3.2 / 1620 tilting Y 1/4000s 9.0/s Y n
11.

Canon T6optical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
12.

Canon 750Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
13.

Canon 760Doptical Y3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
14.

Canon T6ioptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
15.

Canon T6soptical Y3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
16.

Canon T4ioptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One feature that is present on the 77D, but is missing on the 800D is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The Canon 77D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 77D and the 800D write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 77D and Canon EOS 800D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 77DYstereo / monoY-mini2.0YYY
2.

Canon 800DYstereo / monoY-mini2.0YYY
3.

Canon T8iYstereo / monoY-mini2.0Y-Y
4.

Canon 850DYstereo / monoY-mini2.0Y-Y
5.

Canon T7Ymono / mono--mini2.0YY-
6.

Canon 200DYstereo / monoY-mini2.0YYY
7.

Canon M6Ystereo / monoY-mini2.0YYY
8.

Canon SL2Ystereo / monoY-mini2.0YYY
9.

Canon T7iYstereo / monoY-mini2.0YYY
10.

Canon M5Ystereo / monoY-mini2.0YYY
11.

Canon T6Ymono / mono--mini2.0YY-
12.

Canon 750DYstereo / monoY-mini2.0YY-
13.

Canon 760DYstereo / monoY-mini2.0YY-
14.

Canon T6iYstereo / monoY-mini2.0YY-
15.

Canon T6sYstereo / monoY-mini2.0YY-
16.

Canon T4iYstereo / monoY-mini2.0---
padding

Both the 77D and the 800D have been discontinued, but can regularly be found used on ebay. The 800D was replaced by the Canon 850D, while the 77D does not have a direct successor. Further information on the features and operation of the 77D and 800D can be found, respectively, in the Canon 77D Manual (free pdf) or the online Canon 800D Manual.

ad

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon 77D or the Canon 800D – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.


Advantages of the Canon EOS 77D:

  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.


Reasons to prefer the Canon EOS 800D:

  • More affordable: Was released into a lower priced segment (17 percent cheaper at launch).

If the count of relative strengths (bullet points above) is taken as a measure, the 77D comes out slightly ahead of the 800D (2 : 1 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

77D 02:01 800D

How about other alternatives? Do the specifications of the Canon 77D and the Canon 800D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 77D and the 800D in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 77D4.5/5..4/582/1004.5/54/5 Feb 2017 899ebay.com
2.

Canon 800D4.5/5..3.5/580/1004.5/54/5 Feb 2017 749ebay.com
3.

Canon T8i4.5/5+3/580/1004/53.5/5 Feb 2020 749 amazon.com
4.

Canon 850D4/5+3/580/1004/53.5/5 Feb 2020 749 amazon.com
5.

Canon T7..o3.5/5..3.5/53.5/5 Feb 2018 449 amazon.com
6.

Canon 200D4/5+ +4/578/1004.5/54.5/5 Jun 2017 549ebay.com
7.

Canon M6......80/1004/54/5 Feb 2017 779ebay.com
8.

Canon SL24/5+ +4/578/1004.5/54.5/5 Jun 2017 549ebay.com
9.

Canon T7i4.5/5..3.5/580/1004.5/54/5 Feb 2017 749ebay.com
10.

Canon M54/5+4/582/1004/54/5 Sep 2016 979ebay.com
11.

Canon T64/5o4/573/1004/54/5 Mar 2016 449ebay.com
12.

Canon 750D5/5....75/1004.5/54.5/5 Feb 2015 749ebay.com
13.

Canon 760D5/5+..77/1004.5/54.5/5 Feb 2015 649ebay.com
14.

Canon T6i5/5....75/1004.5/54.5/5 Feb 2015 749ebay.com
15.

Canon T6s5/5+..77/1004.5/54.5/5 Feb 2015 649ebay.com
16.

Canon T4i4/5+ +..77/1004.5/54.5/5 Jun 2012 849ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check 77D offers at
ebay.com
logo
Check 800D offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications: Canon 77D vs Canon 800D

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 77D Canon 800D
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Canon EF mount lenses Canon EF mount lenses
    Launch Date February 2017 February 2017
    Launch Price USD 899 USD 749
    Sensor Specs Canon 77D Canon 800D
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor APS-C Sensor
    Sensor Size 22.3 x 14.9 mm 22.3 x 14.9 mm
    Sensor Area 332.27 mm2 332.27 mm2
    Sensor Diagonal 26.8 mm 26.8 mm
    Crop Factor 1.6x 1.6x
    Sensor Resolution 24 Megapixels 24 Megapixels
    Image Resolution 6000 x 4000 pixels 6000 x 4000 pixels
    Pixel Pitch 3.72 μm 3.72 μm
    Pixel Density 7.22 MP/cm2 7.22 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/60p Video 1080/60p Video
    ISO Setting 100 - 25,600 ISO 100 - 25,600 ISO
    ISO Boost 100 - 51,200 ISO 100 - 51,200 ISO
    Image Processor DIGIC 7 DIGIC 7
    DXO Sensor Quality (score) 78 ..
    DXO Color Depth (bits) 23.6 ..
    DXO Dynamic Range (EV) 13.3 ..
    DXO Low Light (ISO) 971 ..
    Screen Specs Canon 77D Canon 800D
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 95% 95%
    Viewfinder Magnification 0.51x 0.51x
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1040k dots 1040k dots
    LCD Attachment Swivel screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon 77D Canon 800D
    Focus System Phase-detect AF Phase-detect AF
    Continuous Shooting 6 shutter flaps/s 6 shutter flaps/s
    Shutter Life Expectancy100 000 actuations100 000 actuations
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support UHS-I UHS-I
    Connectivity Specs Canon 77D Canon 800D
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port External MIC port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication NFC built-in NFC built-in
    Bluetooth Support Bluetooth built-in Bluetooth built-in
    Body Specs Canon 77D Canon 800D
    Battery Type LP-E17 LP-E17
    Battery Life (CIPA)600 shots per charge600 shots per charge
    Body Dimensions 131 x 100 x 76 mm
    (5.2 x 3.9 x 3.0 in)
    131 x 100 x 76 mm
    (5.2 x 3.9 x 3.0 in)
    Camera Weight 540 g (19.0 oz) 532 g (18.8 oz)
    logo
    Check 77D offers at
    ebay.com
    logo
    Check 800D offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 77D vs Canon 800D
