Olympus E-M5 II Comparison Review

The Olympus OM-D E-M5 Mark II is a mirrorless interchangeable lens camera that was officially introduced in February 2015 and is equipped with a Four Thirds sensor. It offers a resolution of 15.9 megapixel.

camera

Is the Olympus E-M5 II a good camera? The E-M5 II has a Camera Elo of 2202. This rating puts the E-M5 II below average of all mirrorless interchangeable lens cameras. In terms of its sensor size category (Four Thirds cameras), the E-M5 II ranks among the top 40 percent. Based on its within category standings, the camera earns a 3-star performance rating.

Headline Specifications
Olympus E-M5 II
Mirrorless system camera
Micro Four Thirds lenses
15.9 MP, Four Thirds Sensor
1080/60p Video
ISO 200 - 25 600
Electronic viewfinder (2360k dots)
3.0 LCD, 1037k dots
Swivel touchscreen
10 shutter flaps per second
In-body stabilization
Weathersealed body
310 shots per battery charge
124 x 85 x 45 mm, 469 g

Read on to find out more about the camera's size, sensor, features, reception by expert reviewers, and how it compares to other digital cameras.

ad

Body comparison with a credit card

The side-by-side display below illustrates the physical size of the Olympus E-M5 II vis-à-vis a credit card. Three consecutive perspectives from the front, the top, and the back are presented. All width, height and depth measures are rounded to the nearest millimeter.

Olympus E-M5 II vs credit card front
E-M5 II versus credit card top view
E-M5 II and credit card rear side

The table below summarizes the key physical specs of the Olympus E-M5 II alongside a set of similar cameras. If you want to review a particular camera pair side-by-side, just move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.

scroll hint
Body Specifications
#   Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 1,099ebay.com
2.

Olympus E-M5 III 125 mm 85 mm 50 mm 414 g 310 Y Oct 2019 1,199 amazon.com
3.

Olympus E-M1 II 134 mm 91 mm 67 mm 574 g 440 Y Sep 2016 1,999ebay.com
4.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 n Jan 2016 1,199ebay.com
5.

Olympus E-M10 II 120 mm 83 mm 47 mm 390 g 320 n Aug 2015 649ebay.com
6.

Olympus E-M10 119 mm 82 mm 46 mm 396 g 320 n Jan 2014 699ebay.com
7.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 1,399ebay.com
8.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 n May 2013 999ebay.com
9.

Olympus E-M5 122 mm 89 mm 43 mm 425 g 360 Y Feb 2012 1,299ebay.com
10.

Panasonic G80 128 mm 89 mm 74 mm 505 g 330 Y Sep 2016 899ebay.com
11.

Panasonic GX8 133 mm 78 mm 63 mm 487 g 330 Y Jul 2015 1,199ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Olympus E-M5 II was launched in the US market at a price of $1,099. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

logo
Check E-M5 II offers at
ebay.com

Sensor comparison with a 35mm slide

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

The Olympus E-M5 II features a Four Thirds sensor and has a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the Olympus E-M5 II among the medium-sized sensor cameras that aim to strike a balance between image quality and portability.

Olympus E-M5 II sensor measures

For most cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of alternatives.

scroll hint
Sensor Characteristics
#   Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
2.

Olympus E-M5 III Four Thirds 20.2 5184 38884K/30p23.313.1132476
3.

Olympus E-M1 II Four Thirds 20.2 5184 38884K/30p23.712.8131280
4.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
5.

Olympus E-M10 II Four Thirds 15.9 4608 34561080/60p23.112.584273
6.

Olympus E-M10 Four Thirds 15.9 4608 34561080/30p22.812.388472
7.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
8.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
9.

Olympus E-M5 Four Thirds 15.9 4608 34561080/60i22.812.382671
10.

Panasonic G80 Four Thirds 15.8 4592 34484K/30p22.812.565671
11.

Panasonic GX8 Four Thirds 20.2 5184 38884K/30p23.512.680675
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras cannot only take still pictures, but also record videos. The E-M5 II indeed provides movie recording capabilities. The highest resolution format that the E-M5 II can use is 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M5 II has an electronic viewfinder with a resolution of 2360k dots. The viewfinder offers a field of view of 100% and a magnification of 0.74x. The adjacent tables list some of the other core features of the Olympus E-M5 II along with similar information for a selection of comparators.

scroll hint
Core Features
#   Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
2.

Olympus E-M5 III2360 n3.0 / 1040 swivel Y 1/8000s 10.0/s n Y
3.

Olympus E-M1 II2360 n3.0 / 1037 swivel Y 1/8000s 18.0/s n Y
4.

Olympus PEN-F2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
5.

Olympus E-M10 II2360 n3.0 / 1040 tilting Y 1/4000s 8.0/s Y Y
6.

Olympus E-M101440 n3.0 / 1037 tilting Y 1/4000s 8.0/s Y Y
7.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
8.

Olympus E-P5optional n3.0 / 1037 tilting Y 1/8000s 9.0/s Y Y
9.

Olympus E-M51440 n3.0 / 610 tilting Y 1/4000s 9.0/s n Y
10.

Panasonic G802360 n3.0 / 1040 swivel Y 1/4000s 9.0/s Y Y
11.

Panasonic GX82360 n3.0 / 1040 swivel Y 1/8000s 10.0/s n Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

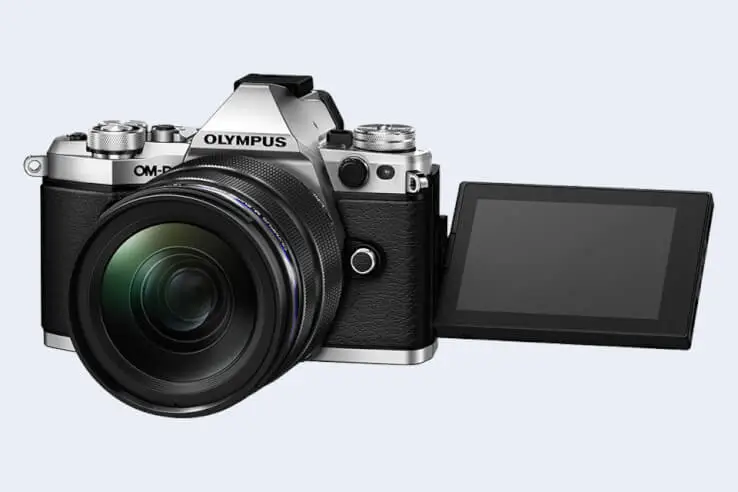

The LCD screen on the Olympus OM-D E-M5 Mark II is flexibly attached to the body. In particular, the LCD is hinged on the side and can be flipped out for odd-angle shots in both portrait and landscape orientation. Also, this fully articulated, swivel type of LCD attachment is often appreciated by videographers for its flexibility. Moreover, v-loggers like the design because the screen can be turned to be front-facing.

articulated screen
Flexible screen on the E-M5 II

One feature that differentiates the E-M5 II from many older cameras is in-body image stabilization (IBIS). The E-M5 II reduces the risk of handshake-induced blur with all attached lenses, while cameras without IBIS have to rely on optical image stabilization in OIS-equipped lenses to achieve the same effect.

ad

Connection comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M5 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
#   Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
2.

Olympus E-M5 IIIYstereo / monoY-micro2.0Y-Y
3.

Olympus E-M1 IIYstereo / monoYYmicro3.0Y--
4.

Olympus PEN-FYstereo / mono--micro2.0Y--
5.

Olympus E-M10 IIYstereo / mono--micro2.0Y--
6.

Olympus E-M10Ystereo / mono--micro2.0Y--
7.

Olympus E-M1Ystereo / monoY-micro2.0Y--
8.

Olympus E-P5Ystereo / mono--micro2.0Y--
9.

Olympus E-M5Ystereo / mono--mini2.0---
10.

Panasonic G80Ystereo / monoY-micro2.0Y--
11.

Panasonic GX8Ystereo / monoY-micro2.0YY-
padding

It is notable that the E-M5 II has a microphone port. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Further information on the features and operation of the E-M5 II can be found in the free online Olympus E-M5 II Manual or on the Olympus support site.

ad

Expert reviews

While the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the E-M5 II. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is why hands-on reviews by experts are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]).

scroll hint
Review Scores
#    Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 1,099ebay.com
2.

Olympus E-M5 III5/5+5/582/1004.5/54.5/5 Oct 2019 1,199 amazon.com
3.

Olympus E-M1 II5/5+ +5/585/1004.5/54.5/5 Sep 2016 1,999ebay.com
4.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 1,199ebay.com
5.

Olympus E-M10 II4.5/5+ +..80/1005/55/5 Aug 2015 649ebay.com
6.

Olympus E-M104/5....80/1005/55/5 Jan 2014 699ebay.com
7.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 1,399ebay.com
8.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 999ebay.com
9.

Olympus E-M54/5+ +..80/1004.5/55/5 Feb 2012 1,299ebay.com
10.

Panasonic G80..+ +..84/1005/54.5/5 Sep 2016 899ebay.com
11.

Panasonic GX85/5+..82/1004.5/54.5/5 Jul 2015 1,199ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check E-M5 II offers at
ebay.com

Olympus E-M5 II FAQ

Below are some additional questions and answers concerning some particular features of the E-M5 II.

What technology is the imaging sensor in the Olympus E-M5 II based on?

The camera has a CMOS (Complementary Metal–Oxide–Semiconductor) sensor at its core.

Which image processing chip is used in the Olympus E-M5 II to convert the raw signal into an image file and perform noise reduction and image sharpening?

Olympus equipped the E-M5 II with the TruePic VII image processor.

What is the ISO sensitivity range of the Olympus E-M5 II?

The camera has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600.

Does the Olympus E-M5 II have a selfie-friendly screen?

Yes, the LCD-screen of the E-M5 II is flexible and can be turned to be front-facing for capturing selfies.

What is the life expectancy of the shutter in the Olympus OM-D E-M5 Mark II?

Olympus does not publish a shutter rating for the E-M5 II. Yet, shutters in comparable cameras from other manufacturers are said to be good for at least 100 000 actuations. It should be noted, though, that this number represents a Mean Time before Failure. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust an expected shutter life of 100 000 shots over, say, three years, one would have to take about 100 pictures each and every day.

How do I find the shutter count on my Olympus E-M5 II?

Olympus embeds the number of shutter actuations in hidden menus. You can check the number of shots that your E-M5 II has taken up to now by carefully following the steps described on the Olympus E-M5 II shutter count page.

Is completely silent shooting possible with the Olympus E-M5 II?

The camera has an electronic shutter option, so that it is indeed feasible to capture images without any shutter noise.

Do I need to purchase an external camera trigger to shoot time-lapse sequences with the Olympus E-M5 II?

No, the Olympus OM-D E-M5 Mark II has an intervalometer built-in, so that low frequency shooting (for example, flower blooming, sunset, moon rise) can be undertaken without the need to purchase a separate external intervalometer and related software.

Is it difficult to use manual focus lenses with the Olympus E-M5 II?

The E-M5 II offers focus peaking as a manual focus aid. This feature works by placing a colored highlight on in-focus zones within the image.

Does the Olympus E-M5 II feature an autofocus assist light?

Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.

What is the fastest shutter speed that can be used with the Olympus E-M5 II for flash photography?

The E-M5 II's flash sync speed is 1/250 sec.

Does the Olympus E-M5 II support the Ultra High Speed (UHS) bus interface for SD cards?

Yes, the camera can indeed use UHS-II cards (data transfer speed of up to 312 MB/s).

Which battery does the Olympus E-M5 II use?

The camera gets its power from the BLN-1 (here at amazon), which is a rechargeable Lithium-Ion power pack.

Is there a vertical grip available for the Olympus E-M5 II?

Yes, Olympus offers the HLD-8 as an optional accessory to facilitate shooting in portrait orientation and to provide additional battery power.

Where can I find the best deals for the Olympus E-M5 II?

Grey imports from Asia, as found on ebay, are often very attractively priced. However, these cameras come without a warranty from Olympus.

Camera to camera comparisons

In case you would like to check on the differences and similarities with other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad
    Specifications Summary
    Camera Model Olympus E-M5 II
    Camera Type Mirrorless system camera
    Camera Lens Micro Four Thirds lenses
    Launch Date February 2015
    Launch Price USD 1 099
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm
    Sensor Area 225 mm2
    Sensor Diagonal 21.6 mm
    Crop Factor 2.0x
    Sensor Resolution 15.9 Megapixels
    Image Resolution 4 608 x 3 456 pixels
    Pixel Pitch 3.76 μm
    Pixel Density 7.08 MP/cm2
    Moiré control Anti-Alias filter
    Movie Capability 1080/60p Video
    ISO Setting 200 - 25 600 ISO
    ISO Boost 100 - 25 600 ISO
    Image Processor TruePic VII
    DXO Sensor Quality (score) 73
    DXO Color Depth (bits) 23.0
    DXO Dynamic Range (EV) 12.5
    DXO Low Light (ISO) 842
    Screen Specs
    Viewfinder Type Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.74x
    Viewfinder Resolution 2360k dots
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 1037k dots
    LCD Attachment Swivel screen
    V-logging Friendliness Front-flip possible
    Touch Input Touchscreen
    Shooting Specs
    Focus System Contrast-detect AF
    Manual Focusing AidFocus Peaking
    Maximum Shutter Speed 1/8000s
    Continuous Shooting 10 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent ShootingElectronic Shutter
    Time Lapse PhotographyIntervalometer Built-in
    Image StabilizationIn-body stabilization
    Fill Flash no On-Board Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-II
    Connectivity Specs
    External Flash Hotshoe
    Studio Flash PC Sync socket
    USB Connector USB 2.0
    HDMI Port micro HDMI
    Microphone Port External MIC port
    Wifi Support Wifi built-in
    Body Specs
    Environmental SealingWeathersealed body
    Battery Type BLN-1 power pack
    Battery Life (CIPA)310 shots per charge
    Body Dimensions 124 x 85 x 45 mm
    (4.9 x 3.3 x 1.8 in)
    Camera Weight 469 g (16.5 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Olympus E-M5 II Review
