Olympus E-500 vs E-M5 III

The Olympus Evolt E-500 and the Olympus OM-D E-M5 Mark III are two digital cameras that were officially introduced, respectively, in September 2005 and October 2019. The E-500 is a DSLR, while the E-M5 III is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The E-500 has a resolution of 8 megapixels, whereas the E-M5 III provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-500
versus
Olympus E-M5 III
Olympus E-500   Olympus E-M5 III
Digital single lens reflex Mirrorless system camera
Four Thirds lenses Micro Four Thirds lenses
8 MP – Four Thirds sensor 20.2 MP – Four Thirds sensor
no Video 4K/30p Video
ISO 100-400 (100 - 1,600) ISO 200-25,600
Optical viewfinder Electronic viewfinder (2360k dots)
2.5" LCD – 215k dots 3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive) Swivel touchscreen
2.5 shutter flaps per second 10 shutter flaps per second
Lens stabilization onlyIn-body stabilization
not weather sealedWeathersealed body
750 shots per battery charge310 shots per battery charge
130 x 95 x 66 mm, 479 g 125 x 85 x 50 mm, 414 g
logo
Check E-500 offers at
ebay.com
logo
Check E-M5 III offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus Evolt E-500 and the Olympus OM-D E-M5 Mark III? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

An illustration of the physical size and weight of the Olympus E-500 and the Olympus E-M5 III is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-M5 III can be obtained in two different colors (black, silver), while the E-500 is only available in black.

Size Olympus E-500 vs Olympus E-M5 III

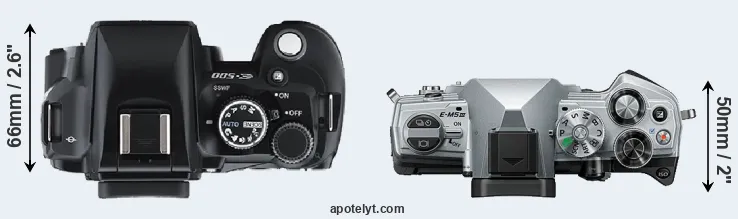

Compare E-500 versus E-M5 III top
Comparison E-500 or E-M5 III rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 III is notably smaller (14 percent) than the Olympus E-500. Moreover, the E-M5 III is markedly lighter (14 percent) than the E-500. It is noteworthy in this context that the E-M5 III is splash and dust-proof, while the E-500 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-500) and the Micro Four Thirds Lens Catalog (E-M5 III). Mirrorless cameras, such as the E-M5 III, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the E-500 gets 750 shots out of its Olympus BLM-1 battery, while the E-M5 III can take 310 images on a single charge of its Olympus BLS-50 power pack. The power pack in the E-M5 III can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Olympus E-500 130 mm 95 mm 66 mm 479 g 750 n Sep 2005 US$ 599ebay.com
2.

Olympus E-M5 III 125 mm 85 mm 50 mm 414 g 310 Y Oct 2019 US$ 1 199ebay.com
3.

Olympus E-300 147 mm 85 mm 64 mm 624 g 750 n Sep 2004 US$ 799ebay.com
4.

Olympus E-330 140 mm 87 mm 72 mm 637 g 750 n Jan 2006 US$ 999ebay.com
5.

Olympus E-400 130 mm 91 mm 53 mm 435 g 500 n Sep 2006 US$ 699ebay.com
6.

Olympus E-410 130 mm 91 mm 53 mm 435 g 500 n Mar 2007 US$ 699ebay.com
7.

Olympus E-420 130 mm 91 mm 53 mm 440 g 500 n Mar 2008 US$ 599ebay.com
8.

Olympus E-450 130 mm 91 mm 53 mm 440 g 500 n Mar 2009 US$ 499ebay.com
9.

Olympus E-510 136 mm 92 mm 68 mm 538 g 750 n Mar 2007 US$ 799ebay.com
10.

Olympus E-520 136 mm 92 mm 68 mm 535 g 750 n May 2008 US$ 699ebay.com
11.

Olympus E-620 130 mm 94 mm 60 mm 521 g 500 n Feb 2009 US$ 699ebay.com
12.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 US$ 1 399ebay.com
13.

Olympus E-M5 122 mm 89 mm 43 mm 425 g 360 Y Feb 2012 US$ 1 299ebay.com
14.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 US$ 1 099ebay.com
15.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 n Jan 2016 US$ 1 199ebay.com
16.

Panasonic GX8 133 mm 78 mm 63 mm 487 g 330 Y Jul 2015 US$ 1 199ebay.com
17.

Panasonic L10 135 mm 96 mm 78 mm 556 g 450 n Aug 2007 US$ 599ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-500 was launched at a markedly lower price (by 50 percent) than the E-M5 III, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the E-M5 III uses a more advanced image processing engine (TruePic VIII) than the E-500 (TruePic), with benefits for noise reduction, color accuracy, and processing speed.

Olympus E-500 and Olympus E-M5 III sensor measures

While the two cameras under review share the same sensor size, the E-M5 III offers a higher resolution of 20.2 megapixels, compared with 8 MP of the E-500. This megapixels advantage translates into a 59 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M5 III has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 5.30μm for the E-500). However, it should be noted that the E-M5 III is much more recent (by 14 years) than the E-500, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the E-M5 III has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Olympus E-M5 III implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M5 III for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Olympus E-500 are 16.3 x 12.2 inches or 41.5 x 31.1 cm for good quality, 13.1 x 9.8 inches or 33.2 x 24.9 cm for very good quality, and 10.9 x 8.2 inches or 27.6 x 20.7 cm for excellent quality prints.

The E-M5 III has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

Unlike the E-500, the E-M5 III has the capacity to capture high quality composite images (80MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Olympus Evolt E-500 has a native sensitivity range from ISO 100 to ISO 400, which can be extended to ISO 100-1600. The corresponding ISO settings for the Olympus OM-D E-M5 Mark III are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.

In terms of underlying technology, the E-500 is build around a CCD sensor, while the E-M5 III uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

E-500 versus E-M5 III MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-500 Four Thirds 8.0 3264 2448none20.710.34551
2.

Olympus E-M5 III Four Thirds 20.2 5184 38884K/30p23.313.1132476
3.

Olympus E-300 Four Thirds 8.0 3264 2448none20.410.1-4048
4.

Olympus E-330 Four Thirds 7.4 3136 2352none20.810.47352
5.

Olympus E-400 Four Thirds 10.0 3648 2736none21.010.612753
6.

Olympus E-410 Four Thirds 10.0 3648 2736none21.110.049451
7.

Olympus E-420 Four Thirds 10.0 3648 2736none21.510.452756
8.

Olympus E-450 Four Thirds 10.0 3648 2736none21.510.551256
9.

Olympus E-510 Four Thirds 10.0 3648 2736none21.210.044252
10.

Olympus E-520 Four Thirds 10.0 3648 2736none21.410.454855
11.

Olympus E-620 Four Thirds 12.2 4032 3024none21.310.353655
12.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
13.

Olympus E-M5 Four Thirds 15.9 4608 34561080/60i22.812.382671
14.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
15.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
16.

Panasonic GX8 Four Thirds 20.2 5184 38884K/30p23.512.680675
17.

Panasonic L10 Four Thirds 10.0 3648 2736none21.310.842955
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The E-M5 III indeed provides for movie recording, while the E-500 does not. The highest resolution format that the E-M5 III can use is 4K/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-M5 III has an electronic viewfinder (2360k dots), while the E-500 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M5 III offers a wider field of view (100%) than the one in the E-500 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M5 III has a higher magnification (0.68x vs 0.45x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Olympus E-500 and Olympus E-M5 III in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-500optical n2.5 / 215 fixed n 1/4000s 2.5/s Y n
2.

Olympus E-M5 III2360 n3.0 / 1040 swivel Y 1/8000s 10.0/s n Y
3.

Olympus E-300optical n1.8 / 134 fixed n 1/4000s 2.5/s Y n
4.

Olympus E-330optical n2.5 / 215 tilting n 1/4000s 3.0/s Y n
5.

Olympus E-400optical n2.5 / 215 fixed n 1/4000s 3.0/s Y n
6.

Olympus E-410optical n2.5 / 215 fixed n 1/4000s 3.0/s Y n
7.

Olympus E-420optical n2.7 / 215 fixed n 1/4000s 3.5/s Y n
8.

Olympus E-450optical n2.7 / 215 fixed n 1/4000s 3.5/s Y n
9.

Olympus E-510optical n2.5 / 215 fixed n 1/4000s 3.0/s Y Y
10.

Olympus E-520optical n2.7 / 215 fixed n 1/4000s 3.5/s Y Y
11.

Olympus E-620optical n2.7 / 230 swivel n 1/4000s 4.0/s Y Y
12.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
13.

Olympus E-M51440 n3.0 / 610 tilting Y 1/4000s 9.0/s n Y
14.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
15.

Olympus PEN-F2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
16.

Panasonic GX82360 n3.0 / 1040 swivel Y 1/8000s 10.0/s n Y
17.

Panasonic L10optical n2.5 / 207 swivel n 1/4000s 3.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The E-500 has one, while the E-M5 III does not. While the built-in flash of the E-500 is not very powerful, it can at times be useful as a fill-in light.

The E-M5 III has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the E-500 does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M5 III is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-M5 III has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-500 writes its imaging data to Compact Flash or xD Picture cards, while the E-M5 III uses SDXC cards. The E-500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-M5 III only has one slot.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus Evolt E-500 and Olympus OM-D E-M5 Mark III and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-500Y- / ----2.0---
2.

Olympus E-M5 IIIYstereo / monoY-micro2.0Y-Y
3.

Olympus E-300Y- / ----2.0---
4.

Olympus E-330Y- / ----2.0---
5.

Olympus E-400Y- / ----2.0---
6.

Olympus E-410Y- / ----2.0---
7.

Olympus E-420Y- / ----2.0---
8.

Olympus E-450Y- / ----2.0---
9.

Olympus E-510Y- / ----2.0---
10.

Olympus E-520Y- / ----2.0---
11.

Olympus E-620Y- / ----2.0---
12.

Olympus E-M1Ystereo / monoY-micro2.0Y--
13.

Olympus E-M5Ystereo / mono--mini2.0---
14.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
15.

Olympus PEN-FYstereo / mono--micro2.0Y--
16.

Panasonic GX8Ystereo / monoY-micro2.0YY-
17.

Panasonic L10Y- / ----2.0---

It is notable that the E-M5 III offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-500 does not provide wifi capability.

Both the E-500 and the E-M5 III have been discontinued, but can regularly be found used on ebay. The E-500 was replaced by the Olympus E-510, while the E-M5 III was followed by the OM System OM-5. Further information on the features and operation of the E-500 and E-M5 III can be found, respectively, in the Olympus E-500 Manual (free pdf) or the online Olympus E-M5 III Manual.

ad

Review summary

So what is the bottom line? Which of the two cameras – the Olympus E-500 or the Olympus E-M5 III – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.


Reasons to prefer the Olympus Evolt E-500:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Longer lasting: Can take more shots (750 versus 310) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in September 2005).


Advantages of the Olympus OM-D E-M5 Mark III:

  • More detail: Has more megapixels (20.2 vs 8MP), which boosts linear resolution by 59%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • Better jpgs: Has a more modern image processing engine (TruePic VIII vs TruePic).
  • Broader imaging potential: Can capture not only stills but also 4K/30p video.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.68x vs 0.45x).
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 215k dots).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (10 vs 2.5 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More compact: Is smaller (125x85mm vs 130x95mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 65g or 14 percent) and is thus easier to take along.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More modern: Reflects 14 years of technical progress since the E-500 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the E-M5 III is the clear winner of the contest (27 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-500 07:27 E-M5 III

How about other alternatives? Do the specifications of the Olympus E-500 and the Olympus E-M5 III place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the E-500 and the E-M5 III in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Olympus E-500..76/100..+ +.... Sep 2005 US$ 599ebay.com
2.

Olympus E-M5 III5/5+5/582/1004.5/54.5/5 Oct 2019 US$ 1 199ebay.com
3.

Olympus E-300......+o4.5/5 Sep 2004 US$ 799ebay.com
4.

Olympus E-330......+o.. Jan 2006 US$ 999ebay.com
5.

Olympus E-400..85/100....4/54/5 Sep 2006 US$ 699ebay.com
6.

Olympus E-410..86/100..+ +4/54.5/5 Mar 2007 US$ 699ebay.com
7.

Olympus E-420..85/100..+ +4/54.5/5 Mar 2008 US$ 599ebay.com
8.

Olympus E-450........4/54/5 Mar 2009 US$ 499ebay.com
9.

Olympus E-510..89/100..+ +3.5/54.5/5 Mar 2007 US$ 799ebay.com
10.

Olympus E-520..87/100..+ +4.5/54.5/5 May 2008 US$ 699ebay.com
11.

Olympus E-6203/588/100..72/1004.5/55/5 Feb 2009 US$ 699ebay.com
12.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 US$ 1 399ebay.com
13.

Olympus E-M54/5+ +..80/1004.5/55/5 Feb 2012 US$ 1 299ebay.com
14.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 US$ 1 099ebay.com
15.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 US$ 1 199ebay.com
16.

Panasonic GX85/5+..82/1004.5/54.5/5 Jul 2015 US$ 1 199ebay.com
17.

Panasonic L10..85/100..+3.5/54/5 Aug 2007 US$ 599ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check E-500 offers at
ebay.com
logo
Check E-M5 III offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications: Olympus E-500 vs Olympus E-M5 III

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Olympus E-500 Olympus E-M5 III
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Four Thirds lenses Micro Four Thirds lenses
    Launch Date September 2005 October 2019
    Launch Price USD 599 USD 1,199
    Sensor Specs Olympus E-500 Olympus E-M5 III
    Sensor Technology CCD CMOS
    Sensor Format Four Thirds Sensor Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm 17.3 x 13.0 mm
    Sensor Area 224.9 mm2 224.9 mm2
    Sensor Diagonal 21.6 mm 21.6 mm
    Crop Factor 2.0x 2.0x
    Sensor Resolution 8 Megapixels 20.2 Megapixels
    Image Resolution 3264 x 2448 pixels 5184 x 3888 pixels
    Pixel Pitch 5.30 μm 3.34 μm
    Pixel Density 3.55 MP/cm2 8.96 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability no Video 4K/30p Video
    ISO Setting 100 - 400 ISO 200 - 25,600 ISO
    ISO Boost 100 - 1,600 ISO 64 - 25,600 ISO
    Image Processor TruePic TruePic VIII
    Screen Specs Olympus E-500 Olympus E-M5 III
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.45x 0.68x
    Viewfinder Resolution 2360k dots
    LCD Framing Live View
    Rear LCD Size 2.5inch 3.0inch
    LCD Resolution 215k dots 1040k dots
    LCD Attachment Fixed screen Swivel screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Olympus E-500 Olympus E-M5 III
    Focus System Phase-detect AF On-Sensor Phase-detect
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/4000s 1/8000s
    Continuous Shooting 2.5 shutter flaps/s 10 shutter flaps/s
    Electronic Shutterno E-Shutterup to 1/32000s
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium CF or XD cards SDXC cards
    Single or Dual Card Slots Dual card slots Single card slot
    Connectivity Specs Olympus E-500 Olympus E-M5 III
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port no HDMI micro HDMI
    Microphone Port no MIC socket External MIC port
    Wifi Support no Wifi Wifi built-in
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Olympus E-500 Olympus E-M5 III
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type Olympus BLM-1 Olympus BLS-50
    Battery Life (CIPA)750 shots per charge310 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 130 x 95 x 66 mm
    (5.1 x 3.7 x 2.6 in)
    125 x 85 x 50 mm
    (4.9 x 3.3 x 2.0 in)
    Camera Weight 479 g (16.9 oz) 414 g (14.6 oz)
    logo
    Check E-500 offers at
    ebay.com
    logo
    Check E-M5 III offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Olympus E-500 vs Olympus E-M5 III
