Olympus E-330 Comparison Review

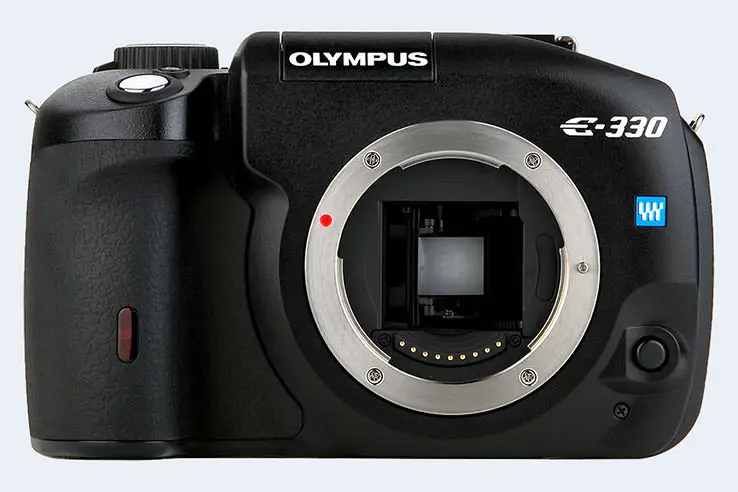

The Olympus Evolt E-330 is a DSLR (Digital Single Lens Reflex) camera that was revealed to the public in January 2006 and is equipped with a Four Thirds sensor. It offers a resolution of 7.4 megapixel.

camera

Is the Olympus E-330 a good camera? The E-330 has a Camera Elo of 1026. This rating puts the E-330 below average of all digital single lens reflex cameras. In terms of its sensor size category (Four Thirds cameras), the E-330 also ranks below average. Based on its within category standings, the camera earns a 2.5-star performance rating. – Well, the Olympus E-330 is more than 18 years old, and there have been many other good digital cameras released since 2006.

Headline Specifications
Olympus E-330
Digital single lens reflex
Four Thirds lenses
7.4 MP, Four Thirds Sensor
no Video
ISO 100 - 400 (100 - 1 600)
Optical viewfinder
2.5 LCD, 215k dots
Tilting screen (no touchscreen)
3 shutter flaps per second
750 shots per battery charge
140 x 87 x 72 mm, 637 g

Read on to find out more about the camera's size, sensor, features, reception by expert reviewers, and how it compares to other digital cameras.

ad

Body comparison with a credit card

The physical dimensions of the Olympus E-330 relative to a credit card are illustrated in the side-by-side display below. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

Olympus E-330 vs credit card front
E-330 versus credit card top view
E-330 and credit card rear side

The table below summarizes the key physical specs of the Olympus E-330 alongside a set of similar cameras. If you want to review a particular camera pair side-by-side, just move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.

scroll hint
Body Specifications
#   Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-330 140 mm 87 mm 72 mm 637 g 750 n Jan 2006 999ebay.com
2.

Canon XT 127 mm 94 mm 64 mm 540 g 400 n Feb 2005 899ebay.com
3.

Leica Digilux 3 146 mm 87 mm 77 mm 606 g 750 n Sep 2006 1,499ebay.com
4.

Nikon D80 132 mm 103 mm 77 mm 668 g 600 n Aug 2006 999ebay.com
5.

Olympus E-410 130 mm 91 mm 53 mm 435 g 500 n Mar 2007 699ebay.com
6.

Olympus E-510 136 mm 92 mm 68 mm 538 g 750 n Mar 2007 799ebay.com
7.

Olympus E-400 130 mm 91 mm 53 mm 435 g 500 n Sep 2006 699ebay.com
8.

Olympus E-500 130 mm 95 mm 66 mm 479 g 750 n Sep 2005 599ebay.com
9.

Olympus E-300 147 mm 85 mm 64 mm 624 g 750 n Sep 2004 799ebay.com
10.

Panasonic L10 135 mm 96 mm 78 mm 556 g 450 n Aug 2007 599ebay.com
11.

Panasonic L1 146 mm 87 mm 64 mm 606 g 750 n Feb 2006 999ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Olympus E-330 was launched in the US market at a price of $999. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

logo
Check E-330 offers at
ebay.com

Sensor comparison with a 35mm slide

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

The Olympus E-330 features a Four Thirds sensor and has a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the Olympus E-330 among the medium-sized sensor cameras that aim to strike a balance between image quality and portability.

Olympus E-330 sensor measures

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of alternative cameras.

scroll hint
Sensor Characteristics
#   Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-330 Four Thirds 7.4 3136 2352none20.810.47352
2.

Canon XT APS-C 8.0 3456 2304none21.810.863760
3.

Leica Digilux 3 Four Thirds 7.4 3136 2352none21.010.612753
4.

Nikon D80 APS-C 10.0 3872 2592none22.111.252461
5.

Olympus E-410 Four Thirds 10.0 3648 2736none21.110.049451
6.

Olympus E-510 Four Thirds 10.0 3648 2736none21.210.044252
7.

Olympus E-400 Four Thirds 10.0 3648 2736none21.010.612753
8.

Olympus E-500 Four Thirds 8.0 3264 2448none20.710.34551
9.

Olympus E-300 Four Thirds 8.0 3264 2448none20.410.1-4048
10.

Panasonic L10 Four Thirds 10.0 3648 2736none21.310.842955
11.

Panasonic L1 Four Thirds 7.4 3136 2352none20.810.48052
Note: DXO values in italics represent estimates based on sensor size and age.
padding

It should be noted that unlike many modern cameras, the E-330 does not provide the possibility to capture videos.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-330 has an optical viewfinder that provides a field of view of 95% and a magnification of 0.47x. The adjacent tables list some of the other core features of the Olympus E-330 along with similar information for a selection of comparators.

scroll hint
Core Features
#   Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-330optical n2.5 / 215 tilting n 1/4000s 3.0/s Y n
2.

Canon XToptical n1.8 / 115 fixed n 1/4000s 3.0/s Y n
3.

Leica Digilux 3optical n2.5 / 207 fixed n 1/4000s 3.0/s Y n
4.

Nikon D80optical n2.5 / 230 fixed n 1/4000s 3.0/s Y n
5.

Olympus E-410optical n2.5 / 215 fixed n 1/4000s 3.0/s Y n
6.

Olympus E-510optical n2.5 / 215 fixed n 1/4000s 3.0/s Y Y
7.

Olympus E-400optical n2.5 / 215 fixed n 1/4000s 3.0/s Y n
8.

Olympus E-500optical n2.5 / 215 fixed n 1/4000s 2.5/s Y n
9.

Olympus E-300optical n1.8 / 134 fixed n 1/4000s 2.5/s Y n
10.

Panasonic L10optical n2.5 / 207 swivel n 1/4000s 3.0/s Y n
11.

Panasonic L1optical n2.5 / 207 fixed n 1/4000s 3.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

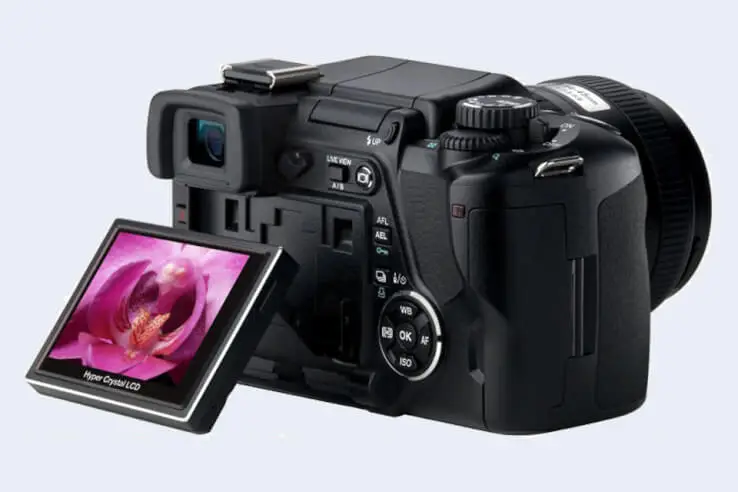

The LCD screen on the Olympus Evolt E-330 is flexibly attached to the body. In particular, the LCD can be tilted vertically to facilitate odd-angle shots in landscape orientation. This tilting design is often preferred, for example, by street photographers to a fully articulated, swivel type of LCD attachment, as it is more unobtrusive during shooting than a screen that flips out to the side.

articulated screen
Flexible screen on the E-330

One convenient feature of the E-330 is the presence of an on-board flash. While this built-in flash is not very powerful, it can at times be useful as a fill-in light to brighten deep shadow areas.

ad

Connection comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus Evolt E-330 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
#   Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-330Y- / ----2.0---
2.

Canon XTY- / ----2.0---
3.

Leica Digilux 3Ystereo / mono---2.0---
4.

Nikon D80Y- / ----2.0---
5.

Olympus E-410Y- / ----2.0---
6.

Olympus E-510Y- / ----2.0---
7.

Olympus E-400Y- / ----2.0---
8.

Olympus E-500Y- / ----2.0---
9.

Olympus E-300Y- / ----2.0---
10.

Panasonic L10Y- / ----2.0---
11.

Panasonic L1Y- / ----2.0---
padding

Further information on the features and operation of the E-330 can be found in the free online Olympus E-330 Manual or on the Olympus support site.

ad

Expert reviews

While the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it says nothing about, for example, the handling, responsiveness, and overall imaging quality of the E-330 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate. This is why expert reviews are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]).

scroll hint
Review Scores
#    Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-330......+o.. Jan 2006 999ebay.com
2.

Canon XT..80/100..+ +o.. Feb 2005 899ebay.com
3.

Leica Digilux 3............ Sep 2006 1,499ebay.com
4.

Nikon D80..+..+ +o4.5/5 Aug 2006 999ebay.com
5.

Olympus E-410..86/100..+ +4/54.5/5 Mar 2007 699ebay.com
6.

Olympus E-510..89/100..+ +3.5/54.5/5 Mar 2007 799ebay.com
7.

Olympus E-400..85/100....4/54/5 Sep 2006 699ebay.com
8.

Olympus E-500..76/100..+ +.... Sep 2005 599ebay.com
9.

Olympus E-300......+o4.5/5 Sep 2004 799ebay.com
10.

Panasonic L10..85/100..+3.5/54/5 Aug 2007 599ebay.com
11.

Panasonic L1..85/100..+..3.5/5 Feb 2006 999ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check E-330 offers at
ebay.com

Olympus E-330 FAQ

Below are some additional questions and answers concerning some particular features of the E-330.

What is the technology behind the imaging sensor in the Olympus E-330?

The camera has a CMOS (Complementary Metal–Oxide–Semiconductor) sensor at its core.

Which image processing chip is used in the Olympus E-330 to convert the raw signal into an image file and perform noise reduction and image sharpening?

Olympus equipped the E-330 with the TruePic image processor.

What is the ISO sensitivity range of the Olympus E-330?

The camera has a native sensitivity range from ISO 100 to ISO 400.

What is the life expectancy of the shutter in the Olympus Evolt E-330?

Olympus does not publish a shutter rating for the E-330. Yet, shutters in comparable cameras from other manufacturers are said to be good for at least 100 000 actuations. It should be noted, though, that this number represents a Mean Time before Failure. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust an expected shutter life of 100 000 shots over, say, three years, one would have to take about 100 pictures each and every day.

How do I find the shutter count on my Olympus E-330?

Olympus embeds the number of shutter actuations in hidden menus. You can check the number of shots that your E-330 has taken up to now by carefully following the steps described on the Olympus E-330 shutter count page.

Does the Olympus E-330 feature an autofocus assist light?

Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.

What is the fastest shutter speed that can be used with the Olympus E-330 for flash photography?

The E-330's flash sync speed is 1/180 sec.

Which battery does the Olympus E-330 use?

The camera gets its power from the BLM-1 (here at amazon), which is a rechargeable Lithium-Ion power pack.

Is there a vertical grip available for the Olympus E-330?

Olympus does not offer an optional battery grip, but third party suppliers do (see here on ebay).

Camera to camera comparisons

In case you would like to check on the differences and similarities with other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad
    Specifications Summary
    Camera Model Olympus E-330
    Camera Type Digital single lens reflex
    Camera Lens Four Thirds lenses
    Launch Date January 2006
    Launch Price USD 999
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm
    Sensor Area 225 mm2
    Sensor Diagonal 21.6 mm
    Crop Factor 2.0x
    Sensor Resolution 7.4 Megapixels
    Image Resolution 3 136 x 2 352 pixels
    Pixel Pitch 5.51 μm
    Pixel Density 3.28 MP/cm2
    Moiré control Anti-Alias filter
    Movie Capability no Video
    ISO Setting 100 - 400 ISO
    ISO Boost 100 - 1 600 ISO
    Image Processor TruePic
    Screen Specs
    Viewfinder Type Optical viewfinder
    Viewfinder Field of View 95%
    Viewfinder Magnification 0.47x
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 2.5 inch
    LCD Resolution 215k dots
    LCD Attachment Tilting screen
    V-logging Friendliness No front-flip
    Touch Input No touchscreen
    Shooting Specs
    Focus System Phase-detect AF
    Manual Focusing Aidno Peaking Feature
    Maximum Shutter Speed 1/4000s
    Continuous Shooting 3 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent Shootingno E-Shutter
    Time Lapse Photographyno Intervalometer
    Fill Flash Built-in Flash
    Storage Medium CF or XD cards
    Single or Dual Card Slots Dual card slots
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port no HDMI
    Wifi Support no Wifi
    Body Specs
    Battery Type BLM-1 power pack
    Battery Life (CIPA)750 shots per charge
    Body Dimensions 140 x 87 x 72 mm
    (5.5 x 3.4 x 2.8 in)
    Camera Weight 637 g (22.5 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
