What is the crop factor of the Olympus E-330?
The Olympus Evolt E-330 is equipped with a Four Thirds sensor, whose diagonal measures 21.6mm. The sensor has a crop factor (or format factor, or focal length multiplier) of 2.0.
The crop factor is defined as the ratio of the 35mm full-frame film diagonal to the diagonal of a digital sensor. This number indicates how a lens behaves in relation to the size of the image sensor.

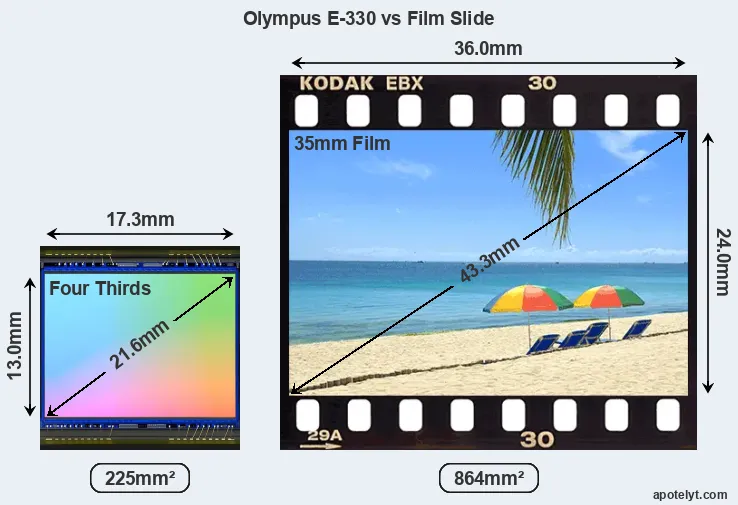

Sensor size comparison with a film slide
With a crop factor of 2.0, the sensor in the Olympus E-330 is smaller than the receptor area of a 35mm film slide or negative. As a result, a lens that is attached to the Olympus E-330 will offer a narrower angle of view and provide deeper depth of field than a lens of similar focal length and aperture on a film camera. The equivalent focal length is obtained by multiplying the actual focal length of the lens with the crop factor. For example, a 25mm lens on the Olympus E-330 will provide the same angle of view and depth of field as a 50mm normal lens on a film camera (25mm * 2.0 = 50mm).
Sensor specs and performance
The table below compares the sensor specs of the Olympus E-330 to those of several similar cameras. The reported DXO values are indicators of the sensor's imaging quality (higher is better), covering color depth (DXO Portrait), dynamic range (DXO Landscape), and high-ISO noise (DXO Sports). Larger sensor cameras tend to outperform cameras of the same generation that are equipped with a smaller imager. On the other hand, larger sensors are more expensive and require bigger and heavier lenses than smaller light receptors.
# | Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-330 | Four Thirds | 7.4 | 3136 | 2352 | none | 20.8 | 10.4 | 73 | 52 | |
2. | Canon XT | APS-C | 8.0 | 3456 | 2304 | none | 21.8 | 10.8 | 637 | 60 | |
3. | Leica Digilux 3 | Four Thirds | 7.4 | 3136 | 2352 | none | 21.0 | 10.6 | 127 | 53 | |
4. | Nikon D80 | APS-C | 10.0 | 3872 | 2592 | none | 22.1 | 11.2 | 524 | 61 | |
5. | Olympus E-410 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.1 | 10.0 | 494 | 51 | |
6. | Olympus E-510 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.2 | 10.0 | 442 | 52 | |
7. | Olympus E-400 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.0 | 10.6 | 127 | 53 | |
8. | Olympus E-500 | Four Thirds | 8.0 | 3264 | 2448 | none | 20.7 | 10.3 | 45 | 51 | |
9. | Olympus E-300 | Four Thirds | 8.0 | 3264 | 2448 | none | 20.4 | 10.1 | -40 | 48 | |
10. | Panasonic L10 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.3 | 10.8 | 429 | 55 | |
11. | Panasonic L1 | Four Thirds | 7.4 | 3136 | 2352 | none | 20.8 | 10.4 | 80 | 52 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
In the United States, the E-330 was initially launched in January 2006 at a price of $999.
Camera to camera comparisons
In case you would like to check on the differences and similarities with other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 80D vs Nikon Z6
- Canon R5 vs Olympus E-330
- Canon XTi vs Olympus E-330
- Contax N Digital vs Nikon Z6
- Leica M10-P vs Olympus E-330
- Nikon D5 vs Olympus E-330
- Nikon D7200 vs Nikon Z6
- Nikon Z6 vs Nikon Z7 II
- Nikon Z6 vs Panasonic GF6
- Nikon Z6 vs Pentax KP
- Olympus E-330 vs Olympus E-M5
- Olympus E-330 vs Sony A7R IV
Camera Model | Olympus E-330 | |
---|---|---|
Camera Type | Digital single lens reflex | |
Camera Lens | Four Thirds lenses | |
Launch Date | January 2006 | |
Launch Price | USD 999 | |
Sensor Specs | ||
Sensor Technology | CMOS | |
Sensor Format | Four Thirds Sensor | |
Sensor Size | 17.3 x 13.0 mm | |
Sensor Area | 225 mm2 | |
Sensor Diagonal | 21.6 mm | |
Crop Factor | 2.0x | |
Sensor Resolution | 7.4 Megapixels | |
Image Resolution | 3 136 x 2 352 pixels | |
Pixel Pitch | 5.51 μm | |
Pixel Density | 3.28 MP/cm2 | |
Moiré control | Anti-Alias filter | |
Movie Capability | no Video | |
ISO Setting | 100 - 400 ISO | |
ISO Boost | 100 - 1 600 ISO | |
Image Processor | TruePic | |
Screen Specs | ||
Viewfinder Type | Optical viewfinder | |
Viewfinder Field of View | 95% | |
Viewfinder Magnification | 0.47x | |
Top-Level Screen | no Top Display | |
LCD Framing | Live View | |
LCD Size | 2.5 inch | |
LCD Resolution | 215k dots | |
LCD Attachment | Tilting screen | |
V-logging Friendliness | No front-flip | |
Touch Input | No touchscreen | |
Shooting Specs | ||
Focus System | Phase-detect AF | |
Manual Focusing Aid | no Peaking Feature | |
Maximum Shutter Speed | 1/4000s | |
Continuous Shooting | 3 shutter flaps/s | |
Shutter Life Expectancy | 100 000 actuations | |
Silent Shooting | no E-Shutter | |
Time Lapse Photography | no Intervalometer | |
Fill Flash | Built-in Flash | |
Storage Medium | CF or XD cards | |
Single or Dual Card Slots | Dual card slots | |
Connectivity Specs | ||
External Flash | Hotshoe | |
USB Connector | USB 2.0 | |
HDMI Port | no HDMI | |
Wifi Support | no Wifi | |
Body Specs | ||
Battery Type | Olympus BLM-1 power pack | |
Battery Life (CIPA) | 750 shots per charge | |
Body Dimensions |
140 x 87 x 72 mm (5.5 x 3.4 x 2.8 in) |
|
Camera Weight | 637 g (22.5 oz) |
