Fujifilm X-T2 versus Olympus E-M1

The Fujifilm X-T2 and the Olympus OM-D E-M1 are two enthusiast cameras that were announced, respectively, in July 2016 and September 2013. Both the X-T2 and the E-M1 are mirrorless interchangeable lens cameras that are based on an APS-C (X-T2) and a Four Thirds (E-M1) sensor. The Fujifilm has a resolution of 24 megapixel, whereas the Olympus provides 15.9 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Fujifilm X-T2 vs Olympus E-M1

The side-by-side display below illustrates the physical size and weight of the Fujifilm X-T2 and the Olympus E-M1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter. You can also toggle the display to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left side – the X-T2 – represents the basis for the calculations across all the size and weight measures).

Compare Fujifilm X-T2 vs Olympus E-M1

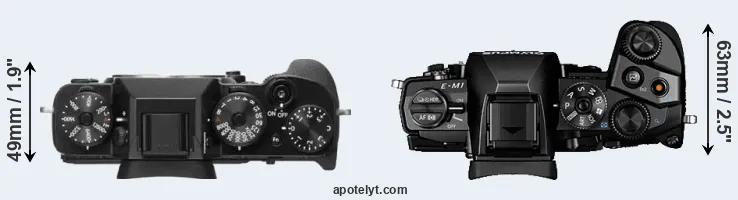

Compare X-T2 versus E-M1 top

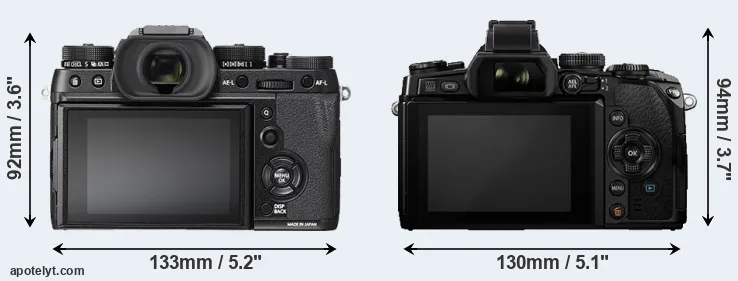

Compare X-T2 and E-M1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-T2 and the Olympus E-M1 are of equal size. However, the E-M1 is slightly lighter (2 percent) than the X-T2. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can find an overview of optics for the two cameras in the Fujinon X Lens Catalog (X-T2) and the Micro Four Thirds Lens Catalog (E-M1). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the X-T2 gets 340 shots out of its NP-W126S battery, while the E-M1 can take 350 images on a single charge of its BLN-1 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Fujifilm X-T2» 5.2 in 3.6 in 1.9 in 17.9 oz 340 Y Jul 2016 1,599- i Fujifilm X-T2
Olympus E-M1« 5.1 in 3.7 in 2.5 in 17.5 oz 350 Y Sep 2013 1,399- i Olympus E-M1
Fujifilm X-T3« » 5.2 in 3.7 in 2.3 in 19.0 oz 390 Y Sep 2018 1,499 i i Fujifilm X-T3
Fujifilm X-H1« » 5.5 in 3.8 in 3.4 in 23.7 oz 310 Y Feb 2018 1,899 i i Fujifilm X-H1
Fujifilm X-T100« » 4.8 in 3.3 in 1.9 in 15.8 oz 430 n May 2018 599 i i Fujifilm X-T100
Fujifilm X100F« » 5.0 in 3.0 in 2.0 in 16.5 oz 390 n Jan 2017 1,299 i i Fujifilm X100F
Fujifilm X-E3« » 4.8 in 2.9 in 1.7 in 11.9 oz 350 n Sep 2017 899 i i Fujifilm X-E3
Fujifilm X-T20« » 4.6 in 3.3 in 1.6 in 13.5 oz 350 n Jan 2017 899 i i Fujifilm X-T20
Fujifilm X-A3« » 4.6 in 2.6 in 1.6 in 12.0 oz 410 n Aug 2016 399 i i Fujifilm X-A3
Fujifilm X-Pro2« » 5.6 in 3.3 in 1.8 in 17.5 oz 350 Y Jan 2016 1,699 i i Fujifilm X-Pro2
Fujifilm X-T1« » 5.1 in 3.5 in 1.9 in 15.5 oz 350 Y Jan 2014 1,699- i Fujifilm X-T1
Fujifilm X-Pro1« » 5.5 in 3.2 in 1.7 in 15.9 oz 300 n Jan 2012 1,699- i Fujifilm X-Pro1
Olympus E-M1 II« » 5.3 in 3.6 in 2.6 in 20.2 oz 440 Y Sep 2016 1,999 i i Olympus E-M1 II
Olympus E-M5 II« » 4.9 in 3.3 in 1.8 in 16.5 oz 310 Y Feb 2015 1,099 i i Olympus E-M5 II
Olympus E-P5« » 4.8 in 2.7 in 1.5 in 14.8 oz 330 n May 2013 999- i Olympus E-P5
Olympus E-M5« » 4.8 in 3.5 in 1.7 in 15.0 oz 360 Y Feb 2012 1,299- i Olympus E-M5
Panasonic GH4« » 5.2 in 3.7 in 3.3 in 19.8 oz 500 Y Feb 2014 1,499- i Panasonic GH4

The camera’s price is obviously a critical decision-making factor. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-M1 was launched at a somewhat lower price (by 13 percent) than the X-T2, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Fujifilm X-T2 vs Olympus E-M1

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Fujifilm X-T2 features an APS-C sensor and the Olympus E-M1 a Four Thirds sensor. The sensor area in the E-M1 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X-T2 has a native 3:2 aspect ratio, while the one in the E-M1 offers a 4:3 aspect.

In terms of underlying technology, both cameras are build around CMOS sensors.

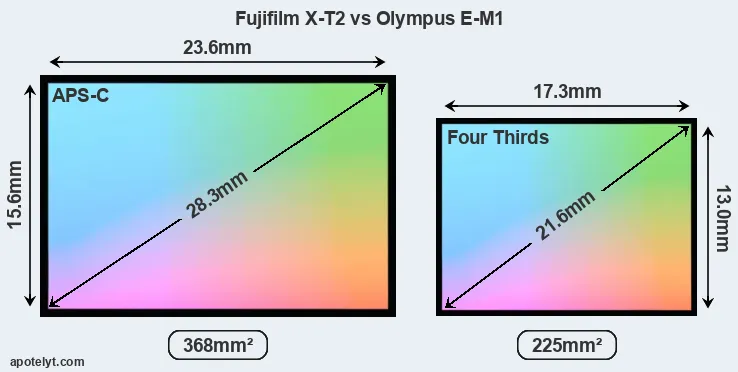

Fujifilm X-T2 and Olympus E-M1 sensor measures

With 24MP, the X-T2 offers a higher resolution than the E-M1 (15.9MP), but the X-T2 nevertheless has larger individual pixels (pixel pitch of 3.92μm versus 3.76μm for the E-M1) due to its larger sensor. Moreover, the X-T2 is a somewhat more recent model (by 2 years and 9 months) than the E-M1, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

X-T2 versus E-M1 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Fujifilm X-T2» APS-C 24.0 6000 40004K/30p----Fujifilm X-T2
Olympus E-M1« Four Thirds 15.9 4608 34561080/30p23.012.775773Olympus E-M1
Fujifilm X-T3« » APS-C 26.0 6240 41604K/60p----Fujifilm X-T3
Fujifilm X-H1« » APS-C 24.0 6000 40004K/30p----Fujifilm X-H1
Fujifilm X-T100« » APS-C 24.0 6000 40004K/15p----Fujifilm X-T100
Fujifilm X100F« » APS-C 24.0 6000 40001080/60p----Fujifilm X100F
Fujifilm X-E3« » APS-C 24.0 6000 40004K/30p----Fujifilm X-E3
Fujifilm X-T20« » APS-C 24.0 6000 40004K/30p----Fujifilm X-T20
Fujifilm X-A3« » APS-C 24.0 6000 40001080/60p----Fujifilm X-A3
Fujifilm X-Pro2« » APS-C 24.0 6000 40001080/60p----Fujifilm X-Pro2
Fujifilm X-T1« » APS-C 16.0 4896 32641080/60p----Fujifilm X-T1
Fujifilm X-Pro1« » APS-C 16.0 4896 32641080/24p----Fujifilm X-Pro1
Olympus E-M1 II« » Four Thirds 20.2 5184 38884K/30p23.712.8131280Olympus E-M1 II
Olympus E-M5 II« » Four Thirds 15.9 4608 34561080/60p23.012.584273Olympus E-M5 II
Olympus E-P5« » Four Thirds 15.9 4608 34561080/30p22.812.489572Olympus E-P5
Olympus E-M5« » Four Thirds 15.9 4608 34561080/60i22.812.382671Olympus E-M5
Panasonic GH4« » Four Thirds 15.9 4608 34564K/30p23.212.879174Panasonic GH4

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the X-T2 provides a higher video resolution than the E-M1. It can shoot video footage at 4K/30p, while the Olympus is limited to 1080/30p.



Feature comparison: Fujifilm X-T2 vs Olympus E-M1

Apart from body and sensor, cameras can and do differ across a variety of features. The X-T2 and the E-M1 are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The table below summarizes some of the other core capabilities of the Fujifilm X-T2 and Olympus E-M1 in connection with corresponding information for a sample of similar cameras. The full specs-sheets can be found in the camera manual or in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Fujifilm X-T2»2360 n 3.0 1040 tilting n 8000 14.0 n n Fujifilm X-T2
Olympus E-M1«2360 n 3.0 1037 tilting Y 8000 10.0 n Y Olympus E-M1
Fujifilm X-T3« »3690 n 3.2 1040 tilting Y 8000 11.0 n n Fujifilm X-T3
Fujifilm X-H1« »3690 Y 3.0 1040 full-flex Y 8000 14.0 n Y Fujifilm X-H1
Fujifilm X-T100« »2360 n 3.0 1040 full-flex Y 4000 6.0 Y n Fujifilm X-T100
Fujifilm X100F« »2360 n 3.0 1040 fixed n 4000 8.0 Y n Fujifilm X100F
Fujifilm X-E3« »2360 n 3.0 1040 fixed Y 4000 8.0 n n Fujifilm X-E3
Fujifilm X-T20« »2360 n 3.0 1040 tilting Y 4000 8.0 Y n Fujifilm X-T20
Fujifilm X-A3« »- n 3.0 1040 tilting Y 4000 6.0 Y n Fujifilm X-A3
Fujifilm X-Pro2« »2360 n 3.0 1620 fixed n 8000 8.0 n n Fujifilm X-Pro2
Fujifilm X-T1« »2360 n 3.0 1040 tilting n 4000 8.0 n n Fujifilm X-T1
Fujifilm X-Pro1« »1440 n 3.0 1230 fixed n 4000 6.0 n n Fujifilm X-Pro1
Olympus E-M1 II« »2360 n 3.0 1037 swivel Y 8000 18.0 n Y Olympus E-M1 II
Olympus E-M5 II« »2360 n 3.0 1037 swivel Y 8000 10.0 n Y Olympus E-M5 II
Olympus E-P5« »- n 3.0 1037 tilting Y 8000 9.0 Y Y Olympus E-P5
Olympus E-M5« »1440 n 3.0 610 tilting Y 4000 9.0 n Y Olympus E-M5
Panasonic GH4« »2359 n 3.0 1036 swivel Y 8000 12.0 Y n Panasonic GH4

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-M1 has a touchscreen, while the X-T2 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Both the X-T2 and the E-M1 write their imaging data to SDXC cards. The X-T2 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-M1 only has one slot.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Fujifilm X-T2»YstereomonoY-micro3.0Y--Fujifilm X-T2
Olympus E-M1«YstereomonoY-micro2.0Y--Olympus E-M1
Fujifilm X-T3« »YstereomonoYYmicro3.1Y-YFujifilm X-T3
Fujifilm X-H1« »YstereomonoY-micro3.0Y--Fujifilm X-H1
Fujifilm X-T100« »YstereomonoY-micro2.0Y-YFujifilm X-T100
Fujifilm X100F« »YstereomonoY-micro2.0Y--Fujifilm X100F
Fujifilm X-E3« »YstereomonoY-micro2.0Y-YFujifilm X-E3
Fujifilm X-T20« »YstereomonoY-micro2.0Y--Fujifilm X-T20
Fujifilm X-A3« »Ystereomono--micro2.0Y--Fujifilm X-A3
Fujifilm X-Pro2« »YstereomonoY-micro2.0Y--Fujifilm X-Pro2
Fujifilm X-T1« »YstereomonoY-mini2.0Y--Fujifilm X-T1
Fujifilm X-Pro1« »Ystereomono--mini2.0---Fujifilm X-Pro1
Olympus E-M1 II« »YstereomonoYYmicro3.0Y--Olympus E-M1 II
Olympus E-M5 II« »YstereomonoY-micro2.0Y--Olympus E-M5 II
Olympus E-P5« »Ystereomono--micro2.0Y--Olympus E-P5
Olympus E-M5« »Ystereomono--mini2.0---Olympus E-M5
Panasonic GH4« »YstereomonoYYmicro2.0YY-Panasonic GH4

Both the X-T2 and the E-M1 have been discontinued, but can regularly be found used on eBay. The E-M1 was replaced by the Olympus E-M1 II, while the X-T2 was followed by the Fujifilm X-T3 .

Review summary: Fujifilm X-T2 vs Olympus E-M1

So how do things add up? Is there a clear favorite between the Fujifilm X-T2 and the Olympus E-M1? The listing below highlights the relative strengths of the two models.

ilogo

Reasons to prefer the Fujifilm X-T2:

  • More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
  • Faster burst: Shoots at higher frequency (14 vs 10 flaps/sec) to capture the decisive moment.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More modern: Reflects 2 years and 9 months of technical progress since the E-M1 launch.

ilogo

Advantages of the Olympus OM-D E-M1:

  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Sharper images: Has stabilization technology build-in to reduce the impact of hand-shake.
  • More affordable: Was released into a lower priced segment (13 percent cheaper at launch).
  • More heavily discounted: Has been around for much longer (launched in September 2013).

If the number of relative strengths (bullet points above) is taken as a guide, the X-T2 emerges as the winner of the contest (7 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.

X-T2 07:04 E-M1

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the X-T2 or the E-M1 handle or perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is where reviews by experts come in. The table below summarizes the assessments of some of the best known camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Fujifilm X-T2»HiRec86/1004.5/55/55/5 Jul 2016 1,599- i Fujifilm X-T2
Olympus E-M1«HiRec84/1004.5/54.5/54.5/5 Sep 2013 1,399- i Olympus E-M1
Fujifilm X-T3« »----5/5 Sep 2018 1,499 i i Fujifilm X-T3
Fujifilm X-H1« »Rec86/1004.5/5-4.5/5 Feb 2018 1,899 i i Fujifilm X-H1
Fujifilm X-T100« »Rec79/1004/5-4.5/5 May 2018 599 i i Fujifilm X-T100
Fujifilm X100F« »Rec83/1004.5/5-4.5/5 Jan 2017 1,299 i i Fujifilm X100F
Fujifilm X-E3« »Rec84/1004.5/54.5/54.5/5 Sep 2017 899 i i Fujifilm X-E3
Fujifilm X-T20« »HiRec82/1005/5-4.5/5 Jan 2017 899 i i Fujifilm X-T20
Fujifilm X-A3« »-74/1004.5/5-4/5 Aug 2016 399 i i Fujifilm X-A3
Fujifilm X-Pro2« »Rec83/1004.5/54.5/54.5/5 Jan 2016 1,699 i i Fujifilm X-Pro2
Fujifilm X-T1« »HiRec84/1005/54/55/5 Jan 2014 1,699- i Fujifilm X-T1
Fujifilm X-Pro1« »HiRec79/1004.5/54/54.5/5 Jan 2012 1,699- i Fujifilm X-Pro1
Olympus E-M1 II« »HiRec85/1004.5/55/54.5/5 Sep 2016 1,999 i i Olympus E-M1 II
Olympus E-M5 II« »HiRec81/1005/54.5/55/5 Feb 2015 1,099 i i Olympus E-M5 II
Olympus E-P5« »HiRec78/1004.5/54.5/55/5 May 2013 999- i Olympus E-P5
Olympus E-M5« »HiRec80/1004.5/55/55/5 Feb 2012 1,299- i Olympus E-M5
Panasonic GH4« »HiRec85/1005/55/55/5 Feb 2014 1,499- i Panasonic GH4

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
