Fujifilm X-T20 Comparison Review

The Fujifilm X-T20 is a mirrorless interchangeable lens camera that was officially introduced in January 2017 and is equipped with an APS-C sensor. It offers a resolution of 24 megapixel.

camera

Is the Fujifilm X-T20 a good camera? The X-T20 has a Camera Elo of 2434. This rating puts the X-T20 among the top 50 percent of all mirrorless interchangeable lens cameras. In terms of its sensor size category (APS cameras), the X-T20 ranks among the top 30 percent. Based on its within category standings, the camera earns a 3.5-star performance rating.

Headline Specifications
Fujifilm X-T20
Mirrorless system camera
Fujifilm X mount lenses
24 MP, APS-C Sensor
4K/30p Video
ISO 200 - 12 800 (100 - 51 200)
Electronic viewfinder (2360k dots)
3.0 LCD, 1040k dots
Tilting touchscreen
8 shutter flaps per second
350 shots per battery charge
118 x 83 x 41 mm, 383 g

Read on to find out more about the camera's size, sensor, features, reception by expert reviewers, and how it compares to other digital cameras.

ad

Body comparison with a credit card

An illustration of the physical dimensions of the Fujifilm X-T20 vis-à-vis a credit card is provided in the side-by-side display below. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

Fujifilm X-T20 vs credit card front
X-T20 versus credit card top view
X-T20 and credit card rear side

The table below summarizes the key physical specs of the Fujifilm X-T20 alongside a set of similar cameras. If you want to review a particular camera pair side-by-side, just move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.

scroll hint
Body Specifications
#   Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Fujifilm X-T20 118 mm 83 mm 41 mm 383 g 350 n Jan 2017 899ebay.com
2.

Canon M6 112 mm 68 mm 45 mm 390 g 295 n Feb 2017 779ebay.com
3.

Canon M5 116 mm 89 mm 61 mm 427 g 295 n Sep 2016 979ebay.com
4.

Fujifilm X-E4 121 mm 73 mm 33 mm 364 g 380 n Jan 2021 849 amazon.com
5.

Fujifilm X-T30 II 118 mm 83 mm 47 mm 383 g 380 n Sep 2021 899 amazon.com
6.

Fujifilm X-T30 118 mm 83 mm 47 mm 383 g 380 n Feb 2019 899ebay.com
7.

Fujifilm X-A5 117 mm 68 mm 40 mm 361 g 450 n Jan 2018 399ebay.com
8.

Fujifilm X-T100 121 mm 83 mm 47 mm 448 g 430 n May 2018 599ebay.com
9.

Fujifilm X-E3 121 mm 74 mm 43 mm 337 g 350 n Sep 2017 899ebay.com
10.

Fujifilm X-A3 117 mm 67 mm 40 mm 339 g 410 n Aug 2016 399ebay.com
11.

Fujifilm X-T10 118 mm 83 mm 41 mm 381 g 350 n May 2015 799ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Fujifilm X-T20 was launched in the US market at a price of $899. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

logo
Check X-T20 offers at
ebay.com

Sensor comparison with a 35mm slide

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

The Fujifilm X-T20 features an APS-C sensor and has a format factor (sometimes also referred to as "crop factor") of 1.5. Within the spectrum of camera sensors, this places the Fujifilm X-T20 among the medium-sized sensor cameras that aim to strike a balance between image quality and portability.

Fujifilm X-T20 sensor measures

For most cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of alternative cameras.

scroll hint
Sensor Characteristics
#   Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Fujifilm X-T20 APS-C 24.0 6000 40004K/30p23.913.2170481
2.

Canon M6 APS-C 24.0 6000 40001080/60p23.412.6131778
3.

Canon M5 APS-C 24.0 6000 40001080/60p23.412.4126277
4.

Fujifilm X-E4 APS-C 26.0 6240 41604K/30p24.213.7208585
5.

Fujifilm X-T30 II APS-C 26.0 6240 41604K/30p24.213.8214485
6.

Fujifilm X-T30 APS-C 26.0 6240 41604K/30p24.113.5189583
7.

Fujifilm X-A5 APS-C 24.0 6000 40004K/15p24.013.3180082
8.

Fujifilm X-T100 APS-C 24.0 6000 40004K/15p24.013.4182983
9.

Fujifilm X-E3 APS-C 24.0 6000 40004K/30p23.913.3176482
10.

Fujifilm X-A3 APS-C 24.0 6000 40001080/60p23.813.1166481
11.

Fujifilm X-T10 APS-C 16.0 4896 32641080/60p23.712.9154679
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras cannot only take still pictures, but also record videos. The X-T20 indeed provides movie recording capabilities. The highest resolution format that the X-T20 can use is 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the X-T20 has an electronic viewfinder with a resolution of 2360k dots. The viewfinder offers a field of view of 100% and a magnification of 0.62x. The following tables report on some other key feature differences and similarities of the Fujifilm X-T20 and comparable cameras.

scroll hint
Core Features
#   Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Fujifilm X-T202360 n3.0 / 1040 tilting Y 1/4000s 8.0/s Y n
2.

Canon M6optional n3.0 / 1040 tilting Y 1/4000s 9.0/s Y n
3.

Canon M52360 n3.2 / 1620 tilting Y 1/4000s 9.0/s Y n
4.

Fujifilm X-E42360 n3.0 / 1620 tilting Y 1/4000s 8.0/s n n
5.

Fujifilm X-T30 II2360 n3.0 / 1620 tilting Y 1/4000s 8.0/s Y n
6.

Fujifilm X-T302360 n3.0 / 1040 tilting Y 1/4000s 8.0/s Y n
7.

Fujifilm X-A5none n3.0 / 1040 tilting Y 1/4000s 6.0/s Y n
8.

Fujifilm X-T1002360 n3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
9.

Fujifilm X-E32360 n3.0 / 1040 fixed Y 1/4000s 8.0/s n n
10.

Fujifilm X-A3none n3.0 / 1040 tilting Y 1/4000s 6.0/s Y n
11.

Fujifilm X-T102360 n3.0 / 920 tilting n 1/4000s 8.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

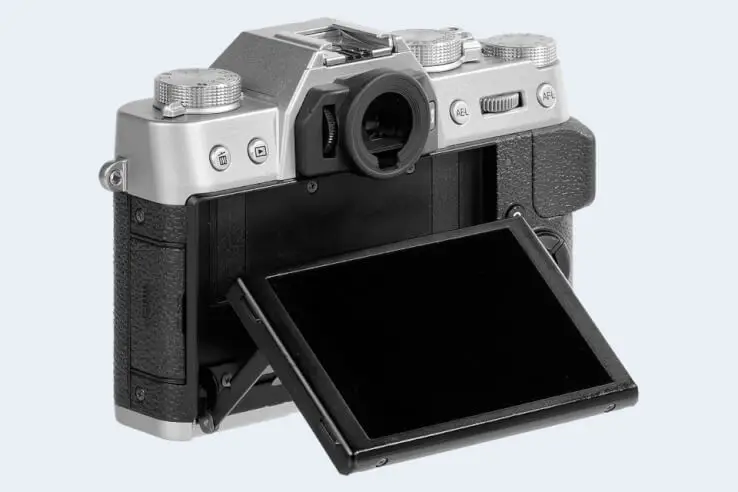

The LCD screen on the Fujifilm X-T20 is flexibly attached to the body. In particular, the LCD can be tilted vertically to facilitate odd-angle shots in landscape orientation. This tilting design is often preferred, for example, by street photographers to a fully articulated, swivel type of LCD attachment, as it is more unobtrusive during shooting than a screen that flips out to the side.

articulated screen
Flexible screen on the X-T20

One convenient feature of the X-T20 is the presence of an on-board flash. While this built-in flash is not very powerful, it can at times be useful as a fill-in light to brighten deep shadow areas.

ad

Connection comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-T20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
#   Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Fujifilm X-T20Ystereo / monoY-micro2.0Y--
2.

Canon M6Ystereo / monoY-mini2.0YYY
3.

Canon M5Ystereo / monoY-mini2.0YYY
4.

Fujifilm X-E4Ystereo / monoY-micro3.2Y-Y
5.

Fujifilm X-T30 IIYstereo / monoY-micro3.2Y-Y
6.

Fujifilm X-T30Ystereo / monoY-micro3.1Y-Y
7.

Fujifilm X-A5Ystereo / monoY-micro2.0Y-Y
8.

Fujifilm X-T100Ystereo / monoY-micro2.0Y-Y
9.

Fujifilm X-E3Ystereo / monoY-micro2.0Y-Y
10.

Fujifilm X-A3Ystereo / mono--micro2.0Y--
11.

Fujifilm X-T10Ystereo / monoY-micro2.0Y--
padding

It is notable that the X-T20 has a microphone port. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Further information on the features and operation of the X-T20 can be found in the free online Fujifilm X-T20 Manual or on the Fujifilm support site.

ad

Expert reviews

While the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it says nothing about, for example, the handling, responsiveness, and overall imaging quality of the X-T20 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is where reviews by experts come in. The table below summarizes the assessments of some of the best known camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]).

scroll hint
Review Scores
#    Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Fujifilm X-T205/5+ +5/582/1005/54.5/5 Jan 2017 899ebay.com
2.

Canon M6......80/1004/54/5 Feb 2017 779ebay.com
3.

Canon M54/5+4/582/1004/54/5 Sep 2016 979ebay.com
4.

Fujifilm X-E44/5..4/5..4.5/54/5 Jan 2021 849 amazon.com
5.

Fujifilm X-T30 II5/5..4/5..4.5/54.5/5 Sep 2021 899 amazon.com
6.

Fujifilm X-T305/5+ +5/584/1004.5/54.5/5 Feb 2019 899ebay.com
7.

Fujifilm X-A5..+4.1/5..4/53.5/5 Jan 2018 399ebay.com
8.

Fujifilm X-T1004/5+4.5/579/1004/54.5/5 May 2018 599ebay.com
9.

Fujifilm X-E34.5/5+4.5/584/1004.5/54.5/5 Sep 2017 899ebay.com
10.

Fujifilm X-A3......74/1004.5/54/5 Aug 2016 399ebay.com
11.

Fujifilm X-T104.5/5+ +..80/1005/55/5 May 2015 799ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check X-T20 offers at
ebay.com

Fujifilm X-T20 FAQ

Below are some additional questions and answers concerning some particular features of the X-T20.

What type of imaging sensor is used in the Fujifilm X-T20?

The camera is build around a CMOS (Complementary Metal–Oxide–Semiconductor) sensor.

Which image processing chip is used in the Fujifilm X-T20 to convert the raw signal into an image file and perform noise reduction and image sharpening?

Fujifilm equipped the X-T20 with the X-Processor Pro2 image processor.

What is the ISO sensitivity range of the Fujifilm X-T20?

The camera has a native sensitivity range from ISO 200 to ISO 12800, which can be extended to ISO 100-51200.

What is the life expectancy of the shutter in the Fujifilm X-T20?

Fujifilm does not publish a shutter rating for the X-T20. Yet, shutters in comparable cameras from other manufacturers are said to be good for at least 100 000 actuations. It should be noted, though, that this number represents a Mean Time before Failure. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust an expected shutter life of 100 000 shots over, say, three years, one would have to take about 100 pictures each and every day.

How do I find the shutter count on my Fujifilm X-T20?

Fujifilm embeds the number of shutter actuations in image metadata. You can check the number of shots that your X-T20 has taken up to now by uploading a recent image to the free online shutter count finder app.

Is completely silent shooting possible with the Fujifilm X-T20?

The camera has an electronic shutter option, so that it is indeed feasible to capture images without any shutter noise.

Do I need to purchase an external camera trigger to shoot time-lapse sequences with the Fujifilm X-T20?

No, the Fujifilm X-T20 has an intervalometer built-in, so that low frequency shooting (for example, flower blooming, sunset, moon rise) can be undertaken without the need to purchase a separate external intervalometer and related software.

Is it difficult to use manual focus lenses with the Fujifilm X-T20?

The X-T20 offers focus peaking as a manual focus aid. This feature works by placing a colored highlight on in-focus zones within the image.

Does the Fujifilm X-T20 feature an autofocus assist light?

Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.

What is the fastest shutter speed that can be used with the Fujifilm X-T20 for flash photography?

The X-T20's flash sync speed is 1/180 sec.

Does the Fujifilm X-T20 support the Ultra High Speed (UHS) bus interface for SD cards?

Yes, the camera can indeed use UHS-I cards (data transfer speed of up to 104 MB/s).

Which battery does the Fujifilm X-T20 use?

The camera gets its power from the NP-W126S (here at amazon), which is a rechargeable Lithium-Ion power pack.

Where can I find the best deals for the Fujifilm X-T20?

Grey imports from Asia, as found on ebay, are often very attractively priced. However, these cameras come without a warranty from Fujifilm.

Camera to camera comparisons

In case you would like to check on the differences and similarities with other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad
    Specifications Summary
    Camera Model Fujifilm X-T20
    Camera Type Mirrorless system camera
    Camera Lens Fujifilm X mount lenses
    Launch Date January 2017
    Launch Price USD 899
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format APS-C Sensor
    Sensor Size 23.6 x 15.6 mm
    Sensor Area 368 mm2
    Sensor Diagonal 28.3 mm
    Crop Factor 1.5x
    Sensor Resolution 24 Megapixels
    Image Resolution 6 000 x 4 000 pixels
    Pixel Pitch 3.92 μm
    Pixel Density 6.52 MP/cm2
    Moiré control no AA filter
    Movie Capability 4K/30p Video
    ISO Setting 200 - 12 800 ISO
    ISO Boost 100 - 51 200 ISO
    Image Processor X-Processor Pro2
    Screen Specs
    Viewfinder Type Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.62x
    Viewfinder Resolution 2360k dots
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 1040k dots
    LCD Attachment Tilting screen
    V-logging Friendliness No front-flip
    Touch Input Touchscreen
    Shooting Specs
    Focus System On-Sensor Phase-detect
    Manual Focusing AidFocus Peaking
    Maximum Shutter Speed 1/4000s
    Continuous Shooting 8 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent ShootingElectronic Shutter
    Time Lapse PhotographyIntervalometer Built-in
    Fill Flash Built-in Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-I
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port micro HDMI
    Microphone Port External MIC port
    Wifi Support Wifi built-in
    Body Specs
    Battery Type NP-W126S power pack
    Battery Life (CIPA)350 shots per charge
    In-Camera Charging USB charging
    Body Dimensions 118 x 83 x 41 mm
    (4.6 x 3.3 x 1.6 in)
    Camera Weight 383 g (13.5 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
