Canon G1 X Mark III vs Panasonic GH5
The Canon PowerShot G1 X Mark III and the Panasonic Lumix DC-GH5 are two enthusiast cameras that were announced, respectively, in October 2017 and January 2017. The G1X Mark III is a fixed lens compact, while the GH5 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (G1X Mark III) and a Four Thirds (GH5) sensor. The Canon has a resolution of 24 megapixels, whereas the Panasonic provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon G1 X Mark III||Panasonic GH5|
|Fixed lens compact camera||Mirrorless system camera|
|24-72mm f/2.8-5.6||Micro Four Thirds lenses|
|24 MP, APS-C Sensor||20.2 MP, Four Thirds Sensor|
|1080/60p Video||4K/60p Video|
|ISO 100-25,600||ISO 200-25,600|
|Electronic viewfinder (2360k dots)||Electronic viewfinder (3680k dots)|
|3.0 LCD, 1040k dots||3.2 LCD, 1620k dots|
|Swivel touchscreen||Swivel touchscreen|
|9 shutter flaps per second||12 shutter flaps per second|
|Lens-based stabilization||In-body stabilization|
|Weathersealed body||Weathersealed body|
|200 shots per battery charge||410 shots per battery charge|
|115 x 78 x 51 mm, 399 g||139 x 98 x 87 mm, 725 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G1 X Mark III and the Panasonic Lumix DC-GH5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

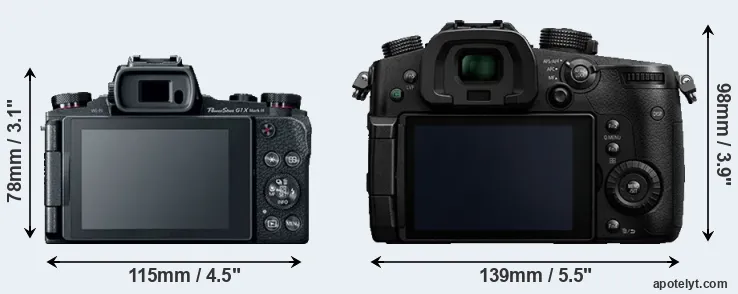

An illustration of the physical size and weight of the Canon G1 X Mark III and the Panasonic GH5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GH5 is considerably larger (52 percent) than the Canon G1 X Mark III. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G1X Mark III has a lens built in, whereas the GH5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the GH5 and their specifications in the Micro Four Thirds Lens Catalog.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon G1 X Mark III||115 mm||78 mm||51 mm||399 g||200||Y||Oct 2017||1,299|
|Panasonic GH5||139 mm||98 mm||87 mm||725 g||410||Y||Jan 2017||1,999|
|Canon M50||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779|
|Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|Canon G9 X Mark II||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529|
|Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|Canon SX540||120 mm||82 mm||92 mm||442 g||205||n||Jan 2016||399|
|Fujifilm X100V||128 mm||75 mm||53 mm||478 g||420||Y||Feb 2020||1,399|
|Fujifilm X100F||127 mm||75 mm||52 mm||469 g||390||n||Jan 2017||1,299|
|Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999|
|Olympus E-M1 II||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999|
|Panasonic G9||137 mm||97 mm||92 mm||658 g||400||Y||Nov 2017||1,699|
|Panasonic GX8||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199|
|Panasonic GH4||133 mm||93 mm||84 mm||560 g||500||Y||Feb 2014||1,499|
|Sony RX10 III||133 mm||94 mm||127 mm||1051 g||420||Y||Mar 2016||1,499|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The G1X Mark III was launched at a lower price than the GH5, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon G1 X Mark III features an APS-C sensor and the Panasonic GH5 a Four Thirds sensor. The sensor area in the GH5 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the G1X Mark III has a native 3:2 aspect ratio, while the one in the GH5 offers a 4:3 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.
With 24MP, the G1X Mark III offers a higher resolution than the GH5 (20.2MP), but the G1X Mark III nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 3.34μm for the GH5) due to its larger sensor. Moreover, the G1X Mark III is a somewhat more recent model (by 9 months) than the GH5, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the GH5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon G1 X Mark III implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G1X Mark III for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic GH5 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.
The G1X Mark III has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon PowerShot G1 X Mark III has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Panasonic Lumix DC-GH5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon G1 X Mark III||APS-C||24.0||6000||4000||1080/60p||..||..||..||..|
|Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
|Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|Panasonic G9||Four Thirds||20.2||5184||3888||4K/60p||..||..||..||..|
|Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
|Panasonic GH4||Four Thirds||15.9||4608||3456||4K/30p||23.2||12.8||791||74|
|Sony RX10 III||1-inch||20.0||5472||3648||4K/30p||23.1||12.6||472||70|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GH5 provides a better video resolution than the G1X Mark III. It can shoot movie footage at 4K/60p, while the Canon is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the GH5 offers a substantially higher resolution than the one in the G1X Mark III (3680k vs 2360k dots). The table below summarizes some of the other core capabilities of the Canon G1 X Mark III and Panasonic GH5 in connection with corresponding information for a sample of similar cameras.
|Canon G1 X Mark III||2360||n||3.0||1040||swivel||Y||1/2000s||9.0||Y||Y|
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|Canon G9 X Mark II||none||n||3.0||1040||fixed||Y||1/2000s||8.2||Y||Y|
|Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|Sony RX10 III||2359||Y||3.0||1229||tilting||n||1/2000s||14.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The G1X Mark III has one, while the GH5 does not. While the built-in flash of the G1X Mark III is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GH5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon G1 X Mark III and the Panasonic GH5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the G1X Mark III and the GH5 write their files to SDXC cards. The GH5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the G1X Mark III only has one slot. The GH5 supports UHS-II cards (on both slots), while the G1X Mark III can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G1 X Mark III and Panasonic Lumix DC-GH5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon G1 X Mark III||Y||stereo||mono||-||-||micro||2.0||Y||Y||Y|
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|Canon G9 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||Y|
|Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
|Sony RX10 III||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
It is notable that the GH5 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The G1X Mark III does not feature such a mic input.
Studio photographers will appreciate that the Panasonic GH5 (unlike the G1X Mark III) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the G1X Mark III and the GH5 are recent models that are part of the current product line-up. The GH5 replaced the earlier Panasonic GH4, while the G1X Mark III followed on from the Canon G1 X Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So how do things add up? Is the Canon G1 X Mark III better than the Panasonic GH5 or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Canon PowerShot G1 X Mark III:
- More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Ready to shoot: Has a lens built-in, whereas the GH5 requires a separate lens.
- More compact: Is smaller (115x78mm vs 139x98mm) and thus needs less room in the bag.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the GH5).
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Is somewhat more recent (announced 9 months after the GH5).
Reasons to prefer the Panasonic Lumix DC-GH5:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher definition movie capture (4K/60p vs 1080/60p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More detailed viewfinder: Has higher resolution electronic viewfinder (3680k vs 2360k dots).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (12 vs 9 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- Longer lasting: Gets more shots (410 versus 200) out of a single battery charge.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More heavily discounted: Has been on the market for longer (launched in January 2017).
If the count of individual advantages (bullet points above) is taken as a guide, the GH5 is the clear winner of the contest (18 : 14 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon G1 X Mark III and the Panasonic GH5 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the G1X Mark III and the GH5 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon G1 X Mark III||+||79/100||4.5/5||..||4.5/5||Oct 2017||1,299|
|Panasonic GH5||+ +||85/100||4.5/5||5/5||5/5||Jan 2017||1,999|
|Canon M50||+||79/100||..||4/5||3.5/5||Feb 2018||779|
|Canon 6D Mark II||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999|
|Canon 200D||+ +||78/100||4.5/5||4.5/5||4.5/5||Jun 2017||549|
|Canon G9 X Mark II||..||75/100||4.5/5||4.5/5||4.5/5||Jan 2017||529|
|Canon 80D||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199|
|Canon SX540||..||..||..||..||..||Jan 2016||399|
|Fujifilm X100V||+ +||86/100||5/5||..||4.5/5||Feb 2020||1,399|
|Fujifilm X100F||+||83/100||4.5/5||..||4.5/5||Jan 2017||1,299|
|Nikon D7500||+ +||86/100||5/5||4.5/5||4.5/5||Apr 2017||1,299|
|Nikon D500||+ +||91/100||4.5/5||5/5||5/5||Jan 2016||1,999|
|Olympus E-M1 II||+ +||85/100||4.5/5||5/5||4.5/5||Sep 2016||1,999|
|Panasonic G9||+ +||85/100||5/5||5/5||5/5||Nov 2017||1,699|
|Panasonic GX8||+||82/100||4.5/5||5/5||4.5/5||Jul 2015||1,199|
|Panasonic GH4||+ +||85/100||5/5||5/5||5/5||Feb 2014||1,499|
|Sony RX10 III||+||84/100||4.5/5||4.5/5||4.5/5||Mar 2016||1,499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 40D vs Panasonic GH5
- Canon 600D vs Panasonic GH5
- Canon 760D vs Canon G1 X Mark III
- Canon 90D vs Panasonic GH5
- Canon G1 X Mark III vs Canon SX510
- Canon G1 X Mark III vs Canon T2i
- Canon G1 X Mark III vs Nikon D5500
- Canon G1 X Mark III vs Olympus E-5
- Canon G1 X Mark III vs Sony NEX-7
- Leica M8 vs Panasonic GH5
- Nikon 1 V3 vs Panasonic GH5
- Panasonic GH5 vs Sony NEX-3
Specifications: Canon G1 X Mark III vs Panasonic GH5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon G1 X Mark III||Panasonic GH5|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||24-72mm f/2.8-5.6||Micro Four Thirds lenses|
|Launch Date||October 2017||January 2017|
|Launch Price||USD 1,299||USD 1,999|
|Sensor Specs||Canon G1 X Mark III||Panasonic GH5|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||20.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||5184 x 3888 pixels|
|Pixel Pitch||3.72 μm||3.34 μm|
|Pixel Density||7.22 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/60p Video||4K/60p Video|
|ISO Setting||100 - 25,600 ISO||200 - 25,600 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|Image Processor||DIGIC 7||Venus 10|
|DXO Sensor Quality (score)||..||77|
|DXO Color Depth (bits)||..||23.9|
|DXO Dynamic Range (EV)||..||13.0|
|DXO Low Light (ISO)||..||807|
|Screen Specs||Canon G1 X Mark III||Panasonic GH5|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots||3680k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||1040k dots||1620k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Shooting Specs||Canon G1 X Mark III||Panasonic GH5|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/2000s||1/8000s|
|Continuous Shooting||9 shutter flaps/s||12 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens-based stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||Dual UHS-II|
|Connectivity Specs||Canon G1 X Mark III||Panasonic GH5|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.1|
|HDMI Port||micro HDMI||full HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Body Specs||Canon G1 X Mark III||Panasonic GH5|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||200 shots per charge||410 shots per charge|
115 x 78 x 51 mm
(4.5 x 3.1 x 2.0 in)
139 x 98 x 87 mm
(5.5 x 3.9 x 3.4 in)
|Camera Weight||399 g (14.1 oz)||725 g (25.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
