Canon 5D Mark IV vs Panasonic G1
The Canon EOS 5D Mark IV and the Panasonic Lumix DMC-G1 are two digital cameras that were revealed to the public, respectively, in August 2016 and September 2008. The 5D Mark IV is a DSLR, while the G1 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5D Mark IV) and a Four Thirds (G1) sensor. The Canon has a resolution of 30.1 megapixels, whereas the Panasonic provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark IV and the Panasonic Lumix DMC-G1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Canon 5D Mark IV and the Panasonic G1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic G1 is considerably smaller (41 percent) than the Canon 5D Mark IV. Moreover, the G1 is substantially lighter (60 percent) than the 5D Mark IV. It is worth mentioning in this context that the 5D Mark IV is splash and dust resistant, while the G1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D Mark IV) and the Micro Four Thirds Lens Catalog (G1). Mirrorless cameras, such as the G1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|2.||Panasonic G1||124 mm||84 mm||45 mm||360 g||410||n||Sep 2008||599|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|4.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|5.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|6.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|7.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|8.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|9.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|10.||Nikon D850||146 mm||124 mm||79 mm||1005 g||1840||Y||Jul 2017||3,299|
|11.||Nikon D800||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||2,999|
|12.||Nikon D800E||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||3,299|
|13.||Olympus E-410||130 mm||91 mm||53 mm||435 g||500||n||Mar 2007||699|
|14.||Panasonic G10||124 mm||84 mm||74 mm||388 g||380||n||Mar 2010||499|
|15.||Panasonic G2||124 mm||84 mm||74 mm||428 g||360||n||Mar 2010||599|
|16.||Panasonic GH1||124 mm||90 mm||45 mm||385 g||300||n||Mar 2009||899|
|17.||Panasonic L10||135 mm||96 mm||78 mm||556 g||450||n||Aug 2007||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The G1 was launched at a markedly lower price (by 83 percent) than the 5D Mark IV, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 5D Mark IV features a full frame sensor and the Panasonic G1 a Four Thirds sensor. The sensor area in the G1 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the 5D Mark IV has a native 3:2 aspect ratio, while the one in the G1 offers a 4:3 aspect.

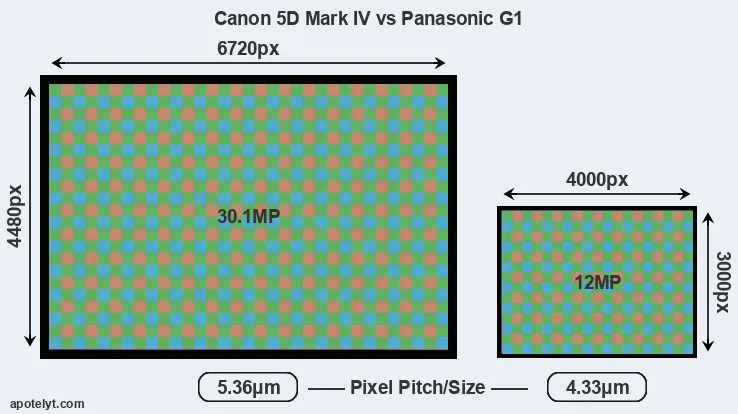

With 30.1MP, the 5D Mark IV offers a higher resolution than the G1 (12MP), but the 5D Mark IV nevertheless has larger individual pixels (pixel pitch of 5.36μm versus 4.33μm for the G1) due to its larger sensor. Moreover, the 5D Mark IV is a much more recent model (by 7 years and 11 months) than the G1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inches or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inches or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inches or 56.9 x 37.9 cm. The corresponding values for the Panasonic G1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D Mark IV has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Panasonic Lumix DMC-G1 are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 5D Mark IV provides substantially higher image quality than the G1, with an overall score that is 38 points higher. This advantage is based on 3.7 bits higher color depth, 3.3 EV in additional dynamic range, and 2.7 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|1.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|2.||Panasonic G1||Four Thirds||12.0||4000||3000||none||21.1||10.3||463||53|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|4.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|5.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|6.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|7.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|8.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|9.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|10.||Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|11.||Nikon D800||Full Frame||36.2||7360||4912||1080/30p||25.3||14.4||2853||95|
|12.||Nikon D800E||Full Frame||36.2||7360||4912||1080/30p||25.6||14.3||2979||96|
|13.||Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|14.||Panasonic G10||Four Thirds||12.0||4000||3000||720/30p||21.2||10.1||411||52|
|15.||Panasonic G2||Four Thirds||12.0||4000||3000||720/30p||21.2||10.3||493||53|
|16.||Panasonic GH1||Four Thirds||12.0||4000||3000||1080/24p||21.6||11.6||772||64|
|17.||Panasonic L10||Four Thirds||10.0||3648||2736||none||21.3||10.8||429||55|
Many modern cameras are not only capable of taking still images, but can also record movies. The 5D Mark IV indeed provides movie recording capabilities, while the G1 does not. The highest resolution format that the 5D Mark IV can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the G1 has an electronic viewfinder (1440k dots), while the 5D Mark IV has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 5D Mark IV has a higher magnification than the one of the G1 (0.71x vs 0.70x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 5D Mark IV and Panasonic G1 in connection with corresponding information for a sample of similar cameras.
|1.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|3.||Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|4.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|6.||Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|7.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|8.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
One feature that is present on the 5D Mark IV, but is missing on the G1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The G1 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5D Mark IV does not have a selfie-screen.
The Canon 5D Mark IV has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5D Mark IV writes its imaging data to Compact Flash or SDXC cards, while the G1 uses SDHC cards. The 5D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the G1 only has one slot. The 5D Mark IV supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the G1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark IV and Panasonic Lumix DMC-G1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|3.||Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|6.||Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|7.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|8.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
It is notable that the 5D Mark IV offers wifi support, while the G1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Canon 5D Mark IV (unlike the G1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the G1 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the G1 was succeeded by the Panasonic G2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what is the bottom line? Which of the two cameras – the Canon 5D Mark IV or the Panasonic G1 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS 5D Mark IV:
- More detail: Offers more megapixels (30.1 vs 12MP) with a 62% higher linear resolution.
- Better image quality: Scores substantially higher (38 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (3.7 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (3.3 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (2.7 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 4K/30p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.70x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 460k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (900 versus 410) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 7 years and 11 months of technical progress since the G1 launch.
Advantages of the Panasonic Lumix DMC-G1:
- More framing info: Has an electronic viewfinder that displays shooting data.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (124x84mm vs 151x116mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 530g or 60 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (83 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in September 2008).
If the count of relative strengths (bullet points above) is taken as a measure, the 5D Mark IV is the clear winner of the match-up (26 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark IV and the Panasonic G1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 5D Mark IV and the G1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|2.||Panasonic G1||..||+ +||70/100||4/5||4.5/5||Sep 2008||599|
|3.||Canon 6D Mark II||4/5||+||80/100||4.5/5||4/5||Jun 2017||1,999|
|4.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|5.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|6.||Canon 5DS R||5/5||+||83/100||5/5||4.5/5||Feb 2015||3,699|
|7.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|8.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|9.||Canon 5D||..||88/100||+ +||o||..||Aug 2005||3,299|
|10.||Nikon D850||4.5/5||+ +||89/100||4.5/5||5/5||Jul 2017||3,299|
|11.||Nikon D800||5/5||+ +||82/100||5/5||5/5||Feb 2012||2,999|
|12.||Nikon D800E||..||..||84/100||5/5||5/5||Feb 2012||3,299|
|13.||Olympus E-410||..||86/100||+ +||4/5||4.5/5||Mar 2007||699|
|14.||Panasonic G10||3/5||..||70/100||4/5||4/5||Mar 2010||499|
|15.||Panasonic G2||..||..||72/100||4/5||4.5/5||Mar 2010||599|
|16.||Panasonic GH1||..||+ +||72/100||4.5/5||4.5/5||Mar 2009||899|
|17.||Panasonic L10||..||85/100||+||3.5/5||4/5||Aug 2007||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 5D Mark IV vs Panasonic G1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark IV||Panasonic G1|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2016||September 2008|
|Launch Price||USD 3,499||USD 599|
|Sensor Specs||Canon 5D Mark IV||Panasonic G1|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||36.0 x 24.0 mm||17.3 x 13.0 mm|
|Sensor Area||864 mm2||224.9 mm2|
|Sensor Diagonal||43.3 mm||21.6 mm|
|Sensor Resolution||30.1 Megapixels||12 Megapixels|
|Image Resolution||6720 x 4480 pixels||4000 x 3000 pixels|
|Pixel Pitch||5.36 μm||4.33 μm|
|Pixel Density||3.48 MP/cm2||5.34 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||no Video|
|ISO Setting||100 - 32,000 ISO||100 - 1,600 ISO|
|ISO Boost||50 - 102,400 ISO||100 - 3,200 ISO|
|Image Processor||DIGIC 6+||Venus HD|
|DXO Sensor Quality (score)||91||53|
|DXO Color Depth (bits)||24.8||21.1|
|DXO Dynamic Range (EV)||13.6||10.3|
|DXO Low Light (ISO)||2995||463|
|Screen Specs||Canon 5D Mark IV||Panasonic G1|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||1440k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||460k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 5D Mark IV||Panasonic G1|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||7 shutter flaps/s||3 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF or SDXC cards||SDHC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon 5D Mark IV||Panasonic G1|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 5D Mark IV||Panasonic G1|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||900 shots per charge||410 shots per charge|
151 x 116 x 76 mm
(5.9 x 4.6 x 3.0 in)
124 x 84 x 45 mm
(4.9 x 3.3 x 1.8 in)
|Camera Weight||890 g (31.4 oz)||360 g (12.7 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
