Canon 5D Mark IV Comparison Review
The Canon EOS 5D Mark IV is a DSLR (Digital Single Lens Reflex) camera that was officially introduced in August 2016 and is equipped with a full frame sensor. It offers a resolution of 30.1 megapixel.
The Canon 5D Mark IV has a Camera Elo of 3003. This very strong rating puts it among the elite group of camera grand masters. The 5D Mark IV ranks among the top 10 percent of all digital single lens reflex cameras. In terms of its sensor size category (full frame cameras), the 5D Mark IV falls among the top 30 percent.
|Canon 5D Mark IV|
|Digital single lens reflex|
|Canon EF mount lenses|
|30.1 MP, Full Frame Sensor|
|ISO 100-32000 (50-102400)|
|3.2" LCD, 1620k dots|
|7 shutter flaps per second|
|900 shots per battery charge|
|151 x 116 x 76 mm, 890 g|
Read on to find out more about the camera's size, sensor, features, reception by expert reviewers, and how it compares to other digital cameras.

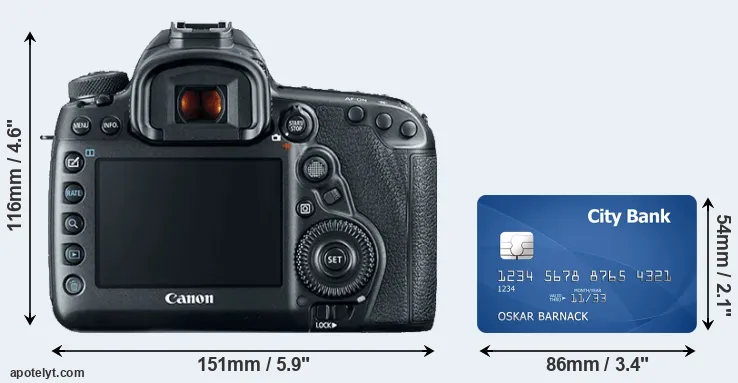

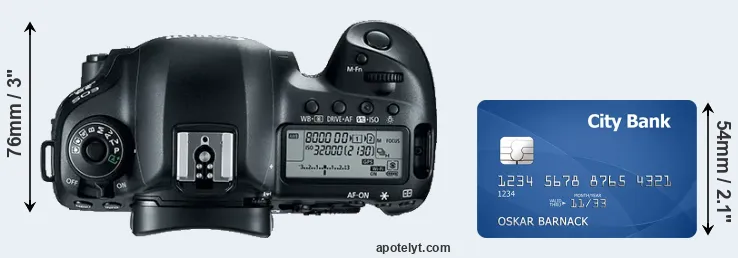

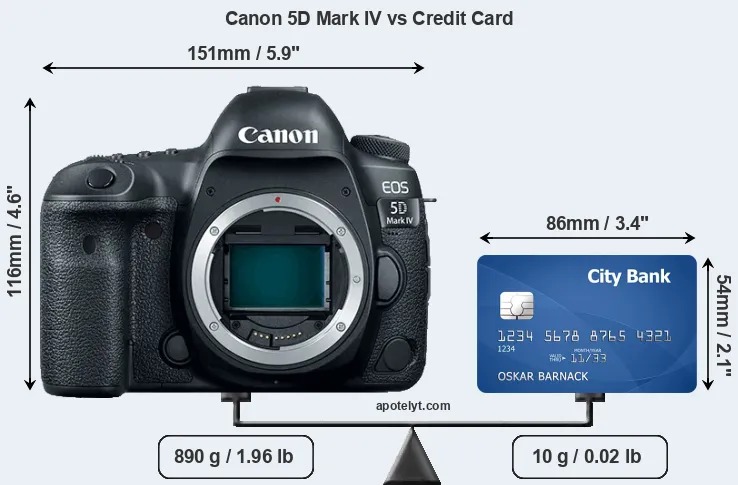

Body comparison with a credit card
The side-by-side display below illustrates the physical size of the Canon 5D Mark IV vis-à-vis a credit card. Three consecutive perspectives from the front, the top, and the back are presented. All size dimensions are rounded to the nearest millimeter.
The table below summarizes the key physical specs of the Canon 5D Mark IV alongside a set of comparators. If you want to review a camera pair side-by-side, just select a right-side comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.
|Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499||Canon 5D Mark IV|
|Canon 6D Mark II« »||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999||Canon 6D Mark II|
|Canon 1D X Mark II« »||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999||Canon 1D X Mark II|
|Canon 80D« »||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199||Canon 80D|
|Canon 5DS« »||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699||Canon 5DS R|
|Canon 5D Mark III« »||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499||-||Canon 5D Mark III|
|Canon 6D« »||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099||-||Canon 6D|
|Canon 5D Mark II« »||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499||-||Canon 5D Mark II|
|Nikon D850« »||146 mm||124 mm||79 mm||1005 g||1840||Y||Jul 2017||3,299||Nikon D850|
|Nikon D810« »||146 mm||123 mm||82 mm||980 g||1200||Y||Jun 2014||3,299||-||Nikon D810|
The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Canon 5D Mark IV was launched in the US market at a price of $3,499. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

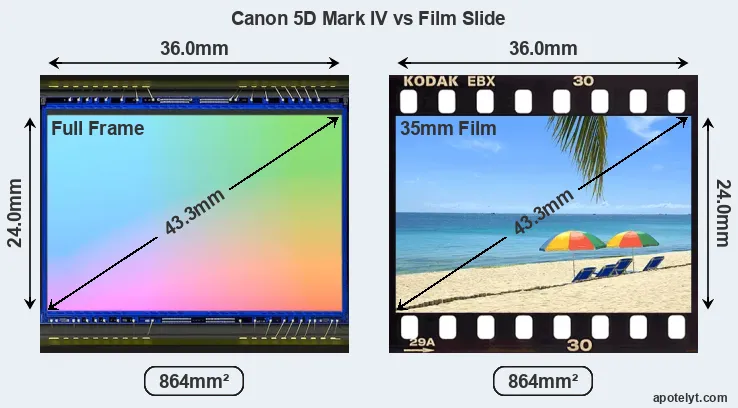

Sensor comparison with a 35mm slide
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
The Canon 5D Mark IV features a full frame sensor and has a format factor (sometimes also referred to as "crop factor") of 1.0. Within the spectrum of camera sensors, this places the Canon 5D Mark IV among the large-sensor cameras that aim for top notch image quality.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91||Canon 5D Mark IV|
|Canon 6D Mark II« »||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85||Canon 6D Mark II|
|Canon 1D X Mark II« »||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88||Canon 1D X Mark II|
|Canon 80D« »||APS-C||24.0||6000||4000||1080/60p||23.6||13.2||1135||79||Canon 80D|
|Canon 5DS« »||Full Frame||50.3||8688||5792||1080/60p||24.7||12.4||2381||87||Canon 5DS|
|Canon 5DS R« »||Full Frame||50.3||8688||5792||1080/60p||24.6||12.4||2308||86||Canon 5DS R|
|Canon 5D Mark III« »||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81||Canon 5D Mark III|
|Canon 6D« »||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82||Canon 6D|
|Canon 5D Mark II« »||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79||Canon 5D Mark II|
|Nikon D850« »||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100||Nikon D850|
|Nikon D810« »||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97||Nikon D810|
Many modern cameras cannot only take still pictures, but also record videos. The 5D Mark IV indeed provides movie recording capabilities. The highest resolution format that the 5D Mark IV can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 5D Mark IV has an optical viewfinder that provides a field of view of 100% and a magnification of 0.71x. The following tables report on some other key feature differences and similarities of the Canon 5D Mark IV and comparable cameras.
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n||Canon 5D Mark IV|
|Canon 6D Mark II« »||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n||Canon 6D Mark II|
|Canon 1D X Mark II« »||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n||Canon 1D X Mark II|
|Canon 80D« »||optical||Y||3.0||1040||swivel||Y||1/8000s||7.0||Y||n||Canon 80D|
|Canon 5DS« »||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS|
|Canon 5DS R« »||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS R|
|Canon 5D Mark III« »||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n||Canon 5D Mark III|
|Canon 6D« »||optical||Y||3.0||1040||fixed||n||1/4000s||4.5||n||n||Canon 6D|
|Canon 5D Mark II« »||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n||Canon 5D Mark II|
|Nikon D850« »||optical||Y||3.2||2359||tilting||Y||1/8000s||9.0||n||n||Nikon D850|
|Nikon D810« »||optical||Y||3.2||1229||fixed||n||1/8000s||5.0||Y||n||Nikon D810|
One useful feature of the 5D Mark IV is a presence of a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark IV and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-||Canon 5D Mark IV|
|Canon 6D Mark II« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 6D Mark II|
|Canon 1D X Mark II« »||Y||mono||mono||Y||Y||mini||3.0||-||-||-||Canon 1D X Mark II|
|Canon 80D« »||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-||Canon 80D|
|Canon 5DS« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon 5DS R« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS R|
|Canon 5D Mark III« »||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 5D Mark III|
|Canon 6D« »||Y||mono||mono||Y||-||mini||2.0||Y||-||-||Canon 6D|
|Canon 5D Mark II« »||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 5D Mark II|
|Nikon D850« »||Y||stereo||mono||Y||Y||mini||3.0||Y||Y||Y||Nikon D850|
|Nikon D810« »||Y||stereo||mono||Y||Y||mini||3.0||Y||-||-||Nikon D810|
It is notable that the 5D Mark IV has a microphone port. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
While the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 5D Mark IV handle or perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate. This is why expert reviews are important. The following table reports the overall rankings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog).
|Canon 5D Mark IV||++||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499||Canon 5D Mark IV|
|Canon 6D Mark II« »||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999||Canon 6D Mark II|
|Canon 1D X Mark II« »||-||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999||Canon 1D X Mark II|
|Canon 80D« »||++||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199||Canon 80D|
|Canon 5DS« »||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS R|
|Canon 5D Mark III« »||++||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499||-||Canon 5D Mark III|
|Canon 6D« »||++||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099||-||Canon 6D|
|Canon 5D Mark II« »||91/100||79/100||4/5||5/5||-||Sep 2008||3,499||-||Canon 5D Mark II|
|Nikon D850« »||++||89/100||4.5/5||5/5||5/5||Jul 2017||3,299||Nikon D850|
|Nikon D810« »||-||86/100||5/5||4.5/5||4.5/5||Jun 2014||3,299||-||Nikon D810|
|Notes: ++) highly recommended; +) recommended; o) reviewed; -) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Canon 5D Mark IV FAQ
Below are some additional questions and answers concerning some particular features of the 5D Mark IV.
What is the technology behind the imaging sensor in the 5D Mark IV?
The camera has a CMOS (Complementary Metal–Oxide–Semiconductor) sensor at its core.
Which image processing chip is used to convert the raw signal into an image file and perform noise reduction and image sharpening?
Canon equipped the 5D Mark IV with the DIGIC 6+ image processor.
What is the ISO sensitivity range of the 5D Mark IV?
The camera has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 50-102400.
What is the life expectancy of the shutter in the Canon EOS 5D Mark IV?
Canon mentions a shutter rating of 150 000 actuations for the 5D Mark IV. This number represents a Mean Time before Failure, that is an average value. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust the expected shutter life of the 5D Mark IV over, say, three years, one would have to take about 150 pictures each and every day.
Do I need to purchase an external camera trigger to shoot time-lapse sequences?
No, the Canon EOS 5D Mark IV has an intervalometer built-in, so that low frequency shooting (for example, flower blooming, sunset, moon rise) can be undertaken without the need to purchase a separate external intervalometer and related software.
What is the fastest shutter speed that can be used with flash?
The 5D Mark IV's flash sync speed is 1/200 sec.
Does the Canon 5D Mark IV support the Ultra High Speed (UHS) bus interface for SD cards?
Yes, the camera can indeed use UHS-I cards (data transfer speed of up to 104 MB/s).
Which battery does the 5D Mark IV use?
The camera gets its power from the LP-E6N (here at amazon), which is a rechargeable Lithium-Ion power pack.
Is there a vertical grip available for the 5D Mark IV?
Yes, Canon offers the BG-E20 as an optional accessory to facilitate shooting in portrait orientation and to provide additional battery power.
Does the Canon EOS 5D Mark IV support geotagging?
The 5D Mark IV has a built-in GPS (Global Positioning System) module and can embed location information in the EXIF data of the captured image.
Where can I find the best deals for the 5D Mark IV?
Camera to camera comparisons
In case you would like to check on the differences and similarities with other camera models, just use the search menu below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D vs Fujifilm XF10
- Canon 5D Mark II vs Nikon D500
- Canon T6 vs Canon M50
- Fujifilm X100T vs Olympus E-P5
- Fujifilm XP130 vs Nikon D7500
- Nikon D3000 vs Canon RP
- Nikon D40X vs Nikon D850
- Olympus E-P1 vs Leica Q Typ 116
- Olympus E-PL9 vs Nikon D3X
- Panasonic TZ200 vs Kodak AZ901
- Sony A6000 vs Fujifilm GFX 50R
- Sony A7R III vs Sony A5100
|Camera Model||Canon 5D Mark IV|
|Camera Type||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses|
|Launch Date||August 2016|
|Launch Price||USD 3499|
|Sensor Format||Full Frame Sensor|
|Sensor Size||36.0 x 24.0 mm|
|Sensor Area||864 mm2|
|Sensor Diagonal||43.3 mm|
|Sensor Resolution||30.1 Megapixels|
|Image Resolution||6720 x 4480 pixels|
|Pixel Pitch||5.36 μm|
|Pixel Density||3.48 MP/cm2|
|Moiré control||Anti-Alias filter|
|Movie Capability||4K/30p Video|
|ISO Setting||100-32000 ISO|
|ISO Boost||50-102400 ISO|
|Image Processor||DIGIC 6+|
|DXO Sensor Quality (score)||91|
|DXO Color Depth (bits)||24.8|
|DXO Dynamic Range (EV)||13.6|
|DXO Low Light (ISO)||2995|
|Viewfinder Type||Optical viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.2 inch|
|LCD Resolution||1620k dots|
|LCD Attachment||Fixed screen|
|Autofocus System||Phase-detect AF|
|Manual Focusing Aid||No Peaking Feature|
|Maximum Shutter Speed||1/8000s|
|Continuous Shooting||7 shutter flaps/s|
|Shutter Life Expectancy||150 000 actuations|
|Silent Shooting||no E-Shutter|
|Time Lapse Photography||Intervalometer Built-in|
|Fill Flash||no On-Board Flash|
|Storage Medium||CF or SDXC cards|
|Second Storage Option||Dual card slots|
|UHS card support||UHS-I|
|Studio Flash||PC Sync socket|
|USB Connector||USB 3.0|
|HDMI Port||mini HDMI|
|Microphone Port||External MIC port|
|Headphone Socket||Headphone port|
|Wifi Support||Wifi built-in|
|Near-Field Communication||NFC built-in|
|Environmental Sealing||Weathersealed body|
|Battery Type||LP-E6N power pack|
|Battery Life (CIPA)||900 shots per charge|
151 x 116 x 76 mm
(5.9 x 4.6 x 3.0 in)
|Camera Weight||890 g (31.4 oz)|
