Canon 1D X Mark II Comparison Review
The Canon EOS-1D X Mark II is a DSLR (Digital Single Lens Reflex) camera that was revealed to the public in February 2016 and is equipped with a full frame sensor. It offers a resolution of 20 megapixel.
Is the Canon 1D X Mark II a good camera? The 1DX Mark II has a Camera Elo of 2935. This very strong rating puts it among the elite group of camera grand masters. The 1DX Mark II ranks among the top 10 percent of all digital single lens reflex cameras. In terms of its sensor size category (full frame cameras), the 1DX Mark II ranks among the top 30 percent.
|Canon 1D X Mark II|
|Digital single lens reflex|
|Canon EF mount lenses|
|20 MP, Full Frame Sensor|
|ISO 100-51200 (50-409600)|
|3.2" LCD, 1620k dots|
|16 shutter flaps per second|
|1210 shots per battery charge|
|158 x 168 x 83 mm, 1530 g|
Read on to find out more about the camera's size, sensor, features, reception by expert reviewers, and how it compares to other digital cameras.

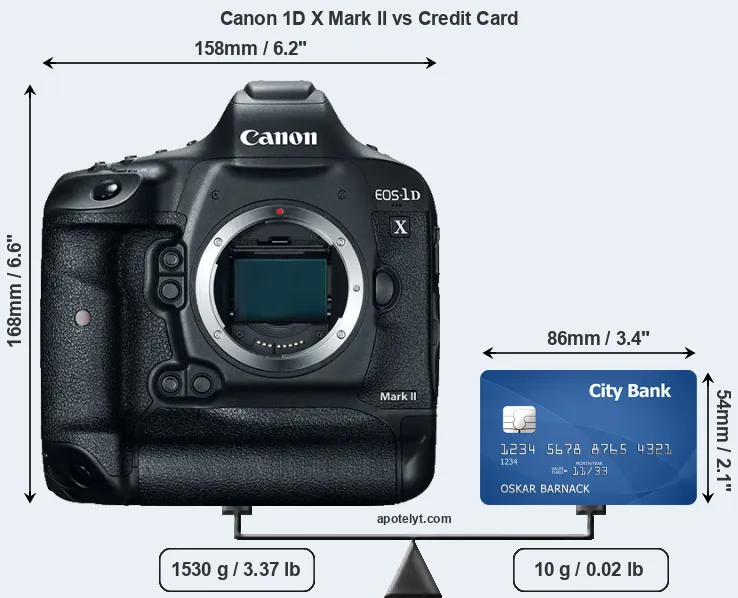

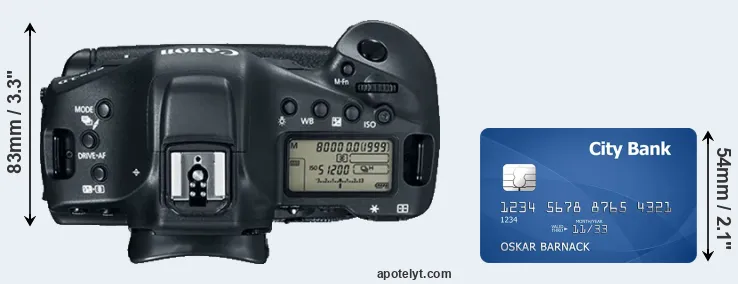

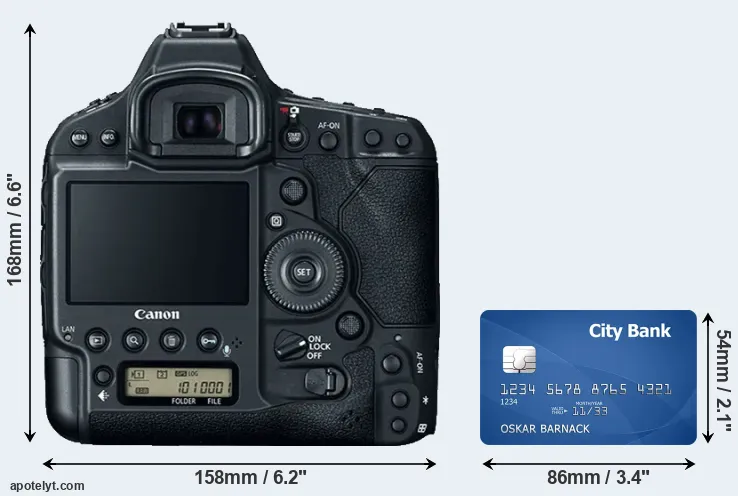

Body comparison with a credit card
The physical dimensions of the Canon 1D X Mark II relative to a credit card are illustrated in the side-by-side display below. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The table below summarizes the key physical specs of the Canon 1D X Mark II alongside a set of comparators. If you want to review a camera pair side-by-side, just select a right-side comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.
|Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999||Canon 1D X Mark II|
|Canon 6D Mark II« »||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999||Canon 6D Mark II|
|Canon 5DS« »||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon 1D C« »||158 mm||164 mm||83 mm||1545 g||1120||Y||Apr 2012||14,999||-||Canon 1D C|
|Canon 5D Mark III« »||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499||-||Canon 5D Mark III|
|Canon 6D« »||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099||-||Canon 6D|
|Canon 1D X« »||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799||-||Canon 1D X|
|Canon 5D Mark II« »||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499||-||Canon 5D Mark II|
|Canon 1Ds Mark III« »||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999||-||Canon 1Ds Mark III|
|Canon 1Ds Mark II« »||156 mm||158 mm||80 mm||1215 g||1200||Y||Sep 2004||7,999||-||Canon 1Ds Mark II|
|Nikon D5« »||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499||Nikon D5|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Canon 1D X Mark II was launched in the US market at a price of $5,999. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

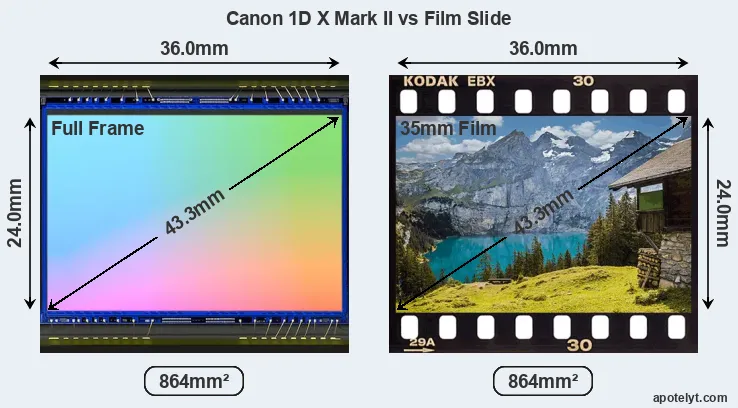

Sensor comparison with a 35mm slide
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
The Canon 1D X Mark II features a full frame sensor and has a format factor (sometimes also referred to as "crop factor") of 1.0. Within the spectrum of camera sensors, this places the Canon 1D X Mark II among the large-sensor cameras that aim for top notch image quality.
For most cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88||Canon 1D X Mark II|
|Canon 6D Mark II« »||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85||Canon 6D Mark II|
|Canon 5DS« »||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87||Canon 5DS|
|Canon 1D C« »||Full Frame||17.9||5184||3456||4K/24p||-||-||-||-||Canon 1D C|
|Canon 5D Mark III« »||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81||Canon 5D Mark III|
|Canon 6D« »||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82||Canon 6D|
|Canon 1D X« »||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82||Canon 1D X|
|Canon 5D Mark II« »||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79||Canon 5D Mark II|
|Canon 1Ds Mark III« »||Full Frame||21.0||5616||3744||-||24.0||12.0||1663||80||Canon 1Ds Mark III|
|Canon 1Ds Mark II« »||Full Frame||16.6||4992||3328||-||23.3||11.3||1480||74||Canon 1Ds Mark II|
|Nikon D5« »||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88||Nikon D5|
Many modern cameras cannot only take still pictures, but also record videos. The 1DX Mark II indeed provides movie recording capabilities. The highest resolution format that the 1DX Mark II can use is 4K/60p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 1DX Mark II has an optical viewfinder that provides a field of view of 100% and a magnification of 0.76x. The following tables report on some other key feature differences and similarities of the Canon 1D X Mark II and comparable cameras.
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n||Canon 1D X Mark II|
|Canon 6D Mark II« »||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n||Canon 6D Mark II|
|Canon 5DS« »||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS|
|Canon 1D C« »||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n||Canon 1D C|
|Canon 5D Mark III« »||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n||Canon 5D Mark III|
|Canon 6D« »||optical||Y||3.0||1040||fixed||n||1/4000s||4.5||n||n||Canon 6D|
|Canon 1D X« »||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n||Canon 1D X|
|Canon 5D Mark II« »||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n||Canon 5D Mark II|
|Canon 1Ds Mark III« »||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n||Canon 1Ds Mark III|
|Canon 1Ds Mark II« »||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n||Canon 1Ds Mark II|
|Nikon D5« »||optical||Y||3.2||2359||fixed||Y||1/8000s||14.0||n||n||Nikon D5|
One useful feature of the 1DX Mark II is a presence of a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D X Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-||Canon 1D X Mark II|
|Canon 6D Mark II« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 6D Mark II|
|Canon 5DS« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon 1D C« »||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 1D C|
|Canon 5D Mark III« »||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 5D Mark III|
|Canon 6D« »||Y||mono||mono||Y||-||mini||2.0||Y||-||-||Canon 6D|
|Canon 1D X« »||Y||mono||-||Y||-||mini||2.0||-||-||-||Canon 1D X|
|Canon 5D Mark II« »||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 5D Mark II|
|Canon 1Ds Mark III« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 1Ds Mark III|
|Canon 1Ds Mark II« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 1Ds Mark II|
|Nikon D5« »||Y||stereo||mono||Y||Y||mini||3.0||-||-||-||Nikon D5|
It is notable that the 1DX Mark II has a microphone port. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
While the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says nothing about, for example, the handling, responsiveness, and overall imaging quality of the 1DX Mark II in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate. This is why expert reviews are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog).
|Canon 1D X Mark II||-||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999||Canon 1D X Mark II|
|Canon 6D Mark II« »||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999||Canon 6D Mark II|
|Canon 5DS« »||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS|
|Canon 1D C« »||-||-||-||-||-||Apr 2012||14,999||-||Canon 1D C|
|Canon 5D Mark III« »||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499||-||Canon 5D Mark III|
|Canon 6D« »||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099||-||Canon 6D|
|Canon 1D X« »||-||-||4.5/5||4.5/5||4.5/5||Oct 2011||6,799||-||Canon 1D X|
|Canon 5D Mark II« »||91/100||79/100||4/5||5/5||-||Sep 2008||3,499||-||Canon 5D Mark II|
|Canon 1Ds Mark III« »||-||+ +||4.5/5||-||-||Aug 2007||7,999||-||Canon 1Ds Mark III|
|Canon 1Ds Mark II« »||-||+ +||-||-||-||Sep 2004||7,999||-||Canon 1Ds Mark II|
|Nikon D5« »||-||89/100||4.5/5||5/5||5/5||Jan 2016||6,499||Nikon D5|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Canon 1D X Mark II FAQ
Below are some additional questions and answers concerning some particular features of the 1DX Mark II.
What technology is the imaging sensor in the 1DX Mark II based on?
The camera is build around a CMOS (Complementary Metal–Oxide–Semiconductor) sensor.
Which image processing chip is used to convert the raw signal into an image file and perform noise reduction and image sharpening?
Canon equipped the 1DX Mark II with the DIGIC 6+ (Dual) image processor.
What is the ISO sensitivity range of the 1DX Mark II?
The camera has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-409600.
What is the life expectancy of the shutter in the Canon EOS-1D X Mark II?
Canon mentions a shutter rating of 500 000 actuations for the 1DX Mark II. This number represents a Mean Time before Failure, that is an average value. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust the expected shutter life of the 1DX Mark II over, say, three years, one would have to take about 500 pictures each and every day.
What is the fastest shutter speed that can be used with flash?
The 1DX Mark II's flash sync speed is 1/250 sec.
Which battery does the 1DX Mark II use?
The camera gets its power from the LP-E19 (here at amazon), which is a rechargeable Lithium-Ion power pack.
Does the Canon EOS-1D X Mark II support geotagging?
The 1DX Mark II has a built-in GPS (Global Positioning System) module and can embed location information in the EXIF data of the captured image.
Where can I find the best deals for the 1DX Mark II?
Camera to camera comparisons
In case you would like to check on the differences and similarities with other camera models, just make a corresponding selection in the search boxes below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D Mark II vs Canon 1D X Mark II
- Canon 1D X Mark II vs Canon 2000D
- Canon 1D X Mark II vs Canon 5D Mark II
- Canon 1D X Mark II vs Canon M50
- Canon 1D X Mark II vs Canon SX60
- Canon 1D X Mark II vs Fujifilm X-T1
- Canon 1D X Mark II vs Fujifilm X100F
- Canon 1D X Mark II vs Leica Q2
- Canon 1D X Mark II vs Leica S-E Typ 006
- Canon 1D X Mark II vs Nikon D7000
- Canon 1D X Mark II vs Olympus E-PL8
- Canon 1D X Mark II vs Sony A7R II
|Camera Model||Canon 1D X Mark II|
|Camera Type||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses|
|Launch Date||February 2016|
|Launch Price||USD 5999|
|Sensor Format||Full Frame Sensor|
|Sensor Size||36.0 x 24.0 mm|
|Sensor Area||864 mm2|
|Sensor Diagonal||43.3 mm|
|Sensor Resolution||20 Megapixels|
|Image Resolution||5472 x 3648 pixels|
|Pixel Pitch||6.57 μm|
|Pixel Density||2.31 MP/cm2|
|Moiré control||Anti-Alias filter|
|Movie Capability||4K/60p Video|
|ISO Setting||100-51200 ISO|
|ISO Boost||50-409600 ISO|
|Image Processor||DIGIC 6+ (Dual)|
|DXO Sensor Quality (score)||88|
|DXO Color Depth (bits)||24.1|
|DXO Dynamic Range (EV)||13.5|
|DXO Low Light (ISO)||3207|
|Viewfinder Type||Optical viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.2 inch|
|LCD Resolution||1620k dots|
|LCD Attachment||Fixed screen|
|Autofocus System||Phase-detect AF|
|Manual Focusing Aid||No Peaking Feature|
|Maximum Shutter Speed||1/8000s|
|Continuous Shooting||16 shutter flaps/s|
|Shutter Life Expectancy||500 000 actuations|
|Silent Shooting||no E-Shutter|
|Time Lapse Photography||no Intervalometer|
|Fill Flash||no On-Board Flash|
|Storage Medium||CF or CFAST cards|
|Second Storage Option||Dual card slots|
|Studio Flash||PC Sync socket|
|USB Connector||USB 3.0|
|HDMI Port||mini HDMI|
|Microphone Port||External MIC port|
|Headphone Socket||Headphone port|
|Wifi Support||no Wifi|
|Environmental Sealing||Weathersealed body|
|Battery Type||LP-E19 power pack|
|Battery Life (CIPA)||1210 shots per charge|
158 x 168 x 83 mm
(6.2 x 6.6 x 3.3 in)
|Camera Weight||1530 g (54.0 oz)|
