Canon 1D X Mark II vs XT
The Canon EOS-1D X Mark II and the Canon EOS Rebel XT (labelled Canon 350D in some countries) are two digital cameras that were officially introduced, respectively, in February 2016 and February 2005. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (1DX Mark II) and an APS-C (XT) sensor. The 1DX Mark II has a resolution of 20 megapixels, whereas the XT provides 8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D X Mark II and the Canon EOS Rebel XT? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

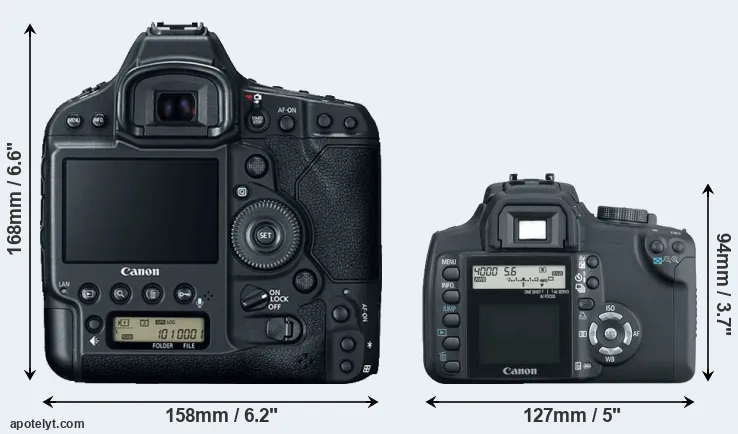

An illustration of the physical size and weight of the Canon 1D X Mark II and the Canon XT is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The XT can be obtained in two different colors (black, silver), while the 1DX Mark II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XT is considerably smaller (55 percent) than the Canon 1D X Mark II. Moreover, the XT is substantially lighter (65 percent) than the 1DX Mark II. It is worth mentioning in this context that the 1DX Mark II is splash and dust resistant, while the XT does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 1DX Mark II) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (XT). You can compare the optics available in the Canon EF Lens Catalog.
Concerning battery life, the 1DX Mark II gets 1210 shots out of its LP-E19 battery, while the XT can take 400 images on a single charge of its NB-2LH power pack. As can be seen in the images above, the 1DX Mark II has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the XT, Canon provides the BG-E3 vertical grip as an optional accessory (see here on eBay).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|2.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|3.||Canon 1D X Mark III||158 mm||168 mm||83 mm||1440 g||2850||Y||Jan 2020||6,499|
|4.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|5.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|6.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|7.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|8.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|9.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|10.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|11.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|12.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|13.||Canon 1D X||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799|
|14.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|15.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|16.||Canon Rebel||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899|
|17.||Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The XT was launched at a markedly lower price (by 85 percent) than the 1DX Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 1D X Mark II features a full frame sensor and the Canon XT an APS-C sensor. The sensor area in the XT is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 20MP, the 1DX Mark II offers a higher resolution than the XT (8MP), but the 1DX Mark II nevertheless has larger individual pixels (pixel pitch of 6.57μm versus 6.41μm for the XT) due to its larger sensor. Moreover, the 1DX Mark II is a much more recent model (by 10 years and 11 months) than the XT, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 1D X Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 1DX Mark II for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Canon XT are 17.3 x 11.5 inches or 43.9 x 29.3 cm for good quality, 13.8 x 9.2 inches or 35.1 x 23.4 cm for very good quality, and 11.5 x 7.7 inches or 29.3 x 19.5 cm for excellent quality prints.
The 1DX Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS-1D X Mark II has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-409600. The corresponding ISO settings for the Canon EOS Rebel XT are ISO 100 to ISO 1600 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 1DX Mark II provides substantially higher image quality than the XT, with an overall score that is 28 points higher. This advantage is based on 2.3 bits higher color depth, 2.7 EV in additional dynamic range, and 2.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|3.||Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|4.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|6.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|8.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|9.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|12.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|13.||Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|14.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|17.||Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
Many modern cameras are not only capable of taking still images, but can also record movies. The 1DX Mark II indeed provides movie recording capabilities, while the XT does not. The highest resolution format that the 1DX Mark II can use is 4K/60p.
Apart from body and sensor, cameras can and do differ across a range of features. The 1DX Mark II and the XT are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 1DX Mark II offers a wider field of view (100%) than the one in the XT (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 1DX Mark II has a higher magnification (0.76x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 1D X Mark II, the Canon XT, and comparable cameras.
|1.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|3.||Canon 1D X Mark III||optical||Y||3.2||2100||fixed||Y||1/8000s||20.0||n||n|
|4.||Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|6.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|9.||Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|13.||Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|14.||Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
One feature that is present on the 1DX Mark II, but is missing on the XT is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 1DX Mark II writes its imaging data to Compact Flash or CFast cards, while the XT uses Compact Flash cards. The 1DX Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the XT only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D X Mark II and Canon EOS Rebel XT and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|3.||Canon 1D X Mark III||Y||mono||mono||Y||Y||mini||3.1||Y||-||Y|
|4.||Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|9.||Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|13.||Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|14.||Canon 1Ds Mark III||Y||mono||-||-||-||-||2.0||-||-||-|
Studio photographers will appreciate that the Canon 1D X Mark II (unlike the XT) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the 1DX Mark II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the 1DX Mark II and the XT have been discontinued, but can regularly be found used on eBay. The XT was replaced by the Canon Xti, while the 1DX Mark II was followed by the Canon 1DX Mark III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Is there a clear favorite between the Canon 1D X Mark II and the Canon XT? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS-1D X Mark II:
- More detail: Offers more megapixels (20 vs 8MP) with a 58% higher linear resolution.
- Better image quality: Scores substantially higher (28 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (2.3 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (2.7 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (2.3 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 4K/60p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.49x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 115k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (16 vs 3 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1210 versus 400) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 10 years and 11 months of technical progress since the XT launch.
Reasons to prefer the Canon EOS Rebel XT:
- More compact: Is smaller (127x94mm vs 158x168mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 990g or 65 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (85 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in February 2005).
If the count of relative strengths (bullet points above) is taken as a measure, the 1DX Mark II is the clear winner of the match-up (23 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D X Mark II and the Canon XT place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 1DX Mark II and the XT in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|2.||Canon XT||..||80/100||+ +||o||..||Feb 2005||899|
|3.||Canon 1D X Mark III||..||+ +||..||4.5/5||4/5||Jan 2020||6,499|
|4.||Canon 6D Mark II||4/5||+||80/100||4.5/5||4/5||Jun 2017||1,999|
|5.||Canon 77D||4.5/5||..||82/100||4.5/5||4/5||Feb 2017||899|
|6.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|7.||Canon 80D||4/5||+ +||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|8.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|9.||Canon 5DS R||5/5||+||83/100||5/5||4.5/5||Feb 2015||3,699|
|10.||Canon T6i||5/5||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|11.||Canon T6s||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|12.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|13.||Canon 1D X||5/5||..||..||4.5/5||4.5/5||Oct 2011||6,799|
|14.||Canon 1Ds Mark III||..||..||+ +||4.5/5||..||Aug 2007||7,999|
|15.||Canon XTi||..||+ +||+ +||o||4/5||Aug 2006||799|
|16.||Canon Rebel||..||..||+ +||..||..||Aug 2003||899|
|17.||Nikon D5||..||..||89/100||4.5/5||5/5||Jan 2016||6,499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 1D X Mark II vs Canon XT
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D X Mark II||Canon XT|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||February 2016||February 2005|
|Launch Price||USD 5,999||USD 899|
|Sensor Specs||Canon 1D X Mark II||Canon XT|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||22.2 x 14.8 mm|
|Sensor Area||864 mm2||328.56 mm2|
|Sensor Diagonal||43.3 mm||26.7 mm|
|Sensor Resolution||20 Megapixels||8 Megapixels|
|Image Resolution||5472 x 3648 pixels||3456 x 2304 pixels|
|Pixel Pitch||6.57 μm||6.41 μm|
|Pixel Density||2.31 MP/cm2||2.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/60p Video||no Video|
|ISO Setting||100 - 51,200 ISO||100 - 1,600 ISO|
|ISO Boost||50 - 409,600 ISO||no Enhancement|
|Image Processor||DIGIC 6+ (Dual)||DIGIC II|
|DXO Sensor Quality (score)||88||60|
|DXO Color Depth (bits)||24.1||21.8|
|DXO Dynamic Range (EV)||13.5||10.8|
|DXO Low Light (ISO)||3207||637|
|Screen Specs||Canon 1D X Mark II||Canon XT|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||3.2inch||1.8inch|
|LCD Resolution||1620k dots||115k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 1D X Mark II||Canon XT|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||16 shutter flaps/s||3 shutter flaps/s|
|Shutter Life Expectancy||500 000 actuations||50 000 actuations|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF or CFAST cards||CF cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Canon 1D X Mark II||Canon XT|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||no Wifi||no Wifi|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 1D X Mark II||Canon XT|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||1210 shots per charge||400 shots per charge|
158 x 168 x 83 mm
(6.2 x 6.6 x 3.3 in)
127 x 94 x 64 mm
(5.0 x 3.7 x 2.5 in)
|Camera Weight||1530 g (54.0 oz)||540 g (19.0 oz)|
