What is the pixel pitch of the Canon 1D X Mark II?

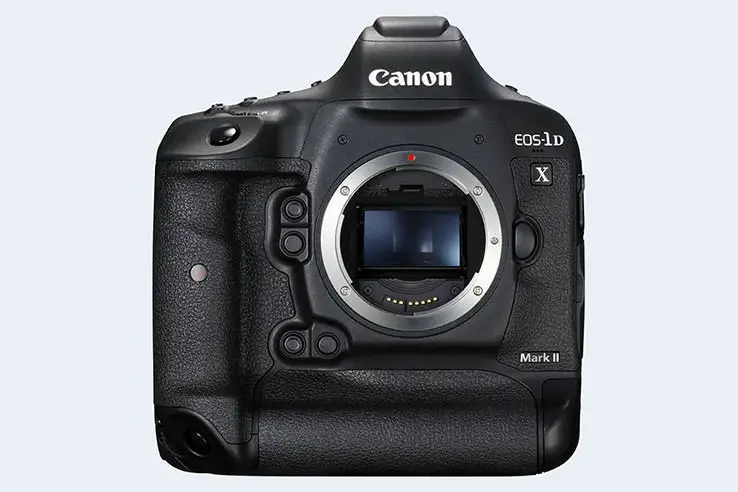

The Canon EOS-1D X Mark II provides 20 megapixels from a full frame sensor. This pixel density gives rise to a size of the individual pixel of 6.57µm.
The pixel size or pixel pitch can be calculated by dividing the sensor area by the pixel count and then taking the square root. In particular, the sensor in the Canon 1D X Mark II measures 36.0mm in width and 24.0mm in height, so that the total imaging area of the sensor amounts to 864 mm2. Moreover, the 1DX Mark II has 5 472 horizontal pixels and 3 648 vertical pixels, for a total of 20 megapixels. Then, the size (height or width) of each individual pixel can be calculated as the square root of the ratio of the sensor area (864 mm2) to the MP count (19 961 856).
Larger pixels provide advantages with respect to gathering light, particularly in low-light situations. Large pixels notably have a better signal to noise ratio, meaning that they can better differentiate between incoming photons and the noisy signals that the internal processes of the camera create. As a result, big pixels are particularly helpful to the photographer when shooting with high ISO settings.
Sensor specs and performance
The table below compares the sensor specs of the Canon 1D X Mark II to those of several similar cameras. The reported DXO values are indicators of the sensor's imaging quality (higher is better), covering color depth (DXO Portrait), dynamic range (DXO Landscape), and high-ISO noise (DXO Sports). Larger sensor cameras tend to outperform cameras of the same generation that are equipped with a smaller imager. On the other hand, larger sensors are more expensive and require bigger and heavier lenses than smaller light receptors.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 1D X Mark II | Full Frame | 20.0 | 5472 | 3648 | 4K/60p | 24.1 | 13.5 | 3207 | 88 | |
2. | Canon 1Ds Mark III | Full Frame | 21.0 | 5616 | 3744 | none | 24.0 | 12.0 | 1663 | 80 | |
3. | Canon 1D C | Full Frame | 17.9 | 5184 | 3456 | 4K/24p | 24.3 | 13.0 | 2155 | 85 | |
4. | Canon 1D X | Full Frame | 17.9 | 5184 | 3456 | 1080/30p | 23.8 | 11.8 | 2786 | 82 | |
5. | Canon 1D X Mark III | Full Frame | 20.0 | 5472 | 3648 | 4K/60p | 24.2 | 14.5 | 3248 | 91 | |
6. | Canon 5D Mark II | Full Frame | 21.0 | 5616 | 3744 | 1080/30p | 23.7 | 11.9 | 1815 | 79 | |
7. | Canon 5D Mark III | Full Frame | 22.1 | 5760 | 3840 | 1080/30p | 24.0 | 11.7 | 2293 | 81 | |
8. | Canon 5DS | Full Frame | 50.3 | 8688 | 5792 | 1080/30p | 24.7 | 12.4 | 2381 | 87 | |
9. | Canon 6D | Full Frame | 20.0 | 5472 | 3648 | 1080/30p | 23.8 | 12.1 | 2340 | 82 | |
10. | Canon 6D Mark II | Full Frame | 26.0 | 6240 | 4160 | 1080/60p | 24.4 | 11.9 | 2862 | 85 | |
11. | Nikon D5 | Full Frame | 20.7 | 5588 | 3712 | 4K/30p | 25.1 | 12.3 | 2343 | 88 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Further information on the sensor in the Canon 1D X Mark II and the camera's operation can be found in the camera manual.
In the United States, the 1DX Mark II was initially launched in February 2016 at a price of $5,999.
Camera to camera comparisons
In case you would like to check on the differences and similarities with other camera models, just make a corresponding selection in the search boxes below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D X Mark II vs Canon M100
- Canon 1D X Mark II vs Canon M50 Mark II
- Canon 1D X Mark II vs Fujifilm X-E2
- Canon 1D X Mark II vs Nikon W300
- Canon 1D X Mark II vs Panasonic GH3
- Canon 1D X Mark II vs Sony A9
- Canon 5D vs Nikon Z6
- Fujifilm X-T5 vs Nikon Z6
- Leica V-LUX 1 vs Nikon Z6
- Nikon Z6 vs Olympus E-PL5
- Nikon Z6 vs Olympus TG-5
- Nikon Z6 vs Panasonic FZ100
Camera Model | Canon 1D X Mark II | |
---|---|---|
Camera Type | Digital single lens reflex | |
Camera Lens | Canon EF mount lenses | |
Launch Date | February 2016 | |
Launch Price | USD 5 999 | |
Sensor Specs | ||
Sensor Technology | CMOS | |
Sensor Format | Full Frame Sensor | |
Sensor Size | 36.0 x 24.0 mm | |
Sensor Area | 864 mm2 | |
Sensor Diagonal | 43.3 mm | |
Crop Factor | 1.0x | |
Sensor Resolution | 20 Megapixels | |
Image Resolution | 5 472 x 3 648 pixels | |
Pixel Pitch | 6.57 μm | |
Pixel Density | 2.31 MP/cm2 | |
Moiré control | Anti-Alias filter | |
Movie Capability | 4K/60p Video | |
ISO Setting | 100 - 51 200 ISO | |
ISO Boost | 50 - 409 600 ISO | |
Image Processor | DIGIC 6+ (Dual) | |
DXO Sensor Quality (score) | 88 | |
DXO Color Depth (bits) | 24.1 | |
DXO Dynamic Range (EV) | 13.5 | |
DXO Low Light (ISO) | 3207 | |
Screen Specs | ||
Viewfinder Type | Optical viewfinder | |
Viewfinder Field of View | 100% | |
Viewfinder Magnification | 0.76x | |
Top-Level Screen | Control Panel | |
LCD Framing | Live View | |
LCD Size | 3.2 inch | |
LCD Resolution | 1620k dots | |
LCD Attachment | Fixed screen | |
Touch Input | Touchscreen | |
Shooting Specs | ||
Focus System | Phase-detect AF | |
Manual Focusing Aid | no Peaking Feature | |
Maximum Shutter Speed | 1/8000s | |
Continuous Shooting | 16 shutter flaps/s | |
Shutter Life Expectancy | 500 000 actuations | |
Silent Shooting | no E-Shutter | |
Time Lapse Photography | no Intervalometer | |
Fill Flash | no On-Board Flash | |
Storage Medium | CF or CFAST cards | |
Single or Dual Card Slots | Dual card slots | |
Connectivity Specs | ||
External Flash | Hotshoe | |
Studio Flash | PC Sync socket | |
USB Connector | USB 3.0 | |
HDMI Port | mini HDMI | |
Microphone Port | External MIC port | |
Headphone Socket | Headphone port | |
Wifi Support | no Wifi | |
Geotagging | GPS built-in | |
Body Specs | ||
Environmental Sealing | Weathersealed body | |
Battery Type | Canon LP-E19 power pack | |
Battery Life (CIPA) | 1210 shots per charge | |
Body Dimensions |
158 x 168 x 83 mm (6.2 x 6.6 x 3.3 in) |
|
Camera Weight | 1 530 g (54.0 oz) |
