Canon 5D Mark IV versus Canon G1 X Mark III

The Canon EOS 5D Mark IV and the Canon PowerShot G1 X Mark III are two digital cameras that were revealed to the public, respectively, in August 2016 and October 2017. The 5D Mark IV is a DSLR, while the G1X Mark III is a fixed lens compact. The cameras are based on a full frame (5D Mark IV) and an APS-C (G1X Mark III) sensor. The 5D Mark IV has a resolution of 30.1 megapixel, whereas the G1X Mark III provides 24 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 5D Mark IV vs Canon G1 X Mark III

An illustration of the physical size and weight of the Canon 5D Mark IV and the Canon G1 X Mark III is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter. If you prefer, you can also use the toggle button to switch to a comparison in percentage terms (in this case, the camera on the left – the 5D Mark IV – represents the basis or 100 percent across all the size and weight measures).

Compare Canon 5D Mark IV vs Canon G1 X Mark III
Compare 5D Mark IV versus G1X Mark III top

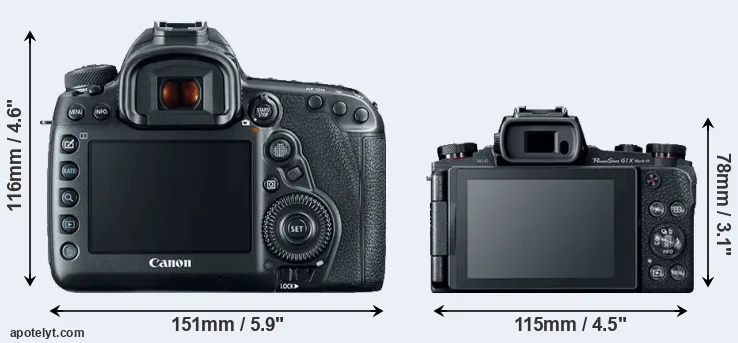

Compare 5D Mark IV and G1X Mark III rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon G1 X Mark III is considerably smaller (49 percent) than the Canon 5D Mark IV. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G1X Mark III has a lens build in, whereas the 5D Mark IV is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can find an overview of optics for the 5D Mark IV and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 5D Mark IV gets 900 shots out of its LP-E6N battery, while the G1X Mark III can take 200 images on a single charge of its NB-13L power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 5D Mark IV» 5.9 in 4.6 in 3.0 in 31.4 oz 900 Y Aug 2016 3,499 i i Canon 5D Mark IV
Canon G1 X Mark III« 4.5 in 3.1 in 2.0 in 14.1 oz 200 Y Oct 2017 1,299 i i Canon G1 X Mark III
Canon 6D Mark II« » 5.7 in 4.4 in 3.0 in 27.0 oz 1200 Y Jun 2017 1,999 i i Canon 6D Mark II
Canon 1D X Mark II« » 6.2 in 6.6 in 3.3 in 54.0 oz 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II
Canon 80D« » 5.5 in 4.1 in 3.1 in 25.8 oz 960 Y Feb 2016 1,199 i i Canon 80D
Canon 5DS« » 6.0 in 4.6 in 3.0 in 32.8 oz 700 Y Feb 2015 3,699 i i Canon 5DS
Canon 5DS R« » 6.0 in 4.6 in 3.0 in 32.8 oz 700 Y Feb 2015 3,699 i i Canon 5DS R
Canon 5D Mark III« » 6.0 in 4.6 in 3.0 in 33.5 oz 950 Y Mar 2012 3,499- i Canon 5D Mark III
Canon 5D Mark II« » 6.0 in 4.5 in 3.0 in 30.0 oz 850 Y Sep 2008 3,499- i Canon 5D Mark II
Canon 5D« » 6.0 in 4.4 in 3.0 in 31.6 oz 400 Y Aug 2005 3,299- i Canon 5D
Fujifilm X100F« » 5.0 in 3.0 in 2.0 in 16.5 oz 390 n Jan 2017 1,299 i i Fujifilm X100F
Nikon D850« » 5.7 in 4.9 in 3.1 in 35.5 oz 1840 Y Jul 2017 3,299 i i Nikon D850
Nikon D800« » 5.7 in 4.8 in 3.2 in 35.3 oz 900 Y Feb 2012 2,999- i Nikon D800
Nikon D800E« » 5.7 in 4.8 in 3.2 in 35.3 oz 900 Y Feb 2012 3,299- i Nikon D800E
Sony A6300« » 4.7 in 2.6 in 1.9 in 14.3 oz 400 Y Feb 2016 999- i Sony A6300
Sony A6500« » 4.7 in 2.6 in 2.1 in 16.0 oz 350 Y Oct 2016 1,399 i i Sony A6500
Sony RX10 III« » 5.2 in 3.7 in 5.0 in 37.1 oz 420 Y Mar 2016 1,499 i i Sony RX10 III

The camera’s price is obviously a critical decision-making factor. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The G1X Mark III was launched at a lower price than the 5D Mark IV, despite having a lens build in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon 5D Mark IV vs Canon G1 X Mark III

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 5D Mark IV features a full frame sensor and the Canon G1 X Mark III an APS-C sensor. The sensor area in the G1X Mark III is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the G1X Mark III uses a more advanced image processing engine (DIGIC 7) than the 5D Mark IV (DIGIC 6+), with benefits for noise reduction, color accuracy, and processing speed.

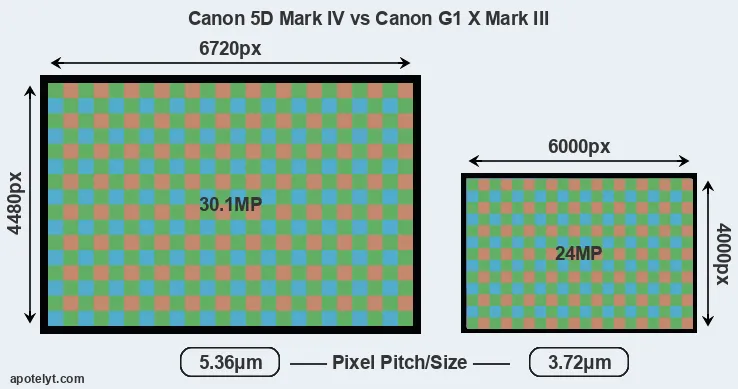

Canon 5D Mark IV and Canon G1 X Mark III sensor measures

With 30.1MP, the 5D Mark IV offers a higher resolution than the G1X Mark III (24MP), but the 5D Mark IV nevertheless has larger individual pixels (pixel pitch of 5.36μm versus 3.72μm for the G1X Mark III) due to its larger sensor. However, the G1X Mark III is a somewhat more recent model (by 1 year and 1 month) than the 5D Mark IV, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

5D Mark IV versus G1X Mark III MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 5D Mark IV» Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV
Canon G1 X Mark III« APS-C 24.0 6000 40001080/60p----Canon G1 X Mark III
Canon 6D Mark II« » Full Frame 26.0 6240 41601080/60p24.411.9286285Canon 6D Mark II
Canon 1D X Mark II« » Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II
Canon 80D« » APS-C 24.0 6000 40001080/60p23.613.2113579Canon 80D
Canon 5DS« » Full Frame 50.3 8688 57921080/60p24.712.4238187Canon 5DS
Canon 5DS R« » Full Frame 50.3 8688 57921080/60p24.612.4230886Canon 5DS R
Canon 5D Mark III« » Full Frame 22.1 5760 38401080/30p24.011.7229381Canon 5D Mark III
Canon 5D Mark II« » Full Frame 21.0 5616 37441080/30p23.711.9181579Canon 5D Mark II
Canon 5D« » Full Frame 12.7 4368 2912-22.911.1136871Canon 5D
Fujifilm X100F« » APS-C 24.0 6000 40001080/60p----Fujifilm X100F
Nikon D850« » Full Frame 45.4 8256 55044K/30p26.414.82660100Nikon D850
Nikon D800« » Full Frame 36.2 7360 49121080/30p25.314.4285395Nikon D800
Nikon D800E« » Full Frame 36.2 7360 49121080/30p25.614.3297996Nikon D800E
Sony A6300« » APS-C 24.0 6000 40004K/30p24.413.7143785Sony A6300
Sony A6500« » APS-C 24.0 6000 40004K/30p24.513.7140585Sony A6500
Sony RX10 III« » 1-inch 20.0 5472 36484K/30p23.112.647270Sony RX10 III

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the 5D Mark IV provides a higher video resolution than the G1X Mark III. It can shoot video footage at 4K/30p, while the G1X Mark III is limited to 1080/60p.



Feature comparison: Canon 5D Mark IV vs Canon G1 X Mark III

Beyond body and sensor, cameras can and do differ across a range of features. For example, the G1X Mark III has an electronic viewfinder (2360k dots), while the 5D Mark IV has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon 5D Mark IV and Canon G1 X Mark III along with similar information for a selection of comparators. If you need more detail on the specs, you can find comprehensive listings, for example, in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 5D Mark IV»optical Y 3.2 1620 fixed Y 8000 7.0 n n Canon 5D Mark IV
Canon G1 X Mark III«2360 n 3.0 1040 swivel Y 2000 9.0 Y Y Canon G1 X Mark III
Canon 6D Mark II« »optical Y 3.0 1040 swivel Y 4000 6.5 n n Canon 6D Mark II
Canon 1D X Mark II« »optical Y 3.2 1620 fixed Y 8000 16.0 n n Canon 1D X Mark II
Canon 80D« »optical Y 3.0 1040 swivel Y 8000 7.0 Y n Canon 80D
Canon 5DS« »optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS
Canon 5DS R« »optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS R
Canon 5D Mark III« »optical Y 3.2 1040 fixed n 8000 6.0 n n Canon 5D Mark III
Canon 5D Mark II« »optical Y 3.0 920 fixed n 8000 3.9 n n Canon 5D Mark II
Canon 5D« »optical Y 2.5 230 fixed n 8000 3.0 n n Canon 5D
Fujifilm X100F« »2360 n 3.0 1040 fixed n 4000 8.0 Y n Fujifilm X100F
Nikon D850« »optical Y 3.2 2359 tilting Y 8000 9.0 n n Nikon D850
Nikon D800« »optical Y 3.2 921 fixed n 8000 4.0 Y n Nikon D800
Nikon D800E« »optical Y 3.2 921 fixed n 8000 4.0 Y n Nikon D800E
Sony A6300« »2300 n 3.0 922 tilting n 4000 11.0 Y n Sony A6300
Sony A6500« »2300 n 3.0 922 tilting Y 4000 11.0 Y Y Sony A6500
Sony RX10 III« »2359 Y 3.0 1229 tilting n 2000 14.0 Y Y Sony RX10 III

One feature that is present on the 5D Mark IV, but is missing on the G1X Mark III is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 5D Mark IV writes its imaging data to Compact Flash or SDXC cards, while the G1X Mark III uses SDXC cards. The 5D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the G1X Mark III only has one slot.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon 5D Mark IV»YmonomonoYYmini3.0YY-Canon 5D Mark IV
Canon G1 X Mark III«Ystereomono--micro2.0YYYCanon G1 X Mark III
Canon 6D Mark II« »YstereomonoY-mini2.0YYYCanon 6D Mark II
Canon 1D X Mark II« »YmonomonoYYmini3.0---Canon 1D X Mark II
Canon 80D« »YstereomonoYYmini2.0YY-Canon 80D
Canon 5DS« »YmonomonoY-mini3.0---Canon 5DS
Canon 5DS R« »YmonomonoY-mini3.0---Canon 5DS R
Canon 5D Mark III« »YmonomonoYYmini2.0---Canon 5D Mark III
Canon 5D Mark II« »YmonomonoY-mini2.0---Canon 5D Mark II
Canon 5D« »Y-----2.0---Canon 5D
Fujifilm X100F« »YstereomonoY-micro2.0Y--Fujifilm X100F
Nikon D850« »YstereomonoYYmini3.0YYYNikon D850
Nikon D800« »YmonomonoYYmini3.0---Nikon D800
Nikon D800E« »YmonomonoYYmini3.0---Nikon D800E
Sony A6300« »YstereomonoY-micro2.0YY-Sony A6300
Sony A6500« »YstereomonoY-micro2.0YY-Sony A6500
Sony RX10 III« »YstereomonoYYmicro2.0YY-Sony RX10 III

Both the 5D Mark IV and the G1X Mark III are recent models that feature in their makers' current product line-up. The 5D Mark IV replaced the earlier Canon 5D Mark III, while the G1X Mark III followed on from the Canon G1 X Mark II.

Review summary: Canon 5D Mark IV vs Canon G1 X Mark III

So what is the bottom line? Which of the two cameras – the Canon 5D Mark IV or the Canon G1 X Mark III – has the upper hand? Below is a summary of the relative strengths of each of the two contestants.


Advantages of the Canon EOS 5D Mark IV:

  • More detail: Offers more megapixels (30.1 vs 24MP) with a 12% higher linear resolution.
  • Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
  • Richer colors: Larger pixels generate images with better, more accurate colors.
  • More dynamic range: Capable of capturing a wider spectrum of light and dark details.
  • Better low-light sensitivity: Can be used in poorly lit environments and still produce good images.
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
  • Faster shutter: Has higher mechanical shutter speed (8000/sec vs 2000/sec) to freeze action.
  • More flexible: Can take a variety of interchangeable lenses, including specialty optics.
  • Longer lasting: Can take more shots (900 versus 200) on a single battery charge.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More heavily discounted: Has been on the market for longer (launched in August 2016).


Arguments in favor of the Canon PowerShot G1 X Mark III:

  • Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 6+).
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • Faster burst: Shoots at higher frequency (9 vs 7 flaps/sec) to capture the decisive moment.
  • Ready to shoot: Comes with an integrated lens, while the 5D Mark IV requires a separate lens.
  • More compact: Is smaller (115x78mm vs 151x116mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight even though it has a lens build in (unlike the 5D Mark IV).
  • Sharper images: Has stabilization technology build-in to reduce the impact of hand-shake.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More affordable: Was introduced at a lower price, despite coming with a build-in lens.
  • More modern: Was introduced somewhat (1 year and 1 month) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the 5D Mark IV is the clear winner of the match-up (18 : 12 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision.

5D Mark IV 18:12 G1X Mark III

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the 5D Mark IV or the G1X Mark III. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is where reviews by experts come in. The table below summarizes the assessments of some of the best known camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The full reviews are available by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 5D Mark IV»HiRec87/1004.5/55/54.5/5 Aug 2016 3,499 i i Canon 5D Mark IV
Canon G1 X Mark III«Rec79/1004.5/5-4.5/5 Oct 2017 1,299 i i Canon G1 X Mark III
Canon 6D Mark II« »Rec80/1004.5/54/54/5 Jun 2017 1,999 i i Canon 6D Mark II
Canon 1D X Mark II« »-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II
Canon 80D« »HiRec84/1004.5/54.5/54.5/5 Feb 2016 1,199 i i Canon 80D
Canon 5DS« »Rec83/1004.5/55/54.5/5 Feb 2015 3,699 i i Canon 5DS
Canon 5DS R« »Rec83/1005/55/54.5/5 Feb 2015 3,699 i i Canon 5DS R
Canon 5D Mark III« »HiRec82/1004.5/55/54.5/5 Mar 2012 3,499- i Canon 5D Mark III
Canon 5D Mark II« »91/10079/1004/55/5- Sep 2008 3,499- i Canon 5D Mark II
Canon 5D« »88/100HiRecrevrev- Aug 2005 3,299- i Canon 5D
Fujifilm X100F« »Rec83/1004.5/5-4.5/5 Jan 2017 1,299 i i Fujifilm X100F
Nikon D850« »HiRec89/1004.5/55/55/5 Jul 2017 3,299 i i Nikon D850
Nikon D800« »HiRec82/1005/55/55/5 Feb 2012 2,999- i Nikon D800
Nikon D800E« »-84/1005/54.5/55/5 Feb 2012 3,299- i Nikon D800E
Sony A6300« »Rec85/1005/55/55/5 Feb 2016 999- i Sony A6300
Sony A6500« »HiRec85/1004.5/55/54.5/5 Oct 2016 1,399 i i Sony A6500
Sony RX10 III« »Rec84/1004.5/54.5/54.5/5 Mar 2016 1,499 i i Sony RX10 III

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
