Panasonic TS7 vs Samsung NX1

The Panasonic Lumix DC-TS7 (called Panasonic FT7 in some regions) and the Samsung NX1 are two digital cameras that were announced, respectively, in May 2018 and September 2014. The TS7 is a fixed lens compact, while the NX1 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (TS7) and an APS-C (NX1) sensor. The Panasonic has a resolution of 20.2 megapixels, whereas the Samsung provides 28 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Panasonic TS7
versus
Samsung NX1
Panasonic TS7   Samsung NX1
Fixed lens compact camera Mirrorless system camera
28-128mm f/3.3-5.9 Samsung NX mount lenses
20.2 MP – 1/2.3" sensor 28 MP – APS-C sensor
4K/30p Video 4K/30p Video
ISO 80-3,200 (80 - 6,400) ISO 100-25,600 (100 - 51,200)
Electronic viewfinder (1170k dots) Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots 3.0" LCD – 1036k dots
Fixed screen (not touch-sensitive) Tilting touchscreen
10 shutter flaps per second 15 shutter flaps per second
Waterproof body (31m)Weathersealed body
300 shots per battery charge500 shots per battery charge
117 x 76 x 37 mm, 319 g 139 x 102 x 66 mm, 550 g
logo
Check TS7 offers at
ebay.com
logo
Check NX1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DC-TS7 and the Samsung NX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The physical size and weight of the Panasonic TS7 and the Samsung NX1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The TS7 can be obtained in three different colors (black, blue, orange), while the NX1 is only available in black.

Size Panasonic TS7 vs Samsung NX1
Compare TS7 versus NX1 top

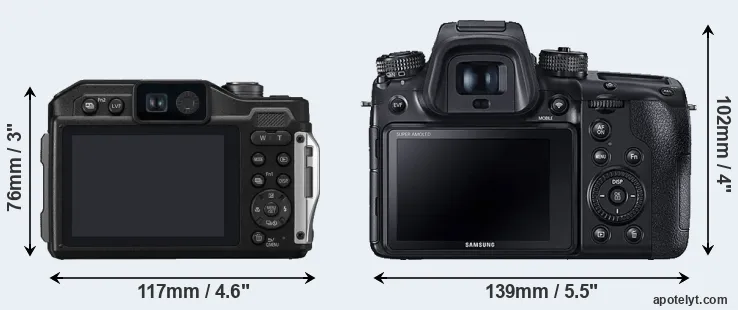

Comparison TS7 or NX1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX1 is considerably larger (59 percent) than the Panasonic TS7. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the TS7 is water-proof up to 31m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TS7 has a lens built in, whereas the NX1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Panasonic TS7 117 mm 76 mm 37 mm 319 g 300 Y May 2018 US$ 449ebay.com
2.

Samsung NX1 139 mm 102 mm 66 mm 550 g 500 Y Sep 2014 US$ 1 499ebay.com
3.

Canon SX730 110 mm 64 mm 40 mm 300 g 250 n Apr 2017 US$ 399ebay.com
4.

Canon SX740 110 mm 64 mm 40 mm 299 g 265 n Jul 2018 US$ 399 amazon.com
5.

Fujifilm X-Pro2 141 mm 83 mm 46 mm 495 g 350 Y Jan 2016 US$ 1 699ebay.com
6.

Fujifilm XF10 113 mm 64 mm 41 mm 279 g 330 n Jul 2018 US$ 499ebay.com
7.

Leica Q Typ 116 130 mm 80 mm 93 mm 640 g 300 n Jun 2015 US$ 4 249ebay.com
8.

Nikon W300 112 mm 66 mm 29 mm 231 g 280 Y May 2017 US$ 389ebay.com
9.

Panasonic FZ80 130 mm 94 mm 119 mm 616 g 330 n Jan 2017 US$ 399ebay.com
10.

Panasonic GH4 133 mm 93 mm 84 mm 560 g 500 Y Feb 2014 US$ 1 499ebay.com
11.

Panasonic ZS70 112 mm 67 mm 41 mm 322 g 380 n Apr 2017 US$ 449ebay.com
12.

Panasonic ZS80 112 mm 69 mm 42 mm 327 g 380 n Feb 2019 US$ 449ebay.com
13.

Ricoh WG-6 118 mm 66 mm 33 mm 246 g 340 Y Feb 2019 US$ 399 amazon.com
14.

Samsung NX500 120 mm 64 mm 43 mm 287 g 370 n Feb 2015 US$ 799ebay.com
15.

Sony A7 127 mm 94 mm 48 mm 474 g 340 Y Oct 2013 US$ 1 699ebay.com
16.

Sony HX95 102 mm 58 mm 36 mm 242 g 370 n Aug 2018 US$ 429ebay.com
17.

Sony HX99 102 mm 58 mm 36 mm 242 g 370 n Aug 2018 US$ 449ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The TS7 was launched at a lower price than the NX1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Panasonic TS7 features a 1/2.3-inch sensor and the Samsung NX1 an APS-C sensor. The sensor area in the NX1 is 1218 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the TS7 has a native 4:3 aspect ratio, while the one in the NX1 offers a 3:2 aspect.

Panasonic TS7 and Samsung NX1 sensor measures

With 28MP, the NX1 offers a higher resolution than the TS7 (20.2MP), but the NX1 nevertheless has larger individual pixels (pixel pitch of 3.63μm versus 1.18μm for the TS7) due to its larger sensor. However, the TS7 is a much more recent model (by 3 years and 7 months) than the NX1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the NX1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Samsung NX1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX1 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Panasonic TS7 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

The NX1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Panasonic Lumix DC-TS7 has a native sensitivity range from ISO 80 to ISO 3200, which can be extended to ISO 80-6400. The corresponding ISO settings for the Samsung NX1 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

TS7 versus NX1 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Panasonic TS7 1/2.3 20.2 5184 38884K/30p20.612.1102851
2.

Samsung NX1 APS-C 28.0 6480 43204K/30p24.213.2136383
3.

Canon SX730 1/2.3 20.2 5184 38881080/60p20.511.992450
4.

Canon SX740 1/2.3 20.2 5184 38884K/30p20.612.1105051
5.

Fujifilm X-Pro2 APS-C 24.0 6000 40001080/60p23.713.0160880
6.

Fujifilm XF10 APS-C 24.0 6000 40004K/15p24.013.4184483
7.

Leica Q Typ 116 Full Frame 24.0 6000 40001080/60p24.312.7222185
8.

Nikon W300 1/2.3 15.9 4608 34564K/30p20.512.093850
9.

Panasonic FZ80 1/2.3 18.0 4896 36724K/30p20.511.990049
10.

Panasonic GH4 Four Thirds 15.9 4608 34564K/30p23.212.879174
11.

Panasonic ZS70 1/2.3 20.2 5184 38884K/30p19.110.610636
12.

Panasonic ZS80 1/2.3 20.2 5184 38884K/30p20.712.2110352
13.

Ricoh WG-6 1/2.3 20.2 5184 38884K/30p20.712.2110452
14.

Samsung NX500 APS-C 28.0 6480 43204K/30p24.813.9137987
15.

Sony A7 Full Frame 24.0 6000 40001080/60p24.814.2224890
16.

Sony HX95 1/2.3 18.0 4896 36724K/30p20.612.1105751
17.

Sony HX99 1/2.3 18.0 4896 36724K/30p20.612.1105851
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/30p).

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the NX1 offers a substantially higher resolution than the one in the TS7 (2360k vs 1170k dots). The following table reports on some other key feature differences and similarities of the Panasonic TS7, the Samsung NX1, and comparable cameras.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Panasonic TS71170 n3.0 / 1040 fixed n 1/1300s 10.0/s Y Y
2.

Samsung NX12360 Y3.0 / 1036 tilting Y 1/8000s 15.0/s Y n
3.

Canon SX730none n3.0 / 922 tilting n 1/3200s 5.9/s Y Y
4.

Canon SX740none n3.0 / 922 tilting n 1/3200s 10.0/s Y Y
5.

Fujifilm X-Pro22360 n3.0 / 1620 fixed n 1/8000s 8.0/s n n
6.

Fujifilm XF10none n3.0 / 1040 fixed Y 1/4000s 6.0/s Y n
7.

Leica Q Typ 1163680 n3.0 / 1040 fixed Y 1/2000s 10.0/s n Y
8.

Nikon W300none n3.0 / 921 fixed n 1/4000s 7.0/s Y Y
9.

Panasonic FZ801166 n3.0 / 1040 fixed Y 1/2000s 10.0/s Y Y
10.

Panasonic GH42359 n3.0 / 1036 swivel Y 1/8000s 12.0/s Y n
11.

Panasonic ZS701166 n3.0 / 1040 tilting Y 1/2000s 10.0/s Y Y
12.

Panasonic ZS802330 n3.0 / 1040 tilting Y 1/2000s 10.0/s Y Y
13.

Ricoh WG-6none n3.0 / 1040 fixed n 1/4000s 1.0/s Y n
14.

Samsung NX500none n3.0 / 1036 tilting Y 1/6000s 9.0/s Y n
15.

Sony A72400 n3.0 / 1230 tilting n 1/8000s 5.0/s n n
16.

Sony HX95638 n3.0 / 922 tilting n 1/2000s 10.0/s Y Y
17.

Sony HX99638 n3.0 / 922 tilting Y 1/2000s 10.0/s Y Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The NX1 has a touchscreen, while the TS7 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Samsung NX1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the TS7 and the NX1 write their files to SDXC cards. The NX1 supports UHS-II cards (on its first slot), while the TS7 can use UHS-I cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DC-TS7 and Samsung NX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Panasonic TS7-stereo / mono--micro2.0Y--
2.

Samsung NX1Ystereo / monoYYmicro3.0YYY
3.

Canon SX730-stereo / mono--micro2.0YYY
4.

Canon SX740-stereo / mono--micro2.0Y-Y
5.

Fujifilm X-Pro2Ystereo / monoY-micro2.0Y--
6.

Fujifilm XF10-stereo / monoY-micro2.0Y-Y
7.

Leica Q Typ 116Ystereo / mono--micro2.0YY-
8.

Nikon W300-stereo / mono--micro2.0Y-Y
9.

Panasonic FZ80Ystereo / mono--micro2.0Y--
10.

Panasonic GH4Ystereo / monoYYmicro2.0YY-
11.

Panasonic ZS70-stereo / mono--micro2.0Y--
12.

Panasonic ZS80-stereo / mono--micro2.0Y-Y
13.

Ricoh WG-6-mono / mono--micro3.0---
14.

Samsung NX500Ystereo / mono--micro2.0YYY
15.

Sony A7Ystereo / monoYYmicro2.0YY-
16.

Sony HX95-stereo / mono--micro2.0YYY
17.

Sony HX99-stereo / mono--micro2.0YYY

It is notable that the NX1 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The TS7 does not feature such a mic input.

Both the TS7 and the NX1 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Panasonic and Samsung. Further information on the features and operation of the TS7 and NX1 can be found, respectively, in the Panasonic TS7 Manual (free pdf) or the online Samsung NX1 Manual.

ad

Review summary

So what is the bottom line? Is there a clear favorite between the Panasonic TS7 and the Samsung NX1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Reasons to prefer the Panasonic Lumix DC-TS7:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Ready to shoot: Has a lens built-in, whereas the NX1 requires a separate lens.
  • More compact: Is smaller (117x76mm vs 139x102mm) and thus needs less room in the bag.
  • Less heavy: Is lighter even though it comes with a built-in lens (unlike the NX1).
  • Sharper images: Has hand-shake reducing image stabilization built-in.
  • Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 31m).
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More modern: Reflects 3 years and 7 months of technical progress since the NX1 launch.

ilogo

Arguments in favor of the Samsung NX1:

  • More detail: Has more megapixels (28 vs 20.2MP), which boosts linear resolution by 20%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
  • Richer colors: The pixel size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • More detailed viewfinder: Has higher resolution electronic viewfinder (2360k vs 1170k dots).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.69x vs 0.45x).
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/1300s) to freeze action.
  • Faster burst: Shoots at higher frequency (15 vs 10 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
  • Longer lasting: Gets more shots (500 versus 300) out of a single battery charge.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More heavily discounted: Has been around for much longer (launched in September 2014).

If the count of individual advantages (bullet points above) is taken as a guide, the NX1 is the clear winner of the contest (25 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

TS7 08:25 NX1

How about other alternatives? Do the specifications of the Panasonic TS7 and the Samsung NX1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the TS7 and the NX1 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Panasonic TS7..+......3.5/5 May 2018 US$ 449ebay.com
2.

Samsung NX15/5....87/1005/55/5 Sep 2014 US$ 1 499ebay.com
3.

Canon SX730..+....4/54/5 Apr 2017 US$ 399ebay.com
4.

Canon SX740..+3.5/5..4/54/5 Jul 2018 US$ 399 amazon.com
5.

Fujifilm X-Pro2..+..83/1004.5/54.5/5 Jan 2016 US$ 1 699ebay.com
6.

Fujifilm XF10....4/575/1004/54.5/5 Jul 2018 US$ 499ebay.com
7.

Leica Q Typ 1165/5....80/1004.5/54.5/5 Jun 2015 US$ 4 249ebay.com
8.

Nikon W300..+....4/54/5 May 2017 US$ 389ebay.com
9.

Panasonic FZ80..+ +....4.5/54.5/5 Jan 2017 US$ 399ebay.com
10.

Panasonic GH45/5+ +..85/1005/55/5 Feb 2014 US$ 1 499ebay.com
11.

Panasonic ZS70..+ +....4/54/5 Apr 2017 US$ 449ebay.com
12.

Panasonic ZS80..+ +....4.5/5.. Feb 2019 US$ 449ebay.com
13.

Ricoh WG-6........3.5/53.5/5 Feb 2019 US$ 399 amazon.com
14.

Samsung NX5004.5/5....81/1005/54.5/5 Feb 2015 US$ 799ebay.com
15.

Sony A75/5+ +..80/1005/55/5 Oct 2013 US$ 1 699ebay.com
16.

Sony HX95............ Aug 2018 US$ 429ebay.com
17.

Sony HX99........4/54.5/5 Aug 2018 US$ 449ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check TS7 offers at
ebay.com
logo
Check NX1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Panasonic TS7 vs Samsung NX1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Panasonic TS7 Samsung NX1
    Camera Type Fixed lens compact camera Mirrorless system camera
    Camera Lens 28-128mm f/3.3-5.9 Samsung NX mount lenses
    Launch Date May 2018 September 2014
    Launch Price USD 449 USD 1,499
    Sensor Specs Panasonic TS7 Samsung NX1
    Sensor Technology BSI-CMOS BSI-CMOS
    Sensor Format 1/2.3" Sensor APS-C Sensor
    Sensor Size 6.17 x 4.55 mm 23.5 x 15.7 mm
    Sensor Area 28.0735 mm2 368.95 mm2
    Sensor Diagonal 7.7 mm 28.3 mm
    Crop Factor 5.6x 1.5x
    Sensor Resolution 20.2 Megapixels 28 Megapixels
    Image Resolution 5184 x 3888 pixels 6480 x 4320 pixels
    Pixel Pitch 1.18 μm 3.63 μm
    Pixel Density 71.80 MP/cm2 7.59 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 4K/30p Video 4K/30p Video
    ISO Setting 80 - 3,200 ISO 100 - 25,600 ISO
    ISO Boost 80 - 6,400 ISO 100 - 51,200 ISO
    Image Processor Venus DRIMe 5
    DXO Sensor Quality (score) .. 83
    DXO Color Depth (bits) .. 24.2
    DXO Dynamic Range (EV) .. 13.2
    DXO Low Light (ISO) .. 1363
    Screen Specs Panasonic TS7 Samsung NX1
    Viewfinder Type Electronic viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.45x 0.69x
    Viewfinder Resolution 1170k dots 2360k dots
    Top-Level Screen no Top Display Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1040k dots 1036k dots
    LCD Attachment Fixed screen Tilting screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Panasonic TS7 Samsung NX1
    Focus System Contrast-detect AF On-Sensor Phase-detect
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/1300s 1/8000s
    Continuous Shooting 10 shutter flaps/s 15 shutter flaps/s
    Electronic Shutterup to 1/16000sYES
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support UHS-I Single UHS-II
    Connectivity Specs Panasonic TS7 Samsung NX1
    External Flash no Hotshoe Hotshoe
    USB Connector USB 2.0 USB 3.0
    HDMI Port micro HDMI micro HDMI
    Microphone Port no MIC socket External MIC port
    Headphone Socket no Headphone port Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication no NFC NFC built-in
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Panasonic TS7 Samsung NX1
    Environmental SealingWaterproof body (31m)Weathersealed body
    Battery Type Panasonic DMW-BCM13 Samsung BP1900
    Battery Life (CIPA)300 shots per charge500 shots per charge
    In-Camera Charging USB charging USB charging
    Body Dimensions 117 x 76 x 37 mm
    (4.6 x 3.0 x 1.5 in)
    139 x 102 x 66 mm
    (5.5 x 4.0 x 2.6 in)
    Camera Weight 319 g (11.3 oz) 550 g (19.4 oz)
    logo
    Check TS7 offers at
    ebay.com
    logo
    Check NX1 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Panasonic TS7 vs Samsung NX1
