Olympus E-P1 vs E-PL8

The Olympus PEN E-P1 and the Olympus PEN E-PL8 are two digital cameras that were announced, respectively, in June 2009 and September 2016. Both the E-P1 and the E-PL8 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The E-P1 has a resolution of 12.2 megapixels, whereas the E-PL8 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-P1   Olympus E-PL8
Olympus E-P1 Olympus E-PL8
Mirrorless system camera Mirrorless system camera
Micro Four Thirds lenses Micro Four Thirds lenses
12.2 MP, Four Thirds Sensor 15.9 MP, Four Thirds Sensor
720/30p Video 1080/30p Video
ISO 100-6400 ISO 200-6400 (100-25600)
No viewfinder, LCD framing No viewfinder, LCD framing
3.0" LCD, 230k dots 3.0" LCD, 1037k dots
Fixed screen (not touch-sensitive) Tilting touchscreen
3 shutter flaps per second 8 shutter flaps per second
In-body stabilizationIn-body stabilization
300 shots per battery charge350 shots per battery charge
121 x 70 x 36 mm, 355 g 115 x 67 x 38 mm, 357 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-P1 and the Olympus PEN E-PL8? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison: Olympus E-P1 vs E-PL8

An illustration of the physical size and weight of the Olympus E-P1 and the Olympus E-PL8 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-P1 can be obtained in three different colors (black, silver, white), while the E-PL8 is also available in three color-versions, but different ones (black, brown, white).

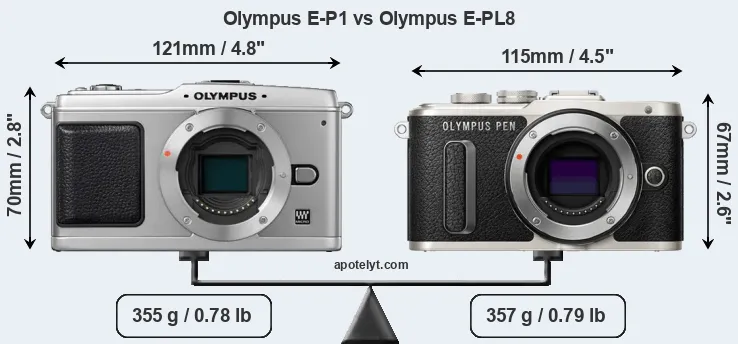

Size Olympus E-P1 vs Olympus E-PL8

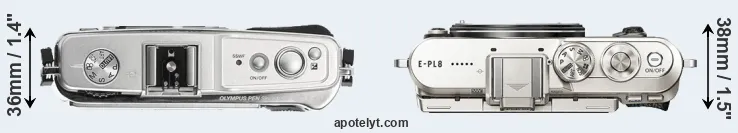

Compare E-P1 versus E-PL8 top

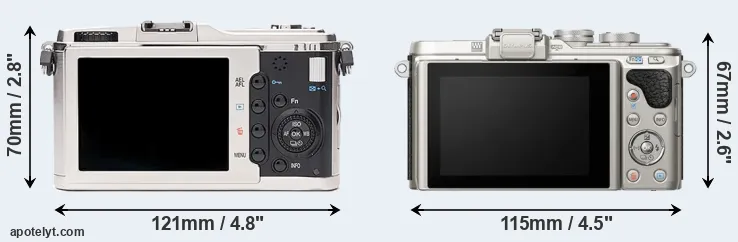

Comparison E-P1 or E-PL8 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL8 is notably smaller (9 percent) than the Olympus E-P1. However, the E-PL8 is slightly heavier (1 percent) than the E-P1. In this context, it is worth noting that neither the E-P1 nor the E-PL8 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the E-P1 gets 300 shots out of its BLS-1 battery, while the E-PL8 can take 350 images on a single charge of its BLS-50 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Olympus E-P1» 4.8 in 2.8 in 1.4 in 12.5 oz 300 n Jun 2009 799- i Olympus E-P1

Olympus E-PL8« 4.5 in 2.6 in 1.5 in 12.6 oz 350 n Sep 2016 549- i Olympus E-PL8

Olympus E-PL9« » 4.6 in 2.7 in 1.5 in 13.4 oz 350 n Feb 2018 549 i i Olympus E-PL9

Olympus E-M10 III« » 4.8 in 3.3 in 2.0 in 14.5 oz 330 n Aug 2017 649 i i Olympus E-M10 III

Olympus E-M10 II« » 4.7 in 3.3 in 1.9 in 13.8 oz 320 n Aug 2015 649- i Olympus E-M10 II

Olympus E-PL7« » 4.5 in 2.6 in 1.5 in 12.6 oz 350 n Aug 2014 599- i Olympus E-PL7

Olympus E-P3« » 4.8 in 2.7 in 1.3 in 13.0 oz 330 n Jun 2011 799- i Olympus E-P3

Olympus E-PL2« » 4.5 in 2.8 in 1.7 in 12.8 oz 280 n Jan 2011 599- i Olympus E-PL2

Olympus E-PL3« » 4.3 in 2.5 in 1.5 in 11.0 oz 300 n Jun 2011 599- i Olympus E-PL3

Olympus E-PL1« » 4.5 in 2.8 in 1.7 in 11.8 oz 290 n Feb 2010 599- i Olympus E-PL1

Olympus E-620« » 5.1 in 3.7 in 2.4 in 18.4 oz 500 n Feb 2009 699- i Olympus E-620

Olympus E-P2« » 4.8 in 2.8 in 1.4 in 12.5 oz 300 n Nov 2009 799- i Olympus E-P2

Olympus E-520« » 5.4 in 3.6 in 2.7 in 18.9 oz 750 n May 2008 699- i Olympus E-520

Panasonic G7« » 4.9 in 3.4 in 3.0 in 14.5 oz 350 n May 2015 649- i Panasonic G7

Panasonic G10« » 4.9 in 3.3 in 2.9 in 13.7 oz 380 n Mar 2010 499- i Panasonic G10

Panasonic GF1« » 4.7 in 2.8 in 1.4 in 13.6 oz 380 n Sep 2009 749- i Panasonic GF1

Panasonic GH1« » 4.9 in 3.5 in 1.8 in 13.6 oz 300 n Mar 2009 899- i Panasonic GH1
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PL8 was launched at a markedly lower price (by 31 percent) than the E-P1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Olympus E-P1 vs E-PL8

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the E-PL8 uses a more advanced image processing engine (TruePic VII) than the E-P1 (TruePic V), with benefits for noise reduction, color accuracy, and processing speed.

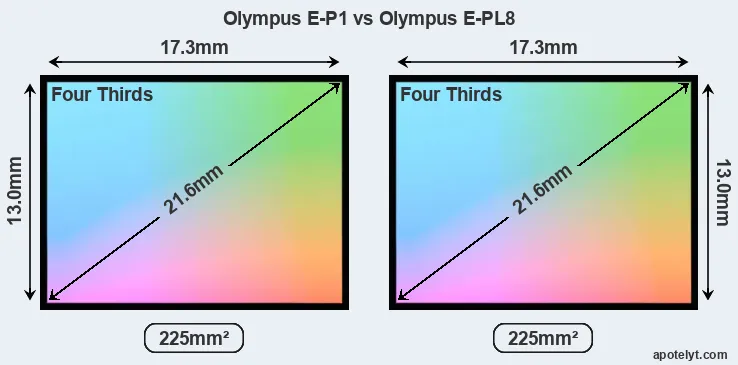

Olympus E-P1 and Olympus E-PL8 sensor measures

While the two cameras under review share the same sensor size, the E-PL8 offers a higher resolution of 15.9 megapixels, compared with 12.2 MP of the E-P1. This megapixels advantage translates into a 14 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-PL8 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.29μm for the E-P1). However, it should be noted that the E-PL8 is much more recent (by 7 years and 3 months) than the E-P1, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.

The resolution advantage of the Olympus E-PL8 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-PL8 for good quality output (200 dots per inch) amounts to 23 x 17.3 inch or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inch or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inch or 39 x 29.3 cm. The corresponding values for the Olympus E-P1 are 20.2 x 15.1 inch or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inch or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inch or 34.1 x 25.6 cm for excellent quality prints.

The Olympus PEN E-P1 has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Olympus PEN E-PL8 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.

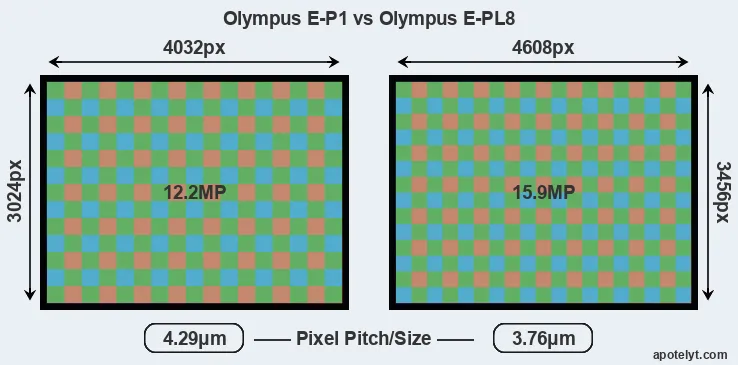

E-P1 versus E-PL8 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Olympus E-P1» Four Thirds 12.2 4032 3024720/30p21.410.453655Olympus E-P1

Olympus E-PL8« Four Thirds 15.9 4608 34561080/30p----Olympus E-PL8

Olympus E-PL9« » Four Thirds 15.9 4608 34564K/30p----Olympus E-PL9

Olympus E-M10 III« » Four Thirds 15.9 4608 34564K/30p----Olympus E-M10 III

Olympus E-M10 II« » Four Thirds 15.9 4608 34561080/60p23.112.584273Olympus E-M10 II

Olympus E-PL7« » Four Thirds 15.9 4608 34561080/30p22.712.487372Olympus E-PL7

Olympus E-P3« » Four Thirds 12.2 4032 30241080/60i20.810.153651Olympus E-P3

Olympus E-PL2« » Four Thirds 12.2 4032 3024720/30p21.410.257355Olympus E-PL2

Olympus E-PL3« » Four Thirds 12.2 4032 30241080/60i20.910.349952Olympus E-PL3

Olympus E-PL1« » Four Thirds 12.2 4032 3024720/30p21.510.148754Olympus E-PL1

Olympus E-620« » Four Thirds 12.2 4032 3024-21.310.353655Olympus E-620

Olympus E-P2« » Four Thirds 12.2 4032 3024720/30p21.510.450556Olympus E-P2

Olympus E-520« » Four Thirds 10.0 3648 2736-21.410.454855Olympus E-520

Panasonic G7« » Four Thirds 15.8 4592 34484K/30p----Panasonic G7

Panasonic G10« » Four Thirds 12.0 4000 3000720/30p21.210.141152Panasonic G10

Panasonic GF1« » Four Thirds 12.0 4000 3000720/30p21.210.351354Panasonic GF1

Panasonic GH1« » Four Thirds 12.0 4000 30001080/24p21.611.677264Panasonic GH1

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-PL8 provides a better video resolution than the E-P1. It can shoot movie footage at 1080/30p, while the E-P1 is limited to 720/30p.



Feature comparison: Olympus E-P1 vs E-PL8

Apart from body and sensor, cameras can and do differ across a range of features. The E-P1 and the E-PL8 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The following table reports on some other key feature differences and similarities of the Olympus E-P1, the Olympus E-PL8, and comparable cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Olympus E-P1»- n 3.0 230 fixed n 1/4000s 3.0 n Y Olympus E-P1

Olympus E-PL8«- n 3.0 1037 tilting Y 1/4000s 8.0 n Y Olympus E-PL8

Olympus E-PL9« »- n 3.0 1040 tilting Y 1/4000s 8.6 Y Y Olympus E-PL9

Olympus E-M10 III« »2360 n 3.0 1040 tilting Y 1/4000s 8.6 Y Y Olympus E-M10 III

Olympus E-M10 II« »2360 n 3.0 1040 tilting Y 1/4000s 8.0 Y Y Olympus E-M10 II

Olympus E-PL7« »- n 3.0 1037 tilting Y 1/4000s 8.0 n Y Olympus E-PL7

Olympus E-P3« »- n 3.0 614 fixed Y 1/4000s 3.0 Y Y Olympus E-P3

Olympus E-PL2« »- n 3.0 460 fixed n 1/4000s 3.0 Y Y Olympus E-PL2

Olympus E-PL3« »- n 3.0 460 tilting n 1/4000s 5.5 n Y Olympus E-PL3

Olympus E-PL1« »- n 2.7 230 fixed n 1/2000s 3.0 Y Y Olympus E-PL1

Olympus E-620« »optical n 2.7 230 swivel n 1/4000s 4.0 Y Y Olympus E-620

Olympus E-P2« »- n 3.0 230 fixed n 1/4000s 3.0 n Y Olympus E-P2

Olympus E-520« »optical n 2.7 215 fixed n 1/4000s 3.5 Y Y Olympus E-520

Panasonic G7« »2360 n 3.0 1040 swivel Y 1/4000s 7.0 Y n Panasonic G7

Panasonic G10« »202 n 3.0 460 fixed n 1/4000s 2.6 Y n Panasonic G10

Panasonic GF1« »- n 3.0 460 fixed n 1/4000s 3.0 Y n Panasonic GF1

Panasonic GH1« »1440 n 3.0 460 swivel n 1/4000s 3.0 Y n Panasonic GH1

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-PL8 has a touchscreen, while the E-P1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The E-PL8 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the E-P1 does not have a selfie-screen.

The Olympus E-PL8 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-P1 writes its imaging data to SDHC cards, while the E-PL8 uses SDXC cards. The E-PL8 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-P1 cannot take advantage of Ultra High Speed SD cards.



Connectivity comparison: Olympus E-P1 vs E-PL8

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-P1 and Olympus PEN E-PL8 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Olympus E-P1»Ystereo---mini2.0---Olympus E-P1

Olympus E-PL8«Ystereomono--micro2.0Y--Olympus E-PL8

Olympus E-PL9« »Ystereomono--micro2.0Y-YOlympus E-PL9

Olympus E-M10 III« »Ystereomono--micro2.0Y--Olympus E-M10 III

Olympus E-M10 II« »Ystereomono--micro2.0Y--Olympus E-M10 II

Olympus E-PL7« »Ystereomono--micro2.0Y--Olympus E-PL7

Olympus E-P3« »Ystereo---mini2.0---Olympus E-P3

Olympus E-PL2« »Ystereo---mini2.0---Olympus E-PL2

Olympus E-PL3« »Ystereo---mini2.0---Olympus E-PL3

Olympus E-PL1« »Ystereo---mini2.0---Olympus E-PL1

Olympus E-620« »Y-----2.0---Olympus E-620

Olympus E-P2« »Ystereo---mini2.0---Olympus E-P2

Olympus E-520« »Y-----2.0---Olympus E-520

Panasonic G7« »YstereomonoY-micro2.0Y--Panasonic G7

Panasonic G10« »Ymono---mini2.0---Panasonic G10

Panasonic GF1« »Ymonomono--mini2.0---Panasonic GF1

Panasonic GH1« »Ystereo-Y-mini2.0---Panasonic GH1

It is notable that the E-PL8 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-P1 does not offer wifi capability.

Both the E-P1 and the E-PL8 have been discontinued, but can regularly be found used on eBay. The E-P1 was replaced by the Olympus E-P2, while the E-PL8 was followed by the Olympus E-PL9. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.


Review summary: Olympus E-P1 vs E-PL8

So how do things add up? Is the Olympus E-P1 better than the Olympus E-PL8 or vice versa? A synthesis of the relative strong points of each of the models is listed below.


Reasons to prefer the Olympus PEN E-P1:

  • More heavily discounted: Has been available for much longer (launched in June 2009).


Arguments in favor of the Olympus PEN E-PL8:

  • More detail: Has more megapixels (15.9 vs 12.2MP), which boosts linear resolution by 14%.
  • Better jpgs: Has a more modern image processing engine (TruePic VII vs TruePic V).
  • Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
  • More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Longer lasting: Gets more shots (350 versus 300) out of a single battery charge.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
  • More affordable: Was introduced into a lower priced category (31 percent cheaper at launch).
  • More modern: Reflects 7 years and 3 months of technical progress since the E-P1 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the E-PL8 is the clear winner of the contest (14 : 1 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-P1 01:14 E-PL8

How about other alternatives? Do the specifications of the Olympus E-P1 and the Olympus E-PL8 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the E-P1 and the E-PL8 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews: Olympus E-P1 vs E-PL8

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Olympus E-P1»+66/1004/54/54.5/5 Jun 2009 799- i Olympus E-P1

Olympus E-PL8«--4.5/5-4/5 Sep 2016 549- i Olympus E-PL8

Olympus E-PL9« »+-4.5/5-4/5 Feb 2018 549 i i Olympus E-PL9

Olympus E-M10 III« »+80/1004.5/54/54.5/5 Aug 2017 649 i i Olympus E-M10 III

Olympus E-M10 II« »+ +80/1005/55/55/5 Aug 2015 649- i Olympus E-M10 II

Olympus E-PL7« »+-5/54.5/54/5 Aug 2014 599- i Olympus E-PL7

Olympus E-P3« »83/10074/1004.5/54.5/54.5/5 Jun 2011 799- i Olympus E-P3

Olympus E-PL2« »83/10071/1004.5/54.5/54.5/5 Jan 2011 599- i Olympus E-PL2

Olympus E-PL3« »+ +72/1004.5/5-4/5 Jun 2011 599- i Olympus E-PL3

Olympus E-PL1« »86/10069/1004/54.5/54.5/5 Feb 2010 599- i Olympus E-PL1

Olympus E-620« »88/10072/1004.5/5o5/5 Feb 2009 699- i Olympus E-620

Olympus E-P2« »+69/1004/54.5/54.5/5 Nov 2009 799- i Olympus E-P2

Olympus E-520« »87/100+ +4.5/54/54.5/5 May 2008 699- i Olympus E-520

Panasonic G7« »+ +80/1005/54.5/54.5/5 May 2015 649- i Panasonic G7

Panasonic G10« »-70/1004/5-4/5 Mar 2010 499- i Panasonic G10

Panasonic GF1« »85/10069/1004.5/54.5/54.5/5 Sep 2009 749- i Panasonic GF1

Panasonic GH1« »+ +72/1004.5/55/54.5/5 Mar 2009 899- i Panasonic GH1
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Olympus E-P1:
Check Ebay offers
Olympus E-PL8:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

    Specifications: Olympus E-P1 vs Olympus E-PL8

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Olympus E-P1 Olympus E-PL8
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Micro Four Thirds lenses Micro Four Thirds lenses
    Launch Date June 2009 September 2016
    Launch Price USD 799 USD 549
    Sensor Specs Olympus E-P1 Olympus E-PL8
    Sensor Technology CMOS CMOS
    Sensor Format Four Thirds Sensor Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm 17.3 x 13.0 mm
    Sensor Area 224.9 mm2 224.9 mm2
    Sensor Diagonal 21.6 mm 21.6 mm
    Crop Factor 2.0x 2.0x
    Sensor Resolution 12.2 Megapixels 15.9 Megapixels
    Image Resolution 4032 x 3024 pixels 4608 x 3456 pixels
    Pixel Pitch 4.29 μm 3.76 μm
    Pixel Density 5.42 MP/cm2 7.08 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 720/30p Video 1080/30p Video
    ISO Setting 100-6400 ISO 200-6400 ISO
    ISO Boost no Enhancement 100-25600 ISO
    Image Processor TruePic V TruePic VII
    DXO Sensor Quality (score) 55 ..
    DXO Color Depth (bits) 21.4 ..
    DXO Dynamic Range (EV) 10.4 ..
    DXO Low Light (ISO) 536 ..
    Screen Specs Olympus E-P1 Olympus E-PL8
    Viewfinder Type No viewfinder No viewfinder
    LCD Framing Live View Live View
    Rear LCD Size 3.0 inch 3.0 inch
    LCD Resolution 230k dots 1037k dots
    LCD Attachment Fixed screen Tilting screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Olympus E-P1 Olympus E-PL8
    Autofocus System Contrast-detect AF Contrast-detect AF
    Manual Focusing AidNo Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/4000/s 1/4000/s
    Continuous Shooting 3 shutter flaps/s 8 shutter flaps/s
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationIn-body stabilizationIn-body stabilization
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDHC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support no UHS-I
    Connectivity Specs Olympus E-P1 Olympus E-PL8
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Wifi Support no Wifi Wifi built-in
    Body Specs Olympus E-P1 Olympus E-PL8
    Battery Type BLS-1 power pack BLS-50 power pack
    Battery Life (CIPA)300 shots per charge350 shots per charge
    Body Dimensions 121 x 70 x 36 mm
    (4.8 x 2.8 x 1.4 in)
    115 x 67 x 38 mm
    (4.5 x 2.6 x 1.5 in)
    Camera Weight 355 g (12.5 oz) 357 g (12.6 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
