Olympus E-PL7 Comparison Review

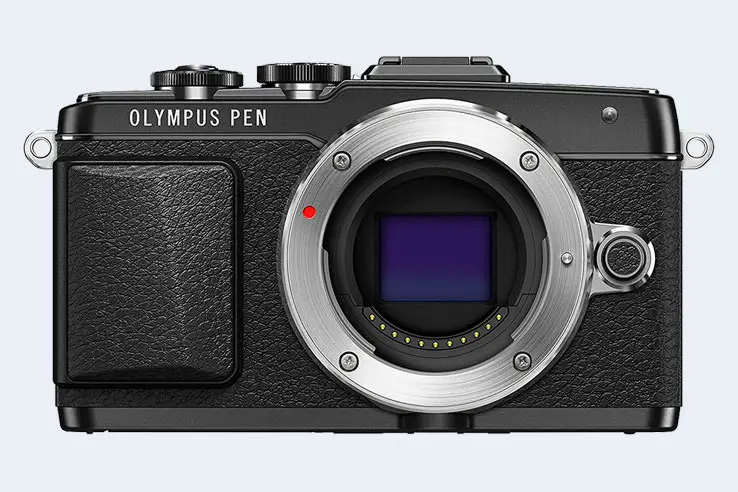

The Olympus PEN E-PL7 is a mirrorless interchangeable lens camera that was officially introduced in August 2014 and is equipped with a Four Thirds sensor. It offers a resolution of 15.9 megapixel.

camera

Is the Olympus E-PL7 a good camera? The E-PL7 has a Camera Elo of 1964. This rating puts the E-PL7 below average of all mirrorless interchangeable lens cameras. In terms of its sensor size category (Four Thirds cameras), the E-PL7 ranks among the top 50 percent. Based on its within category standings, the camera earns a 3-star performance rating.

Headline Specifications
Olympus E-PL7
Mirrorless system camera
Micro Four Thirds lenses
15.9 MP, Four Thirds Sensor
1080/30p Video
ISO 200 - 25 600
Viewfinder optional
3.0 LCD, 1037k dots
Tilting touchscreen
8 shutter flaps per second
In-body stabilization
350 shots per battery charge
115 x 67 x 38 mm, 357 g

Read on to find out more about the camera's size, sensor, features, reception by expert reviewers, and how it compares to other digital cameras.

ad

Body comparison with a credit card

An illustration of the physical dimensions of the Olympus E-PL7 vis-à-vis a credit card is provided in the side-by-side display below. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

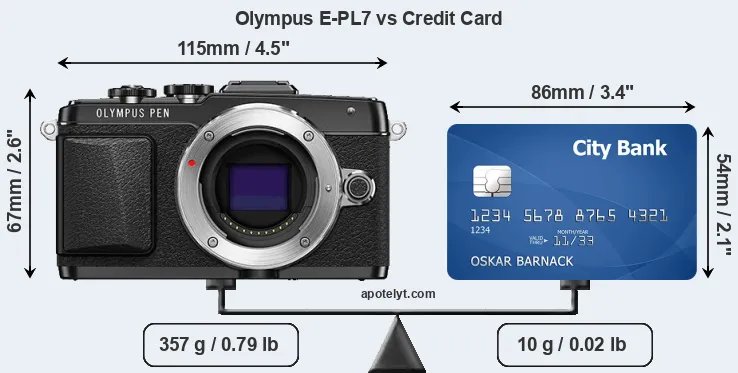

Olympus E-PL7 vs credit card front

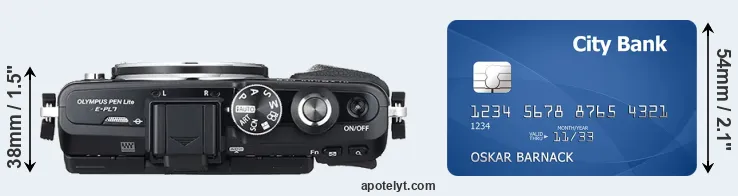

E-PL7 versus credit card top view

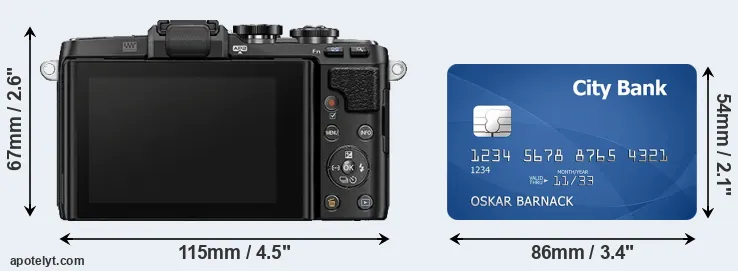

E-PL7 and credit card rear side

The table below summarizes the key physical specs of the Olympus E-PL7 alongside a set of similar cameras. If you want to review a particular camera pair side-by-side, just move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.

scroll hint
Body Specifications
#   Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-PL7 115 mm 67 mm 38 mm 357 g 350 n Aug 2014 599ebay.com
2.

Olympus E-PL9 117 mm 68 mm 39 mm 380 g 350 n Feb 2018 599ebay.com
3.

Olympus E-PL8 115 mm 67 mm 38 mm 357 g 350 n Sep 2016 549ebay.com
4.

Olympus E-M10 II 120 mm 83 mm 47 mm 390 g 320 n Aug 2015 649ebay.com
5.

Olympus E-M10 119 mm 82 mm 46 mm 396 g 320 n Jan 2014 699ebay.com
6.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 n May 2013 999ebay.com
7.

Olympus E-PL6 111 mm 64 mm 38 mm 325 g 360 n May 2013 599ebay.com
8.

Olympus E-PL5 111 mm 64 mm 38 mm 325 g 360 n Sep 2012 599ebay.com
9.

Olympus E-PM2 110 mm 64 mm 34 mm 269 g 360 n Sep 2012 499ebay.com
10.

Panasonic G6 122 mm 85 mm 71 mm 390 g 340 n Apr 2013 599ebay.com
11.

Panasonic GX7 123 mm 71 mm 55 mm 402 g 350 n Aug 2013 999ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Olympus E-PL7 was launched in the US market at a price of $599. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

logo
Check E-PL7 offers at
ebay.com

Sensor comparison with a 35mm slide

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

The Olympus E-PL7 features a Four Thirds sensor and has a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the Olympus E-PL7 among the medium-sized sensor cameras that aim to strike a balance between image quality and portability.

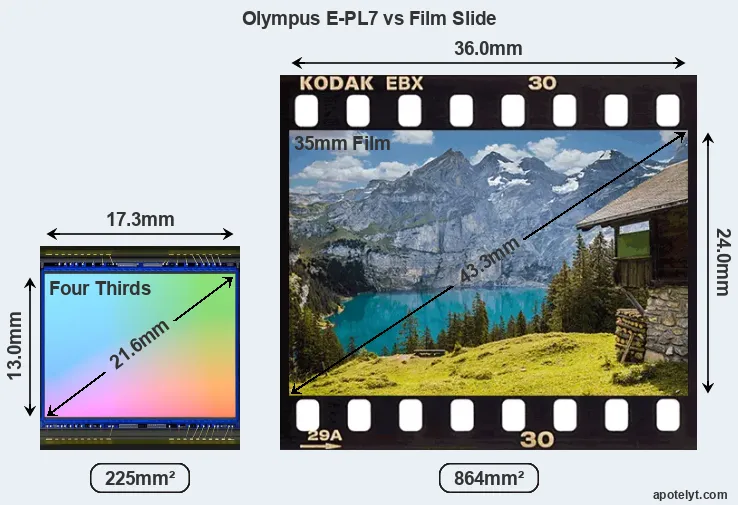

Olympus E-PL7 sensor measures

Consistent information on actual sensor performance is available from DXO Mark for most cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of alternative cameras.

scroll hint
Sensor Characteristics
#   Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-PL7 Four Thirds 15.9 4608 34561080/30p22.712.487372
2.

Olympus E-PL9 Four Thirds 15.9 4608 34564K/30p23.112.8116274
3.

Olympus E-PL8 Four Thirds 15.9 4608 34561080/30p23.012.6103073
4.

Olympus E-M10 II Four Thirds 15.9 4608 34561080/60p23.112.584273
5.

Olympus E-M10 Four Thirds 15.9 4608 34561080/30p22.812.388472
6.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
7.

Olympus E-PL6 Four Thirds 15.9 4608 34561080/30p22.512.071768
8.

Olympus E-PL5 Four Thirds 15.9 4608 34561080/30p22.812.388972
9.

Olympus E-PM2 Four Thirds 15.9 4608 34561080/30p22.712.293272
10.

Panasonic G6 Four Thirds 15.9 4608 34561080/60p21.311.563961
11.

Panasonic GX7 Four Thirds 15.8 4592 34481080/60p22.612.271870
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The E-PL7 indeed provides movie recording capabilities. The highest resolution format that the E-PL7 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The adjacent tables list some of the other core features of the Olympus E-PL7 along with similar information for a selection of comparators.

scroll hint
Core Features
#   Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-PL7optional n3.0 / 1037 tilting Y 1/4000s 8.0/s n Y
2.

Olympus E-PL9none n3.0 / 1040 tilting Y 1/4000s 8.6/s Y Y
3.

Olympus E-PL8optional n3.0 / 1037 tilting Y 1/4000s 8.0/s n Y
4.

Olympus E-M10 II2360 n3.0 / 1040 tilting Y 1/4000s 8.0/s Y Y
5.

Olympus E-M101440 n3.0 / 1037 tilting Y 1/4000s 8.0/s Y Y
6.

Olympus E-P5optional n3.0 / 1037 tilting Y 1/8000s 9.0/s Y Y
7.

Olympus E-PL6optional n3.0 / 460 tilting Y 1/4000s 8.0/s n Y
8.

Olympus E-PL5optional n3.0 / 460 tilting Y 1/4000s 8.0/s n Y
9.

Olympus E-PM2optional n3.0 / 460 fixed Y 1/4000s 8.0/s n Y
10.

Panasonic G61440 n3.0 / 1036 swivel Y 1/4000s 7.0/s Y n
11.

Panasonic GX72760 n3.0 / 1040 tilting Y 1/8000s 5.0/s Y Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

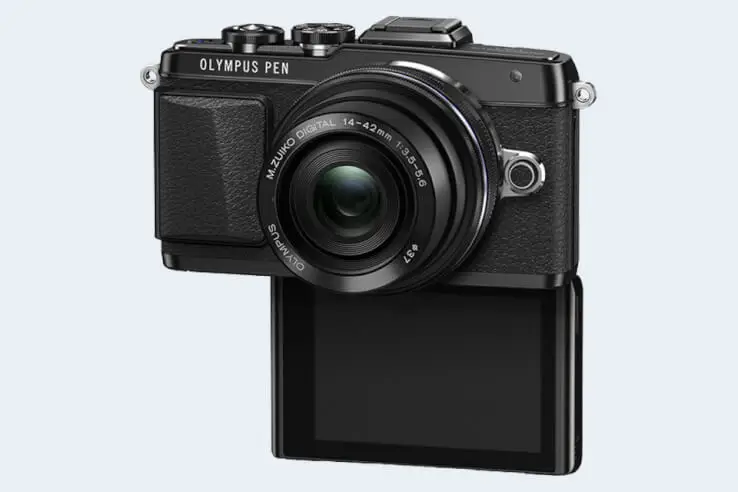

The LCD screen on the Olympus PEN E-PL7 is flexibly attached to the body. In particular, the LCD can be tilted vertically to facilitate odd-angle shots in landscape orientation. This tilting design is often preferred, for example, by street photographers to a fully articulated, swivel type of LCD attachment, as it is more unobtrusive during shooting than a screen that flips out to the side.

articulated screen
Flexible screen on the E-PL7

One feature that differentiates the E-PL7 from many older cameras is in-body image stabilization (IBIS). The E-PL7 reduces the risk of handshake-induced blur with all attached lenses, while cameras without IBIS have to rely on optical image stabilization in OIS-equipped lenses to achieve the same effect.

ad

Connection comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
#   Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-PL7Ystereo / mono--micro2.0Y--
2.

Olympus E-PL9Ystereo / mono--micro2.0Y-Y
3.

Olympus E-PL8Ystereo / mono--micro2.0Y--
4.

Olympus E-M10 IIYstereo / mono--micro2.0Y--
5.

Olympus E-M10Ystereo / mono--micro2.0Y--
6.

Olympus E-P5Ystereo / mono--micro2.0Y--
7.

Olympus E-PL6Ystereo / mono--mini2.0---
8.

Olympus E-PL5Ystereo / mono--mini2.0---
9.

Olympus E-PM2Ystereo / mono--mini2.0---
10.

Panasonic G6Ystereo / monoY-mini2.0YY-
11.

Panasonic GX7Ystereo / mono--mini2.0YY-
padding

It is notable that the E-PL7 offers wifi support. Wifi can be a very convenient means to transfer image data to an off-camera location.

Further information on the features and operation of the E-PL7 can be found in the free online Olympus E-PL7 Manual or on the Olympus support site.

ad

Expert reviews

While the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the E-PL7 handle or perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is why expert reviews are important. The table below summarizes the assessments of some of the best known camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]).

scroll hint
Review Scores
#    Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-PL74/5+....5/54/5 Aug 2014 599ebay.com
2.

Olympus E-PL9..+....4.5/54/5 Feb 2018 599ebay.com
3.

Olympus E-PL8........4.5/54/5 Sep 2016 549ebay.com
4.

Olympus E-M10 II4.5/5+ +..80/1005/55/5 Aug 2015 649ebay.com
5.

Olympus E-M104/5....80/1005/55/5 Jan 2014 699ebay.com
6.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 999ebay.com
7.

Olympus E-PL6............ May 2013 599ebay.com
8.

Olympus E-PL53/5+ +....4.5/54.5/5 Sep 2012 599ebay.com
9.

Olympus E-PM23/5....77/1005/54.5/5 Sep 2012 499ebay.com
10.

Panasonic G64/5+ +....5/54.5/5 Apr 2013 599ebay.com
11.

Panasonic GX74/5+..79/1005/55/5 Aug 2013 999ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check E-PL7 offers at
ebay.com

Olympus E-PL7 FAQ

Below are some additional questions and answers concerning some particular features of the E-PL7.

What technology is the imaging sensor in the Olympus E-PL7 based on?

The camera features a CMOS (Complementary Metal–Oxide–Semiconductor) sensor.

Which image processing chip is used in the Olympus E-PL7 to convert the raw signal into an image file and perform noise reduction and image sharpening?

Olympus equipped the E-PL7 with the TruePic VII image processor.

What is the ISO sensitivity range of the Olympus E-PL7?

The camera has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600.

Can the Olympus E-PL7 be equipped with an optional viewfinder?

Yes, Olympus provides the VF-4 as an accessory (here on amazon) that can be mounted on the hotshoe.

Does the Olympus E-PL7 have a selfie-friendly screen?

Yes, the LCD-screen of the E-PL7 is flexible and can be turned to be front-facing for capturing selfies.

What is the life expectancy of the shutter in the Olympus PEN E-PL7?

Olympus does not publish a shutter rating for the E-PL7. Yet, shutters in comparable cameras from other manufacturers are said to be good for at least 100 000 actuations. It should be noted, though, that this number represents a Mean Time before Failure. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust an expected shutter life of 100 000 shots over, say, three years, one would have to take about 100 pictures each and every day.

How do I find the shutter count on my Olympus E-PL7?

Olympus embeds the number of shutter actuations in hidden menus. You can check the number of shots that your E-PL7 has taken up to now by carefully following the steps described on the Olympus E-PL7 shutter count page.

Do I need to purchase an external camera trigger to shoot time-lapse sequences with the Olympus E-PL7?

No, the Olympus PEN E-PL7 has an intervalometer built-in, so that low frequency shooting (for example, flower blooming, sunset, moon rise) can be undertaken without the need to purchase a separate external intervalometer and related software.

Is it difficult to use manual focus lenses with the Olympus E-PL7?

The E-PL7 offers focus peaking as a manual focus aid. This feature works by placing a colored highlight on in-focus zones within the image.

Does the Olympus E-PL7 feature an autofocus assist light?

Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.

What is the fastest shutter speed that can be used with the Olympus E-PL7 for flash photography?

The E-PL7's flash sync speed is 1/250 sec.

Does the Olympus E-PL7 support the Ultra High Speed (UHS) bus interface for SD cards?

Yes, the camera can indeed use UHS-I cards (data transfer speed of up to 104 MB/s).

Which battery does the Olympus E-PL7 use?

The camera gets its power from the BLS-50 (here at amazon), which is a rechargeable Lithium-Ion power pack.

Camera to camera comparisons

If you would like to see a side-by-side review with another camera, just make your choice using the following search menu. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad
    Specifications Summary
    Camera Model Olympus E-PL7
    Camera Type Mirrorless system camera
    Camera Lens Micro Four Thirds lenses
    Launch Date August 2014
    Launch Price USD 599
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm
    Sensor Area 225 mm2
    Sensor Diagonal 21.6 mm
    Crop Factor 2.0x
    Sensor Resolution 15.9 Megapixels
    Image Resolution 4 608 x 3 456 pixels
    Pixel Pitch 3.76 μm
    Pixel Density 7.08 MP/cm2
    Moiré control Anti-Alias filter
    Movie Capability 1080/30p Video
    ISO Setting 200 - 25 600 ISO
    ISO Boost 100 - 25 600 ISO
    Image Processor TruePic VII
    DXO Sensor Quality (score) 72
    DXO Color Depth (bits) 22.7
    DXO Dynamic Range (EV) 12.4
    DXO Low Light (ISO) 873
    Screen Specs
    Viewfinder Type Viewfinder optional
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 1037k dots
    LCD Attachment Tilting screen
    V-logging Friendliness Front-flip possible
    Touch Input Touchscreen
    Shooting Specs
    Focus System Contrast-detect AF
    Manual Focusing AidFocus Peaking
    Maximum Shutter Speed 1/4000s
    Continuous Shooting 8 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent Shootingno E-Shutter
    Time Lapse PhotographyIntervalometer Built-in
    Image StabilizationIn-body stabilization
    Fill Flash no On-Board Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-I
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port micro HDMI
    Wifi Support Wifi built-in
    Body Specs
    Battery Type BLS-50 power pack
    Battery Life (CIPA)350 shots per charge
    Body Dimensions 115 x 67 x 38 mm
    (4.5 x 2.6 x 1.5 in)
    Camera Weight 357 g (12.6 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
