Canon SL2 vs Olympus E-P1

The Canon EOS Rebel SL2 (called Canon 200D in some regions) and the Olympus PEN E-P1 are two digital cameras that were announced, respectively, in June 2017 and June 2009. The SL2 is a DSLR, while the E-P1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (SL2) and a Four Thirds (E-P1) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 12.2 MP.

As their names suggest, both the Canon EOS Rebel SL2 and the Olympus PEN E-P1 belong to Canon's Rebel line of DSLR cameras. This range of APS-C cameras, which started out with the Canon EOS Digital Rebel in 2003, has been a big commercial success and the backbone of Canon's dominance in the digital camera market. The popularity of the Rebel cameras is the result of them inheriting much of the sensor and shooting technology from earlier released professional DSLRs, while being sold at a much more budget-friendly price point. The strong brand reputation of Canon and the comprehensive EOS system of compatible lenses and accessories further contributes to the appeal of the Rebel cams, including the Canon SL2 and Olympus E-P1. Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon SL2   Olympus E-P1
Canon SL2 Olympus E-P1
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Micro Four Thirds lenses
24 MP, APS-C Sensor 12.2 MP, Four Thirds Sensor
1080/60p Video 720/30p Video
ISO 100-25600 (100-51200) ISO 100-6400
Optical viewfinder No viewfinder, LCD framing
3.0" LCD, 1040k dots 3.0" LCD, 230k dots
Swivel touchscreen Fixed screen (not touch-sensitive)
5 shutter flaps per second 3 shutter flaps per second
Lens stabilization onlyIn-body stabilization
650 shots per battery charge300 shots per battery charge
122 x 93 x 70 mm, 453 g 121 x 70 x 36 mm, 355 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel SL2 and the Olympus PEN E-P1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison: Canon SL2 vs Olympus E-P1

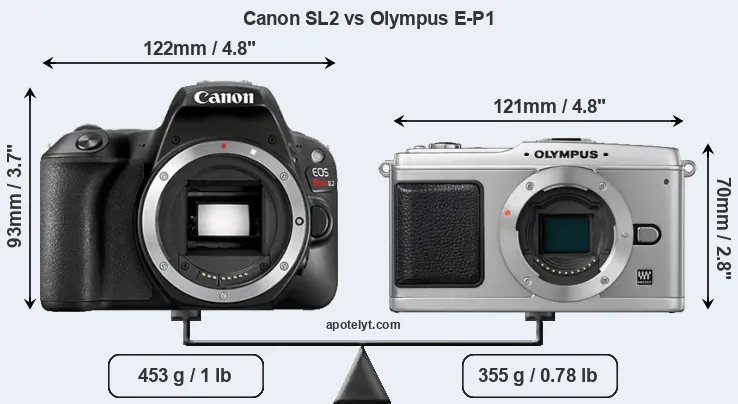

The physical size and weight of the Canon SL2 and the Olympus E-P1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The SL2 can be obtained in two different colors (black, white), while the E-P1 is available in three color-versions (black, silver, white).

Size Canon SL2 vs Olympus E-P1
Compare SL2 versus E-P1 top
Comparison SL2 or E-P1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P1 is notably smaller (25 percent) than the Canon SL2. Moreover, the E-P1 is markedly lighter (22 percent) than the SL2. In this context, it is worth noting that neither the SL2 nor the E-P1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (SL2) and the Micro Four Thirds Lens Catalog (E-P1). Mirrorless cameras, such as the E-P1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the SL2 gets 650 shots out of its LP-E17 battery, while the E-P1 can take 300 images on a single charge of its BLS-1 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon SL2» 4.8 in 3.7 in 2.8 in 16.0 oz 650 n Jun 2017 549- i Canon SL2

Olympus E-P1« 4.8 in 2.8 in 1.4 in 12.5 oz 300 n Jun 2009 799- i Olympus E-P1

Canon SL3« » 4.8 in 3.7 in 2.8 in 15.8 oz 1070 n Apr 2019 599 i i Canon SL3

Canon T7« » 5.1 in 4.0 in 3.1 in 16.8 oz 500 n Feb 2018 449 i i Canon T7

Canon 77D« » 5.2 in 3.9 in 3.0 in 19.0 oz 600 n Feb 2017 899 i i Canon 77D

Canon G9 X Mark II« » 3.9 in 2.3 in 1.2 in 7.3 oz 235 n Jan 2017 529 i i Canon G9 X Mark II

Canon M6« » 4.4 in 2.7 in 1.8 in 13.8 oz 295 n Feb 2017 779 i i Canon M6

Canon M100« » 4.3 in 2.6 in 1.4 in 10.7 oz 295 n Aug 2017 499 i i Canon M100

Canon T7i« » 5.2 in 3.9 in 3.0 in 18.8 oz 600 n Feb 2017 749 i i Canon T7i

Canon M5« » 4.6 in 3.5 in 2.4 in 15.1 oz 295 n Sep 2016 979 i i Canon M5

Canon T6s« » 5.2 in 4.0 in 3.1 in 19.9 oz 440 n Feb 2015 649- i Canon T6s

Canon SL1« » 4.6 in 3.6 in 2.7 in 14.4 oz 380 n Mar 2013 549- i Canon SL1

Olympus E-P3« » 4.8 in 2.7 in 1.3 in 13.0 oz 330 n Jun 2011 799- i Olympus E-P3

Olympus E-PL2« » 4.5 in 2.8 in 1.7 in 12.8 oz 280 n Jan 2011 599- i Olympus E-PL2

Olympus E-PL3« » 4.3 in 2.5 in 1.5 in 11.0 oz 300 n Jun 2011 599- i Olympus E-PL3

Olympus E-P2« » 4.8 in 2.8 in 1.4 in 12.5 oz 300 n Nov 2009 799- i Olympus E-P2

Panasonic GH1« » 4.9 in 3.5 in 1.8 in 13.6 oz 300 n Mar 2009 899- i Panasonic GH1
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SL2 was launched at a markedly lower price (by 31 percent) than the E-P1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon SL2 vs Olympus E-P1

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SL2 features an APS-C sensor and the Olympus E-P1 a Four Thirds sensor. The sensor area in the E-P1 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the SL2 has a native 3:2 aspect ratio, while the one in the E-P1 offers a 4:3 aspect.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

Canon SL2 and Olympus E-P1 sensor measures

With 24MP, the SL2 offers a higher resolution than the E-P1 (12.2MP), but the SL2 has smaller individual pixels (pixel pitch of 3.72μm versus 4.29μm for the E-P1). However, the SL2 is a much more recent model (by 8 years) than the E-P1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon SL2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SL2 for good quality output (200 dots per inch) amounts to 30 x 20 inch or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inch or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inch or 50.8 x 33.9 cm. The corresponding values for the Olympus E-P1 are 20.2 x 15.1 inch or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inch or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inch or 34.1 x 25.6 cm for excellent quality prints.

The SL2 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS Rebel SL2 has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus PEN E-P1 are ISO 100 to ISO 6400 (no boost).

SL2 versus E-P1 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the SL2 provides substantially higher image quality than the E-P1, with an overall score that is 24 points higher. This advantage is based on 2.2 bits higher color depth, 3 EV in additional dynamic range, and 1 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Canon SL2» APS-C 24.0 6000 40001080/60p23.613.4104179Canon SL2

Olympus E-P1« Four Thirds 12.2 4032 3024720/30p21.410.453655Olympus E-P1

Canon SL3« » APS-C 24.0 6000 40004K/25p----Canon SL3

Canon T7« » APS-C 24.0 6000 40001080/30p----Canon T7

Canon 77D« » APS-C 24.0 6000 40001080/60p23.613.397178Canon 77D

Canon G9 X Mark II« » 1-inch 20.0 5472 36481080/60p21.912.552265Canon G9 X Mark II

Canon M6« » APS-C 24.0 6000 40001080/60p----Canon M6

Canon M100« » APS-C 24.0 6000 40001080/60p23.512.9127278Canon M100

Canon T7i« » APS-C 24.0 6000 40001080/60p----Canon T7i

Canon M5« » APS-C 24.0 6000 40001080/60p23.412.4126277Canon M5

Canon T6s« » APS-C 24.0 6000 40001080/30p22.612.091570Canon T6s

Canon SL1« » APS-C 17.9 5184 34561080/30p21.811.384363Canon SL1

Olympus E-P3« » Four Thirds 12.2 4032 30241080/60i20.810.153651Olympus E-P3

Olympus E-PL2« » Four Thirds 12.2 4032 3024720/30p21.410.257355Olympus E-PL2

Olympus E-PL3« » Four Thirds 12.2 4032 30241080/60i20.910.349952Olympus E-PL3

Olympus E-P2« » Four Thirds 12.2 4032 3024720/30p21.510.450556Olympus E-P2

Panasonic GH1« » Four Thirds 12.0 4000 30001080/24p21.611.677264Panasonic GH1

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the SL2 provides a higher video resolution than the E-P1. It can shoot video footage at 1080/60p, while the Olympus is limited to 720/30p.



Feature comparison: Canon SL2 vs Olympus E-P1

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the SL2 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-P1 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon SL2, the Olympus E-P1, and comparable cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Canon SL2»optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon SL2

Olympus E-P1«- n 3.0 230 fixed n 1/4000s 3.0 n Y Olympus E-P1

Canon SL3« »optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon SL3

Canon T7« »optical n 3.0 920 fixed n 1/4000s 3.0 Y n Canon T7

Canon 77D« »optical Y 3.0 1040 swivel Y 1/4000s 6.0 Y n Canon 77D

Canon G9 X Mark II« »- n 3.0 1040 fixed Y 1/2000s 8.2 Y Y Canon G9 X Mark II

Canon M6« »- n 3.0 1040 tilting Y 1/4000s 9.0 Y n Canon M6

Canon M100« »- n 3.0 1040 tilting Y 1/4000s 6.1 Y n Canon M100

Canon T7i« »optical n 3.0 1040 swivel Y 1/4000s 6.0 Y n Canon T7i

Canon M5« »2360 n 3.2 1620 tilting Y 1/4000s 9.0 Y n Canon M5

Canon T6s« »optical Y 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon T6s

Canon SL1« »optical n 3.0 1040 fixed Y 1/4000s 4.9 Y n Canon SL1

Olympus E-P3« »- n 3.0 614 fixed Y 1/4000s 3.0 Y Y Olympus E-P3

Olympus E-PL2« »- n 3.0 460 fixed n 1/4000s 3.0 Y Y Olympus E-PL2

Olympus E-PL3« »- n 3.0 460 tilting n 1/4000s 5.5 n Y Olympus E-PL3

Olympus E-P2« »- n 3.0 230 fixed n 1/4000s 3.0 n Y Olympus E-P2

Panasonic GH1« »1440 n 3.0 460 swivel n 1/4000s 3.0 Y n Panasonic GH1

One difference between the cameras concerns the presence of an on-board flash. The SL2 has one, while the E-P1 does not. While the built-in flash of the SL2 is not very powerful, it can at times be useful as a fill-in light.

The SL2 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-P1 does not have a selfie-screen.

The Canon SL2 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The SL2 writes its imaging data to SDXC cards, while the E-P1 uses SDHC cards. The SL2 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-P1 cannot take advantage of Ultra High Speed SD cards.



Connectivity comparison: Canon SL2 vs Olympus E-P1

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel SL2 and Olympus PEN E-P1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Canon SL2»YstereomonoY-mini2.0YYYCanon SL2

Olympus E-P1«Ystereo---mini2.0---Olympus E-P1

Canon SL3« »YstereomonoY-mini2.0Y-YCanon SL3

Canon T7« »Ymonomono--mini2.0YY-Canon T7

Canon 77D« »YstereomonoY-mini2.0YYYCanon 77D

Canon G9 X Mark II« »-stereomono--micro2.0YYYCanon G9 X Mark II

Canon M6« »YstereomonoY-mini2.0YYYCanon M6

Canon M100« »-stereomono--mini2.0YYYCanon M100

Canon T7i« »YstereomonoY-mini2.0YYYCanon T7i

Canon M5« »YstereomonoY-mini2.0YYYCanon M5

Canon T6s« »YstereomonoY-mini2.0YY-Canon T6s

Canon SL1« »YmonomonoY-mini2.0---Canon SL1

Olympus E-P3« »Ystereo---mini2.0---Olympus E-P3

Olympus E-PL2« »Ystereo---mini2.0---Olympus E-PL2

Olympus E-PL3« »Ystereo---mini2.0---Olympus E-PL3

Olympus E-P2« »Ystereo---mini2.0---Olympus E-P2

Panasonic GH1« »Ystereo-Y-mini2.0---Panasonic GH1

It is notable that the SL2 has a microphone port, which is missing on the E-P1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the SL2 and the E-P1 have been discontinued, but can regularly be found used on eBay. The E-P1 was replaced by the Olympus E-P2, while the SL2 was followed by the Canon SL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.


Review summary: Canon SL2 vs Olympus E-P1

So what is the bottom line? Is the Canon SL2 better than the Olympus E-P1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Arguments in favor of the Canon EOS Rebel SL2:

  • More detail: Offers more megapixels (24 vs 12.2MP) with a 43% higher linear resolution.
  • Better image quality: Scores substantially higher (24 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (2.2 bits more color depth).
  • More dynamic range: Captures a larger spectrum of light and dark details (3 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (1 stops ISO advantage).
  • Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Easier framing: Has an optical viewfinder for image framing and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Longer lasting: Can take more shots (650 versus 300) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
  • More affordable: Was introduced into a lower priced category (31 percent cheaper at launch).
  • More modern: Reflects 8 years of technical progress since the E-P1 launch.

ilogo

Reasons to prefer the Olympus PEN E-P1:

  • More compact: Is smaller (121x70mm vs 122x93mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 98g or 22 percent) and is thus easier to take along.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • More heavily discounted: Has been around for much longer (launched in June 2009).

If the number of relative strengths (bullet points above) is taken as a guide, the SL2 is the clear winner of the match-up (23 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

SL2 23:05 E-P1

How about other alternatives? Do the specifications of the Canon SL2 and the Olympus E-P1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the SL2 or the E-P1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews: Canon SL2 vs Olympus E-P1

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon SL2»+ +78/1004.5/54.5/54.5/5 Jun 2017 549- i Canon SL2

Olympus E-P1«+66/1004/54/54.5/5 Jun 2009 799- i Olympus E-P1

Canon SL3« »o79/1004/5-4/5 Apr 2019 599 i i Canon SL3

Canon T7« »o-3.5/5-3.5/5 Feb 2018 449 i i Canon T7

Canon 77D« »-82/1004.5/54.5/54/5 Feb 2017 899 i i Canon 77D

Canon G9 X Mark II« »-75/1004.5/54.5/54.5/5 Jan 2017 529 i i Canon G9 X Mark II

Canon M6« »-80/1004/54.5/54/5 Feb 2017 779 i i Canon M6

Canon M100« »+-4/5-3.5/5 Aug 2017 499 i i Canon M100

Canon T7i« »-80/1004.5/54/54/5 Feb 2017 749 i i Canon T7i

Canon M5« »+82/1004/54.5/54/5 Sep 2016 979 i i Canon M5

Canon T6s« »+77/1004.5/54.5/54.5/5 Feb 2015 649- i Canon T6s

Canon SL1« »+78/1004/54/54/5 Mar 2013 549- i Canon SL1

Olympus E-P3« »83/10074/1004.5/54.5/54.5/5 Jun 2011 799- i Olympus E-P3

Olympus E-PL2« »83/10071/1004.5/54.5/54.5/5 Jan 2011 599- i Olympus E-PL2

Olympus E-PL3« »+ +72/1004.5/5-4/5 Jun 2011 599- i Olympus E-PL3

Olympus E-P2« »+69/1004/54.5/54.5/5 Nov 2009 799- i Olympus E-P2

Panasonic GH1« »+ +72/1004.5/55/54.5/5 Mar 2009 899- i Panasonic GH1
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Canon SL2:
Check Ebay offers
Olympus E-P1:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

    Specifications: Canon SL2 vs Olympus E-P1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon SL2 Olympus E-P1
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Micro Four Thirds lenses
    Launch Date June 2017 June 2009
    Launch Price USD 549 USD 799
    Sensor Specs Canon SL2 Olympus E-P1
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 22.3 x 14.9 mm 17.3 x 13.0 mm
    Sensor Area 332.27 mm2 224.9 mm2
    Sensor Diagonal 26.8 mm 21.6 mm
    Crop Factor 1.6x 2.0x
    Sensor Resolution 24 Megapixels 12.2 Megapixels
    Image Resolution 6000 x 4000 pixels 4032 x 3024 pixels
    Pixel Pitch 3.72 μm 4.29 μm
    Pixel Density 7.22 MP/cm2 5.42 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/60p Video 720/30p Video
    ISO Setting 100-25600 ISO 100-6400 ISO
    ISO Boost 100-51200 ISO no Enhancement
    Image Processor DIGIC 7 TruePic V
    DXO Sensor Quality (score) 79 55
    DXO Color Depth (bits) 23.6 21.4
    DXO Dynamic Range (EV) 13.4 10.4
    DXO Low Light (ISO) 1041 536
    Screen Specs Canon SL2 Olympus E-P1
    Viewfinder Type Optical viewfinder No viewfinder
    Viewfinder Field of View 95%
    Viewfinder Magnification 0.54x
    LCD Framing Live View Live View
    Rear LCD Size 3.0 inch 3.0 inch
    LCD Resolution 1040k dots 230k dots
    LCD Attachment Swivel screen Fixed screen
    Touch Input Touchscreen no Touchscreen
    Shooting Specs Canon SL2 Olympus E-P1
    Autofocus System Phase-detect AF Contrast-detect AF
    Continuous Shooting 5 shutter flaps/s 3 shutter flaps/s
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Build-in Flash no On-Board Flash
    Storage Medium SDXC cards SDHC cards
    Second Storage Option Single card slot Single card slot
    UHS card support UHS-I no
    Connectivity Specs Canon SL2 Olympus E-P1
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port no MIC socket
    Wifi Support Wifi built-in no Wifi
    Near-Field Communication NFC built-in no NFC
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Canon SL2 Olympus E-P1
    Battery Type LP-E17 power pack BLS-1 power pack
    Battery Life (CIPA)650 shots per charge300 shots per charge
    Body Dimensions 122 x 93 x 70 mm
    (4.8 x 3.7 x 2.8 in)
    121 x 70 x 36 mm
    (4.8 x 2.8 x 1.4 in)
    Camera Weight 453 g (16.0 oz) 355 g (12.5 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
