Olympus E-M1X vs Canon 1D X Mark II

The Olympus OM-D E-M1X and the Canon EOS-1D X Mark II are two digital cameras that were announced, respectively, in January 2019 and February 2016. The E-M1X is a mirrorless interchangeable lens camera, while the 1DX Mark II is a DSLR. The cameras are based on a Four Thirds (E-M1X) and a full frame (1DX Mark II) sensor. The Olympus has a resolution of 20.2 megapixels, whereas the Canon provides 20 MP. Read on to find out how these two cameras compare with respect to their body size, their sensors, their features, their input-output connections, and their reception by expert reviewers.

Headline Specifications
Olympus E-M1X   Canon 1D X Mark II
Olympus E-M1X Canon 1D X Mark II
Mirrorless system camera Digital single lens reflex
Micro Four Thirds lenses Canon EF mount lenses
20.2 MP, Four Thirds Sensor 20 MP, Full Frame Sensor
4K/30p Video 4K/60p Video
ISO 200-25600 ISO 100-51200 (50-409600)
Electronic viewfinder (2360k dots) Optical viewfinder
3.0" LCD, 1037k dots 3.2" LCD, 1620k dots
Swivel touchscreen Fixed touchscreen
18 shutter flaps per second 16 shutter flaps per second
In-body stabilizationLens stabilization only
Weathersealed bodyWeathersealed body
870 shots per battery charge1210 shots per battery charge
144 x 147 x 75 mm, 997 g 158 x 168 x 83 mm, 1530 g

Body comparison: Olympus E-M1X vs Canon 1D X Mark II

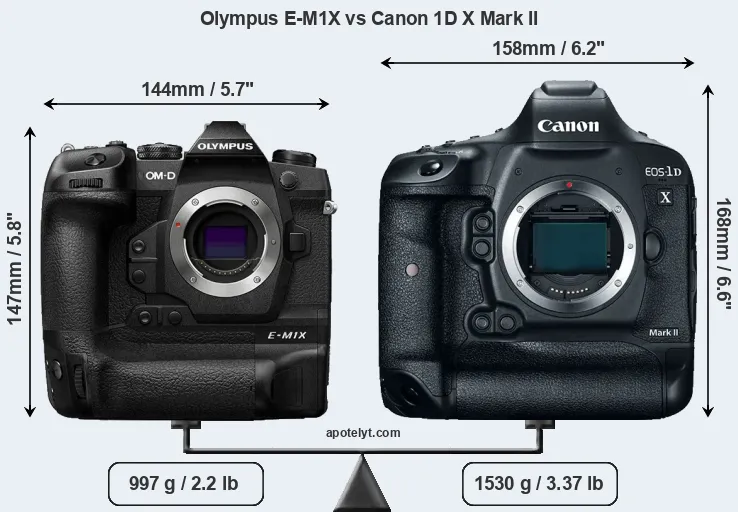

The side-by-side display below illustrates the physical size and weight of the Olympus E-M1X and the Canon 1D X Mark II. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

Compare Olympus E-M1X and Canon 1D X Mark II

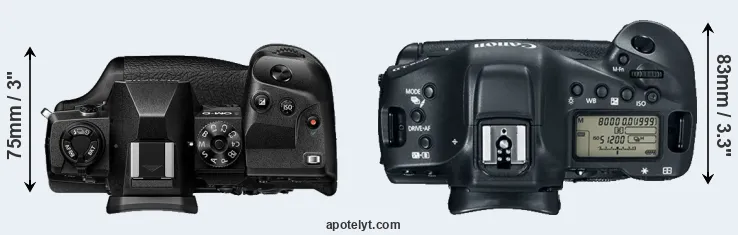

Compare E-M1X versus 1DX Mark II top

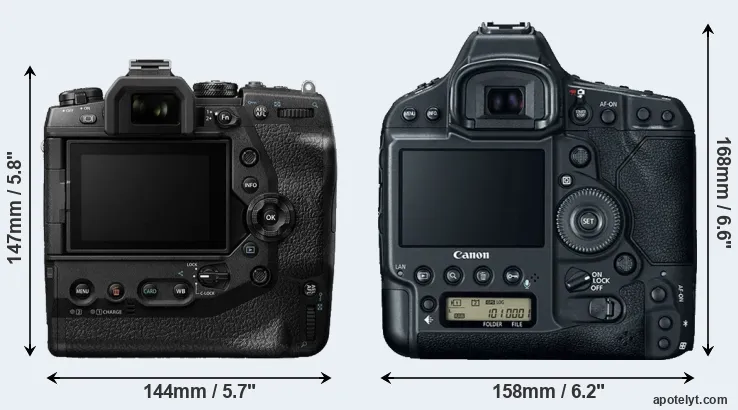

Compare E-M1X or 1DX Mark II rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 1D X Mark II is notably larger (25 percent) than the Olympus E-M1X. Moreover, the 1DX Mark II is substantially heavier (53 percent) than the E-M1X. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Micro Four Thirds Lens Catalog (E-M1X) and the Canon EF Lens Catalog (1DX Mark II). Mirrorless cameras, such as the Olympus E-M1X, have moreover the advantage that they have a relatively short flange to focal plane distance and can thus use many lenses from other systems via adapters.

Concerning battery life, the E-M1X gets 870 shots out of its BLH-1 battery, while the 1DX Mark II can take 1210 images on a single charge of its LP-E19 power pack. As can be seen in the images above, both cameras have a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. The power pack in the E-M1X can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Olympus E-M1X» 5.7 in 5.8 in 3.0 in 35.2 oz 870 Y Jan 2019 2,999 i i Olympus E-M1X
Canon 1D X Mark II« 6.2 in 6.6 in 3.3 in 54.0 oz 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II
Canon 6D Mark II« » 5.7 in 4.4 in 3.0 in 27.0 oz 1200 Y Jun 2017 1,999 i i Canon 6D Mark II
Canon 5DS« » 6.0 in 4.6 in 3.0 in 32.8 oz 700 Y Feb 2015 3,699 i i Canon 5DS
Canon 6D« » 5.7 in 4.4 in 2.8 in 27.2 oz 1090 Y Sep 2012 2,099- i Canon 6D
Canon 1D X« » 6.2 in 6.6 in 3.3 in 54.7 oz 1120 Y Oct 2011 6,799- i Canon 1D X
Nikon D5« » 6.3 in 6.3 in 3.6 in 49.9 oz 3780 Y Jan 2016 6,499 i i Nikon D5
Olympus E-PL9« » 4.6 in 2.7 in 1.5 in 13.4 oz 350 n Feb 2018 549 i i Olympus E-PL9
Olympus E-M1 II« » 5.3 in 3.6 in 2.6 in 20.2 oz 440 Y Sep 2016 1,999 i i Olympus E-M1 II
Olympus PEN-F« » 4.9 in 2.8 in 1.5 in 15.1 oz 330 n Jan 2016 1,199 i i Olympus PEN-F
Olympus E-M5 II« » 4.9 in 3.3 in 1.8 in 16.5 oz 310 Y Feb 2015 1,099 i i Olympus E-M5 II
Olympus E-M1« » 5.1 in 3.7 in 2.5 in 17.5 oz 350 Y Sep 2013 1,399- i Olympus E-M1
Panasonic S1« » 5.9 in 4.3 in 3.8 in 35.9 oz 400 Y Feb 2019 2,499 i i Panasonic S1
Panasonic GH5s« » 5.5 in 3.9 in 3.4 in 23.3 oz 440 Y Jan 2018 2,499 i i Panasonic GH5s
Panasonic G9« » 5.4 in 3.8 in 3.6 in 23.2 oz 400 Y Nov 2017 1,699 i i Panasonic G9
Panasonic GH5« » 5.5 in 3.9 in 3.4 in 25.6 oz 410 Y Jan 2017 1,999 i i Panasonic GH5
Panasonic GX8« » 5.2 in 3.1 in 2.5 in 17.2 oz 330 Y Jul 2015 1,199- i Panasonic GX8

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-M1X was launched at a markedly lower price (by 50 percent) than the 1DX Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Olympus E-M1X vs Canon 1D X Mark II

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Olympus E-M1X features a Four Thirds sensor and the Canon 1D X Mark II a full frame sensor. The sensor area in the 1DX Mark II is 284 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.0. The sensor in the E-M1X has a native 4:3 aspect ratio, while the one in the 1DX Mark II offers a 3:2 aspect.

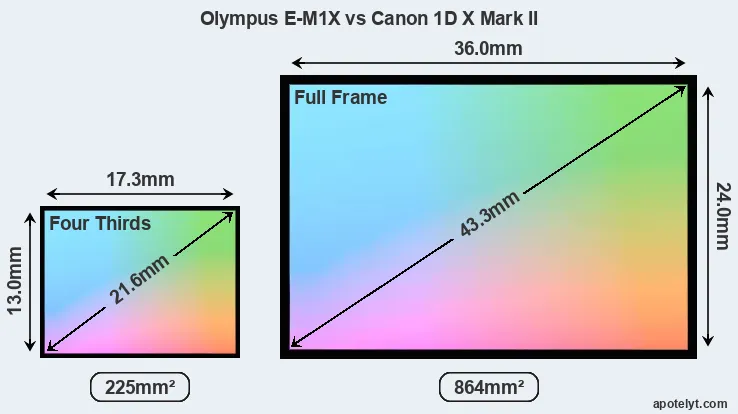

Olympus E-M1X and Canon 1D X Mark II sensor measures

Despite having a smaller sensor, the Olympus E-M1X offers a higher resolution of 20.2 megapixels, compared with 20 MP of the Canon 1D X Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 6.57μm for the 1DX Mark II). However, it should be noted that the E-M1X is much more recent (by 2 years and 11 months) than the 1DX Mark II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the E-M1X has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

Unlike the 1DX Mark II, the E-M1X has the capacity to capture high quality composite images (80MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Olympus OM-D E-M1X has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 64-25600. The corresponding ISO settings for the Canon EOS-1D X Mark II are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-409600..

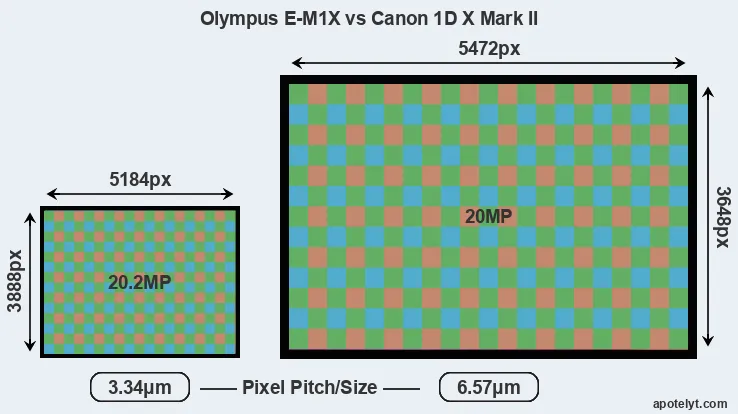

E-M1X versus 1DX Mark II MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Olympus E-M1X» Four Thirds 20.2 5184 38884K/30p----Olympus E-M1X
Canon 1D X Mark II« Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II
Canon 6D Mark II« » Full Frame 26.0 6240 41601080/60p24.411.9286285Canon 6D Mark II
Canon 5DS« » Full Frame 50.3 8688 57921080/60p24.712.4238187Canon 5DS
Canon 6D« » Full Frame 20.0 5472 36481080/30p23.812.1234082Canon 6D
Canon 1D X« » Full Frame 17.9 5184 34561080/30p23.811.8278682Canon 1D X
Nikon D5« » Full Frame 20.7 5588 37124K/30p25.112.3234388Nikon D5
Olympus E-PL9« » Four Thirds 15.9 4608 34564K/30p----Olympus E-PL9
Olympus E-M1 II« » Four Thirds 20.2 5184 38884K/30p23.712.8131280Olympus E-M1 II
Olympus PEN-F« » Four Thirds 20.2 5184 38881080/60p23.112.489474Olympus PEN-F
Olympus E-M5 II« » Four Thirds 15.9 4608 34561080/60p23.012.584273Olympus E-M5 II
Olympus E-M1« » Four Thirds 15.9 4608 34561080/30p23.012.775773Olympus E-M1
Panasonic S1« » Full Frame 24.0 6000 40004K/60p----Panasonic S1
Panasonic GH5s« » Four Thirds 9.9 3680 27004K/60p----Panasonic GH5s
Panasonic G9« » Four Thirds 20.2 5184 38884K/60p----Panasonic G9
Panasonic GH5« » Four Thirds 20.2 5184 38884K/60p23.913.080777Panasonic GH5
Panasonic GX8« » Four Thirds 20.2 5184 38884K/30p23.512.680675Panasonic GX8

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 1DX Mark II provides a faster frame rate than the E-M1X. It can shoot movie footage at 4K/60p, while the Olympus is limited to 4K/30p.



Feature comparison: Olympus E-M1X vs Canon 1D X Mark II

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-M1X has an electronic viewfinder (2360k dots), while the 1DX Mark II has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Olympus E-M1X and Canon 1D X Mark II along with similar information for a selection of comparators.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model
Olympus E-M1X»2360 n 3.0 1037 swivel Y 8000 18.0 n Y Olympus E-M1X
Canon 1D X Mark II«optical Y 3.2 1620 fixed Y 8000 16.0 n n Canon 1D X Mark II
Canon 6D Mark II« »optical Y 3.0 1040 swivel Y 4000 6.5 n n Canon 6D Mark II
Canon 5DS« »optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS
Canon 6D« »optical Y 3.0 1040 fixed n 4000 4.5 n n Canon 6D
Canon 1D X« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D X
Nikon D5« »optical Y 3.2 2359 fixed Y 8000 14.0 n n Nikon D5
Olympus E-PL9« »- n 3.0 1040 tilting Y 4000 8.6 Y Y Olympus E-PL9
Olympus E-M1 II« »2360 n 3.0 1037 swivel Y 8000 18.0 n Y Olympus E-M1 II
Olympus PEN-F« »2360 n 3.0 1037 swivel Y 8000 10.0 n Y Olympus PEN-F
Olympus E-M5 II« »2360 n 3.0 1037 swivel Y 8000 10.0 n Y Olympus E-M5 II
Olympus E-M1« »2360 n 3.0 1037 tilting Y 8000 10.0 n Y Olympus E-M1
Panasonic S1« »5760 Y 3.2 2100 full-flex Y 8000 9.0 n Y Panasonic S1
Panasonic GH5s« »3680 n 3.2 1620 swivel Y 8000 12.0 n n Panasonic GH5s
Panasonic G9« »3680 Y 3.0 1040 swivel Y 8000 20.0 n Y Panasonic G9
Panasonic GH5« »3680 n 3.2 1620 swivel Y 8000 12.0 n Y Panasonic GH5
Panasonic GX8« »2360 n 3.0 1040 swivel Y 8000 10.0 n Y Panasonic GX8

One feature that differentiates the E-M1X and the 1DX Mark II is in-body image stabilization (IBIS). The E-M1X reduces the risk of handshake-induced blur with all attached lenses, while the 1DX Mark II has to rely on optical image stabilization in OIS-equipped lenses to achieve the same effect.

The E-M1X has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the 1DX Mark II does not have a selfie-screen.

The reported shutter speed and shutter burst refer to the use of the mechanical shutter. In addition, the E-M1X features an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The E-M1X writes its imaging data to SDXC cards, while the 1DX Mark II uses Compact Flash or CFast cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.



Connectivity comparison: Olympus E-M1X vs Canon 1D X Mark II

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M1X and Canon EOS-1D X Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Olympus E-M1X»YstereomonoYYmicro3.0Y-YOlympus E-M1X
Canon 1D X Mark II«YmonomonoYYmini3.0---Canon 1D X Mark II
Canon 6D Mark II« »YstereomonoY-mini2.0YYYCanon 6D Mark II
Canon 5DS« »YmonomonoY-mini3.0---Canon 5DS
Canon 6D« »YmonomonoY-mini2.0Y--Canon 6D
Canon 1D X« »Ymono-Y-mini2.0---Canon 1D X
Nikon D5« »YstereomonoYYmini3.0---Nikon D5
Olympus E-PL9« »Ystereomono--micro2.0Y-YOlympus E-PL9
Olympus E-M1 II« »YstereomonoYYmicro3.0Y--Olympus E-M1 II
Olympus PEN-F« »Ystereomono--micro2.0Y--Olympus PEN-F
Olympus E-M5 II« »YstereomonoY-micro2.0Y--Olympus E-M5 II
Olympus E-M1« »YstereomonoY-micro2.0Y--Olympus E-M1
Panasonic S1« »YstereomonoYYfull3.1Y-YPanasonic S1
Panasonic GH5s« »YstereomonoYYfull3.1Y-YPanasonic GH5s
Panasonic G9« »YstereomonoYYfull3.0Y-YPanasonic G9
Panasonic GH5« »YstereomonoYYfull3.1Y-YPanasonic GH5
Panasonic GX8« »YstereomonoY-micro2.0YY-Panasonic GX8

It is notable that the E-M1X offers wifi support, while the 1DX Mark II does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the E-M1X and the 1DX Mark II are recent models that feature in their makers' current product line-up. The 1DX Mark II replaced the earlier Canon 1DX, while the E-M1X does not have a direct predecessor.


Review summary: Olympus E-M1X vs Canon 1D X Mark II

So what is the bottom line? Which of the two cameras – the Olympus E-M1X or the Canon 1D X Mark II – has the upper hand? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Advantages of the Olympus OM-D E-M1X:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster burst: Shoots at higher frequency (18 vs 16 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • More compact: Is smaller (144x147mm vs 158x168mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 533g or 35 percent) and hence easier to carry around.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Sharper images: Has hand-shake reducing image stabilization built-in.
  • More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
  • More modern: Reflects 2 years and 11 months of technical progress since the 1DX Mark II launch.

ilogo

Arguments in favor of the Canon EOS-1D X Mark II:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
  • Richer colors: Larger pixels generate images with better, more accurate colors.
  • More dynamic range: Capable of capturing a wider spectrum of light and dark details.
  • Better low-light sensitivity: Can be used in poorly lit environments and still produce good images.
  • Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 1037k dots).
  • Longer lasting: Gets more shots (1210 versus 870) out of a single battery charge.
  • More heavily discounted: Has been around for much longer (launched in February 2016).

If the count of relative strengths (bullet points above) is taken as a measure, the E-M1X emerges as the winner of the contest (15 : 12 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision.

E-M1X 15:12 1DX Mark II

In any case, while the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the E-M1X or the 1DX Mark II handle or perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews: Olympus E-M1X vs Canon 1D X Mark II

This is why expert reviews are important. The table below summarizes the assessments of some of the best known camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Olympus E-M1X»rev---- Jan 2019 2,999 i i Olympus E-M1X
Canon 1D X Mark II«-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II
Canon 6D Mark II« »Rec80/1004.5/54/54/5 Jun 2017 1,999 i i Canon 6D Mark II
Canon 5DS« »Rec83/1004.5/55/54.5/5 Feb 2015 3,699 i i Canon 5DS
Canon 6D« »HiRec83/1004.5/54.5/54.5/5 Sep 2012 2,099- i Canon 6D
Canon 1D X« »--4.5/54.5/54.5/5 Oct 2011 6,799- i Canon 1D X
Nikon D5« »-89/1004.5/55/55/5 Jan 2016 6,499 i i Nikon D5
Olympus E-PL9« »Rec-4.5/5-4/5 Feb 2018 549 i i Olympus E-PL9
Olympus E-M1 II« »HiRec85/1004.5/55/54.5/5 Sep 2016 1,999 i i Olympus E-M1 II
Olympus PEN-F« »-82/1004.5/54.5/55/5 Jan 2016 1,199 i i Olympus PEN-F
Olympus E-M5 II« »HiRec81/1005/54.5/55/5 Feb 2015 1,099 i i Olympus E-M5 II
Olympus E-M1« »HiRec84/1004.5/54.5/54.5/5 Sep 2013 1,399- i Olympus E-M1
Panasonic S1« »----- Feb 2019 2,499 i i Panasonic S1
Panasonic GH5s« »-84/1004.5/5-4.5/5 Jan 2018 2,499 i i Panasonic GH5s
Panasonic G9« »HiRec85/1005/55/55/5 Nov 2017 1,699 i i Panasonic G9
Panasonic GH5« »HiRec85/1004.5/55/55/5 Jan 2017 1,999 i i Panasonic GH5
Panasonic GX8« »Rec82/1004.5/55/54.5/5 Jul 2015 1,199- i Panasonic GX8

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Olympus E-M1X:
Check Amazon price
Canon 1D X Mark II:
Check Amazon price

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

    Specifications: Olympus E-M1X vs Canon 1D X Mark II

    Camera Specifications
    Camera Model Olympus E-M1X Canon 1D X Mark II
    Camera Type Mirrorless system camera Digital single lens reflex
    Camera Lens Micro Four Thirds lenses Canon EF mount lenses
    Launch Date January 2019 February 2016
    Launch Price USD 2999 USD 5999
    Sensor Specs
    Sensor Technology CMOS CMOS
    Sensor Format Four Thirds Sensor Full Frame Sensor
    Sensor Size 17.3 x 13.0 mm 36.0 x 13.0 mm
    Sensor Area 224.9 mm2 864 mm2
    Sensor Diagonal 21.6 mm 43.3 mm
    Crop Factor 2.0x 1.0x
    Sensor Resolution 20.2 Megapixels 20 Megapixels
    Image Resolution 5184 x 3888 pixels 5472 x 3648 pixels
    Pixel Pitch 3.34 μm 6.57 μm
    Pixel Density 8.96 MP/cm2 2.31 MP/cm2
    Moiré control no AA filter Anti-Alias filter
    Movie Capability 4K/30p Video 4K/60p Video
    ISO Setting 200-25600 ISO 100-51200 ISO
    ISO Boost 64-25600 ISO 50-409600 ISO
    Image Processor Dual TruePic VIII DIGIC 6+ (Dual)
    DXO Sensor Quality (score) .. 88
    DXO Color Depth (bits) .. 24.1
    DXO Dynamic Range (EV) .. 13.5
    DXO Low Light (ISO) .. 3207
    Screen Specs
    Viewfinder Type Electronic viewfinder Optical viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.83x 0.76x
    Viewfinder Resolution 2360k dots n/a
    Top-Level Screen no Top Display Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0 inch 3.2 inch
    LCD Resolution 1037k dots 1620k dots
    LCD Attachment Swivel screen Fixed screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs
    Autofocus System On-Sensor Phase-detect Phase-detect AF
    Maximum Shutter Speed 1/8000s 1/8000s
    Continuous Shooting 18 shutter flaps/s 16 shutter flaps/s
    Silent ShootingElectronic Shutterno E-Shutter
    Image StabilizationIn-body stabilizationLens stabilization only
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC cards CF or CFAST cards
    Second Storage Option Dual card slots Dual card slots
    Connectivity Specs
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket PC Sync socket
    USB Connector USB 3.0 USB 3.0
    HDMI Port micro HDMI mini HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket Headphone port Headphone port
    Wifi Support Wifi built-in no Wifi
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type BLH-1 power pack LP-E19 power pack
    Battery Life (CIPA)870 shots per charge1210 shots per charge
    In-Camera Charging USB charging no USB charging
    Body Dimensions 144 x 147 x 75 mm
    (5.7 x 5.8 x 3.0 in)
    158 x 168 x 83 mm
    (6.2 x 6.6 x 3.3 in)
    Camera Weight 997 g (35.2 oz) 1530 g (54.0 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
