Olympus E-M1X Comparison Review
The Olympus OM-D E-M1X is a mirrorless interchangeable lens camera that was announced in January 2019 and is equipped with a Four Thirds sensor. It offers a resolution of 20.2 megapixel.
Is the Olympus E-M1X a good camera? The E-M1X has a Camera Elo of 2784. This rating puts the E-M1X among the top 30 percent of all mirrorless interchangeable lens cameras. In terms of its sensor size category (Four Thirds cameras), the E-M1X ranks among the top 10 percent. Based on its within category standings, the camera earns a 4.5-star performance rating.
|Mirrorless system camera|
|Micro Four Thirds lenses|
|20.2 MP, Four Thirds Sensor|
|ISO 200 - 25 600|
|Electronic viewfinder (2360k dots)|
|3.0 LCD, 1037k dots|
|18 shutter flaps per second|
|870 shots per battery charge|
|144 x 147 x 75 mm, 997 g|
Read on to find out more about the camera's size, sensor, features, reception by expert reviewers, and how it compares to other digital cameras.

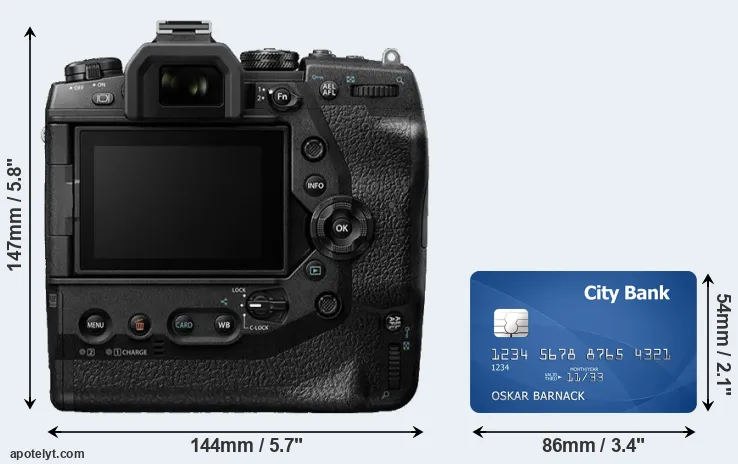

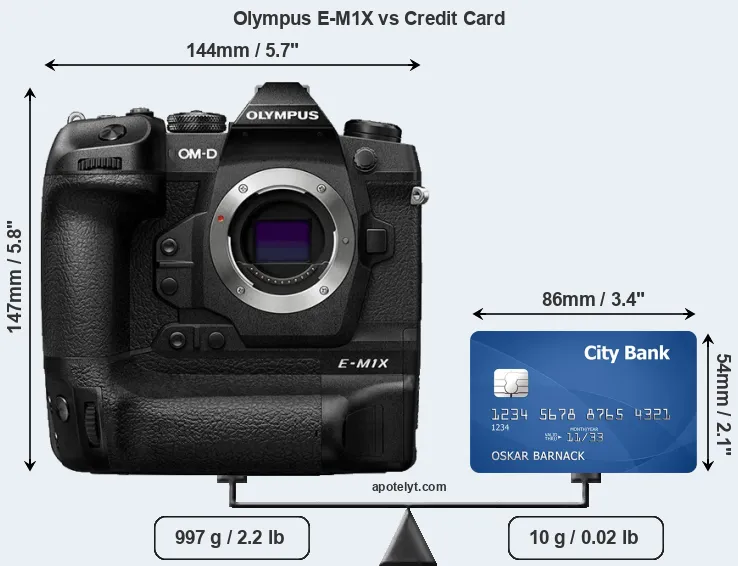

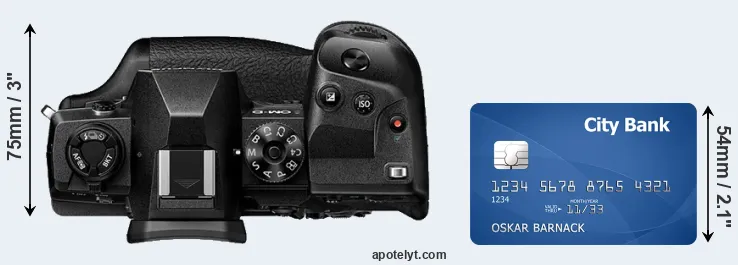

Body comparison with a credit card
The physical dimensions of the Olympus E-M1X relative to a credit card are illustrated in the side-by-side display below. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The table below summarizes the key physical specs of the Olympus E-M1X alongside a set of similar cameras. If you want to review a particular camera pair side-by-side, just move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.
|1.||Olympus E-M1X||144 mm||147 mm||75 mm||997 g||870||Y||Jan 2019||2,999||amazon.com|
|2.||Olympus E-M1 III||134 mm||91 mm||69 mm||580 g||420||Y||Feb 2020||1,799||amazon.com|
|3.||Olympus E-M10 IV||122 mm||84 mm||49 mm||383 g||360||n||Aug 2020||699||amazon.com|
|4.||Olympus E-M5 III||125 mm||85 mm||50 mm||414 g||310||Y||Oct 2019||1,199||amazon.com|
|5.||Olympus E-M1 II||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999||ebay.com|
|6.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099||ebay.com|
|7.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399||ebay.com|
|8.||Panasonic S1||149 mm||110 mm||97 mm||1017 g||400||Y||Feb 2019||2,499||amazon.com|
|9.||Panasonic G90||130 mm||94 mm||77 mm||536 g||290||Y||Apr 2019||999||amazon.com|
|10.||Panasonic G95||130 mm||94 mm||77 mm||536 g||290||Y||Apr 2019||999||amazon.com|
|11.||Panasonic GH5||139 mm||98 mm||87 mm||725 g||410||Y||Jan 2017||1,999||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Olympus E-M1X was launched in the US market at a price of $2,999. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

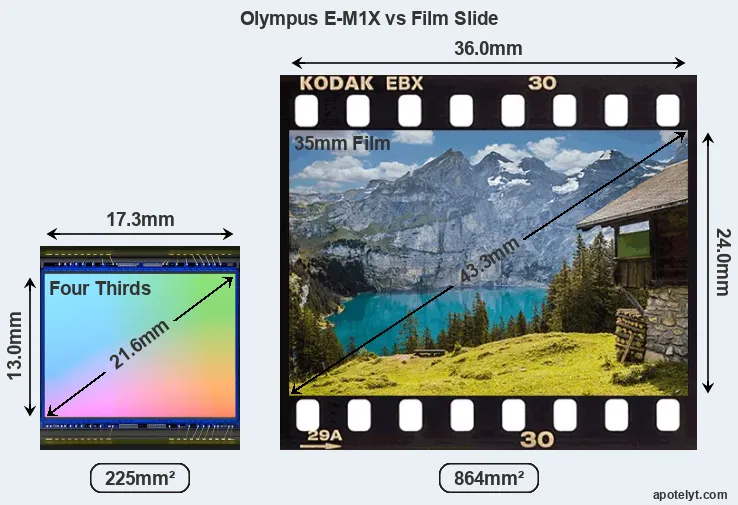

Sensor comparison with a 35mm slide
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
The Olympus E-M1X features a Four Thirds sensor and has a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the Olympus E-M1X among the medium-sized sensor cameras that aim to strike a balance between image quality and portability.
For most cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of alternative cameras.
|1.||Olympus E-M1X||Four Thirds||20.2||5184||3888||4K/30p||23.2||13.0||1254||75|
|2.||Olympus E-M1 III||Four Thirds||20.2||5184||3888||4K/30p||23.3||13.1||1356||76|
|3.||Olympus E-M10 IV||Four Thirds||20.2||5184||3888||4K/30p||23.3||13.2||1402||76|
|4.||Olympus E-M5 III||Four Thirds||20.2||5184||3888||4K/30p||23.3||13.1||1324||76|
|5.||Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|6.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|7.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|8.||Panasonic S1||Full Frame||24.0||6000||4000||4K/60p||25.2||14.5||3333||95|
|9.||Panasonic G90||Four Thirds||20.2||5184||3888||4K/30p||23.2||13.0||1273||75|
|10.||Panasonic G95||Four Thirds||20.2||5184||3888||4K/30p||23.2||13.0||1273||75|
|11.||Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The E-M1X indeed provides movie recording capabilities. The highest resolution format that the E-M1X can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-M1X has an electronic viewfinder with a resolution of 2360k dots. The viewfinder offers a field of view of 100% and a magnification of 0.83x. The tables below summarize some of the other core capabilities of the Olympus E-M1X in connection with corresponding information for a sample of similar cameras.
|1.||Olympus E-M1X||2360||n||3.0 / 1037||swivel||Y||1/8000s||18.0/s||n||Y|
|2.||Olympus E-M1 III||2360||n||3.0 / 1037||swivel||Y||1/8000s||18.0/s||n||Y|
|3.||Olympus E-M10 IV||2360||n||3.0 / 1040||tilting||Y||1/4000s||15.0/s||Y||Y|
|4.||Olympus E-M5 III||2360||n||3.0 / 1040||swivel||Y||1/8000s||10.0/s||n||Y|
|5.||Olympus E-M1 II||2360||n||3.0 / 1037||swivel||Y||1/8000s||18.0/s||n||Y|
|6.||Olympus E-M5 II||2360||n||3.0 / 1037||swivel||Y||1/8000s||10.0/s||n||Y|
|7.||Olympus E-M1||2360||n||3.0 / 1037||tilting||Y||1/8000s||10.0/s||n||Y|
|8.||Panasonic S1||5760||Y||3.2 / 2100||full-flex||Y||1/8000s||9.0/s||n||Y|
|9.||Panasonic G90||2360||n||3.0 / 1240||swivel||Y||1/4000s||9.0/s||Y||Y|
|10.||Panasonic G95||2360||n||3.0 / 1240||swivel||Y||1/4000s||9.0/s||Y||Y|
|11.||Panasonic GH5||3680||n||3.2 / 1620||swivel||Y||1/8000s||12.0/s||n||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
The LCD screen on the Olympus OM-D E-M1X is flexibly attached to the body. In particular, the LCD is hinged on the side and can be flipped out for odd-angle shots in both portrait and landscape orientation. Also, this fully articulated, swivel type of LCD attachment is often appreciated by videographers for its flexibility. Moreover, v-loggers like the design because the screen can be turned to be front-facing.
One feature that differentiates the E-M1X from many older cameras is in-body image stabilization (IBIS). The E-M1X reduces the risk of handshake-induced blur with all attached lenses, while cameras without IBIS have to rely on optical image stabilization in OIS-equipped lenses to achieve the same effect.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M1X and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Olympus E-M1X||Y||stereo / mono||Y||Y||micro||3.0||Y||-||Y|
|2.||Olympus E-M1 III||Y||stereo / mono||Y||Y||micro||3.1||Y||-||Y|
|3.||Olympus E-M10 IV||Y||stereo / mono||-||-||micro||2.0||Y||-||Y|
|4.||Olympus E-M5 III||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|5.||Olympus E-M1 II||Y||stereo / mono||Y||Y||micro||3.0||Y||-||-|
|6.||Olympus E-M5 II||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|7.||Olympus E-M1||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|8.||Panasonic S1||Y||stereo / mono||Y||Y||full||3.1||Y||-||Y|
|9.||Panasonic G90||Y||stereo / mono||Y||Y||micro||2.0||Y||-||Y|
|10.||Panasonic G95||Y||stereo / mono||Y||Y||micro||2.0||Y||-||Y|
|11.||Panasonic GH5||Y||stereo / mono||Y||Y||full||3.1||Y||-||Y|
It is notable that the E-M1X has a microphone port. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
While the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the E-M1X. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate. This is where reviews by experts come in. The table below summarizes the assessments of some of the best known camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]).
|1.||Olympus E-M1X||4.5/5||o||5/5||85/100||4.5/5||..||Jan 2019||2,999||amazon.com|
|2.||Olympus E-M1 III||5/5||..||5/5||83/100||4.5/5||4/5||Feb 2020||1,799||amazon.com|
|3.||Olympus E-M10 IV||4.5/5||..||5/5||81/100||4.5/5||4.5/5||Aug 2020||699||amazon.com|
|4.||Olympus E-M5 III||5/5||+||5/5||82/100||4.5/5||4.5/5||Oct 2019||1,199||amazon.com|
|5.||Olympus E-M1 II||5/5||+ +||5/5||85/100||4.5/5||4.5/5||Sep 2016||1,999||ebay.com|
|6.||Olympus E-M5 II||5/5||+ +||4.5/5||81/100||5/5||5/5||Feb 2015||1,099||ebay.com|
|7.||Olympus E-M1||5/5||+ +||..||84/100||4.5/5||4.5/5||Sep 2013||1,399||ebay.com|
|8.||Panasonic S1||4.5/5||+ +||4.5/5||88/100||4.5/5||4/5||Feb 2019||2,499||amazon.com|
|9.||Panasonic G90||4.5/5||+||4.5/5||83/100||4.5/5||4.5/5||Apr 2019||999||amazon.com|
|10.||Panasonic G95||4.5/5||+||4.5/5||83/100||4.5/5||4.5/5||Apr 2019||999||amazon.com|
|11.||Panasonic GH5||4.5/5||+ +||..||85/100||4.5/5||5/5||Jan 2017||1,999||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Olympus E-M1X FAQ
Below are some additional questions and answers concerning some particular features of the E-M1X.
What is the technology behind the imaging sensor in the Olympus E-M1X?
The camera features a CMOS (Complementary Metal–Oxide–Semiconductor) sensor.
Which image processing chip is used in the Olympus E-M1X to convert the raw signal into an image file and perform noise reduction and image sharpening?
Olympus equipped the E-M1X with the Dual TruePic VIII image processor.
What is the ISO sensitivity range of the Olympus E-M1X?
The camera has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 64-25600.
Does the Olympus E-M1X have a selfie-friendly screen?
Yes, the LCD-screen of the E-M1X is flexible and can be turned to be front-facing for capturing selfies.
What is the life expectancy of the shutter in the Olympus OM-D E-M1X?
Olympus mentions a shutter rating of 200 000 actuations for the E-M1X. This number represents a Mean Time before Failure, that is an average value. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust the expected shutter life of the E-M1X over, say, three years, one would have to take about 200 pictures each and every day.
How do I find the shutter count on my Olympus E-M1X?
Olympus embeds the number of shutter actuations in hidden menus. You can check the number of shots that your E-M1X has taken up to now by carefully following the steps described on the Olympus E-M1X shutter count page.
Is completely silent shooting possible with the Olympus E-M1X?
The camera has an electronic shutter option, so that it is indeed feasible to capture images without any shutter noise.
Do I need to purchase an external camera trigger to shoot time-lapse sequences with the Olympus E-M1X?
No, the Olympus OM-D E-M1X has an intervalometer built-in, so that low frequency shooting (for example, flower blooming, sunset, moon rise) can be undertaken without the need to purchase a separate external intervalometer and related software.
Is it difficult to use manual focus lenses with the Olympus E-M1X?
The E-M1X offers focus peaking as a manual focus aid. This feature works by placing a colored highlight on in-focus zones within the image.
Does the Olympus E-M1X feature an autofocus assist light?
Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.
What is the fastest shutter speed that can be used with the Olympus E-M1X for flash photography?
The E-M1X's flash sync speed is 1/250 sec.
Does the Olympus E-M1X support the Ultra High Speed (UHS) bus interface for SD cards?
Yes, the camera can indeed use UHS-II cards, which provide for data transfer speed of up to 312 MB/s, in both of its card slots.
Which battery does the Olympus E-M1X use?
Does the Olympus E-M1X support geotagging?
The E-M1X has a built-in GPS (Global Positioning System) module and can embed location information in the EXIF data of the captured image.
Camera to camera comparisons
In case you are interested in seeing how this camera compares to another one, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1200D vs Olympus E-M1X
- Canon 450D vs Olympus E-M1X
- Canon D30 vs Olympus E-M1X
- Canon M10 vs Olympus E-M1X
- Canon M50 vs Olympus E-M1X
- Canon R7 vs Olympus E-M1X
- Nikon D40 vs Olympus E-M1X
- Nikon D80 vs Olympus E-M1X
- Olympus E-M1 III vs Olympus E-M1X
- Olympus E-M1X vs Olympus E-P5
- Olympus E-M1X vs Olympus E-PL3
- Olympus E-M1X vs Panasonic ZS70
|Camera Model||Olympus E-M1X|
|Camera Type||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses|
|Launch Date||January 2019|
|Launch Price||USD 2 999|
|Sensor Format||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm|
|Sensor Area||225 mm2|
|Sensor Diagonal||21.6 mm|
|Sensor Resolution||20.2 Megapixels|
|Image Resolution||5 184 x 3 888 pixels|
|Pixel Pitch||3.34 μm|
|Pixel Density||8.96 MP/cm2|
|Moiré control||no AA filter|
|Movie Capability||4K/30p Video|
|ISO Setting||200 - 25 600 ISO|
|ISO Boost||64 - 25 600 ISO|
|Image Processor||Dual TruePic VIII|
|Viewfinder Type||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||no Top Display|
|LCD Framing||Live View|
|LCD Size||3.0 inch|
|LCD Resolution||1037k dots|
|LCD Attachment||Swivel screen|
|V-logging Friendliness||Front-flip possible|
|Focus System||On-Sensor Phase-detect|
|Manual Focusing Aid||Focus Peaking|
|Maximum Shutter Speed||1/8000s|
|Continuous Shooting||18 shutter flaps/s|
|Shutter Life Expectancy||200 000 actuations|
|Silent Shooting||Electronic Shutter|
|Time Lapse Photography||Intervalometer Built-in|
|Image Stabilization||In-body stabilization|
|Fill Flash||no On-Board Flash|
|Storage Medium||SDXC cards|
|Single or Dual Card Slots||Dual card slots|
|UHS card support||Dual UHS-II|
|Studio Flash||PC Sync socket|
|USB Connector||USB 3.0|
|HDMI Port||micro HDMI|
|Microphone Port||External MIC port|
|Headphone Socket||Headphone port|
|Wifi Support||Wifi built-in|
|Bluetooth Support||Bluetooth built-in|
|Environmental Sealing||Weathersealed body|
|Battery Type||BLH-1 power pack|
|Battery Life (CIPA)||870 shots per charge|
|In-Camera Charging||USB charging|
144 x 147 x 75 mm
(5.7 x 5.8 x 3.0 in)
|Camera Weight||997 g (35.2 oz)|
