Olympus E-M10 II vs Panasonic G5
The Olympus OM-D E-M10 Mark II and the Panasonic Lumix DMC-G5 are two digital cameras that were announced, respectively, in August 2015 and July 2012. Both the E-M10 II and the G5 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 15.9 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M10 Mark II and the Panasonic Lumix DMC-G5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

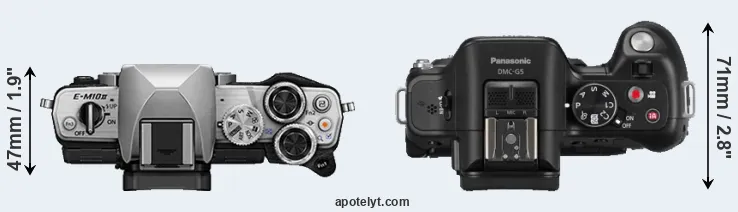

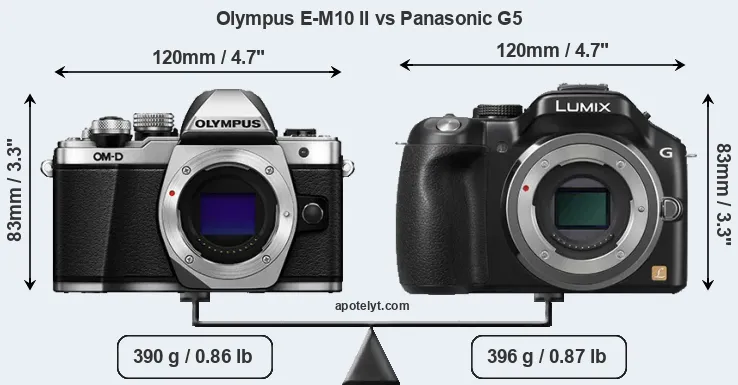

An illustration of the physical size and weight of the Olympus E-M10 II and the Panasonic G5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-M10 II can be obtained in three different colors (black, silver, brown), while the G5 is available in two color-versions (black, silver).
In this particular case, the Olympus E-M10 II and the Panasonic G5 have exactly the same width and height, and, thus, have identically-sized bodies. However, the Panasonic is slightly heavier (2 percent) than the Olympus. In this context, it is worth noting that neither the E-M10 II nor the G5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|2.||Panasonic G5||120 mm||83 mm||71 mm||396 g||320||n||Jul 2012||599|
|3.||Olympus E-PL9||117 mm||68 mm||39 mm||380 g||350||n||Feb 2018||599|
|4.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649|
|5.||Olympus E-PL8||115 mm||67 mm||38 mm||357 g||350||n||Sep 2016||549|
|6.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|7.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|8.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|9.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|10.||Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|11.||Olympus E-PL5||111 mm||64 mm||38 mm||325 g||360||n||Sep 2012||599|
|12.||Panasonic GX80||122 mm||71 mm||44 mm||426 g||290||n||Apr 2016||799|
|13.||Panasonic G7||125 mm||86 mm||77 mm||410 g||350||n||May 2015||649|
|14.||Panasonic G6||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599|
|15.||Panasonic GF6||111 mm||65 mm||38 mm||323 g||340||n||Apr 2013||499|
|16.||Panasonic G3||115 mm||84 mm||47 mm||336 g||270||n||May 2011||599|
|17.||Panasonic GX1||116 mm||68 mm||39 mm||318 g||320||n||Nov 2011||699|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The G5 was somewhat cheaper (by 8 percent) than the E-M10 II at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

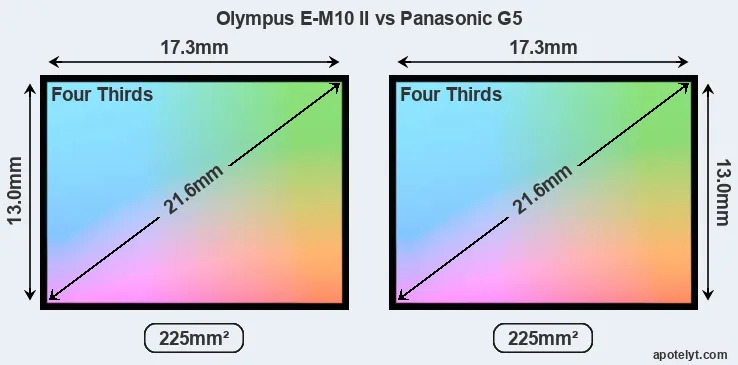

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.
The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 15.9 megapixels. This similarity in sensor specs implies that both the E-M10 II and the G5 have the same pixel density, as well as the same pixel size. It should, however, be noted that the E-M10 II is much more recent (by 3 years and 1 month) than the G5, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that the E-M10 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The Olympus OM-D E-M10 Mark II has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DMC-G5 are ISO 160 to ISO 12800 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|1.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|2.||Panasonic G5||Four Thirds||15.9||4608||3456||1080/60p||..||..||..||..|
|3.||Olympus E-PL9||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|4.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|5.||Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|6.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|7.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|8.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|9.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|10.||Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|11.||Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
|12.||Panasonic GX80||Four Thirds||15.8||4592||3448||4K/30p||22.9||12.6||662||71|
|13.||Panasonic G7||Four Thirds||15.8||4592||3448||4K/30p||..||..||..||..|
|14.||Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|15.||Panasonic GF6||Four Thirds||15.8||4592||3448||1080/60i||20.7||10.6||622||54|
|16.||Panasonic G3||Four Thirds||15.8||4592||3448||1080/60i||21.0||10.6||667||56|
|17.||Panasonic GX1||Four Thirds||15.8||4592||3448||1080/60p||20.8||10.6||703||55|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/60p).
Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the E-M10 II offers a substantially higher resolution than the one in the G5 (2360k vs 1440k dots). The following table reports on some other key feature differences and similarities of the Olympus E-M10 II, the Panasonic G5, and comparable cameras.
|1.||Olympus E-M10 II||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0||Y||Y|
|2.||Panasonic G5||1440||n||3.0 / 920||swivel||Y||1/4000s||6.0||Y||n|
|3.||Olympus E-PL9||none||n||3.0 / 1040||tilting||Y||1/4000s||8.6||Y||Y|
|4.||Olympus E-M10 III||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.6||Y||Y|
|5.||Olympus E-PL8||optional||n||3.0 / 1037||tilting||Y||1/4000s||8.0||n||Y|
|6.||Olympus PEN-F||2360||n||3.0 / 1037||swivel||Y||1/8000s||10.0||n||Y|
|7.||Olympus E-M5 II||2360||n||3.0 / 1037||swivel||Y||1/8000s||10.0||n||Y|
|8.||Olympus E-M10||1440||n||3.0 / 1037||tilting||Y||1/4000s||8.0||Y||Y|
|9.||Olympus E-PL7||optional||n||3.0 / 1037||tilting||Y||1/4000s||8.0||n||Y|
|10.||Olympus E-P5||optional||n||3.0 / 1037||tilting||Y||1/8000s||9.0||Y||Y|
|11.||Olympus E-PL5||optional||n||3.0 / 460||tilting||Y||1/4000s||8.0||n||Y|
|12.||Panasonic GX80||2765||n||3.0 / 1040||tilting||Y||1/4000s||8.0||Y||Y|
|13.||Panasonic G7||2360||n||3.0 / 1040||swivel||Y||1/4000s||7.0||Y||n|
|14.||Panasonic G6||1440||n||3.0 / 1036||swivel||Y||1/4000s||7.0||Y||n|
|15.||Panasonic GF6||none||n||3.0 / 1040||tilting||Y||1/4000s||4.2||Y||n|
|16.||Panasonic G3||1440||n||3.0 / 460||swivel||Y||1/4000s||4.0||Y||n|
|17.||Panasonic GX1||optional||n||3.0 / 460||fixed||Y||1/4000s||4.2||Y||n|
One feature that differentiates the E-M10 II and the G5 is in-body image stabilization (IBIS). The E-M10 II reduces the risk of handshake-induced blur with all attached lenses, while the G5 offers no blur reduction with lenses that themselves do not provide optical image stabilization.The G5 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the E-M10 II does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M10 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M10 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-M10 II and the G5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M10 Mark II and Panasonic Lumix DMC-G5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Olympus E-M10 II||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|2.||Panasonic G5||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|3.||Olympus E-PL9||Y||stereo / mono||-||-||micro||2.0||Y||-||Y|
|4.||Olympus E-M10 III||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|5.||Olympus E-PL8||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|6.||Olympus PEN-F||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|7.||Olympus E-M5 II||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|8.||Olympus E-M10||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|9.||Olympus E-PL7||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|10.||Olympus E-P5||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|11.||Olympus E-PL5||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|12.||Panasonic GX80||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|13.||Panasonic G7||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|14.||Panasonic G6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|15.||Panasonic GF6||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|16.||Panasonic G3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|17.||Panasonic GX1||Y||stereo / mono||-||-||mini||2.0||-||-||-|
It is notable that the E-M10 II offers wifi support, while the G5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the E-M10 II and the G5 have been discontinued, but can regularly be found used on eBay. The G5 was replaced by the Panasonic G6, while the E-M10 II was followed by the Olympus E-M10 III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Panasonic websites.
So how do things add up? Is the Olympus E-M10 II better than the Panasonic G5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Olympus OM-D E-M10 Mark II:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- More detailed viewfinder: Has higher resolution electronic viewfinder (2360k vs 1440k dots).
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- Faster burst: Shoots at higher frequency (8 vs 6 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More modern: Reflects 3 years and 1 month of technical progress since the G5 launch.
Arguments in favor of the Panasonic Lumix DMC-G5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.62x).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More heavily discounted: Has been around for much longer (launched in July 2012).
If the number of relative strengths (bullet points above) is taken as a guide, the E-M10 II is the clear winner of the match-up (9 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-M10 II and the Panasonic G5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the E-M10 II and the G5 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Olympus E-M10 II||4.5/5||+ +||..||80/100||5/5||5/5||Aug 2015||649|
|2.||Panasonic G5||3/5||+ +||..||..||4.5/5||4.5/5||Jul 2012||599|
|3.||Olympus E-PL9||..||+||..||..||4.5/5||4/5||Feb 2018||599|
|4.||Olympus E-M10 III||..||+||5/5||80/100||4.5/5||4.5/5||Aug 2017||649|
|5.||Olympus E-PL8||..||..||..||..||4.5/5||4/5||Sep 2016||549|
|6.||Olympus PEN-F||..||..||4/5||82/100||4.5/5||5/5||Jan 2016||1,199|
|7.||Olympus E-M5 II||5/5||+ +||4.5/5||81/100||5/5||5/5||Feb 2015||1,099|
|8.||Olympus E-M10||4/5||..||..||80/100||5/5||5/5||Jan 2014||699|
|9.||Olympus E-PL7||4/5||+||..||..||5/5||4/5||Aug 2014||599|
|10.||Olympus E-P5||5/5||+ +||..||78/100||4.5/5||5/5||May 2013||999|
|11.||Olympus E-PL5||3/5||+ +||..||..||4.5/5||4.5/5||Sep 2012||599|
|12.||Panasonic GX80||4.5/5||+ +||..||82/100||5/5||5/5||Apr 2016||799|
|13.||Panasonic G7||4/5||+ +||..||80/100||5/5||4.5/5||May 2015||649|
|14.||Panasonic G6||4/5||+ +||..||..||5/5||4.5/5||Apr 2013||599|
|15.||Panasonic GF6||..||+ +||..||..||4.5/5||4.5/5||Apr 2013||499|
|16.||Panasonic G3||3/5||+ +||..||75/100||4.5/5||5/5||May 2011||599|
|17.||Panasonic GX1||3/5||+||..||77/100||4.5/5||4.5/5||Nov 2011||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 250D vs Olympus E-M10 II
- Canon 5D Mark III vs Panasonic G5
- Canon G7 X vs Panasonic G5
- Canon T5i vs Olympus E-M10 II
- Fujifilm X-M1 vs Panasonic G5
- Leica D-LUX 6 vs Olympus E-M10 II
- Nikon 1 J5 vs Olympus E-M10 II
- Olympus E-M10 II vs Panasonic FZ1000
- Olympus E-M10 II vs Sony A7S II
- Panasonic G5 vs Sony A5000
- Panasonic G5 vs Sony A77 II
- Panasonic G5 vs Sony A7R IV
Specifications: Olympus E-M10 II vs Panasonic G5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-M10 II||Panasonic G5|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||August 2015||July 2012|
|Launch Price||USD 649||USD 599|
|Sensor Specs||Olympus E-M10 II||Panasonic G5|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||15.9 Megapixels||15.9 Megapixels|
|Image Resolution||4608 x 3456 pixels||4608 x 3456 pixels|
|Pixel Pitch||3.76 μm||3.76 μm|
|Pixel Density||7.08 MP/cm2||7.08 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||1080/60p Video|
|ISO Setting||200 - 25,600 ISO||160 - 12,800 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||TruePic VII||Venus VII FHD|
|DXO Sensor Quality (score)||73||..|
|DXO Color Depth (bits)||23.1||..|
|DXO Dynamic Range (EV)||12.5||..|
|DXO Low Light (ISO)||842||..|
|Screen Specs||Olympus E-M10 II||Panasonic G5|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots||1440k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||920k dots|
|LCD Attachment||Tilting screen||Swivel screen|
|Shooting Specs||Olympus E-M10 II||Panasonic G5|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||8 shutter flaps/s||6 shutter flaps/s|
|Electronic Shutter||up to 1/16000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||In-body stabilization||Lens stabilization only|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Olympus E-M10 II||Panasonic G5|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Olympus E-M10 II||Panasonic G5|
|Battery Life (CIPA)||320 shots per charge||320 shots per charge|
120 x 83 x 47 mm
(4.7 x 3.3 x 1.9 in)
120 x 83 x 71 mm
(4.7 x 3.3 x 2.8 in)
|Camera Weight||390 g (13.8 oz)||396 g (14.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
