Canon G9 X Mark II vs Olympus E-M10 II

The Canon PowerShot G9 X Mark II and the Olympus OM-D E-M10 Mark II are two digital cameras that were announced, respectively, in January 2017 and August 2015. The G9X Mark II is a fixed lens compact, while the E-M10 II is a mirrorless interchangeable lens camera. The cameras are based on an one-inch (G9X Mark II) and a Four Thirds (E-M10 II) sensor. The Canon has a resolution of 20 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G9 X Mark II		Olympus E-M10 II
Fixed lens compact camera		Mirrorless system camera
28-84mm f/2.0-4.9		Micro Four Thirds lenses
20 MP – 1" sensor		15.9 MP – Four Thirds sensor
1080/60p Video		1080/60p Video
ISO 125-12,800		ISO 200-25,600
No viewfinder, LCD framing		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Fixed touchscreen		Tilting touchscreen
8.2 shutter flaps per second		8 shutter flaps per second
Lens-based stabilization		In-body stabilization
235 shots per battery charge		320 shots per battery charge
98 x 58 x 31 mm, 206 g		120 x 83 x 47 mm, 390 g

Check G9X Mark II offers at
ebay.com
Check E-M10 II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G9 X Mark II and the Olympus OM-D E-M10 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

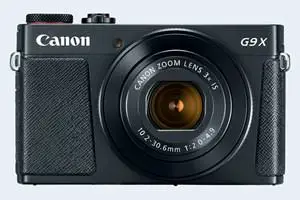

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon G9 X Mark II and the Olympus E-M10 II. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The G9X Mark II can be obtained in two different colors (black, silver), while the E-M10 II is available in three color-versions (black, silver, brown).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 II is considerably larger (75 percent) than the Canon G9 X Mark II. In this context, it is worth noting that neither the G9X Mark II nor the E-M10 II are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G9X Mark II has a lens built in, whereas the E-M10 II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-M10 II and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the G9X Mark II gets 235 shots out of its Canon NB-13L battery, while the E-M10 II can take 320 images on a single charge of its Olympus BLS-50 power pack. The power pack in the G9X Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	529	ebay.com
2.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	649	ebay.com
3.		Canon SX70	127 mm	91 mm	117 mm	608 g	325	n	Sep 2018	549	amazon.com
4.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	499	ebay.com
5.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	549	ebay.com
6.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	699	ebay.com
7.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	529	ebay.com
8.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	699	ebay.com
9.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	649	ebay.com
10.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	549	ebay.com
11.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	699	ebay.com
12.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	999	ebay.com
13.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	599	ebay.com
14.		Sony HX99	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	449	ebay.com
15.		Sony HX95	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	429	ebay.com
16.		Sony RX100 V	102 mm	58 mm	41 mm	299 g	220	n	Oct 2016	999	ebay.com
17.		Sony RX100	102 mm	58 mm	36 mm	240 g	330	n	Jun 2012	649	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The G9X Mark II was launched at a lower price than the E-M10 II, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon G9 X Mark II features an one-inch sensor and the Olympus E-M10 II a Four Thirds sensor. The sensor area in the E-M10 II is 94 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 2.0. The sensor in the G9X Mark II has a native 3:2 aspect ratio, while the one in the E-M10 II offers a 4:3 aspect.

Despite having a smaller sensor, the Canon G9 X Mark II offers a higher resolution of 20 megapixels, compared with 15.9 MP of the Olympus E-M10 II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 3.76μm for the E-M10 II). However, it should be noted that the G9X Mark II is a somewhat more recent model (by 1 year and 4 months) than the E-M10 II, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that the E-M10 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon G9 X Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G9X Mark II for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Olympus E-M10 II are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon PowerShot G9 X Mark II has a native sensitivity range from ISO 125 to ISO 12800. The corresponding ISO settings for the Olympus OM-D E-M10 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the G9X Mark II is build around a BSI-CMOS sensor, while the E-M10 II uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the E-M10 II has a markedly higher DXO score than the G9X Mark II (overall score 8 points higher), which will translate into better image quality. The advantage is based on 1.2 bits higher color depth, and 0.7 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
2.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
3.		Canon SX70	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1063	51
4.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
5.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
6.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
7.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
8.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
9.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
10.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
11.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
12.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
13.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
14.		Sony HX99	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1058	51
15.		Sony HX95	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1057	51
16.		Sony RX100 V	1-inch	20.0	5472	3648	4K/30p	22.8	12.4	586	70
17.		Sony RX100	1-inch	20.0	5472	3648	1080/60p	22.6	12.4	390	66
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/60p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M10 II has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the G9X Mark II relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon G9 X Mark II and Olympus E-M10 II along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
2.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
3.		Canon SX70	2360	n	3.0 / 922	swivel	n	1/2000s	10.0/s	Y	Y
4.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
5.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
7.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
8.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
9.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
10.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
11.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
12.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
13.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
14.		Sony HX99	638	n	3.0 / 922	tilting	Y	1/2000s	10.0/s	Y	Y
15.		Sony HX95	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
16.		Sony RX100 V	2359	n	3.0 / 1229	tilting	n	1/2000s	24.0/s	Y	Y
17.		Sony RX100	none	n	3.0 / 1229	fixed	n	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M10 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon G9 X Mark II and the Olympus E-M10 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the G9X Mark II and the E-M10 II write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G9 X Mark II and Olympus OM-D E-M10 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
2.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon SX70	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
4.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
5.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Sony HX99	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
15.		Sony HX95	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
16.		Sony RX100 V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony RX100	-	stereo / mono	-	-	micro	2.0	-	-	-

It is notable that the E-M10 II has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The G9X Mark II does not feature such an accessory-socket.

Both the G9X Mark II and the E-M10 II have been discontinued, but can regularly be found used on ebay. The E-M10 II was replaced by the Olympus E-M10 III, while the G9X Mark II does not have a direct successor. Further information on the features and operation of the G9X Mark II and E-M10 II can be found, respectively, in the Canon G9 X Mark II Manual (free pdf) or the online Olympus E-M10 II Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon G9 X Mark II or the Olympus E-M10 II – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon PowerShot G9 X Mark II:

• More detail: Offers more megapixels (20 vs 15.9MP) with a 14% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Ready to shoot: Has a lens built-in, whereas the E-M10 II requires a separate lens.
• More compact: Is smaller (98x58mm vs 120x83mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the E-M10 II).
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Is somewhat more recent (announced 1 year and 4 months after the E-M10 II).

Advantages of the Olympus OM-D E-M10 Mark II:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores markedly higher (8 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.2 bits more color depth).
• Better low-light sensitivity: Can shoot in dim conditions (0.7 stops ISO advantage).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (320 versus 235) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been on the market for longer (launched in August 2015).

If the count of individual advantages (bullet points above) is taken as a guide, the E-M10 II emerges as the winner of the match-up (12 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G9 X Mark II and the Olympus E-M10 II place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the G9X Mark II and the E-M10 II in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	529	ebay.com
2.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	649	ebay.com
3.		Canon SX70	..	+ +	3.5/5	..	3.5/5	3.5/5	Sep 2018	549	amazon.com
4.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	499	ebay.com
5.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	549	ebay.com
6.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	699	ebay.com
7.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	529	ebay.com
8.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	699	ebay.com
9.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	649	ebay.com
10.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	549	ebay.com
11.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	699	ebay.com
12.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	999	ebay.com
13.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	599	ebay.com
14.		Sony HX99	..	..	..	..	4/5	4.5/5	Aug 2018	449	ebay.com
15.		Sony HX95	..	..	..	..	..	..	Aug 2018	429	ebay.com
16.		Sony RX100 V	4.5/5	+ +	..	83/100	4/5	4.5/5	Oct 2016	999	ebay.com
17.		Sony RX100	5/5	+ +	..	78/100	4/5	5/5	Jun 2012	649	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
