Olympus E-M1 vs E-P2
The Olympus OM-D E-M1 and the Olympus PEN E-P2 are two enthusiast cameras that were revealed to the public, respectively, in September 2013 and November 2009. Both the E-M1 and the E-P2 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The E-M1 has a resolution of 15.9 megapixels, whereas the E-P2 provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M1 and the Olympus PEN E-P2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

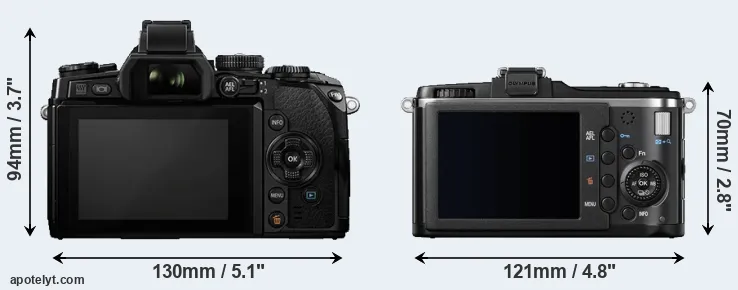

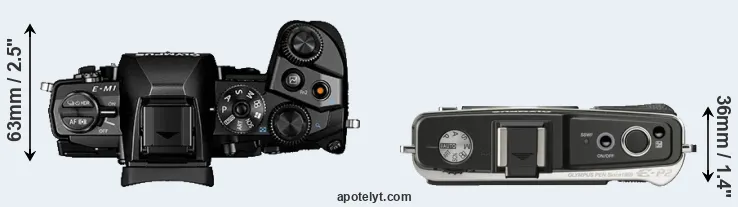

An illustration of the physical size and weight of the Olympus E-M1 and the Olympus E-P2 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-M1 can be obtained in two different colors (black, silver), while the E-P2 is available in three color-versions (black, silver, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P2 is considerably smaller (31 percent) than the Olympus E-M1. Moreover, the E-P2 is markedly lighter (29 percent) than the E-M1. It is worth mentioning in this context that the E-M1 is splash and dust resistant, while the E-P2 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399|
|2.||Olympus E-P2||121 mm||70 mm||36 mm||355 g||300||n||Nov 2009||799|
|3.||Olympus E-M1 II||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999|
|4.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|5.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|6.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|7.||Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|8.||Olympus E-M5||122 mm||89 mm||43 mm||425 g||360||Y||Feb 2012||1,299|
|9.||Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799|
|10.||Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599|
|11.||Olympus E-620||130 mm||94 mm||60 mm||521 g||500||n||Feb 2009||699|
|12.||Olympus E-P1||121 mm||70 mm||36 mm||355 g||300||n||Jun 2009||799|
|13.||Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699|
|14.||Panasonic G80||128 mm||89 mm||74 mm||505 g||330||Y||Sep 2016||899|
|15.||Panasonic GX8||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199|
|16.||Panasonic GH4||133 mm||93 mm||84 mm||560 g||500||Y||Feb 2014||1,499|
|17.||Panasonic GH3||133 mm||93 mm||82 mm||550 g||540||Y||Sep 2012||1,299|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-P2 was launched at a markedly lower price (by 43 percent) than the E-M1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

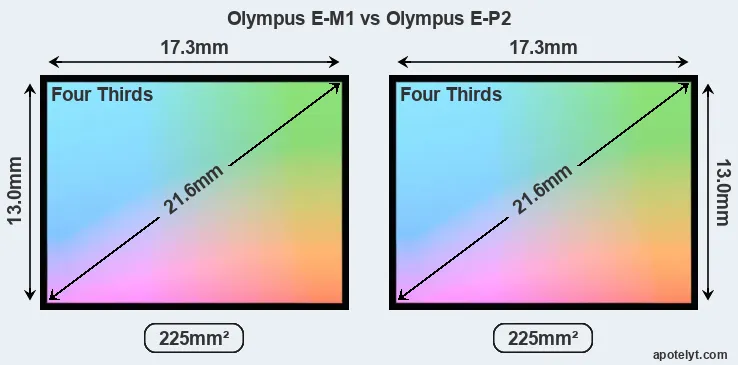

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
In terms of chip-set technology, the E-M1 uses a more advanced image processing engine (TruePIC VII) than the E-P2 (TruePic V), with benefits for noise reduction, color accuracy, and processing speed.

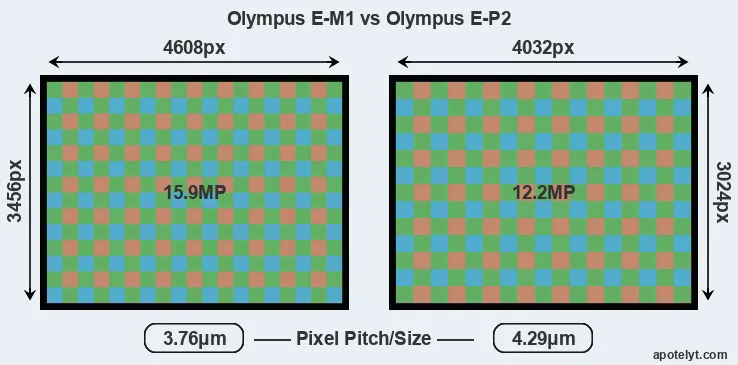

While the two cameras under review share the same sensor size, the E-M1 offers a higher resolution of 15.9 megapixels, compared with 12.2 MP of the E-P2. This megapixels advantage translates into a 14 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M1 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.29μm for the E-P2). In this context, it should be noted, however, that the E-M1 is much more recent (by 3 years and 10 months) than the E-P2, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the E-M1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Olympus E-M1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M1 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus E-P2 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The E-M1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Olympus OM-D E-M1 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus PEN E-P2 are ISO 100 to ISO 6400 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the E-M1 provides substantially higher image quality than the E-P2, with an overall score that is 17 points higher. This advantage is based on 1.5 bits higher color depth, 2.3 EV in additional dynamic range, and 0.6 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|2.||Olympus E-P2||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56|
|3.||Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|4.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|5.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|6.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|7.||Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|8.||Olympus E-M5||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71|
|9.||Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|10.||Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|11.||Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|12.||Olympus E-P1||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55|
|13.||Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|14.||Panasonic G80||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71|
|15.||Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
|16.||Panasonic GH4||Four Thirds||15.9||4608||3456||4K/30p||23.2||12.8||791||74|
|17.||Panasonic GH3||Four Thirds||15.9||4608||3456||1080/60p||22.7||12.4||812||71|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-M1 provides a higher video resolution than the E-P2. It can shoot video footage at 1080/30p, while the E-P2 is limited to 720/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M1 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-P2 relies on live view and the rear LCD for framing. That said, the E-P2 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Olympus E-M1 and Olympus E-P2 in connection with corresponding information for a sample of similar cameras.
|3.||Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|5.||Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-M1 has a touchscreen, while the E-P2 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The E-M1 writes its imaging data to SDXC cards, while the E-P2 uses SDHC cards. The E-M1 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-P2 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M1 and Olympus PEN E-P2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|3.||Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
|5.||Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
It is notable that the E-M1 has a microphone port, which is missing on the E-P2. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Olympus E-M1 (unlike the E-P2) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the E-M1 and the E-P2 have been discontinued, but can regularly be found used on eBay. The E-P2 was replaced by the Olympus E-P3, while the E-M1 was followed by the Olympus E-M1 II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.
So how do things add up? Is there a clear favorite between the Olympus E-M1 and the Olympus E-P2? Which camera is better? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Olympus OM-D E-M1:
- More detail: Offers more megapixels (15.9 vs 12.2MP) with a 14% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (17 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.5 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (2.3 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.6 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (TruePIC VII vs TruePic V).
- Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (350 versus 300) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 3 years and 10 months of technical progress since the E-P2 launch.
Advantages of the Olympus PEN E-P2:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More compact: Is smaller (121x70mm vs 130x94mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 142g or 29 percent) and is thus easier to take along.
- More affordable: Was introduced into a lower priced category (43 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in November 2009).
If the number of relative strengths (bullet points above) is taken as a guide, the E-M1 is the clear winner of the match-up (24 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-M1 and the Olympus E-P2 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-M1 or the E-P2. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Olympus E-M1||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2013||1,399|
|2.||Olympus E-P2||3/5||+||69/100||4/5||4.5/5||Nov 2009||799|
|3.||Olympus E-M1 II||5/5||+ +||85/100||4.5/5||4.5/5||Sep 2016||1,999|
|4.||Olympus PEN-F||..||..||82/100||4.5/5||5/5||Jan 2016||1,199|
|5.||Olympus E-M5 II||5/5||+ +||81/100||5/5||5/5||Feb 2015||1,099|
|6.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|7.||Olympus E-P5||5/5||+ +||78/100||4.5/5||5/5||May 2013||999|
|8.||Olympus E-M5||4/5||+ +||80/100||4.5/5||5/5||Feb 2012||1,299|
|9.||Olympus E-P3||..||83/100||74/100||4.5/5||4.5/5||Jun 2011||799|
|10.||Olympus E-PL1||..||86/100||69/100||4/5||4.5/5||Feb 2010||599|
|11.||Olympus E-620||3/5||88/100||72/100||4.5/5||5/5||Feb 2009||699|
|12.||Olympus E-P1||..||+||66/100||4/5||4.5/5||Jun 2009||799|
|13.||Olympus E-520||..||87/100||+ +||4.5/5||4.5/5||May 2008||699|
|14.||Panasonic G80||..||+ +||84/100||5/5||4.5/5||Sep 2016||899|
|15.||Panasonic GX8||5/5||+||82/100||4.5/5||4.5/5||Jul 2015||1,199|
|16.||Panasonic GH4||5/5||+ +||85/100||5/5||5/5||Feb 2014||1,499|
|17.||Panasonic GH3||5/5||+ +||79/100||4.5/5||4.5/5||Sep 2012||1,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Olympus E-M1 vs Olympus E-P2
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-M1||Olympus E-P2|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||September 2013||November 2009|
|Launch Price||USD 1,399||USD 799|
|Sensor Specs||Olympus E-M1||Olympus E-P2|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||15.9 Megapixels||12.2 Megapixels|
|Image Resolution||4608 x 3456 pixels||4032 x 3024 pixels|
|Pixel Pitch||3.76 μm||4.29 μm|
|Pixel Density||7.08 MP/cm2||5.42 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||720/30p Video|
|ISO Setting||200 - 25,600 ISO||100 - 6,400 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||TruePIC VII||TruePic V|
|DXO Sensor Quality (score)||73||56|
|DXO Color Depth (bits)||23.0||21.5|
|DXO Dynamic Range (EV)||12.7||10.4|
|DXO Low Light (ISO)||757||505|
|Screen Specs||Olympus E-M1||Olympus E-P2|
|Viewfinder Type||Electronic viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1037k dots||230k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Olympus E-M1||Olympus E-P2|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||10 shutter flaps/s||3 shutter flaps/s|
|Electronic Shutter||YES||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Olympus E-M1||Olympus E-P2|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Olympus E-M1||Olympus E-P2|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||350 shots per charge||300 shots per charge|
130 x 94 x 63 mm
(5.1 x 3.7 x 2.5 in)
121 x 70 x 36 mm
(4.8 x 2.8 x 1.4 in)
|Camera Weight||497 g (17.5 oz)||355 g (12.5 oz)|
