Nikon D6 vs Olympus E-PL2
The Nikon D6 and the Olympus PEN E-PL2 are two digital cameras that were announced, respectively, in February 2020 and January 2011. The D6 is a DSLR, while the E-PL2 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (D6) and a Four Thirds (E-PL2) sensor. The Nikon has a resolution of 20.7 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D6 and the Olympus PEN E-PL2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

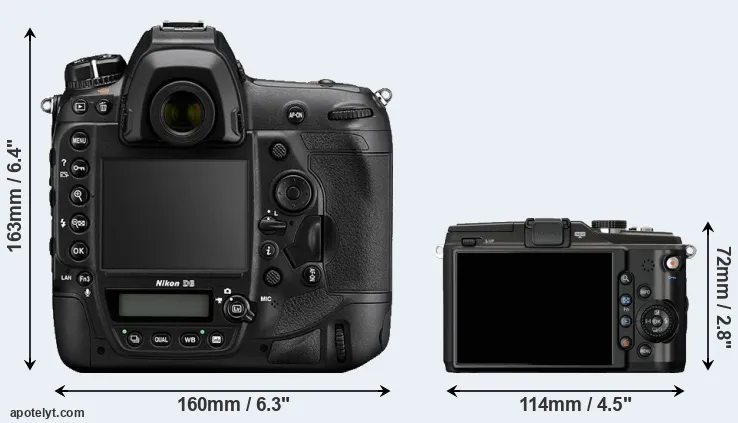

The side-by-side display below illustrates the physical size and weight of the Nikon D6 and the Olympus E-PL2. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-PL2 can be obtained in four different colors (black, silver, red, white), while the D6 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL2 is considerably smaller (69 percent) than the Nikon D6. Moreover, the E-PL2 is substantially lighter (71 percent) than the D6. It is worth mentioning in this context that the D6 is splash and dust resistant, while the E-PL2 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D6) and the Micro Four Thirds Lens Catalog (E-PL2). Mirrorless cameras, such as the E-PL2, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the D6 gets 3580 shots out of its EN-EL18c battery, while the E-PL2 can take 280 images on a single charge of its BLS-5 power pack. As can be seen in the images above, the D6 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Nikon D6||160 mm||163 mm||92 mm||1270 g||3580||Y||Feb 2020||6,499|
|2.||Olympus E-PL2||114 mm||72 mm||42 mm||362 g||280||n||Jan 2011||599|
|3.||Canon 1D X Mark III||158 mm||168 mm||83 mm||1440 g||2850||Y||Jan 2020||6,499|
|4.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|5.||Nikon D780||144 mm||116 mm||76 mm||840 g||2260||Y||Jan 2020||2,299|
|6.||Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499|
|7.||Nikon D4S||160 mm||157 mm||91 mm||1350 g||3020||Y||Feb 2014||6,499|
|8.||Nikon D750||141 mm||113 mm||78 mm||750 g||1230||Y||Sep 2014||2,299|
|9.||Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999|
|10.||Nikon D4||160 mm||157 mm||91 mm||1340 g||2600||Y||Jan 2012||5,999|
|11.||Nikon D600||141 mm||113 mm||82 mm||850 g||900||Y||Sep 2012||2,099|
|12.||Nikon D3X||160 mm||157 mm||88 mm||1260 g||4400||Y||Dec 2008||7,999|
|13.||Olympus XZ-2||113 mm||65 mm||48 mm||346 g||340||n||Sep 2012||599|
|14.||Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799|
|15.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|16.||Olympus E-PM1||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499|
|17.||Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-PL2 was launched at a markedly lower price (by 91 percent) than the D6, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Nikon D6 features a full frame sensor and the Olympus E-PL2 a Four Thirds sensor. The sensor area in the E-PL2 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the D6 has a native 3:2 aspect ratio, while the one in the E-PL2 offers a 4:3 aspect.
With 20.7MP, the D6 offers a higher resolution than the E-PL2 (12.2MP), but the D6 nevertheless has larger individual pixels (pixel pitch of 6.44μm versus 4.29μm for the E-PL2) due to its larger sensor. Moreover, the D6 is a much more recent model (by 9 years and 1 month) than the E-PL2, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Nikon D6 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D6 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inches or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inches or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.1 x 31.4 cm. The corresponding values for the Olympus E-PL2 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The Nikon D6 has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 50-3280000. The corresponding ISO settings for the Olympus PEN E-PL2 are ISO 200 to ISO 6400 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Nikon D6||Full Frame||20.7||5568||3712||4K/30p||..||..||..||..|
|2.||Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|3.||Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|4.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|5.||Nikon D780||Full Frame||24.3||6048||4024||4K/30p||..||..||..||..|
|6.||Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
|7.||Nikon D4S||Full Frame||16.2||4928||3280||1080/60p||24.4||13.3||3074||89|
|8.||Nikon D750||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93|
|9.||Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|10.||Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89|
|11.||Nikon D600||Full Frame||24.2||6016||4016||1080/30p||25.1||14.2||2980||94|
|12.||Nikon D3X||Full Frame||24.4||6048||4032||none||24.7||13.7||1992||88|
|14.||Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|15.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|16.||Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
|17.||Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D6 provides a higher video resolution than the E-PL2. It can shoot video footage at 4K/30p, while the Olympus is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the D6 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL2 relies on live view and the rear LCD for framing. That said, the E-PL2 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Nikon D6 and Olympus E-PL2 in connection with corresponding information for a sample of similar cameras.
|3.||Canon 1D X Mark III||optical||Y||3.2||2100||fixed||Y||1/8000s||20.0||n||n|
|4.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
One feature that is present on the D6, but is missing on the E-PL2 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Nikon D6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D6 writes its imaging data to CFexpress or XQD cards, while the E-PL2 uses SDHC cards. The D6 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-PL2 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D6 and Olympus PEN E-PL2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|3.||Canon 1D X Mark III||Y||mono||mono||Y||Y||mini||3.1||Y||-||Y|
|4.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
It is notable that the D6 has a microphone port, which is missing on the E-PL2. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Nikon D6 (unlike the E-PL2) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The D6 is a recent model that features in the current product line-up of Nikon. In contrast, the E-PL2 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-PL2 was succeeded by the Olympus E-PL3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So what is the bottom line? Is there a clear favorite between the Nikon D6 and the Olympus E-PL2? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Nikon D6:
- More detail: Offers more megapixels (20.7 vs 12.2MP) with a 33% higher linear resolution.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better video: Provides higher definition movie capture (4K/30p vs 720/30p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2359k vs 460k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (14 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (3580 versus 280) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 9 years and 1 month of technical progress since the E-PL2 launch.
Reasons to prefer the Olympus PEN E-PL2:
- More compact: Is smaller (114x72mm vs 160x163mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 908g or 71 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (91 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in January 2011).
If the count of relative strengths (bullet points above) is taken as a measure, the D6 is the clear winner of the match-up (25 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D6 and the Olympus E-PL2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the D6 or the E-PL2 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D6||..||..||..||4.5/5||4.5/5||Feb 2020||6,499|
|2.||Olympus E-PL2||3/5||83/100||71/100||4.5/5||4.5/5||Jan 2011||599|
|3.||Canon 1D X Mark III||..||+ +||..||4.5/5||4/5||Jan 2020||6,499|
|4.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|5.||Nikon D780||5/5||..||87/100||4.5/5||4.5/5||Jan 2020||2,299|
|6.||Nikon D5||..||..||89/100||4.5/5||5/5||Jan 2016||6,499|
|7.||Nikon D4S||5/5||..||..||4.5/5||4.5/5||Feb 2014||6,499|
|8.||Nikon D750||5/5||+ +||90/100||4.5/5||4.5/5||Sep 2014||2,299|
|9.||Nikon D610||4/5||+ +||87/100||4.5/5||4.5/5||Oct 2013||1,999|
|10.||Nikon D4||..||..||..||4.5/5||4.5/5||Jan 2012||5,999|
|11.||Nikon D600||4/5||+ +||87/100||5/5||4.5/5||Sep 2012||2,099|
|12.||Nikon D3X||..||..||86/100||4/5||5/5||Dec 2008||7,999|
|13.||Olympus XZ-2||4/5||+||..||4.5/5||4.5/5||Sep 2012||599|
|14.||Olympus E-P3||..||83/100||74/100||4.5/5||4.5/5||Jun 2011||799|
|15.||Olympus E-PL3||3/5||+ +||72/100||4.5/5||4/5||Jun 2011||599|
|16.||Olympus E-PM1||..||86/100||71/100||4.5/5||4.5/5||Jun 2011||499|
|17.||Olympus E-PL1||..||86/100||69/100||4/5||4.5/5||Feb 2010||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Nikon D6 vs Olympus E-PL2
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D6||Olympus E-PL2|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2020||January 2011|
|Launch Price||USD 6,499||USD 599|
|Sensor Specs||Nikon D6||Olympus E-PL2|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||35.9 x 23.9 mm||17.3 x 13.0 mm|
|Sensor Area||858.01 mm2||224.9 mm2|
|Sensor Diagonal||43.1 mm||21.6 mm|
|Sensor Resolution||20.7 Megapixels||12.2 Megapixels|
|Image Resolution||5568 x 3712 pixels||4032 x 3024 pixels|
|Pixel Pitch||6.44 μm||4.29 μm|
|Pixel Density||2.41 MP/cm2||5.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||720/30p Video|
|ISO Setting||100 - 102,400 ISO||200 - 6,400 ISO|
|ISO Boost||50 - 3,280,000 ISO||no Enhancement|
|Image Processor||EXPEED 6||Truepic V|
|DXO Sensor Quality (score)||..||55|
|DXO Color Depth (bits)||..||21.4|
|DXO Dynamic Range (EV)||..||10.2|
|DXO Low Light (ISO)||..||573|
|Screen Specs||Nikon D6||Olympus E-PL2|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||2359k dots||460k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Nikon D6||Olympus E-PL2|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||14 shutter flaps/s||3 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CFexpress or XQD cards||SDHC cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Nikon D6||Olympus E-PL2|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.1||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Nikon D6||Olympus E-PL2|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||3580 shots per charge||280 shots per charge|
160 x 163 x 92 mm
(6.3 x 6.4 x 3.6 in)
114 x 72 x 42 mm
(4.5 x 2.8 x 1.7 in)
|Camera Weight||1270 g (44.8 oz)||362 g (12.8 oz)|
