Nikon D5 vs Olympus E-M1X
The Nikon D5 and the Olympus OM-D E-M1X are two digital cameras that were revealed to the public, respectively, in January 2016 and January 2019. The D5 is a DSLR, while the E-M1X is a mirrorless interchangeable lens camera. The cameras are based on a full frame (D5) and a Four Thirds (E-M1X) sensor. The Nikon has a resolution of 20.7 megapixels, whereas the Olympus provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Nikon D5||Olympus E-M1X|
|Digital single lens reflex||Mirrorless system camera|
|Nikon F mount lenses||Micro Four Thirds lenses|
|20.7 MP, Full Frame Sensor||20.2 MP, Four Thirds Sensor|
|4K/30p Video||4K/30p Video|
|ISO 100-102400 (50-3280000)||ISO 200-25600|
|Optical viewfinder||Electronic viewfinder (2360k dots)|
|3.2" LCD, 2359k dots||3.0" LCD, 1037k dots|
|Fixed touchscreen||Swivel touchscreen|
|14 shutter flaps per second||18 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Weathersealed body||Weathersealed body|
|3780 shots per battery charge||870 shots per battery charge|
|160 x 159 x 92 mm, 1415 g||144 x 147 x 75 mm, 997 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5 and the Olympus OM-D E-M1X? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison: Nikon D5 vs Olympus E-M1X

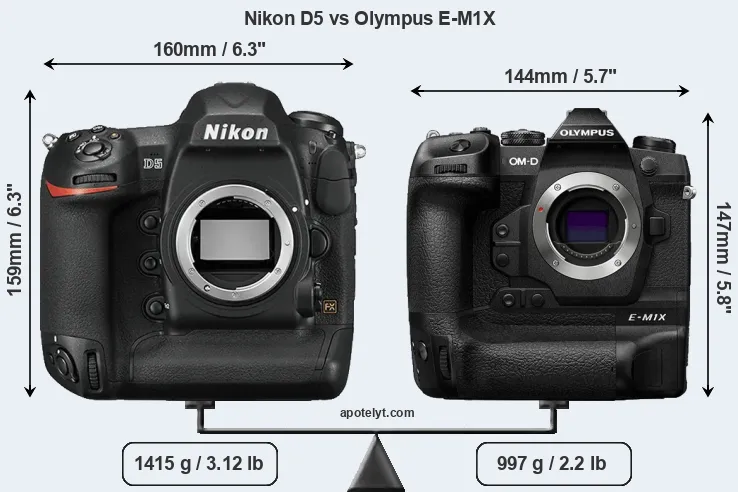

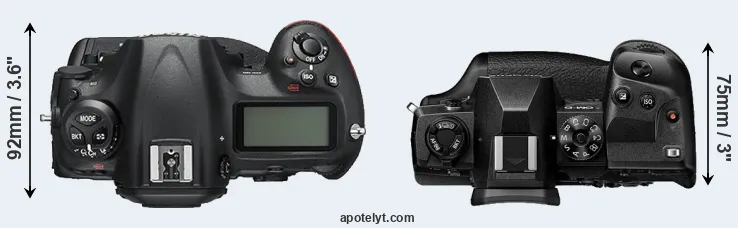

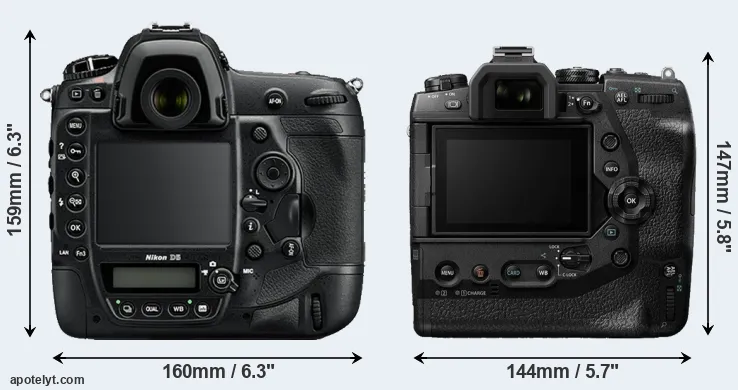

An illustration of the physical size and weight of the Nikon D5 and the Olympus E-M1X is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-M1X can be obtained in two different colors (black, silver), while the D5 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M1X is notably smaller (17 percent) than the Nikon D5. Moreover, the E-M1X is markedly lighter (30 percent) than the D5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D5) and the Micro Four Thirds Lens Catalog (E-M1X). Mirrorless cameras, such as the E-M1X, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the D5 gets 3780 shots out of its EN-EL18a battery, while the E-M1X can take 870 images on a single charge of its BLH-1 power pack. As can be seen in the images above, both cameras have a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. The power pack in the E-M1X can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Nikon D5»||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499||Nikon D5|
|Olympus E-M1X«||144 mm||147 mm||75 mm||997 g||870||Y||Jan 2019||2,999||Olympus E-M1X|
|Canon 1D X Mark II« »||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999||Canon 1D X Mark II|
|Leica SL« »||147 mm||104 mm||39 mm||847 g||400||Y||Oct 2015||7,450||Leica SL|
|Nikon D7500« »||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299||Nikon D7500|
|Nikon D500« »||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999||Nikon D500|
|Nikon D7200« »||136 mm||107 mm||76 mm||765 g||1110||Y||Mar 2015||1,199||-||Nikon D7200|
|Nikon D4S« »||160 mm||157 mm||91 mm||1350 g||3020||Y||Feb 2014||6,499||-||Nikon D4S|
|Nikon D750« »||141 mm||113 mm||78 mm||750 g||1230||Y||Sep 2014||2,299||Nikon D750|
|Nikon D610« »||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999||Nikon D610|
|Nikon D4« »||160 mm||157 mm||91 mm||1340 g||2600||Y||Jan 2012||5,999||-||Nikon D4|
|Nikon D3X« »||160 mm||157 mm||88 mm||1260 g||4400||Y||Dec 2008||7,999||-||Nikon D3X|
|Olympus E-M1 II« »||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999||Olympus E-M1 II|
|Panasonic S1« »||149 mm||110 mm||97 mm||1017 g||400||Y||Feb 2019||2,499||Panasonic S1|
|Panasonic S1R« »||149 mm||110 mm||97 mm||1016 g||380||Y||Feb 2019||3,699||Panasonic S1R|
|Panasonic G90« »||130 mm||94 mm||77 mm||536 g||290||Y||Apr 2019||999||Panasonic G90|
|Sony A900« »||156 mm||117 mm||82 mm||895 g||880||Y||Sep 2008||2,999||-||Sony A900|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-M1X was launched at a markedly lower price (by 54 percent) than the D5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison: Nikon D5 vs Olympus E-M1X
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D5 features a full frame sensor and the Olympus E-M1X a Four Thirds sensor. The sensor area in the E-M1X is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the D5 has a native 3:2 aspect ratio, while the one in the E-M1X offers a 4:3 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

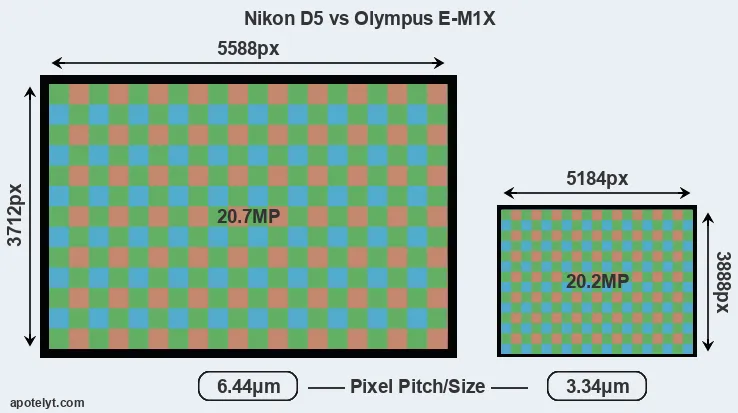

With 20.7MP, the D5 offers a slightly higher resolution than the E-M1X (20.2MP), but the D5 nevertheless has larger individual pixels (pixel pitch of 6.44μm versus 3.34μm for the E-M1X) due to its larger sensor. However, the E-M1X is a much more recent model (by 3 years) than the D5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the E-M1X has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The E-M1X has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the D5, the E-M1X has the capacity to capture high quality composite images (80MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Nikon D5 has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 50-3280000. The corresponding ISO settings for the Olympus OM-D E-M1X are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Nikon D5»||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88||Nikon D5|
|Olympus E-M1X«||Four Thirds||20.2||5184||3888||4K/30p||-||-||-||-||Olympus E-M1X|
|Canon 1D X Mark II« »||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88||Canon 1D X Mark II|
|Leica SL« »||Full Frame||24.0||6000||4000||4K/30p||25.0||13.4||1821||88||Leica SL|
|Nikon D7500« »||APS-C||20.7||5568||3712||4K/30p||24.3||14.0||1483||86||Nikon D7500|
|Nikon D500« »||APS-C||20.7||5568||3712||4K/30p||24.0||14.0||1324||83||Nikon D500|
|Nikon D7200« »||APS-C||24.0||6000||4000||1080/60p||24.5||14.6||1333||87||Nikon D7200|
|Nikon D4S« »||Full Frame||16.2||4928||3280||1080/60p||24.4||13.3||3074||89||Nikon D4S|
|Nikon D750« »||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93||Nikon D750|
|Nikon D610« »||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94||Nikon D610|
|Nikon D4« »||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89||Nikon D4|
|Nikon D3X« »||Full Frame||24.4||6048||4032||-||24.7||13.7||1992||88||Nikon D3X|
|Olympus E-M1 II« »||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80||Olympus E-M1 II|
|Panasonic S1« »||Full Frame||24.0||6000||4000||4K/60p||25.2||14.5||3333||95||Panasonic S1|
|Panasonic S1R« »||Full Frame||46.7||8368||5584||4K/60p||26.4||14.1||3525||100||Panasonic S1R|
|Panasonic G90« »||Four Thirds||20.2||5184||3888||4K/30p||-||-||-||-||Panasonic G90|
|Sony A900« »||Full Frame||24.4||6048||4032||-||23.7||12.3||1431||79||Sony A900|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).
Feature comparison: Nikon D5 vs Olympus E-M1X
Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M1X has an electronic viewfinder (2360k dots), while the D5 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the E-M1X has a higher magnification than the one of the D5 (0.83x vs 0.72x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Nikon D5, the Olympus E-M1X, and comparable cameras.
|Nikon D5»||optical||Y||3.2||2359||fixed||Y||1/8000s||14.0||n||n||Nikon D5|
|Olympus E-M1X«||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y||Olympus E-M1X|
|Canon 1D X Mark II« »||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n||Canon 1D X Mark II|
|Leica SL« »||4400||Y||3.0||1040||fixed||Y||1/8000s||11.0||n||n||Leica SL|
|Nikon D7500« »||optical||Y||3.2||922||tilting||Y||1/8000s||8.0||Y||n||Nikon D7500|
|Nikon D500« »||optical||Y||3.2||2359||tilting||Y||1/8000s||10.0||n||n||Nikon D500|
|Nikon D7200« »||optical||Y||3.2||1229||fixed||n||1/8000s||6.0||Y||n||Nikon D7200|
|Nikon D4S« »||optical||Y||3.2||921||fixed||n||1/8000s||11.0||n||n||Nikon D4S|
|Nikon D750« »||optical||Y||3.2||1229||tilting||n||1/4000s||6.0||Y||n||Nikon D750|
|Nikon D610« »||optical||Y||3.2||921||fixed||n||1/4000s||6.0||Y||n||Nikon D610|
|Nikon D4« »||optical||Y||3.2||921||fixed||n||1/8000s||11.0||n||n||Nikon D4|
|Nikon D3X« »||optical||Y||3.0||922||fixed||n||1/8000s||5.0||n||n||Nikon D3X|
|Olympus E-M1 II« »||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y||Olympus E-M1 II|
|Panasonic S1« »||5760||Y||3.2||2100||full-flex||Y||1/8000s||9.0||n||Y||Panasonic S1|
|Panasonic S1R« »||5760||Y||3.2||2100||full-flex||Y||1/8000s||9.0||n||Y||Panasonic S1R|
|Panasonic G90« »||2360||n||3.0||1240||swivel||Y||1/4000s||9.0||Y||Y||Panasonic G90|
|Sony A900« »||optical||Y||3.0||922||fixed||n||1/8000s||5.0||n||Y||Sony A900|
One feature that is present on the D5, but is missing on the E-M1X is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The E-M1X has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the D5 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M1X is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Nikon D5 and the Olympus E-M1X both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D5 writes its imaging data to Compact Flash or XQD cards, while the E-M1X uses SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
Connectivity comparison: Nikon D5 vs Olympus E-M1X
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5 and Olympus OM-D E-M1X and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Nikon D5»||Y||stereo||mono||Y||Y||mini||3.0||-||-||-||Nikon D5|
|Olympus E-M1X«||Y||stereo||mono||Y||Y||micro||3.0||Y||-||Y||Olympus E-M1X|
|Canon 1D X Mark II« »||Y||mono||mono||Y||Y||mini||3.0||-||-||-||Canon 1D X Mark II|
|Leica SL« »||Y||stereo||mono||Y||Y||full||3.0||Y||-||-||Leica SL|
|Nikon D7500« »||Y||stereo||mono||Y||Y||mini||2.0||Y||-||Y||Nikon D7500|
|Nikon D500« »||Y||stereo||mono||Y||Y||mini||3.0||Y||Y||Y||Nikon D500|
|Nikon D7200« »||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-||Nikon D7200|
|Nikon D4S« »||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Nikon D4S|
|Nikon D750« »||Y||stereo||mono||Y||Y||mini||2.0||Y||-||-||Nikon D750|
|Nikon D610« »||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Nikon D610|
|Nikon D4« »||Y||mono||mono||-||-||micro||2.0||-||-||-||Nikon D4|
|Nikon D3X« »||Y||-||-||-||-||mini||2.0||-||-||-||Nikon D3X|
|Olympus E-M1 II« »||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-||Olympus E-M1 II|
|Panasonic S1« »||Y||stereo||mono||Y||Y||full||3.1||Y||-||Y||Panasonic S1|
|Panasonic S1R« »||Y||stereo||mono||Y||Y||full||3.1||Y||-||Y||Panasonic S1R|
|Panasonic G90« »||Y||stereo||mono||Y||Y||micro||2.0||Y||-||Y||Panasonic G90|
|Sony A900« »||Y||-||-||-||-||mini||2.0||-||-||-||Sony A900|
It is notable that the E-M1X offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D5 does not offer wifi capability.
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the D5 and the E-M1X are recent models that are part of the current product line-up. The D5 replaced the earlier Nikon D4S, while the E-M1X does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
Review summary: Nikon D5 vs Olympus E-M1X
So how do things add up? Is the Nikon D5 better than the Olympus E-M1X or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Nikon D5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2359k vs 1037k dots).
- Longer lasting: Can take more shots (3780 versus 870) on a single battery charge.
- More heavily discounted: Has been available for much longer (launched in January 2016).
Arguments in favor of the Olympus OM-D E-M1X:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.83x vs 0.72x).
- More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (18 vs 14 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More compact: Is smaller (144x147mm vs 160x159mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 418g or 30 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (54 percent cheaper at launch).
- More modern: Reflects 3 years of technical progress since the D5 launch.
If the count of relative strengths (bullet points above) is taken as a measure, the E-M1X is the clear winner of the contest (17 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D5 and the Olympus E-M1X place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the D5 or the E-M1X perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
Expert reviews: Nikon D5 vs Olympus E-M1X
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Nikon D5»||-||89/100||4.5/5||5/5||5/5||Jan 2016||6,499||Nikon D5|
|Olympus E-M1X«||o||-||4.5/5||-||-||Jan 2019||2,999||Olympus E-M1X|
|Canon 1D X Mark II« »||-||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999||Canon 1D X Mark II|
|Leica SL« »||-||84/100||4.5/5||4/5||4/5||Oct 2015||7,450||Leica SL|
|Nikon D7500« »||+ +||86/100||5/5||4.5/5||4.5/5||Apr 2017||1,299||Nikon D7500|
|Nikon D500« »||+ +||91/100||4.5/5||5/5||5/5||Jan 2016||1,999||Nikon D500|
|Nikon D7200« »||+ +||84/100||4.5/5||4/5||4.5/5||Mar 2015||1,199||-||Nikon D7200|
|Nikon D4S« »||-||-||4.5/5||5/5||4.5/5||Feb 2014||6,499||-||Nikon D4S|
|Nikon D750« »||+ +||90/100||4.5/5||5/5||4.5/5||Sep 2014||2,299||Nikon D750|
|Nikon D610« »||+ +||87/100||4.5/5||4.5/5||4.5/5||Oct 2013||1,999||Nikon D610|
|Nikon D4« »||-||-||4.5/5||-||4.5/5||Jan 2012||5,999||-||Nikon D4|
|Nikon D3X« »||-||86/100||4/5||5/5||5/5||Dec 2008||7,999||-||Nikon D3X|
|Olympus E-M1 II« »||+ +||85/100||4.5/5||5/5||4.5/5||Sep 2016||1,999||Olympus E-M1 II|
|Panasonic S1« »||+ +||88/100||4.5/5||-||4/5||Feb 2019||2,499||Panasonic S1|
|Panasonic S1R« »||-||-||4.5/5||-||4.5/5||Feb 2019||3,699||Panasonic S1R|
|Panasonic G90« »||+||-||4.5/5||-||4.5/5||Apr 2019||999||Panasonic G90|
|Sony A900« »||+ +||+ +||4.5/5||4/5||5/5||Sep 2008||2,999||-||Sony A900|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 100D vs Nikon D5
- Canon 1D Mark II vs Olympus E-M1X
- Canon M5 vs Olympus E-M1X
- Canon SX730 vs Olympus E-M1X
- Fujifilm GFX 50S vs Olympus E-M1X
- Fujifilm XF10 vs Nikon D5
- Nikon A1000 vs Nikon D5
- Nikon D5 vs Panasonic FT7
- Nikon D5 vs Panasonic TZ200
- Nikon D5 vs Sony RX100 IV
- Olympus E-M1X vs Sony A7
- Olympus E-M1X vs Sony A99 II
Specifications: Nikon D5 vs Olympus E-M1X
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D5||Olympus E-M1X|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Micro Four Thirds lenses|
|Launch Date||January 2016||January 2019|
|Launch Price||USD 6499||USD 2999|
|Sensor Specs||Nikon D5||Olympus E-M1X|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||35.9 x 23.9 mm||17.3 x 13.0 mm|
|Sensor Area||858.01 mm2||224.9 mm2|
|Sensor Diagonal||43.1 mm||21.6 mm|
|Sensor Resolution||20.7 Megapixels||20.2 Megapixels|
|Image Resolution||5588 x 3712 pixels||5184 x 3888 pixels|
|Pixel Pitch||6.44 μm||3.34 μm|
|Pixel Density||2.42 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/30p Video||4K/30p Video|
|ISO Setting||100-102400 ISO||200-25600 ISO|
|ISO Boost||50-3280000 ISO||64-25600 ISO|
|Image Processor||EXPEED 5||Dual TruePic VIII|
|DXO Sensor Quality (score)||88||..|
|DXO Color Depth (bits)||25.1||..|
|DXO Dynamic Range (EV)||12.3||..|
|DXO Low Light (ISO)||2343||..|
|Screen Specs||Nikon D5||Olympus E-M1X|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2 inch||3.0 inch|
|LCD Resolution||2359k dots||1037k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Shooting Specs||Nikon D5||Olympus E-M1X|
|Autofocus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||No Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000/s||1/8000/s|
|Continuous Shooting||14 shutter flaps/s||18 shutter flaps/s|
|Shutter Life Expectancy||400 000 actuations||200 000 actuations|
|Electronic Shutter||no E-Shutter||up to 1/32000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or XQD cards||SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|Connectivity Specs||Nikon D5||Olympus E-M1X|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 3.0||USB 3.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Nikon D5||Olympus E-M1X|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Type||EN-EL18a power pack||BLH-1 power pack|
|Battery Life (CIPA)||3780 shots per charge||870 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
160 x 159 x 92 mm
(6.3 x 6.3 x 3.6 in)
144 x 147 x 75 mm
(5.7 x 5.8 x 3.0 in)
|Camera Weight||1415 g (49.9 oz)||997 g (35.2 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
