Fujifilm X-T30 vs Olympus PEN-F
The Fujifilm X-T30 and the Olympus PEN-F are two digital cameras that were revealed to the public, respectively, in February 2019 and January 2016. Both the X-T30 and the PEN-F are mirrorless interchangeable lens cameras that are based on an APS-C (X-T30) and a Four Thirds (PEN-F) sensor. The Fujifilm has a resolution of 26 megapixels, whereas the Olympus provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Fujifilm X-T30||Olympus PEN-F|
|Mirrorless system camera||Mirrorless system camera|
|Fujifilm X mount lenses||Micro Four Thirds lenses|
|26 MP, APS-C Sensor||20.2 MP, Four Thirds Sensor|
|4K/30p Video||1080/60p Video|
|ISO 160-12,800 (80 - 51,200)||ISO 80-25,600|
|Electronic viewfinder (2360k dots)||Electronic viewfinder (2360k dots)|
|3.0 LCD, 1040k dots||3.0 LCD, 1037k dots|
|Tilting touchscreen||Swivel touchscreen|
|8 shutter flaps per second||10 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|380 shots per battery charge||330 shots per battery charge|
|118 x 83 x 47 mm, 383 g||125 x 72 x 37 mm, 427 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-T30 and the Olympus PEN-F? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

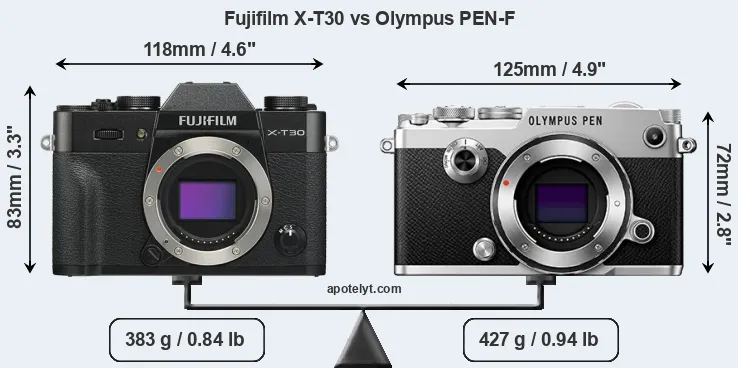

The side-by-side display below illustrates the physical size and weight of the Fujifilm X-T30 and the Olympus PEN-F. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus PEN-F is notably smaller (8 percent) than the Fujifilm X-T30. However, the PEN-F is markedly heavier (11 percent) than the X-T30. In this context, it is worth noting that neither the X-T30 nor the PEN-F are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-T30) and the Micro Four Thirds Lens Catalog (PEN-F). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
Concerning battery life, the X-T30 gets 380 shots out of its NP-W126S battery, while the PEN-F can take 330 images on a single charge of its BLN-1 power pack. The power pack in the X-T30 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Fujifilm X-T30||118 mm||83 mm||47 mm||383 g||380||n||Feb 2019||899|
|Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|Fujifilm X-T200||121 mm||84 mm||55 mm||370 g||270||n||Jan 2020||699|
|Fujifilm X-S10||126 mm||85 mm||65 mm||465 g||325||n||Oct 2020||999|
|Fujifilm X-A7||119 mm||68 mm||41 mm||320 g||440||n||Sep 2019||499|
|Fujifilm X-A5||117 mm||68 mm||40 mm||361 g||450||n||Jan 2018||399|
|Fujifilm X-T100||121 mm||83 mm||47 mm||448 g||430||n||May 2018||599|
|Fujifilm X-E3||121 mm||74 mm||43 mm||337 g||350||n||Sep 2017||899|
|Fujifilm X-T20||118 mm||83 mm||41 mm||383 g||350||n||Jan 2017||899|
|Fujifilm X-A3||117 mm||67 mm||40 mm||339 g||410||n||Aug 2016||399|
|Fujifilm X-T10||118 mm||83 mm||41 mm||381 g||350||n||May 2015||799|
|Fujifilm X-E2||129 mm||75 mm||37 mm||350 g||350||n||Oct 2013||999|
|Olympus E-M1 II||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999|
|Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|Panasonic GX8||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The X-T30 was launched at a somewhat lower price (by 25 percent) than the PEN-F, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Fujifilm X-T30 features an APS-C sensor and the Olympus PEN-F a Four Thirds sensor. The sensor area in the PEN-F is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X-T30 has a native 3:2 aspect ratio, while the one in the PEN-F offers a 4:3 aspect.
With 26MP, the X-T30 offers a higher resolution than the PEN-F (20.2MP), but the X-T30 nevertheless has larger individual pixels (pixel pitch of 3.76μm versus 3.34μm for the PEN-F) due to its larger sensor. Moreover, the X-T30 is a much more recent model (by 3 years) than the PEN-F, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The resolution advantage of the Fujifilm X-T30 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-T30 for good quality output (200 dots per inch) amounts to 31.2 x 20.8 inches or 79.2 x 52.8 cm, for very good quality (250 dpi) 25 x 16.6 inches or 63.4 x 42.3 cm, and for excellent quality (300 dpi) 20.8 x 13.9 inches or 52.8 x 35.2 cm. The corresponding values for the Olympus PEN-F are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.
The X-T30 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the X-T30, the PEN-F has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Fujifilm X-T30 has a native sensitivity range from ISO 160 to ISO 12800, which can be extended to ISO 80-51200. The corresponding ISO settings for the Olympus PEN-F are ISO 80 to ISO 25600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the X-T30 provides a higher video resolution than the PEN-F. It can shoot video footage at 4K/30p, while the Olympus is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. The X-T30 and the PEN-F are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The adjacent table lists some of the other core features of the Fujifilm X-T30 and Olympus PEN-F along with similar information for a selection of comparators.
|Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The X-T30 has one, while the PEN-F does not. While the built-in flash of the X-T30 is not very powerful, it can at times be useful as a fill-in light.The PEN-F has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the X-T30 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Fujifilm X-T30 and the Olympus PEN-F both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the X-T30 and the PEN-F write their files to SDXC cards. The PEN-F supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the X-T30 can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-T30 and Olympus PEN-F and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
|Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the X-T30 has a microphone port, which is missing on the PEN-F. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
The X-T30 is a recent model that features in the current product line-up of Fujifilm. In contrast, the PEN-F has been discontinued (but can be found pre-owned on eBay). There has not been a direct replacement model for the PEN-F from Olympus. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm and Olympus websites.
So what conclusions can be drawn? Is the Fujifilm X-T30 better than the Olympus PEN-F or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Fujifilm X-T30:
- More detail: Offers more megapixels (26 vs 20.2MP) with a 16% higher linear resolution.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Less heavy: Is lighter (by 44g or 10 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (380 versus 330) on a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced segment (25 percent cheaper at launch).
- More modern: Reflects 3 years of technical progress since the PEN-F launch.
Arguments in favor of the Olympus PEN-F:
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 8 flaps/sec) to capture the decisive moment.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More heavily discounted: Has been around for much longer (launched in January 2016).
If the count of individual advantages (bullet points above) is taken as a guide, the X-T30 is the clear winner of the match-up (15 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Fujifilm X-T30 and the Olympus PEN-F place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the X-T30 or the PEN-F perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Fujifilm X-T30||+ +||84/100||4.5/5||5/5||4.5/5||Feb 2019||899|
|Olympus PEN-F||..||82/100||4.5/5||4.5/5||5/5||Jan 2016||1,199|
|Fujifilm X-T200||..||82/100||4/5||..||4.5/5||Jan 2020||699|
|Fujifilm X-S10||..||..||..||..||..||Oct 2020||999|
|Fujifilm X-A7||..||81/100||4/5||..||3.5/5||Sep 2019||499|
|Fujifilm X-A5||+||..||4/5||4/5||3.5/5||Jan 2018||399|
|Fujifilm X-T100||+||79/100||4/5||..||4.5/5||May 2018||599|
|Fujifilm X-E3||+||84/100||4.5/5||4.5/5||4.5/5||Sep 2017||899|
|Fujifilm X-T20||+ +||82/100||5/5||..||4.5/5||Jan 2017||899|
|Fujifilm X-A3||..||74/100||4.5/5||..||4/5||Aug 2016||399|
|Fujifilm X-T10||+ +||80/100||5/5||4/5||5/5||May 2015||799|
|Fujifilm X-E2||..||80/100||4.5/5||..||5/5||Oct 2013||999|
|Olympus E-M1 II||+ +||85/100||4.5/5||5/5||4.5/5||Sep 2016||1,999|
|Olympus E-M5 II||+ +||81/100||5/5||4.5/5||5/5||Feb 2015||1,099|
|Olympus E-M10 II||+ +||80/100||5/5||5/5||5/5||Aug 2015||649|
|Olympus E-P5||+ +||78/100||4.5/5||4.5/5||5/5||May 2013||999|
|Panasonic GX8||+||82/100||4.5/5||5/5||4.5/5||Jul 2015||1,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 600D vs Olympus PEN-F
- Canon RP vs Olympus PEN-F
- Fujifilm X-E2S vs Fujifilm X-T30
- Fujifilm X-T200 vs Fujifilm X-T30
- Fujifilm X-T30 vs Fujifilm XP120
- Fujifilm X-T30 vs Sony A6000
- Kodak AZ901 vs Olympus PEN-F
- Nikon D800 vs Olympus PEN-F
- Olympus PEN-F vs Panasonic GH5s
- Olympus PEN-F vs Pentax KP
- Olympus PEN-F vs Sony A5100
- Olympus PEN-F vs Sony A7R III
Specifications: Fujifilm X-T30 vs Olympus PEN-F
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Fujifilm X-T30||Olympus PEN-F|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Fujifilm X mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2019||January 2016|
|Launch Price||USD 899||USD 1,199|
|Sensor Specs||Fujifilm X-T30||Olympus PEN-F|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.5 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||366.6 mm2||224.9 mm2|
|Sensor Diagonal||28.2 mm||21.6 mm|
|Sensor Resolution||26 Megapixels||20.2 Megapixels|
|Image Resolution||6240 x 4160 pixels||5184 x 3888 pixels|
|Pixel Pitch||3.76 μm||3.34 μm|
|Pixel Density||7.08 MP/cm2||8.96 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||4K/30p Video||1080/60p Video|
|ISO Setting||160 - 12,800 ISO||80 - 25,600 ISO|
|ISO Boost||80 - 51,200 ISO||no Enhancement|
|Image Processor||X-Processor 4||TruePic VII|
|DXO Sensor Quality (score)||..||74|
|DXO Color Depth (bits)||..||23.1|
|DXO Dynamic Range (EV)||..||12.4|
|DXO Low Light (ISO)||..||894|
|Screen Specs||Fujifilm X-T30||Olympus PEN-F|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1037k dots|
|LCD Attachment||Tilting screen||Swivel screen|
|Shooting Specs||Fujifilm X-T30||Olympus PEN-F|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||8 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||up to 1/32000s||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Fujifilm X-T30||Olympus PEN-F|
|USB Connector||USB 3.1||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Fujifilm X-T30||Olympus PEN-F|
|Battery Life (CIPA)||380 shots per charge||330 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
118 x 83 x 47 mm
(4.6 x 3.3 x 1.9 in)
125 x 72 x 37 mm
(4.9 x 2.8 x 1.5 in)
|Camera Weight||383 g (13.5 oz)||427 g (15.1 oz)|
