Fujifilm X-T10 vs Olympus E-M5 II
The Fujifilm X-T10 and the Olympus OM-D E-M5 Mark II are two digital cameras that were officially introduced, respectively, in May 2015 and February 2015. Both the X-T10 and the E-M5 II are mirrorless interchangeable lens cameras that are based on an APS-C (X-T10) and a Four Thirds (E-M5 II) sensor. The Fujifilm has a resolution of 16 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Fujifilm X-T10||Olympus E-M5 II|
|Mirrorless system camera||Mirrorless system camera|
|Fujifilm X mount lenses||Micro Four Thirds lenses|
|16 MP, APS-C Sensor||15.9 MP, Four Thirds Sensor|
|1080/60p Video||1080/60p Video|
|ISO 200-6,400 (100 - 51,200)||ISO 200-25,600|
|Electronic viewfinder (2360k dots)||Electronic viewfinder (2360k dots)|
|3.0 LCD, 920k dots||3.0 LCD, 1037k dots|
|Tilting screen (no touchscreen)||Swivel touchscreen|
|8 shutter flaps per second||10 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|not weather sealed||Weathersealed body|
|350 shots per battery charge||310 shots per battery charge|
|118 x 83 x 41 mm, 381 g||124 x 85 x 45 mm, 469 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-T10 and the Olympus OM-D E-M5 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

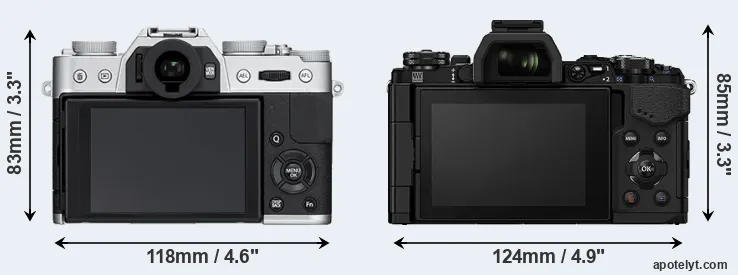

The physical size and weight of the Fujifilm X-T10 and the Olympus E-M5 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 II is notably larger (8 percent) than the Fujifilm X-T10. Moreover, the E-M5 II is markedly heavier (23 percent) than the X-T10. It is noteworthy in this context that the E-M5 II is splash and dust-proof, while the X-T10 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-T10) and the Micro Four Thirds Lens Catalog (E-M5 II). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Fujifilm X-T10||4.6 in||3.3 in||1.6 in||13.4 oz||350||n||May 2015||799|
|Olympus E-M5 II||4.9 in||3.3 in||1.8 in||16.5 oz||310||Y||Feb 2015||1,099|
|Fujifilm X-T20||4.6 in||3.3 in||1.6 in||13.5 oz||350||n||Jan 2017||899|
|Fujifilm X70||4.4 in||2.5 in||1.7 in||12.0 oz||330||n||Jan 2016||799|
|Fujifilm X-A10||4.6 in||2.6 in||1.6 in||11.7 oz||410||n||Dec 2016||399|
|Fujifilm X-E2S||5.1 in||3.0 in||1.5 in||12.3 oz||350||n||Jan 2016||699|
|Fujifilm X-A2||4.6 in||2.6 in||1.6 in||12.3 oz||410||n||Jan 2015||399|
|Fujifilm X-A1||4.6 in||2.6 in||1.5 in||11.6 oz||350||n||Sep 2013||399|
|Fujifilm X-E2||5.1 in||3.0 in||1.5 in||12.3 oz||350||n||Oct 2013||999|
|Fujifilm X-M1||4.6 in||2.6 in||1.5 in||11.6 oz||350||n||Jun 2013||699|
|Fujifilm X-E1||5.1 in||3.0 in||1.5 in||12.3 oz||350||n||Sep 2012||999|
|Fujifilm X-Pro1||5.5 in||3.2 in||1.7 in||15.9 oz||300||n||Jan 2012||1,699|
|Olympus E-M5 III||4.9 in||3.3 in||2.0 in||14.6 oz||310||Y||Oct 2019||1,199|
|Olympus E-M10 II||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649|
|Olympus E-M10||4.7 in||3.2 in||1.8 in||14.0 oz||320||n||Jan 2014||699|
|Olympus E-M1||5.1 in||3.7 in||2.5 in||17.5 oz||350||Y||Sep 2013||1,399|
|Olympus E-M5||4.8 in||3.5 in||1.7 in||15.0 oz||360||Y||Feb 2012||1,299|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The X-T10 was launched at a markedly lower price (by 27 percent) than the E-M5 II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

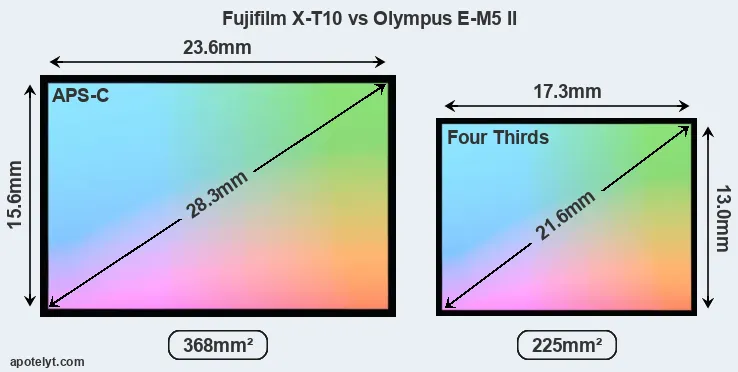

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Fujifilm X-T10 features an APS-C sensor and the Olympus E-M5 II a Four Thirds sensor. The sensor area in the E-M5 II is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X-T10 has a native 3:2 aspect ratio, while the one in the E-M5 II offers a 4:3 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.
With 16MP, the X-T10 offers a slightly higher resolution than the E-M5 II (15.9MP), but the X-T10 nevertheless has larger individual pixels (pixel pitch of 4.80μm versus 3.76μm for the E-M5 II) due to its larger sensor. Moreover, the X-T10 is a somewhat more recent model (by 3 months) than the E-M5 II, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the X-T10 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The X-T10 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the X-T10, the E-M5 II has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Fujifilm X-T10 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus OM-D E-M5 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|Olympus E-M5 III||Four Thirds||20.2||5184||3888||4k/24p||..||..||..||..|
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|Olympus E-M5||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/60p).
Beyond body and sensor, cameras can and do differ across a range of features. The X-T10 and the E-M5 II are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The adjacent table lists some of the other core features of the Fujifilm X-T10 and Olympus E-M5 II along with similar information for a selection of comparators.
|Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
|Olympus E-M5 III||2360||n||3.0||1040||swivel||Y||1/8000s||10.0||n||Y|
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The X-T10 has one, while the E-M5 II does not. While the built-in flash of the X-T10 is not very powerful, it can at times be useful as a fill-in light.The E-M5 II has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the X-T10 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M5 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Fujifilm X-T10 and the Olympus E-M5 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the X-T10 and the E-M5 II write their files to SDXC cards. The E-M5 II supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the X-T10 can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-T10 and Olympus OM-D E-M5 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
|Olympus E-M5 III||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y|
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
Studio photographers will appreciate that the Olympus E-M5 II (unlike the X-T10) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the X-T10 and the E-M5 II have been discontinued, but can regularly be found used on eBay. The E-M5 II was replaced by the Olympus E-M5 III, while the X-T10 was followed by the Fujifilm X-T20. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm and Olympus websites.
So how do things add up? Which of the two cameras – the Fujifilm X-T10 or the Olympus E-M5 II – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Fujifilm X-T10:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Less heavy: Is lighter (by 88g or 19 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (350 versus 310) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (27 percent cheaper at launch).
- More modern: Is somewhat more recent (announced 3 months after the E-M5 II).
Arguments in favor of the Olympus OM-D E-M5 Mark II:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.41x).
- More detailed LCD: Has a higher resolution rear screen (1037k vs 920k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 8 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More heavily discounted: Has been on the market for longer (launched in February 2015).
If the count of individual advantages (bullet points above) is taken as a guide, the E-M5 II is the clear winner of the contest (15 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Fujifilm X-T10 and the Olympus E-M5 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the X-T10 or the E-M5 II perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Fujifilm X-T10||+ +||80/100||5/5||4/5||5/5||May 2015||799|
|Olympus E-M5 II||+ +||81/100||5/5||4.5/5||5/5||Feb 2015||1,099|
|Fujifilm X-T20||+ +||82/100||5/5||..||4.5/5||Jan 2017||899|
|Fujifilm X70||..||76/100||4.5/5||4/5||4.5/5||Jan 2016||799|
|Fujifilm X-A10||..||..||4/5||..||4/5||Dec 2016||399|
|Fujifilm X-E2S||..||77/100||4.5/5||..||4.5/5||Jan 2016||699|
|Fujifilm X-A2||..||..||4.5/5||4/5||4.5/5||Jan 2015||399|
|Fujifilm X-A1||..||..||4.5/5||..||4.5/5||Sep 2013||399|
|Fujifilm X-E2||..||80/100||4.5/5||..||5/5||Oct 2013||999|
|Fujifilm X-M1||+||77/100||4.5/5||..||4.5/5||Jun 2013||699|
|Fujifilm X-E1||+ +||79/100||4.5/5||4.5/5||4.5/5||Sep 2012||999|
|Fujifilm X-Pro1||+ +||79/100||4.5/5||4/5||4.5/5||Jan 2012||1,699|
|Olympus E-M5 III||+||82/100||4.5/5||5/5||4.5/5||Oct 2019||1,199|
|Olympus E-M10 II||+ +||80/100||5/5||5/5||5/5||Aug 2015||649|
|Olympus E-M10||..||80/100||5/5||4.5/5||5/5||Jan 2014||699|
|Olympus E-M1||+ +||84/100||4.5/5||4.5/5||4.5/5||Sep 2013||1,399|
|Olympus E-M5||+ +||80/100||4.5/5||5/5||5/5||Feb 2012||1,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D Mark III vs Fujifilm X-T10
- Canon 5D vs Fujifilm X-T10
- Canon 5DS R vs Fujifilm X-T10
- Canon 650D vs Fujifilm X-T10
- Canon 77D vs Olympus E-M5 II
- Canon G12 vs Fujifilm X-T10
- Canon XC10 vs Fujifilm X-T10
- Fujifilm X-T10 vs Nikon D7000
- Fujifilm X-T10 vs Samsung NX30
- Fujifilm X-T10 vs Sony H300
- Olympus E-M5 II vs Panasonic ZS70
- Olympus E-M5 II vs Pentax 645Z
Specifications: Fujifilm X-T10 vs Olympus E-M5 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Fujifilm X-T10||Olympus E-M5 II|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Fujifilm X mount lenses||Micro Four Thirds lenses|
|Launch Date||May 2015||February 2015|
|Launch Price||USD 799||USD 1,099|
|Sensor Specs||Fujifilm X-T10||Olympus E-M5 II|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.6 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||368.16 mm2||224.9 mm2|
|Sensor Diagonal||28.3 mm||21.6 mm|
|Sensor Resolution||16 Megapixels||15.9 Megapixels|
|Image Resolution||4896 x 3264 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.80 μm||3.76 μm|
|Pixel Density||4.34 MP/cm2||7.08 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||1080/60p Video|
|ISO Setting||200 - 6,400 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 51,200 ISO||100 - 25,600 ISO|
|Image Processor||EXR Processor II||TruePic VII|
|DXO Sensor Quality (score)||..||73|
|DXO Color Depth (bits)||..||23.0|
|DXO Dynamic Range (EV)||..||12.5|
|DXO Low Light (ISO)||..||842|
|Screen Specs||Fujifilm X-T10||Olympus E-M5 II|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||1037k dots|
|LCD Attachment||Tilting screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Fujifilm X-T10||Olympus E-M5 II|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||8 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Fujifilm X-T10||Olympus E-M5 II|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Body Specs||Fujifilm X-T10||Olympus E-M5 II|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||350 shots per charge||310 shots per charge|
118 x 83 x 41 mm
(4.6 x 3.3 x 1.6 in)
124 x 85 x 45 mm
(4.9 x 3.3 x 1.8 in)
|Camera Weight||381 g (13.4 oz)||469 g (16.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
