Fujifilm X-M1 Comparison Review

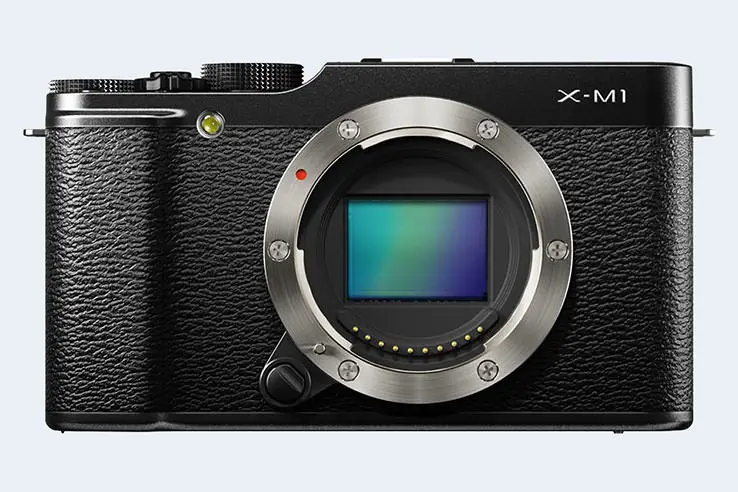

The Fujifilm X-M1 is a mirrorless interchangeable lens camera that was revealed to the public in June 2013 and is equipped with an APS-C sensor. It offers a resolution of 16 megapixel.

badge

The X-M1 has an Elo rating of 1767. The Camera Elo represents a comprehensive assessment of digital cameras, as derived from a large number of pair-wise comparisons of body, sensor, and feature characteristics.

The Elo rating puts the Fujifilm X-M1 below average of all mirrorless interchangeable lens cameras. In terms of its sensor size category – APS cameras – the X-M1 also ranks below average. Based on its within category standings, the camera receives a 2.5-star performance rating.

Read on to find out more about the camera's size, sensor, features, and reception by expert reviewers.

Body comparison with a credit card

An illustration of the physical dimensions of the Fujifilm X-M1 vis-à-vis a credit card is provided in the side-by-side display below. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

Fujifilm X-M1 vs credit card front
X-M1 versus credit card top view
X-M1 and credit card rear side

The table below summarizes the key physical specs of the Fujifilm X-M1 alongside a set of comparators. If you want to review a camera pair side-by-side, just select a right-side comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Fujifilm X-M1 4.6 in 2.6 in 1.5 in 11.6 oz 350 n Jun 2013 699- i Fujifilm X-M1
Fujifilm X-A10« » 4.6 in 2.6 in 1.6 in 11.7 oz 410 n Dec 2016 399- i Fujifilm X-A10
Fujifilm X-E2S« » 5.1 in 3.0 in 1.5 in 12.3 oz 350 n Jan 2016 699- i Fujifilm X-E2S
Fujifilm X-A2« » 4.6 in 2.6 in 1.6 in 12.3 oz 410 n Jan 2015 399- i Fujifilm X-A2
Fujifilm X-T10« » 4.6 in 3.3 in 1.6 in 13.4 oz 350 n May 2015 799- i Fujifilm X-T10
Fujifilm X-A1« » 4.6 in 2.6 in 1.5 in 11.6 oz 350 n Sep 2013 399- i Fujifilm X-A1
Fujifilm X-E2« » 5.1 in 3.0 in 1.5 in 12.3 oz 350 n Oct 2013 999- i Fujifilm X-E2
Fujifilm X-E1« » 5.1 in 3.0 in 1.5 in 12.3 oz 350 n Sep 2012 999- i Fujifilm X-E1
Fujifilm X-Pro1« » 5.5 in 3.2 in 1.7 in 15.9 oz 300 n Jan 2012 1,699- i Fujifilm X-Pro1
Sony NEX-5R« » 4.4 in 2.3 in 1.5 in 9.7 oz 330 n Aug 2012 749- i Sony NEX-5R
Sony NEX-F3« » 4.6 in 2.6 in 1.7 in 11.1 oz 470 n May 2012 599- i Sony NEX-F3

The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Fujifilm X-M1 was launched in the US market at a price of $699. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison with a 35mm slide

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

The Fujifilm X-M1 features an APS-C sensor and has a format factor (sometimes also referred to as "crop factor") of 1.5. Within the spectrum of camera sensors, this places the Fujifilm X-M1 among the medium-sized sensor cameras that aim to strike a balance between image quality and portability.

Fujifilm X-M1 sensor measures

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Fujifilm X-M1 APS-C 16.0 4896 32641080/30p----Fujifilm X-M1
Fujifilm X-A10« » APS-C 16.0 4896 32641080/30p----Fujifilm X-A10
Fujifilm X-E2S« » APS-C 16.0 4896 32641080/60p----Fujifilm X-E2S
Fujifilm X-A2« » APS-C 16.0 4896 32641080/30p----Fujifilm X-A2
Fujifilm X-T10« » APS-C 16.0 4896 32641080/60p----Fujifilm X-T10
Fujifilm X-A1« » APS-C 16.0 4896 32641080/30p----Fujifilm X-A1
Fujifilm X-E2« » APS-C 16.0 4896 32641080/60p----Fujifilm X-E2
Fujifilm X-E1« » APS-C 16.0 4896 32641080/24p----Fujifilm X-E1
Fujifilm X-Pro1« » APS-C 16.0 4896 32641080/24p----Fujifilm X-Pro1
Sony NEX-5R« » APS-C 16.0 4912 32641080/60i23.713.191078Sony NEX-5R
Sony NEX-F3« » APS-C 16.0 4912 32641080/60i22.712.3111473Sony NEX-F3

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The adjacent tables list some of the other core features of the Fujifilm X-M1 along with similar information for a selection of comparators. If needed, the dpreview camera hub, for example, contains further detail on the cameras' specs.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model

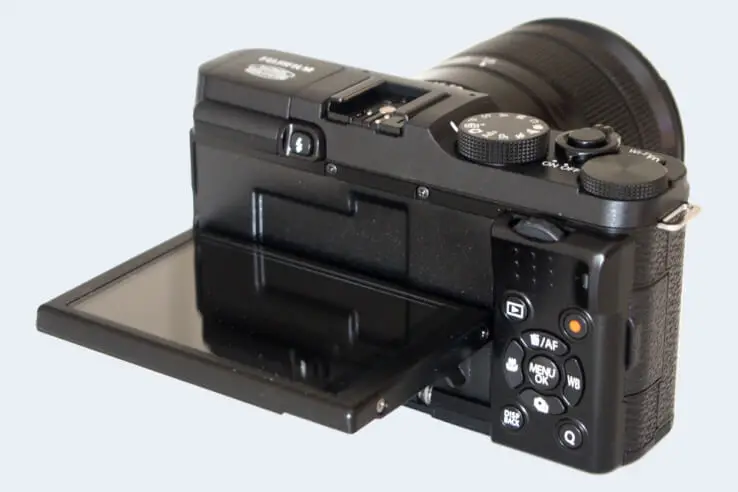

Fujifilm X-M1- n 3.0 920 tilting n 4000 5.6 Y n Fujifilm X-M1
Fujifilm X-A10« »- n 3.0 1040 tilting n 4000 6.0 Y n Fujifilm X-A10
Fujifilm X-E2S« »2360 n 3.0 1040 fixed n 4000 7.0 Y n Fujifilm X-E2S
Fujifilm X-A2« »- n 3.0 920 tilting n 4000 5.6 Y n Fujifilm X-A2
Fujifilm X-T10« »2360 n 3.0 920 tilting n 4000 8.0 Y n Fujifilm X-T10
Fujifilm X-A1« »- n 3.0 920 tilting n 4000 5.6 Y n Fujifilm X-A1
Fujifilm X-E2« »2360 n 3.0 1040 fixed n 4000 7.0 Y n Fujifilm X-E2
Fujifilm X-E1« »2360 n 2.8 460 fixed n 4000 6.0 Y n Fujifilm X-E1
Fujifilm X-Pro1« »1440 n 3.0 1230 fixed n 4000 6.0 n n Fujifilm X-Pro1
Sony NEX-5R« »- n 3.0 920 tilting Y 4000 10.0 n n Sony NEX-5R
Sony NEX-F3« »- n 3.0 920 tilting n 4000 5.5 Y n Sony NEX-F3
Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Fujifilm X-M1Ystereomono--mini2.0Y--Fujifilm X-M1
Fujifilm X-A10« »-stereomono--mini2.0Y--Fujifilm X-A10
Fujifilm X-E2S« »YstereomonoY-micro2.0Y--Fujifilm X-E2S
Fujifilm X-A2« »Ystereomono--mini2.0Y--Fujifilm X-A2
Fujifilm X-T10« »YstereomonoY-micro2.0Y--Fujifilm X-T10
Fujifilm X-A1« »Ystereomono--mini2.0Y--Fujifilm X-A1
Fujifilm X-E2« »YstereomonoY-micro2.0Y--Fujifilm X-E2
Fujifilm X-E1« »YstereomonoY-mini2.0---Fujifilm X-E1
Fujifilm X-Pro1« »Ystereomono--mini2.0---Fujifilm X-Pro1
Sony NEX-5R« »Ystereomono--mini2.0Y--Sony NEX-5R
Sony NEX-F3« »Ystereomono--mini2.0---Sony NEX-F3


Expert reviews

While the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the X-M1. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate. This is why hands-on reviews by experts are important. The following table reports the overall rankings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The full reviews are available by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Fujifilm X-M1Rec77/1004.5/5-4.5/5 Jun 2013 699- i Fujifilm X-M1
Fujifilm X-A10« »--4/5-4/5 Dec 2016 399- i Fujifilm X-A10
Fujifilm X-E2S« »-77/1004.5/5-4.5/5 Jan 2016 699- i Fujifilm X-E2S
Fujifilm X-A2« »--4.5/54/54.5/5 Jan 2015 399- i Fujifilm X-A2
Fujifilm X-T10« »HiRec80/1005/54/55/5 May 2015 799- i Fujifilm X-T10
Fujifilm X-A1« »--4.5/5-4.5/5 Sep 2013 399- i Fujifilm X-A1
Fujifilm X-E2« »-80/1004.5/5-5/5 Oct 2013 999- i Fujifilm X-E2
Fujifilm X-E1« »HiRec79/1004.5/54.5/54.5/5 Sep 2012 999- i Fujifilm X-E1
Fujifilm X-Pro1« »HiRec79/1004.5/54/54.5/5 Jan 2012 1,699- i Fujifilm X-Pro1
Sony NEX-5R« »--4.5/5-4.5/5 Aug 2012 749- i Sony NEX-5R
Sony NEX-F3« »-74/1004.5/54.5/54.5/5 May 2012 599- i Sony NEX-F3

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Fujifilm X-M1 FAQ

Below are some additional questions and answers concerning some particular features of the X-M1.

What technology is the imaging sensor in the X-M1 based on?

The camera features a CMOS (Complementary Metal–Oxide–Semiconductor) sensor.

Which image processing chip is used to convert the raw signal into an image file and perform noise reduction and image sharpening?

Fujifilm equipped the X-M1 with the EXR Processor II image processor.

What is the ISO sensitivity range of the X-M1?

The camera has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600.

Does the Fujifilm X-M1 feature an autofocus assist light?

Yes, the camera has a lamp build-in that can illuminate the subject and improve autofocus in low-light settings.

What is the fastest shutter speed that can be used with flash?

The X-M1's flash sync speed is 1/180 sec.

Which battery does the X-M1 use?

The camera gets its power from the NP-W126 (here at amazon), which is a rechargeable Lithium-Ion power pack.
