Fujifilm X-M1 vs Olympus E-PL7

The Fujifilm X-M1 and the Olympus PEN E-PL7 are two digital cameras that were announced, respectively, in June 2013 and August 2014. Both the X-M1 and the E-PL7 are mirrorless interchangeable lens cameras that are based on an APS-C (X-M1) and a Four Thirds (E-PL7) sensor. The Fujifilm has a resolution of 16 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-M1		Olympus E-PL7
Mirrorless system camera		Mirrorless system camera
Fujifilm X mount lenses		Micro Four Thirds lenses
16 MP – APS-C sensor		15.9 MP – Four Thirds sensor
1080/30p Video		1080/30p Video
ISO 200-6,400 (100 - 25,600)		ISO 200-25,600
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 920k dots		3.0" LCD – 1037k dots
Tilting screen (no touchscreen)		Tilting touchscreen
5.6 shutter flaps per second		8 shutter flaps per second
Lens stabilization only		In-body stabilization
350 shots per battery charge		350 shots per battery charge
117 x 67 x 39 mm, 330 g		115 x 67 x 38 mm, 357 g

Check X-M1 offers at
ebay.com
Check E-PL7 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-M1 and the Olympus PEN E-PL7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

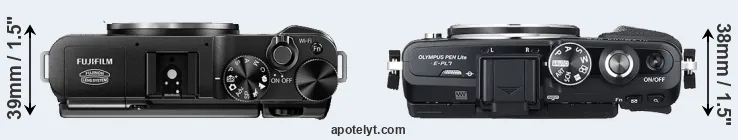

The side-by-side display below illustrates the physical size and weight of the Fujifilm X-M1 and the Olympus E-PL7. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The X-M1 can be obtained in three different colors (black, silver, brown), while the E-PL7 is available in two color-versions (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL7 is somewhat smaller (2 percent) than the Fujifilm X-M1. However, the E-PL7 is markedly heavier (8 percent) than the X-M1. In this context, it is worth noting that neither the X-M1 nor the E-PL7 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-M1) and the Micro Four Thirds Lens Catalog (E-PL7). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	US$ 699	ebay.com
2.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	US$ 599	ebay.com
3.		Fujifilm X-A1	117 mm	67 mm	39 mm	330 g	350	n	Sep 2013	US$ 399	ebay.com
4.		Fujifilm X-A2	117 mm	67 mm	40 mm	350 g	410	n	Jan 2015	US$ 399	ebay.com
5.		Fujifilm X-A10	117 mm	67 mm	40 mm	331 g	410	n	Dec 2016	US$ 399	ebay.com
6.		Fujifilm X-E1	129 mm	75 mm	38 mm	350 g	350	n	Sep 2012	US$ 999	ebay.com
7.		Fujifilm X-E2	129 mm	75 mm	37 mm	350 g	350	n	Oct 2013	US$ 999	ebay.com
8.		Fujifilm X-E2S	129 mm	75 mm	37 mm	350 g	350	n	Jan 2016	US$ 699	ebay.com
9.		Fujifilm X-Pro1	140 mm	82 mm	43 mm	450 g	300	n	Jan 2012	US$ 1 699	ebay.com
10.		Fujifilm X-T10	118 mm	83 mm	41 mm	381 g	350	n	May 2015	US$ 799	ebay.com
11.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	US$ 699	ebay.com
12.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
13.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	US$ 999	ebay.com
14.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	US$ 599	ebay.com
15.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	US$ 549	ebay.com
16.		Sony NEX-5R	111 mm	59 mm	39 mm	276 g	330	n	Aug 2012	US$ 749	ebay.com
17.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PL7 was launched at a somewhat lower price (by 14 percent) than the X-M1, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

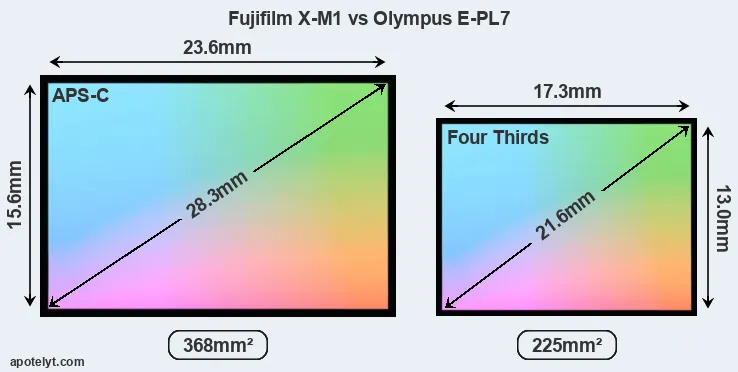

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Fujifilm X-M1 features an APS-C sensor and the Olympus E-PL7 a Four Thirds sensor. The sensor area in the E-PL7 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X-M1 has a native 3:2 aspect ratio, while the one in the E-PL7 offers a 4:3 aspect.

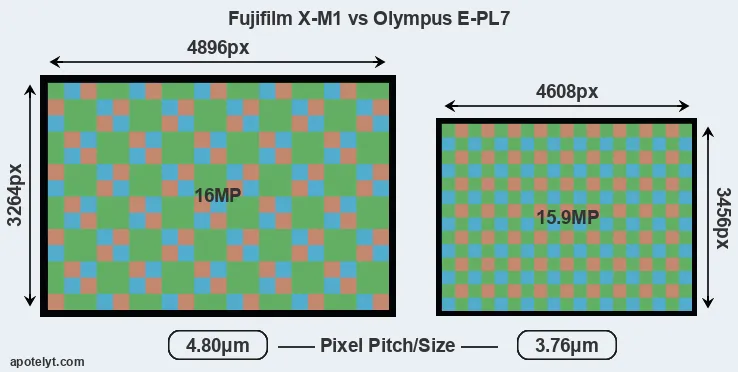

With 16MP, the X-M1 offers a slightly higher resolution than the E-PL7 (15.9MP), but the X-M1 nevertheless has larger individual pixels (pixel pitch of 4.80μm versus 3.76μm for the E-PL7) due to its larger sensor. However, the E-PL7 is a somewhat more recent model (by 1 year and 2 months) than the X-M1, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the X-M1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Fujifilm X-M1 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus PEN E-PL7 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. The X-M1 uses Fujifilm's X-Trans layout of photosites, while the E-PL7 employs the more common Bayer array.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
2.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
3.		Fujifilm X-A1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1390	76
4.		Fujifilm X-A2	APS-C	16.0	4896	3264	1080/30p	23.6	12.8	1515	79
5.		Fujifilm X-A10	APS-C	16.0	4896	3264	1080/30p	23.9	13.2	1691	81
6.		Fujifilm X-E1	APS-C	16.0	4896	3264	1080/24p	23.2	12.4	1298	75
7.		Fujifilm X-E2	APS-C	16.0	4896	3264	1080/60p	23.4	12.6	1400	77
8.		Fujifilm X-E2S	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
9.		Fujifilm X-Pro1	APS-C	16.0	4896	3264	1080/24p	23.1	12.3	1238	74
10.		Fujifilm X-T10	APS-C	16.0	4896	3264	1080/60p	23.7	12.9	1546	79
11.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
12.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
13.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
14.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
15.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
16.		Sony NEX-5R	APS-C	16.0	4912	3264	1080/60i	23.7	13.1	910	78
17.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The X-M1 and the E-PL7 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-PL7 can be equipped with an optional viewfinder – the VF-4. The table below summarizes some of the other core capabilities of the Fujifilm X-M1 and Olympus E-PL7 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
2.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
3.		Fujifilm X-A1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
4.		Fujifilm X-A2	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
5.		Fujifilm X-A10	none	n	3.0 / 1040	tilting	n	1/4000s	6.0/s	Y	n
6.		Fujifilm X-E1	2360	n	2.8 / 460	fixed	n	1/4000s	6.0/s	Y	n
7.		Fujifilm X-E2	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
8.		Fujifilm X-E2S	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
9.		Fujifilm X-Pro1	1440	n	3.0 / 1230	fixed	n	1/4000s	6.0/s	n	n
10.		Fujifilm X-T10	2360	n	3.0 / 920	tilting	n	1/4000s	8.0/s	Y	n
11.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
12.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
13.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
14.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
15.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
16.		Sony NEX-5R	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
17.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The X-M1 has one, while the E-PL7 does not. While the built-in flash of the X-M1 is not very powerful, it can at times be useful as a fill-in light.

The Olympus E-PL7 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the X-M1 and the E-PL7 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-M1 and Olympus PEN E-PL7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Fujifilm X-A1	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Fujifilm X-A2	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Fujifilm X-A10	-	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Fujifilm X-E1	Y	stereo / mono	Y	-	mini	2.0	-	-	-
7.		Fujifilm X-E2	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
8.		Fujifilm X-E2S	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
9.		Fujifilm X-Pro1	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Fujifilm X-T10	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Sony NEX-5R	Y	stereo / mono	-	-	mini	2.0	Y	-	-
17.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-

Both the X-M1 and the E-PL7 have been discontinued, but can regularly be found used on ebay. The E-PL7 was replaced by the Olympus E-PL8, while the X-M1 does not have a direct successor. Further information on the features and operation of the X-M1 and E-PL7 can be found, respectively, in the Fujifilm X-M1 Manual (free pdf) or the online Olympus E-PL7 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Fujifilm X-M1 and the Olympus E-PL7? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Fujifilm X-M1:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More heavily discounted: Has been on the market for longer (launched in June 2013).

Advantages of the Olympus PEN E-PL7:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 920k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (8 vs 5.6 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was released into a lower priced segment (14 percent cheaper at launch).
• More modern: Was introduced somewhat (1 year and 2 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the E-PL7 emerges as the winner of the match-up (10 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-M1 and the Olympus E-PL7 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the X-M1 or the E-PL7. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	US$ 699	ebay.com
2.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	US$ 599	ebay.com
3.		Fujifilm X-A1	..	..	..	..	4.5/5	4.5/5	Sep 2013	US$ 399	ebay.com
4.		Fujifilm X-A2	4/5	..	..	..	4.5/5	4.5/5	Jan 2015	US$ 399	ebay.com
5.		Fujifilm X-A10	..	..	..	..	4/5	4/5	Dec 2016	US$ 399	ebay.com
6.		Fujifilm X-E1	4/5	+ +	..	79/100	4.5/5	4.5/5	Sep 2012	US$ 999	ebay.com
7.		Fujifilm X-E2	4/5	..	..	80/100	4.5/5	5/5	Oct 2013	US$ 999	ebay.com
8.		Fujifilm X-E2S	4.5/5	..	..	77/100	4.5/5	4.5/5	Jan 2016	US$ 699	ebay.com
9.		Fujifilm X-Pro1	5/5	+ +	..	79/100	4.5/5	4.5/5	Jan 2012	US$ 1 699	ebay.com
10.		Fujifilm X-T10	4.5/5	+ +	..	80/100	5/5	5/5	May 2015	US$ 799	ebay.com
11.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	US$ 699	ebay.com
12.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
13.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	US$ 999	ebay.com
14.		Olympus E-PL6	..	..	..	..	..	..	May 2013	US$ 599	ebay.com
15.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	US$ 549	ebay.com
16.		Sony NEX-5R	..	..	..	..	4.5/5	4.5/5	Aug 2012	US$ 749	ebay.com
17.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
