Fujifilm X-E1 vs Olympus E-P5
The Fujifilm X-E1 and the Olympus PEN E-P5 are two digital cameras that were announced, respectively, in September 2012 and May 2013. Both the X-E1 and the E-P5 are mirrorless interchangeable lens cameras that are based on an APS-C (X-E1) and a Four Thirds (E-P5) sensor. The Fujifilm has a resolution of 16 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-E1 and the Olympus PEN E-P5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

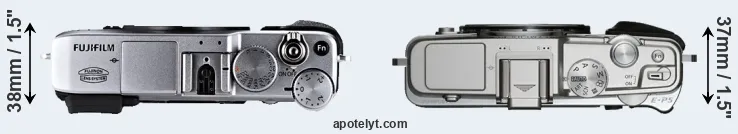

The physical size and weight of the Fujifilm X-E1 and the Olympus E-P5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The X-E1 can be obtained in two different colors (black, silver), while the E-P5 is available in three color-versions (black, silver, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P5 is notably smaller (13 percent) than the Fujifilm X-E1. However, the E-P5 is markedly heavier (20 percent) than the X-E1. In this context, it is worth noting that neither the X-E1 nor the E-P5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-E1) and the Micro Four Thirds Lens Catalog (E-P5). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Fujifilm X-E1||129 mm||75 mm||38 mm||350 g||350||n||Sep 2012||999||ebay.com|
|2.||Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999||ebay.com|
|3.||Fujifilm X-E3||121 mm||74 mm||43 mm||337 g||350||n||Sep 2017||899||ebay.com|
|4.||Fujifilm X-T20||118 mm||83 mm||41 mm||383 g||350||n||Jan 2017||899||ebay.com|
|5.||Fujifilm X-A10||117 mm||67 mm||40 mm||331 g||410||n||Dec 2016||399||ebay.com|
|6.||Fujifilm X-A2||117 mm||67 mm||40 mm||350 g||410||n||Jan 2015||399||ebay.com|
|7.||Fujifilm X-T10||118 mm||83 mm||41 mm||381 g||350||n||May 2015||799||ebay.com|
|8.||Fujifilm X-A1||117 mm||67 mm||39 mm||330 g||350||n||Sep 2013||399||ebay.com|
|9.||Fujifilm X-E2||129 mm||75 mm||37 mm||350 g||350||n||Oct 2013||999||ebay.com|
|10.||Fujifilm X-M1||117 mm||67 mm||39 mm||330 g||350||n||Jun 2013||699||ebay.com|
|11.||Fujifilm X-Pro1||140 mm||82 mm||43 mm||450 g||300||n||Jan 2012||1,699||ebay.com|
|12.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199||ebay.com|
|13.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649||ebay.com|
|14.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699||ebay.com|
|15.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399||ebay.com|
|16.||Panasonic GX7||123 mm||71 mm||55 mm||402 g||350||n||Aug 2013||999||ebay.com|
|17.||Sony NEX-6||120 mm||67 mm||43 mm||345 g||360||n||Sep 2012||999||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The two cameras under review were launched at the same price and fall into the same market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Fujifilm X-E1 features an APS-C sensor and the Olympus E-P5 a Four Thirds sensor. The sensor area in the E-P5 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X-E1 has a native 3:2 aspect ratio, while the one in the E-P5 offers a 4:3 aspect.
With 16MP, the X-E1 offers a slightly higher resolution than the E-P5 (15.9MP), but the X-E1 nevertheless has larger individual pixels (pixel pitch of 4.80μm versus 3.76μm for the E-P5) due to its larger sensor. However, the E-P5 is a somewhat more recent model (by 8 months) than the X-E1, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the X-E1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The Fujifilm X-E1 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus PEN E-P5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. The X-E1 uses Fujifilm's X-Trans layout of photosites, while the E-P5 employs the more common Bayer array.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|12.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|13.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|14.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|15.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|16.||Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-P5 provides a faster frame rate than the X-E1. It can shoot movie footage at 1080/30p, while the Fujifilm is limited to 1080/24p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the X-E1 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-P5 relies on live view and the rear LCD for framing. That said, the E-P5 can be equipped with an optional viewfinder – the VF-4. The adjacent table lists some of the other core features of the Fujifilm X-E1 and Olympus E-P5 along with similar information for a selection of comparators.
|1.||Fujifilm X-E1||2360||n||2.8 / 460||fixed||n||1/4000s||6.0/s||Y||n|
|2.||Olympus E-P5||optional||n||3.0 / 1037||tilting||Y||1/8000s||9.0/s||Y||Y|
|3.||Fujifilm X-E3||2360||n||3.0 / 1040||fixed||Y||1/4000s||8.0/s||n||n|
|4.||Fujifilm X-T20||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||n|
|5.||Fujifilm X-A10||none||n||3.0 / 1040||tilting||n||1/4000s||6.0/s||Y||n|
|6.||Fujifilm X-A2||none||n||3.0 / 920||tilting||n||1/4000s||5.6/s||Y||n|
|7.||Fujifilm X-T10||2360||n||3.0 / 920||tilting||n||1/4000s||8.0/s||Y||n|
|8.||Fujifilm X-A1||none||n||3.0 / 920||tilting||n||1/4000s||5.6/s||Y||n|
|9.||Fujifilm X-E2||2360||n||3.0 / 1040||fixed||n||1/4000s||7.0/s||Y||n|
|10.||Fujifilm X-M1||none||n||3.0 / 920||tilting||n||1/4000s||5.6/s||Y||n|
|11.||Fujifilm X-Pro1||1440||n||3.0 / 1230||fixed||n||1/4000s||6.0/s||n||n|
|12.||Olympus PEN-F||2360||n||3.0 / 1037||swivel||Y||1/8000s||10.0/s||n||Y|
|13.||Olympus E-M10 II||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||Y|
|14.||Olympus E-M10||1440||n||3.0 / 1037||tilting||Y||1/4000s||8.0/s||Y||Y|
|15.||Olympus E-M1||2360||n||3.0 / 1037||tilting||Y||1/8000s||10.0/s||n||Y|
|16.||Panasonic GX7||2760||n||3.0 / 1040||tilting||Y||1/8000s||5.0/s||Y||Y|
|17.||Sony NEX-6||2359||n||3.0 / 921||tilting||n||1/4000s||10.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-P5 has a touchscreen, while the X-E1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Olympus E-P5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the X-E1 and the E-P5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-E1 and Olympus PEN E-P5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Fujifilm X-E1||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Olympus E-P5||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Fujifilm X-E3||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|4.||Fujifilm X-T20||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|5.||Fujifilm X-A10||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|6.||Fujifilm X-A2||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|7.||Fujifilm X-T10||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|8.||Fujifilm X-A1||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|9.||Fujifilm X-E2||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|10.||Fujifilm X-M1||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|11.||Fujifilm X-Pro1||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|12.||Olympus PEN-F||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|13.||Olympus E-M10 II||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|14.||Olympus E-M10||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|15.||Olympus E-M1||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|16.||Panasonic GX7||Y||stereo / mono||-||-||mini||2.0||Y||Y||-|
|17.||Sony NEX-6||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
It is notable that the X-E1 has a microphone port, which is missing on the E-P5. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the X-E1 and the E-P5 have been discontinued, but can regularly be found used on ebay. The X-E1 was replaced by the Fujifilm X-E2, while the E-P5 was followed by the Olympus E-P7. Further information on the features and operation of the X-E1 and E-P5 can be found, respectively, in the Fujifilm X-E1 Manual (free pdf) or the online Olympus E-P5 Manual.
So what is the bottom line? Is the Fujifilm X-E1 better than the Olympus E-P5 or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Fujifilm X-E1:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- Less heavy: Is lighter (by 70g or 17 percent) and hence easier to carry around.
- More heavily discounted: Has been on the market for longer (launched in September 2012).
Arguments in favor of the Olympus PEN E-P5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better video: Provides higher movie framerates (1080/30p versus 1080/24p).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 460k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (9 vs 6 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (122x69mm vs 129x75mm) and will fit more readily into a bag.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More modern: Was introduced somewhat (8 months) more recently.
If the count of relative strengths (bullet points above) is taken as a measure, the E-P5 is the clear winner of the contest (13 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Fujifilm X-E1 and the Olympus E-P5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the X-E1 or the E-P5. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Fujifilm X-E1||4/5||+ +||..||79/100||4.5/5||4.5/5||Sep 2012||999||ebay.com|
|2.||Olympus E-P5||5/5||+ +||..||78/100||4.5/5||5/5||May 2013||999||ebay.com|
|3.||Fujifilm X-E3||4.5/5||+||4.5/5||84/100||4.5/5||4.5/5||Sep 2017||899||ebay.com|
|4.||Fujifilm X-T20||5/5||+ +||5/5||82/100||5/5||4.5/5||Jan 2017||899||ebay.com|
|5.||Fujifilm X-A10||..||..||..||..||4/5||4/5||Dec 2016||399||ebay.com|
|6.||Fujifilm X-A2||4/5||..||..||..||4.5/5||4.5/5||Jan 2015||399||ebay.com|
|7.||Fujifilm X-T10||4.5/5||+ +||..||80/100||5/5||5/5||May 2015||799||ebay.com|
|8.||Fujifilm X-A1||..||..||..||..||4.5/5||4.5/5||Sep 2013||399||ebay.com|
|9.||Fujifilm X-E2||4/5||..||..||80/100||4.5/5||5/5||Oct 2013||999||ebay.com|
|10.||Fujifilm X-M1||3/5||+||..||77/100||4.5/5||4.5/5||Jun 2013||699||ebay.com|
|11.||Fujifilm X-Pro1||5/5||+ +||..||79/100||4.5/5||4.5/5||Jan 2012||1,699||ebay.com|
|12.||Olympus PEN-F||..||..||4/5||82/100||4.5/5||5/5||Jan 2016||1,199||ebay.com|
|13.||Olympus E-M10 II||4.5/5||+ +||..||80/100||5/5||5/5||Aug 2015||649||ebay.com|
|14.||Olympus E-M10||4/5||..||..||80/100||5/5||5/5||Jan 2014||699||ebay.com|
|15.||Olympus E-M1||5/5||+ +||..||84/100||4.5/5||4.5/5||Sep 2013||1,399||ebay.com|
|16.||Panasonic GX7||4/5||+||..||79/100||5/5||5/5||Aug 2013||999||ebay.com|
|17.||Sony NEX-6||5/5||+ +||..||78/100||4.5/5||4.5/5||Sep 2012||999||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 100D vs Olympus E-P5
- Canon T6i vs Olympus E-P5
- Fujifilm X-E1 vs Leica X Vario
- Fujifilm X-E1 vs Nikon D3000
- Fujifilm X-E1 vs Panasonic GX7
- Fujifilm X-E1 vs Pentax Q
- Fujifilm X-E1 vs Sony HX350
- Fujifilm X-E1 vs Sony RX100 II
- Fujifilm X-T30 vs Olympus E-P5
- Leica D-LUX 5 vs Olympus E-P5
- Leica S2 vs Olympus E-P5
- Olympus E-620 vs Olympus E-P5
Specifications: Fujifilm X-E1 vs Olympus E-P5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Fujifilm X-E1||Olympus E-P5|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Fujifilm X mount lenses||Micro Four Thirds lenses|
|Launch Date||September 2012||May 2013|
|Launch Price||USD 999||USD 999|
|Sensor Specs||Fujifilm X-E1||Olympus E-P5|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.6 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||368.16 mm2||224.9 mm2|
|Sensor Diagonal||28.3 mm||21.6 mm|
|Sensor Resolution||16 Megapixels||15.9 Megapixels|
|Image Resolution||4896 x 3264 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.80 μm||3.76 μm|
|Pixel Density||4.34 MP/cm2||7.08 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/24p Video||1080/30p Video|
|ISO Setting||200 - 6,400 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 25,600 ISO|
|Image Processor||EXR Processor||TruePic VI|
|DXO Sensor Quality (score)||..||72|
|DXO Color Depth (bits)||..||22.8|
|DXO Dynamic Range (EV)||..||12.4|
|DXO Low Light (ISO)||..||895|
|Screen Specs||Fujifilm X-E1||Olympus E-P5|
|Viewfinder Type||Electronic viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||2.8inch||3.0inch|
|LCD Resolution||460k dots||1037k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Fujifilm X-E1||Olympus E-P5|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||6 shutter flaps/s||9 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Single or Dual Card Slots||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Fujifilm X-E1||Olympus E-P5|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Fujifilm X-E1||Olympus E-P5|
|Battery Life (CIPA)||350 shots per charge||330 shots per charge|
129 x 75 x 38 mm
(5.1 x 3.0 x 1.5 in)
122 x 69 x 37 mm
(4.8 x 2.7 x 1.5 in)
|Camera Weight||350 g (12.3 oz)||420 g (14.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
