Canon T7i vs Olympus E-PL8
The Canon EOS Rebel T7i (called Canon 800D in some regions) and the Olympus PEN E-PL8 are two digital cameras that were revealed to the public, respectively, in February 2017 and September 2016. The T7i is a DSLR, while the E-PL8 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (T7i) and a Four Thirds (E-PL8) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T7i and the Olympus PEN E-PL8? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

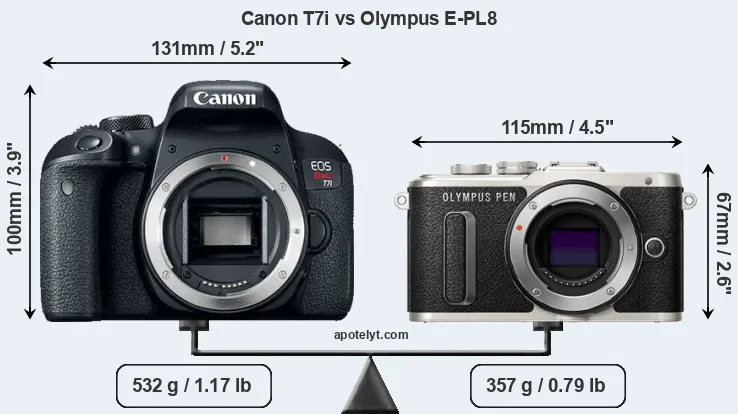

The physical size and weight of the Canon T7i and the Olympus E-PL8 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The E-PL8 can be obtained in three different colors (black, brown, white), while the T7i is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL8 is considerably smaller (41 percent) than the Canon T7i. Moreover, the E-PL8 is markedly lighter (33 percent) than the T7i. In this context, it is worth noting that neither the T7i nor the E-PL8 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (T7i) and the Micro Four Thirds Lens Catalog (E-PL8). Mirrorless cameras, such as the E-PL8, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon T7i||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749||ebay.com|
|2.||Olympus E-PL8||115 mm||67 mm||38 mm||357 g||350||n||Sep 2016||549||ebay.com|
|3.||Canon T8i||131 mm||103 mm||76 mm||515 g||800||n||Feb 2020||749||amazon.com|
|4.||Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449||amazon.com|
|5.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||ebay.com|
|6.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549||ebay.com|
|7.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|8.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|9.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||ebay.com|
|10.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||ebay.com|
|11.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699||ebay.com|
|12.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799||ebay.com|
|13.||Olympus E-PL9||117 mm||68 mm||39 mm||380 g||350||n||Feb 2018||599||ebay.com|
|14.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649||ebay.com|
|15.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649||ebay.com|
|16.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599||ebay.com|
|17.||Olympus E-PL6||111 mm||64 mm||38 mm||325 g||360||n||May 2013||599||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-PL8 was launched at a markedly lower price (by 27 percent) than the T7i, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon T7i features an APS-C sensor and the Olympus E-PL8 a Four Thirds sensor. The sensor area in the E-PL8 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the T7i has a native 3:2 aspect ratio, while the one in the E-PL8 offers a 4:3 aspect.
With 24MP, the T7i offers a higher resolution than the E-PL8 (15.9MP), but the T7i has marginally smaller individual pixels (pixel pitch of 3.72μm versus 3.76μm for the E-PL8). However, the T7i is a somewhat more recent model (by 4 months) than the E-PL8, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon T7i implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T7i for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-PL8 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The T7i has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS Rebel T7i has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus PEN E-PL8 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.6||1030||73|
|13.||Olympus E-PL9||Four Thirds||15.9||4608||3456||4K/30p||23.1||12.8||1162||74|
|14.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||23.1||12.8||1120||74|
|15.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|16.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|17.||Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||22.5||12.0||717||68|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the T7i provides a higher frame rate than the E-PL8. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the T7i has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL8 relies on live view and the rear LCD for framing. That said, the E-PL8 can be equipped with an optional viewfinder – the VF-4. The adjacent table lists some of the other core features of the Canon T7i and Olympus E-PL8 along with similar information for a selection of comparators.
|1.||Canon T7i||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|2.||Olympus E-PL8||optional||n||3.0 / 1037||tilting||Y||1/4000s||8.0/s||n||Y|
|3.||Canon T8i||optical||n||3.0 / 1040||swivel||Y||1/4000s||7.5/s||Y||n|
|4.||Canon T7||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|5.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|6.||Canon SL2||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|7.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|8.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|9.||Canon T5i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|10.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|11.||Canon T2i||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7/s||Y||n|
|12.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4/s||Y||n|
|13.||Olympus E-PL9||none||n||3.0 / 1040||tilting||Y||1/4000s||8.6/s||Y||Y|
|14.||Olympus E-M10 III||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.6/s||Y||Y|
|15.||Olympus E-M10 II||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||Y|
|16.||Olympus E-PL7||optional||n||3.0 / 1037||tilting||Y||1/4000s||8.0/s||n||Y|
|17.||Olympus E-PL6||optional||n||3.0 / 460||tilting||Y||1/4000s||8.0/s||n||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The T7i has one, while the E-PL8 does not. While the built-in flash of the T7i is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The Olympus E-PL8 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the T7i and the E-PL8 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T7i and Olympus PEN E-PL8 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon T7i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|2.||Olympus E-PL8||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Canon T8i||Y||stereo / mono||Y||-||mini||2.0||Y||-||Y|
|4.||Canon T7||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon SL2||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|8.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|9.||Canon T5i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|10.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|11.||Canon T2i||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|12.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|13.||Olympus E-PL9||Y||stereo / mono||-||-||micro||2.0||Y||-||Y|
|14.||Olympus E-M10 III||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|15.||Olympus E-M10 II||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|16.||Olympus E-PL7||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|17.||Olympus E-PL6||Y||stereo / mono||-||-||mini||2.0||-||-||-|
It is notable that the T7i has a microphone port, which is missing on the E-PL8. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the T7i and the E-PL8 have been discontinued, but can regularly be found used on ebay. The E-PL8 was replaced by the Olympus E-PL9, while the T7i was followed by the Canon T8i. Further information on the features and operation of the T7i and E-PL8 can be found, respectively, in the Canon T7i Manual (free pdf) or the online Olympus E-PL8 Manual.
So what conclusions can be drawn? Is there a clear favorite between the Canon T7i and the Olympus E-PL8? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS Rebel T7i:
- More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Longer lasting: Can take more shots (600 versus 350) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More modern: Is somewhat more recent (announced 4 months after the E-PL8).
Advantages of the Olympus PEN E-PL8:
- Faster burst: Shoots at higher frequency (8 vs 6 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (115x67mm vs 131x100mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 175g or 33 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (27 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in September 2016).
If the count of relative strengths (bullet points above) is taken as a measure, the T7i emerges as the winner of the contest (11 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon T7i and the Olympus E-PL8 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the T7i or the E-PL8 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon T7i||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749||ebay.com|
|2.||Olympus E-PL8||..||..||..||..||4.5/5||4/5||Sep 2016||549||ebay.com|
|3.||Canon T8i||4.5/5||+||3/5||80/100||4/5||3.5/5||Feb 2020||749||amazon.com|
|4.||Canon T7||..||o||3.5/5||..||3.5/5||3.5/5||Feb 2018||449||amazon.com|
|5.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899||ebay.com|
|6.||Canon SL2||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549||ebay.com|
|7.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|8.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|9.||Canon T5i||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649||ebay.com|
|10.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849||ebay.com|
|11.||Canon T2i||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699||ebay.com|
|12.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799||ebay.com|
|13.||Olympus E-PL9||..||+||..||..||4.5/5||4/5||Feb 2018||599||ebay.com|
|14.||Olympus E-M10 III||..||+||5/5||80/100||4.5/5||4.5/5||Aug 2017||649||ebay.com|
|15.||Olympus E-M10 II||4.5/5||+ +||..||80/100||5/5||5/5||Aug 2015||649||ebay.com|
|16.||Olympus E-PL7||4/5||+||..||..||5/5||4/5||Aug 2014||599||ebay.com|
|17.||Olympus E-PL6||..||..||..||..||..||..||May 2013||599||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 350D vs Olympus E-PL8
- Canon T7 vs Olympus E-PL8
- Canon T7i vs Nikon D5000
- Canon T7i vs Nikon D7000
- Canon T7i vs Olympus E-M1
- Canon T7i vs Olympus E-PL6
- Canon T7i vs Sony RX100 II
- Canon T7i vs Sony RX100 VII
- Leica T vs Olympus E-PL8
- Nikon 1 J5 vs Olympus E-PL8
- Olympus E-PL8 vs Sony NEX-5
- Olympus E-PL8 vs Sony RX100 V
Specifications: Canon T7i vs Olympus E-PL8
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon T7i||Olympus E-PL8|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2017||September 2016|
|Launch Price||USD 749||USD 549|
|Sensor Specs||Canon T7i||Olympus E-PL8|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||15.9 Megapixels|
|Image Resolution||6000 x 4000 pixels||4608 x 3456 pixels|
|Pixel Pitch||3.72 μm||3.76 μm|
|Pixel Density||7.22 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||1080/30p Video|
|ISO Setting||100 - 25,600 ISO||200 - 6,400 ISO|
|ISO Boost||100 - 51,200 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 7||TruePic VII|
|Screen Specs||Canon T7i||Olympus E-PL8|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1037k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Canon T7i||Olympus E-PL8|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||6 shutter flaps/s||8 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon T7i||Olympus E-PL8|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon T7i||Olympus E-PL8|
|Battery Life (CIPA)||600 shots per charge||350 shots per charge|
131 x 100 x 76 mm
(5.2 x 3.9 x 3.0 in)
115 x 67 x 38 mm
(4.5 x 2.6 x 1.5 in)
|Camera Weight||532 g (18.8 oz)||357 g (12.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
