Canon T5i Comparison Review

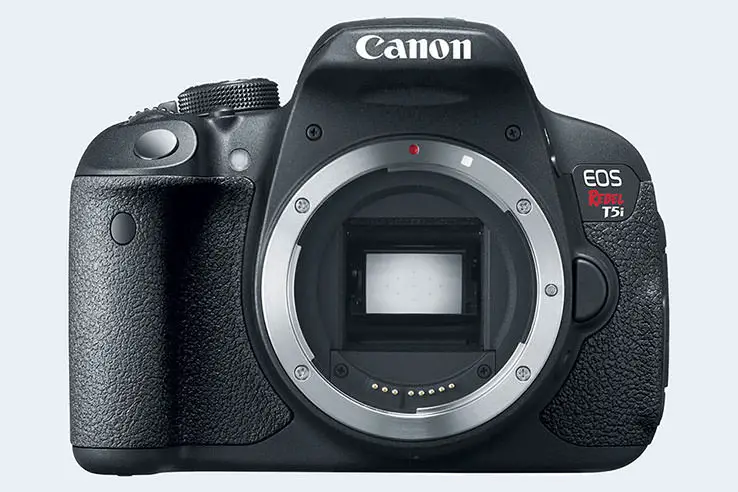

The Canon EOS Rebel T5i (called Canon 700D in some regions) is a DSLR (Digital Single Lens Reflex) camera that was announced in March 2013 and is equipped with an APS-C sensor. It offers a resolution of 17.9 megapixel.
Is the Canon T5i a good camera? The T5i has a Camera Elo of 1797. This rating puts the T5i among the top 50 percent of all digital single lens reflex cameras. In terms of its sensor size category (APS cameras), the T5i ranks below average. Based on its within category standings, the camera earns a 3-star performance rating.
|Digital single lens reflex|
|Canon EF mount lenses|
|17.9 MP, APS-C Sensor|
|ISO 100 - 12 800 (100 - 25 600)|
|3.0 LCD, 1040k dots|
|5 shutter flaps per second|
|440 shots per battery charge|
|133 x 100 x 79 mm, 580 g|
Read on to find out more about the camera's size, sensor, features, reception by expert reviewers, and how it compares to other digital cameras.
Body comparison with a credit card
The physical dimensions of the Canon T5i relative to a credit card are illustrated in the side-by-side display below. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The table below summarizes the key physical specs of the Canon T5i alongside a set of similar cameras. If you want to review a particular camera pair side-by-side, just move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.
|1.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||ebay.com|
|2.||Canon T7i||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749||ebay.com|
|3.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|4.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|5.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449||ebay.com|
|6.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549||ebay.com|
|7.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599||ebay.com|
|8.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||ebay.com|
|9.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599||ebay.com|
|10.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699||ebay.com|
|11.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Canon T5i was launched in the US market at a price of $649. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison with a 35mm slide
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tent to lead to bigger and heavier cameras and lenses.
The Canon T5i features an APS-C sensor and has a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the Canon T5i among the medium-sized sensor cameras that aim to strike a balance between image quality and portability.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of alternative cameras.
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. The T5i indeed provides movie recording capabilities. The highest resolution format that the T5i can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the T5i has an optical viewfinder that provides a field of view of 95% and a magnification of 0.53x. The following tables report on some other key feature differences and similarities of the Canon T5i and comparable cameras.
|1.||Canon T5i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|2.||Canon T7i||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|3.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|4.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|5.||Canon T5||optical||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||n|
|6.||Canon SL1||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9/s||Y||n|
|7.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3/s||n||n|
|8.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|9.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7/s||Y||n|
|10.||Canon T2i||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7/s||Y||n|
|11.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|

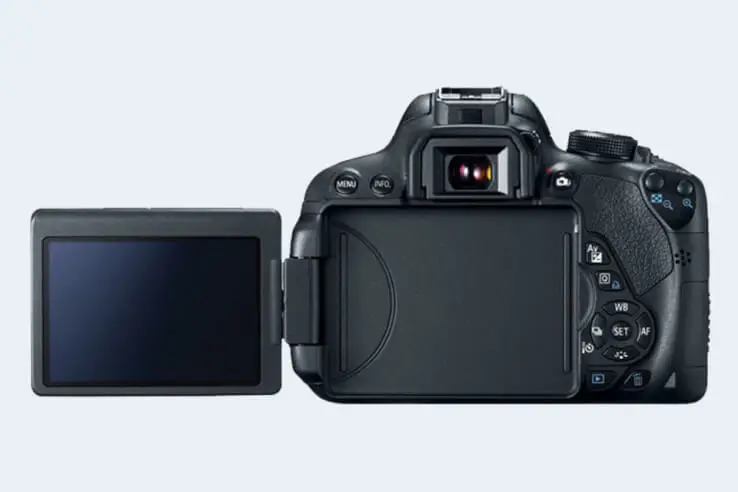

The LCD screen on the Canon EOS Rebel T5i is flexibly attached to the body. In particular, the LCD is hinged on the side and can be flipped out for odd-angle shots in both portrait and landscape orientation. Also, this fully articulated, swivel type of LCD attachment is often appreciated by videographers for its flexibility. Moreover, v-loggers like the design because the screen can be turned to be front-facing.
One convenient feature of the T5i is the presence of an on-board flash. While this built-in flash is not very powerful, it can at times be useful as a fill-in light to brighten deep shadow areas.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T5i and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon T5i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Canon T7i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|3.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|4.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Canon T5||Y||mono / mono||-||-||mini||2.0||-||-||-|
|6.||Canon SL1||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|7.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|10.||Canon T2i||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|11.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
It is notable that the T5i has a microphone port. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
While the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the T5i. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased. This is why expert reviews are important. The following table reports the overall rankings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]).
|1.||Canon T5i||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649||ebay.com|
|2.||Canon T7i||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749||ebay.com|
|3.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|4.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|5.||Canon T5||3/5||+||..||..||4/5||4.5/5||Feb 2014||449||ebay.com|
|6.||Canon SL1||4/5||+||..||78/100||4/5||4/5||Mar 2013||549||ebay.com|
|7.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599||ebay.com|
|8.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849||ebay.com|
|9.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599||ebay.com|
|10.||Canon T2i||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699||ebay.com|
|11.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Canon T5i FAQ
Below are some additional questions and answers concerning some particular features of the T5i.
What technology is the imaging sensor in the T5i based on?
The camera has a CMOS (Complementary Metal–Oxide–Semiconductor) sensor at its core.
Which image processing chip is used to convert the raw signal into an image file and perform noise reduction and image sharpening?
Canon equipped the T5i with the DIGIC 5 image processor.
What is the ISO sensitivity range of the T5i?
The camera has a native sensitivity range from ISO 100 to ISO 12800.
Does the camera have a selfie-friendly screen?
Yes, the LCD-screen of the T5i is flexible and can be turned to be front-facing for capturing selfies.
What is the life expectancy of the shutter in the Canon EOS Rebel T5i?
Canon mentions a shutter rating of 100 000 actuations for the T5i. This number represents a Mean Time before Failure, that is an average value. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust the expected shutter life of the T5i over, say, three years, one would have to take about 100 pictures each and every day.
Does the Canon T5i feature an autofocus assist light?
Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.
What is the fastest shutter speed that can be used with flash?
The T5i's flash sync speed is 1/200 sec.
Does the Canon T5i support the Ultra High Speed (UHS) bus interface for SD cards?
Yes, the camera can indeed use UHS-I cards (data transfer speed of up to 104 MB/s).
Which battery does the T5i use?
Is there a vertical grip available for the T5i?
Yes, Canon offers the BG-E8 as an optional accessory to facilitate shooting in portrait orientation and to provide additional battery power.
Camera to camera comparisons
In case you are interested in seeing how this camera compares to another one, just use the search menu below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
|Camera Model||Canon T5i|
|Camera Type||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses|
|Launch Date||March 2013|
|Launch Price||USD 649|
|Sensor Format||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm|
|Sensor Area||332 mm2|
|Sensor Diagonal||26.8 mm|
|Sensor Resolution||17.9 Megapixels|
|Image Resolution||5 184 x 3 456 pixels|
|Pixel Pitch||4.31 μm|
|Pixel Density||5.39 MP/cm2|
|Moiré control||Anti-Alias filter|
|Movie Capability||1080/30p Video|
|ISO Setting||100 - 12 800 ISO|
|ISO Boost||100 - 25 600 ISO|
|Image Processor||DIGIC 5|
|DXO Sensor Quality (score)||61|
|DXO Color Depth (bits)||21.7|
|DXO Dynamic Range (EV)||11.2|
|DXO Low Light (ISO)||681|
|Viewfinder Type||Optical viewfinder|
|Viewfinder Field of View||95%|
|Top-Level Screen||no Top Display|
|LCD Framing||Live View|
|LCD Size||3.0 inch|
|LCD Resolution||1040k dots|
|LCD Attachment||Swivel screen|
|V-logging Friendliness||Front-flip possible|
|Focus System||Phase-detect AF|
|Manual Focusing Aid||no Peaking Feature|
|Maximum Shutter Speed||1/4000s|
|Continuous Shooting||5 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations|
|Silent Shooting||no E-Shutter|
|Time Lapse Photography||no Intervalometer|
|Fill Flash||Built-in Flash|
|Storage Medium||SDXC cards|
|Second Storage Option||Single card slot|
|UHS card support||UHS-I|
|USB Connector||USB 2.0|
|HDMI Port||mini HDMI|
|Microphone Port||External MIC port|
|Wifi Support||no Wifi|
|Battery Type||LP-E8 power pack|
|Battery Life (CIPA)||440 shots per charge|
133 x 100 x 79 mm
(5.2 x 3.9 x 3.1 in)
|Camera Weight||580 g (20.5 oz)|
