Canon SX540 vs Olympus E-P3

The Canon PowerShot SX540 HS and the Olympus PEN E-P3 are two digital cameras that were revealed to the public, respectively, in January 2016 and June 2011. The SX540 is a fixed lens compact, while the E-P3 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX540) and a Four Thirds (E-P3) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Olympus provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX540		Olympus E-P3
Fixed lens compact camera		Mirrorless system camera
24-1200mm f/3.4-6.5		Micro Four Thirds lenses
20.2 MP – 1/2.3" sensor		12.2 MP – Four Thirds sensor
1080/60p Video		1080/60i Video
ISO 80-3,200		ISO 200-12,800
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 461k dots		3.0" LCD – 614k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
5.9 shutter flaps per second		3 shutter flaps per second
Lens-based stabilization		In-body stabilization
205 shots per battery charge		330 shots per battery charge
120 x 82 x 92 mm, 442 g		122 x 69 x 34 mm, 369 g

Check SX540 offers at
ebay.com
Check E-P3 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX540 HS and the Olympus PEN E-P3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

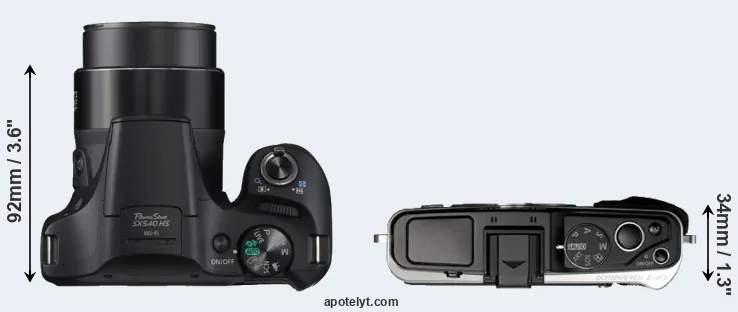

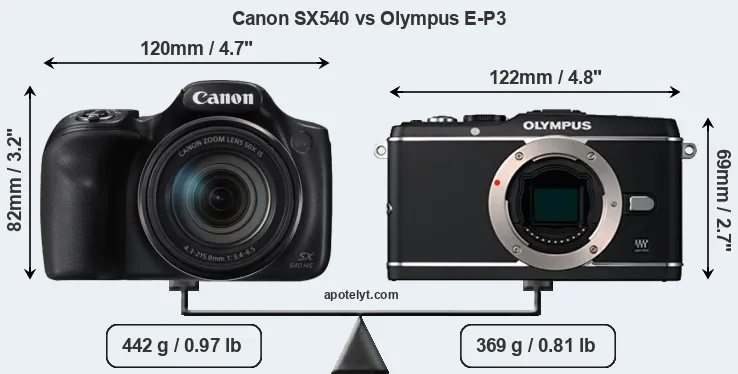

An illustration of the physical size and weight of the Canon SX540 and the Olympus E-P3 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-P3 can be obtained in three different colors (black, silver, white), while the SX540 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P3 is notably smaller (14 percent) than the Canon SX540. In this context, it is worth noting that neither the SX540 nor the E-P3 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX540 has a lens built in, whereas the E-P3 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-P3 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the SX540 gets 205 shots out of its Canon NB-6LH battery, while the E-P3 can take 330 images on a single charge of its Olympus BLS-5 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	US$ 399	ebay.com
2.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	US$ 799	ebay.com
3.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
4.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
5.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	US$ 429	ebay.com
6.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
7.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	US$ 379	ebay.com
8.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
9.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
10.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
11.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	US$ 799	ebay.com
12.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	US$ 799	ebay.com
13.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
14.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
15.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
16.		Panasonic FZ80	130 mm	94 mm	119 mm	616 g	330	n	Jan 2017	US$ 399	ebay.com
17.		Panasonic ZS70	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX540 was launched at a lower price than the E-P3, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

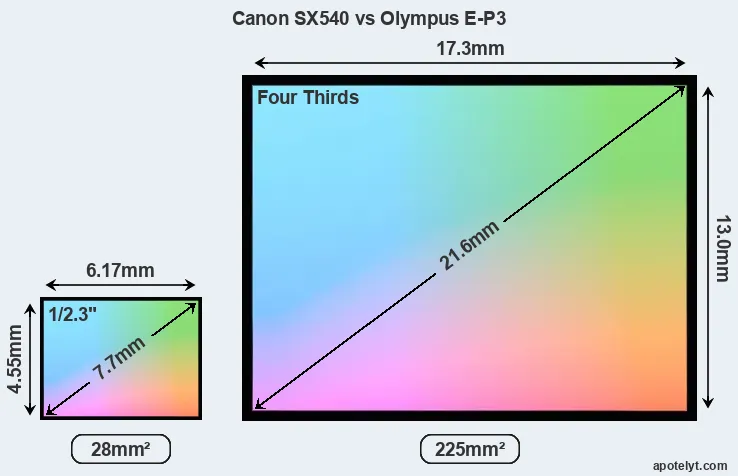

Of the two cameras under consideration, the Canon SX540 features a 1/2.3-inch sensor and the Olympus E-P3 a Four Thirds sensor. The sensor area in the E-P3 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

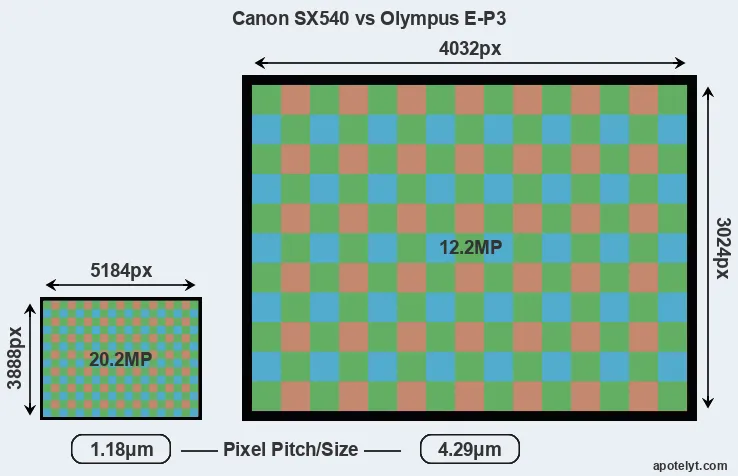

Despite having a smaller sensor, the Canon SX540 offers a higher resolution of 20.2 megapixels, compared with 12.2 MP of the Olympus E-P3. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 4.29μm for the E-P3). However, it should be noted that the SX540 is much more recent (by 4 years and 6 months) than the E-P3, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX540 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX540 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX540 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Olympus E-P3 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The Canon PowerShot SX540 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Olympus PEN E-P3 are ISO 200 to ISO 12800 (no boost).

In terms of underlying technology, the SX540 is build around a BSI-CMOS sensor, while the E-P3 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
2.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
3.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
4.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
5.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
6.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
7.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
8.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
9.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
10.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
11.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
12.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
13.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
14.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
15.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
16.		Panasonic FZ80	1/2.3	18.0	4896	3672	4K/30p	20.5	11.9	900	49
17.		Panasonic ZS70	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SX540 provides a higher frame rate than the E-P3. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/60i.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The SX540 and the E-P3 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-P3 can be equipped with an optional viewfinder – the VF-3. The following table reports on some other key feature differences and similarities of the Canon SX540, the Olympus E-P3, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
2.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
3.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
4.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
5.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
6.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
7.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
8.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
9.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
10.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
11.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
12.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
13.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
14.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
15.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
16.		Panasonic FZ80	1166	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	Y	Y
17.		Panasonic ZS70	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-P3 has a touchscreen, while the SX540 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the SX540 and the E-P3 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX540 HS and Olympus PEN E-P3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
3.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
4.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
5.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
10.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
11.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Panasonic FZ80	Y	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Panasonic ZS70	-	stereo / mono	-	-	micro	2.0	Y	-	-

It is notable that the SX540 offers wifi support, while the E-P3 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX540 and the E-P3 have been discontinued, but can regularly be found used on ebay. The E-P3 was replaced by the Olympus E-P5, while the SX540 does not have a direct successor. Further information on the features and operation of the SX540 and E-P3 can be found, respectively, in the Canon SX540 Manual (free pdf) or the online Olympus E-P3 Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon SX540 or the Olympus E-P3 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon PowerShot SX540 HS:

• More detail: Offers more megapixels (20.2 vs 12.2MP) with a 29% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher movie framerates (1080/60p versus 1080/60i).
• Faster burst: Shoots at higher frequency (5.9 vs 3 flaps/sec) to capture the decisive moment.
• Ready to shoot: Has a lens built-in, whereas the E-P3 requires a separate lens.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 4 years and 6 months of technical progress since the E-P3 launch.

Reasons to prefer the Olympus PEN E-P3:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• More detailed LCD: Has a higher resolution rear screen (614k vs 461k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More compact: Is smaller (122x69mm vs 120x82mm) and will fit more readily into a bag.
• Longer lasting: Gets more shots (330 versus 205) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in June 2011).

If the count of individual advantages (bullet points above) is taken as a guide, the E-P3 is the clear winner of the contest (14 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX540 and the Olympus E-P3 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX540 or the E-P3. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX540	..	..	..	..	..	..	Jan 2016	US$ 399	ebay.com
2.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	US$ 799	ebay.com
3.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
4.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
5.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	US$ 429	ebay.com
6.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
7.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	US$ 379	ebay.com
8.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
9.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
10.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
11.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	US$ 799	ebay.com
12.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	US$ 799	ebay.com
13.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
14.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
15.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
16.		Panasonic FZ80	..	+ +	..	..	4.5/5	4.5/5	Jan 2017	US$ 399	ebay.com
17.		Panasonic ZS70	..	+ +	..	..	4/5	4/5	Apr 2017	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
