Which battery does the Canon SX540 take?
The Canon Powershot SX540 HS is a digital compact camera that features a 20.2MP sensor. It is powered by the Canon NB-6LH, which is a rechargeable Lithium-Ion battery pack. Lithium-Ion batteries offer a high energy density and low self-discharge, and are nowadays found in many portable electronic devices.

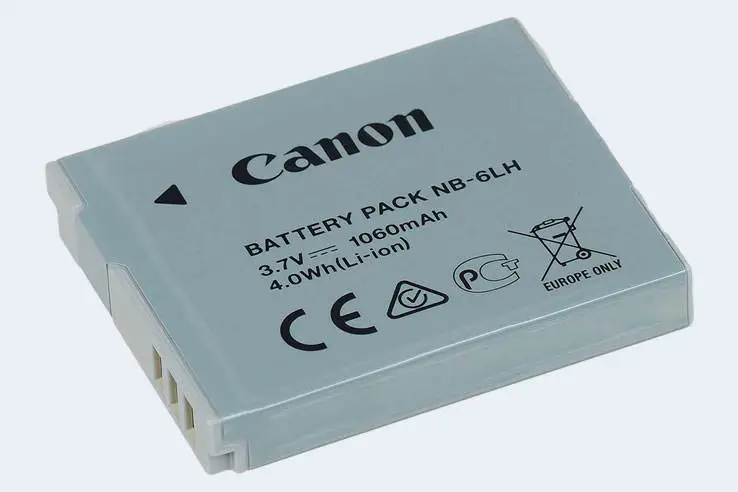

The NB-6LH operates at a voltage of 3.7V and has a capacity of 1060mAh. It can be charged from a standard electrical outlet via the Canon CB-2LY charger (that can be purchased separately, for example, at amazon). The battery pack measures 38mm in width, 5mm in height, and 35mm in depth. It weighs 18g. The NB-6LH has been on the market since August 2013 and sells at good camera retailers, such as amazon, for about $60. Generic alternatives (see below) that are compatible with the Canon Powershot SX540 HS can be obtained at substantially lower cost.
What is the difference between the NB-6LH and the NB-6L?
The Canon NB-6LH was preceded as a battery pack for digital cameras by the NB-6L. Both types operate at a similar voltage and are fully interchangeable, so that the NB-6L can also be used with the Canon SX540. The main difference between the two packs is their capacity. The NB-6LH has a 5.7 percent higher mAh value (1060 vs 1000 mAh) and, hence, somewhat better performance (5.7 percent more shots per battery charge) than the NB-6L.
How many shots can I take with a fully charged NB-6LH?
The number of shots that one can get out of a battery pack depends heavily on the style and imaging practice of the photographer. For example, the extended use of the LCD screen for framing or reviewing will result in reduced battery performance.
The Camera & Imaging Products Association (CIPA) has established guidelines (click here to download the pdf-document) that manufacturers are supposed to respect when reporting the battery life of their cameras. According to this CIPA-rating, the Canon SX540 can take 205 images on a single charge. Given the relatively demanding energy usage of the CIPA procedures, this rated number should be achievable or be surpassed in most practical situations. However, if the environment is cold, the LCD screen is used heavily, or the camera is turned on and off frequently, battery mileage might drop below the rating. Also, as the battery pack ages, its performance will tend to deteriorate.
What about generic battery packs?
Canon sells the original NB-6LH pack at quite a steep price. This premium pricing strategy has left room in the market for third party suppliers to offer fully compatible battery packs at much lower prices. Savings from buying generic replacement batteries can amount up to 70 percent of the price of the genuine battery pack.
Canon NB-6LH Specifications
- Battery type: Rechargeable Lithium-Ion power pack
- Compatibility: Canon SX540 & other selected Canon cameras
- Voltage: 3.7V DC
- Capacity: 1060mAh or 205 shots (CIPA) with the Canon SX540
- Dimensions (W x H x D): 38 x 5 x 35mm
- Weight: 18g
Indeed, one can easily find a variety of competitively-priced NB-6LH replacements from different vendors at major online platforms (see, for example, here on ebay). All these generic alternatives should work fine with your Canon SX540. So why would anybody then buy the more expensive original battery? Well, below are some arguments in favor of the genuine NB-6LH, which can perhaps be summarized as "peace of mind":
- Assurance that the warranty of the camera will not be rendered void if a battery-related failure occurs;
- Assurance that the battery pack will indeed have the stated capacity;
- Assurance that the battery will have low self-discharge rates and, thus, will hold its charge even when not in use;
- Assurance that the power unit will not trigger any warning messages on the camera and can be effectively charged with the standard charger;
- Assurance that the manufacturing process has respected the safety guidelines for Lithium-Ion batteries;
If you can live without these assurances, then you are in for some nice savings from buying generic replacements for the NB-6LH. Unfortunately, the market for generic battery packs is rather fluid, with new trade names popping up regularly while others disappear. Hence it is difficult to keep track of all the suppliers and the quality of their products. That said, in North America, battery packs from Wasabi have gained a good reputation, while in Europe, replacement power packs from Patona have received many favorable reviews. In any case, the existing comparisons tend to find that the cheapest of the generic replacement packs score worse in terms of achieving their rated capacity, holding their charge over time, or allowing for a large number of charge-discharge cycles than somewhat pricier battery packs (or the genuine Canon offer). Thus, the old adage, "If the price sounds too low to be true, it probably is" has some merit with respect to camera batteries also. You can check the current offers and prices for the original NB-6LH and its clones by using the buttons below.
Which other cameras use the Canon NB-6LH or the NB-6L?
The Canon SX540 is not alone in using the NB-6LH or the NB-6L. Several other cameras from Canon are powered by the same type of lithium-ion pack. The adjacent table lists some of them along with a selection of their headline specifications.
|#|| Camera |
| Battery |
| Battery life |
| Sensor Size |
| Resolution |
| Weight |
| Camera |
| Launch Price |
| Street Price |
|1||Canon IXUS 85||NB-6L||300||1/2.3||10.0||170||Aug 2008||229||ebay.com|
|2||Canon IXUS 95||NB-6L||260||1/2.3||10.0||260||Feb 2009||229||ebay.com|
|3||Canon IXUS 105||NB-6L||240||1/2.3||12.0||140||Feb 2010||179||ebay.com|
|4||Canon IXUS 200||NB-6L||240||1/2.3||12.0||150||Aug 2009||329||ebay.com|
|5||Canon IXUS 210||NB-6L||220||1/2.3||14.0||160||Feb 2010||329||ebay.com|
|6||Canon IXUS 300||NB-6L||250||1/2.3||10.0||175||May 2010||349||ebay.com|
|7||Canon S90||NB-6L||220||1/2.3||10.0||195||Aug 2009||429||ebay.com|
|8||Canon S95||NB-6L||200||1/2.3||10.0||195||Aug 2010||399||ebay.com|
|9||Canon S120||NB-6LH||230||1/2.3||12.0||217||Aug 2013||449||ebay.com|
|10||Canon SD770||NB-6L||300||1/2.3||10.0||170||Aug 2008||229||ebay.com|
|11||Canon SD980||NB-6L||240||1/2.3||12.0||150||Aug 2009||329||ebay.com|
|12||Canon SD1200||NB-6L||260||1/2.3||10.0||260||Feb 2009||229||ebay.com|
|13||Canon SD1300||NB-6L||240||1/2.3||12.0||140||Feb 2010||179||ebay.com|
|14||Canon SD3500||NB-6L||220||1/2.3||14.0||160||Feb 2010||329||ebay.com|
|15||Canon SD4000||NB-6L||250||1/2.3||10.0||175||May 2010||349||ebay.com|
|16||Canon SX170||NB-6LH||300||1/2.3||15.9||251||Aug 2013||179||ebay.com|
|17||Canon SX240||NB-6L||230||1/2.3||12.0||224||Feb 2012||339||ebay.com|
|18||Canon SX260||NB-6L||230||1/2.3||12.0||231||Feb 2012||349||ebay.com|
|19||Canon SX270||NB-6L||210||1/2.3||12.0||233||Mar 2013||269||ebay.com|
|20||Canon SX280||NB-6L||210||1/2.3||12.0||233||Mar 2013||279||ebay.com|
|21||Canon SX500||NB-6L||195||1/2.3||15.9||341||Aug 2012||299||ebay.com|
|22||Canon SX510||NB-6LH||250||1/2.3||15.9||349||Aug 2013||249||ebay.com|
|23||Canon SX520||NB-6LH||210||1/2.3||15.9||441||Jul 2014||399||ebay.com|
|24||Canon SX530||NB-6LH||210||1/2.3||15.9||442||Jan 2015||429||ebay.com|
|25||Canon SX540||NB-6LH||205||1/2.3||20.2||442||Jan 2016||399||ebay.com|
|26||Canon SX600||NB-6LH||290||1/2.3||15.9||188||Jan 2014||249||ebay.com|
|27||Canon SX610||NB-6LH||270||1/2.3||20.2||191||Jan 2015||249||ebay.com|
|28||Canon SX700||NB-6LH||250||1/2.3||15.9||269||Feb 2014||349||ebay.com|
|29||Canon SX710||NB-6LH||230||1/2.3||20.2||269||Jan 2015||349||ebay.com|
Canon NB-6LH FAQ
The NB-6LH is the standard power source for the Canon SX540. As such it is an indispensable camera accessory. Below are some additional questions and answers concerning some particular aspects of the battery pack and Lithium-Ion power units more generally.
Is there a car charger available for the NB-6LH?
Canon does not offer a travel charger, but third party suppliers do (see here on ebay).
Is the NB-6LH available in colors other than gray?
No, Canon supplies this battery pack only in gray. However, some generic alternatives from third party providers might be available in other colors.
Can I use the NB-6LH in any of my other electronic devices?
No, the battery is specifically designed for use in the Canon SX540 and other selected cameras from Canon.
How should the NB-6LH be stored?
Lithium-ion batteries can hold a charge for a long time. However, these battery packs have a safety mechanism built-in that disables any re-charge if the voltage drops below a certain minimum level. To avoid this safety-trigger to be activated, the battery pack should be charged at least once every few months.
How should I discard my old battery pack?
The contents of Lithium-Ion batteries is under pressure and the packs can explode if exposed to extreme heat. Lithium-Ion battery units should therefore never be incinerated and should not be thrown into the household trash, but put into the recycling stream. Most places that sell camera batteries will also accept them back for recycling.
