Canon M vs Nikon D7200
The Canon EOS M and the Nikon D7200 are two digital cameras that were revealed to the public, respectively, in July 2012 and March 2015. The Canon M is a mirrorless interchangeable lens camera, while the D7200 is a DSLR. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Nikon provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M and the Nikon D7200? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

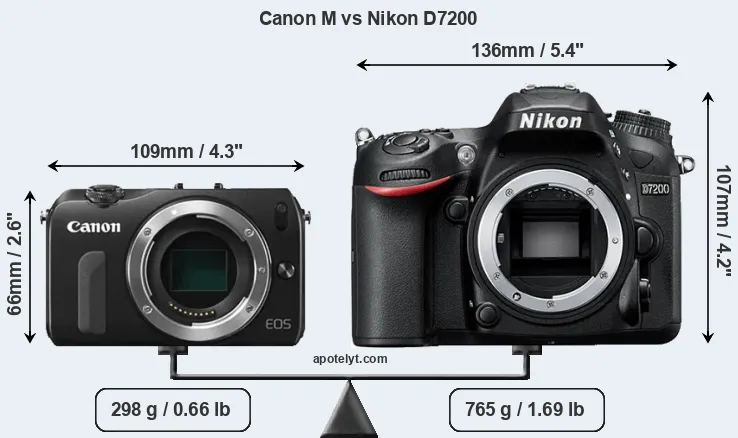

The physical size and weight of the Canon M and the Nikon D7200 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The Canon M can be obtained in two different colors (black, white), while the D7200 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D7200 is considerably larger (102 percent) than the Canon M. Moreover, the D7200 is substantially heavier (157 percent) than the Canon M. It is noteworthy in this context that the D7200 is splash and dust-proof, while the Canon M does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599||ebay.com|
|2.||Nikon D7200||136 mm||107 mm||76 mm||765 g||1110||Y||Mar 2015||1,199||ebay.com|
|3.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499||ebay.com|
|4.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199||ebay.com|
|5.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499||ebay.com|
|6.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699||ebay.com|
|7.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549||ebay.com|
|8.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549||ebay.com|
|9.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||ebay.com|
|10.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599||ebay.com|
|11.||Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299||amazon.com|
|12.||Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999||amazon.com|
|13.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499||ebay.com|
|14.||Nikon D7100||136 mm||107 mm||76 mm||765 g||950||Y||Feb 2013||1,199||ebay.com|
|15.||Panasonic GF6||111 mm||65 mm||38 mm||323 g||340||n||Apr 2013||499||ebay.com|
|16.||Panasonic G3||115 mm||84 mm||47 mm||336 g||270||n||May 2011||599||ebay.com|
|17.||Sony NEX-3N||110 mm||62 mm||35 mm||269 g||480||n||Feb 2013||499||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Canon M was launched at a markedly lower price (by 50 percent) than the D7200, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D7200 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (Canon M) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 24MP, the D7200 offers a higher resolution than the Canon M (17.9MP), but the D7200 has smaller individual pixels (pixel pitch of 3.91μm versus 4.31μm for the Canon M). Yet, the D7200 is a much more recent model (by 2 years and 7 months) than the Canon M, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the D7200 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D7200 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D7200 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon M are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The Canon M has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Nikon D7200 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-102400.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the D7200 offers substantially better image quality than the Canon M (overall score 22 points higher). The advantage is based on 2.4 bits higher color depth, 3.4 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|6.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|15.||Panasonic GF6||Four Thirds||15.8||4592||3448||1080/60i||20.7||10.6||622||54|
|16.||Panasonic G3||Four Thirds||15.8||4592||3448||1080/60i||21.0||10.6||667||56|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the D7200 provides a faster frame rate than the Canon M. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D7200 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the Canon M relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon M, the Nikon D7200, and comparable cameras.
|1.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3/s||n||n|
|2.||Nikon D7200||optical||Y||3.2 / 1229||fixed||n||1/8000s||6.0/s||Y||n|
|3.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|4.||Canon 80D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0/s||Y||n|
|5.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6/s||Y||n|
|6.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5/s||Y||Y|
|7.||Canon G16||optical||n||3.0 / 922||fixed||n||1/4000s||2.2/s||Y||Y|
|8.||Canon SL1||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9/s||Y||n|
|9.||Canon T5i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|10.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7/s||Y||n|
|11.||Nikon D7500||optical||Y||3.2 / 922||tilting||Y||1/8000s||8.0/s||Y||n|
|12.||Nikon D500||optical||Y||3.2 / 2359||tilting||Y||1/8000s||10.0/s||n||n|
|13.||Nikon D3300||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|14.||Nikon D7100||optical||Y||3.2 / 1229||fixed||n||1/8000s||6.0/s||Y||n|
|15.||Panasonic GF6||none||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|16.||Panasonic G3||1440||n||3.0 / 460||swivel||Y||1/4000s||4.0/s||Y||n|
|17.||Sony NEX-3N||optional||n||3.0 / 460||tilting||n||1/4000s||4.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The Canon M has a touchscreen, while the D7200 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Nikon D7200 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the Canon M and the D7200 write their files to SDXC cards. The D7200 features dual card slots, which can be very useful in case a memory card fails. In contrast, the Canon M only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M and Nikon D7200 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Nikon D7200||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|3.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|4.||Canon 80D||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|5.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|6.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|7.||Canon G16||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|8.||Canon SL1||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon T5i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|10.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|11.||Nikon D7500||Y||stereo / mono||Y||Y||mini||2.0||Y||-||Y|
|12.||Nikon D500||Y||stereo / mono||Y||Y||mini||3.0||Y||Y||Y|
|13.||Nikon D3300||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|14.||Nikon D7100||Y||stereo / mono||Y||Y||mini||2.0||-||-||-|
|15.||Panasonic GF6||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|16.||Panasonic G3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|17.||Sony NEX-3N||-||stereo / mono||-||-||micro||2.0||-||-||-|
It is notable that the D7200 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the Canon M does not provide wifi capability.
Both the Canon M and the D7200 have been discontinued, but can regularly be found used on ebay. The Canon M was replaced by the Canon EOS M3, while the D7200 was followed by the Nikon D7500. Further information on the features and operation of the Canon M and D7200 can be found, respectively, in the Canon M Manual (free pdf) or the online Nikon D7200 Manual.
So what conclusions can be drawn? Which of the two cameras – the Canon M or the Nikon D7200 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS M:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More compact: Is smaller (109x66mm vs 136x107mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 467g or 61 percent) and hence easier to carry around.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in July 2012).
Reasons to prefer the Nikon D7200:
- More detail: Has more megapixels (24 vs 17.9MP), which boosts linear resolution by 16%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (22 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.4 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (3.4 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.7 stops ISO advantage).
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1229k vs 1040k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (6 vs 4.3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (1110 versus 230) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 2 years and 7 months of technical progress since the Canon M launch.
If the count of relative strengths (bullet points above) is taken as a measure, the D7200 is the clear winner of the contest (22 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M and the Nikon D7200 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the Canon M or the D7200 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599||ebay.com|
|2.||Nikon D7200||4/5||+ +||..||84/100||4.5/5||4.5/5||Mar 2015||1,199||ebay.com|
|3.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499||ebay.com|
|4.||Canon 80D||4/5||+ +||4.5/5||84/100||4.5/5||4.5/5||Feb 2016||1,199||ebay.com|
|5.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499||ebay.com|
|6.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699||ebay.com|
|7.||Canon G16||4/5||+||..||..||4.5/5||4.5/5||Aug 2013||549||ebay.com|
|8.||Canon SL1||4/5||+||..||78/100||4/5||4/5||Mar 2013||549||ebay.com|
|9.||Canon T5i||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649||ebay.com|
|10.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599||ebay.com|
|11.||Nikon D7500||4.5/5||+ +||4.5/5||86/100||5/5||4.5/5||Apr 2017||1,299||amazon.com|
|12.||Nikon D500||5/5||+ +||4.7/5||91/100||4.5/5||5/5||Jan 2016||1,999||amazon.com|
|13.||Nikon D3300||3/5||+||..||77/100||4.5/5||4.5/5||Jan 2014||499||ebay.com|
|14.||Nikon D7100||5/5||+ +||..||85/100||4.5/5||4.5/5||Feb 2013||1,199||ebay.com|
|15.||Panasonic GF6||..||+ +||..||..||4.5/5||4.5/5||Apr 2013||499||ebay.com|
|16.||Panasonic G3||3/5||+ +||..||75/100||4.5/5||5/5||May 2011||599||ebay.com|
|17.||Sony NEX-3N||3/5||..||..||..||4.5/5||4.5/5||Feb 2013||499||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon M vs Leica M10-P
- Canon M vs Olympus E-520
- Canon M vs Olympus E-PL2
- Canon M vs Panasonic G110
- Canon M vs Panasonic GF3
- Canon M vs Panasonic TZ95
- Canon Rebel vs Nikon D7200
- Nikon D7200 vs Panasonic G90
- Nikon D7200 vs Pentax MX-1
- Nikon D7200 vs Sony A5000
- Nikon D7200 vs Sony A5100
- Nikon D7200 vs Sony RX1R II
Specifications: Canon M vs Nikon D7200
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M||Nikon D7200|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Canon EF-M mount lenses||Nikon F mount lenses|
|Launch Date||July 2012||March 2015|
|Launch Price||USD 599||USD 1,199|
|Sensor Specs||Canon M||Nikon D7200|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.5 x 15.6 mm|
|Sensor Area||332.27 mm2||366.6 mm2|
|Sensor Diagonal||26.8 mm||28.2 mm|
|Sensor Resolution||17.9 Megapixels||24 Megapixels|
|Image Resolution||5184 x 3456 pixels||6000 x 4000 pixels|
|Pixel Pitch||4.31 μm||3.91 μm|
|Pixel Density||5.39 MP/cm2||6.55 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100 - 12,800 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 102,400 ISO|
|Image Processor||DIGIC V||EXPEED 4|
|DXO Sensor Quality (score)||65||87|
|DXO Color Depth (bits)||22.1||24.5|
|DXO Dynamic Range (EV)||11.2||14.6|
|DXO Low Light (ISO)||827||1333|
|Screen Specs||Canon M||Nikon D7200|
|Viewfinder Type||no viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||1040k dots||1229k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M||Nikon D7200|
|Focus System||On-Sensor Phase-detect||Phase-detect AF|
|Continuous Shooting||4.3 shutter flaps/s||6 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||150 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Single or Dual Card Slots||Single card slot||Dual card slots|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon M||Nikon D7200|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon M||Nikon D7200|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||230 shots per charge||1110 shots per charge|
109 x 66 x 32 mm
(4.3 x 2.6 x 1.3 in)
136 x 107 x 76 mm
(5.4 x 4.2 x 3.0 in)
|Camera Weight||298 g (10.5 oz)||765 g (27.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
