Canon 6D Mark II versus Canon M

The Canon EOS 6D Mark II and the Canon EOS M are two digital cameras that were revealed to the public, respectively, in June 2017 and July 2012. The 6D Mark II is a DSLR, while the Canon M is a mirrorless interchangeable lens camera. The cameras are based on a full frame (6D Mark II) and an APS-C (Canon M) sensor. The 6D Mark II has a resolution of 26 megapixel, whereas the Canon M provides 17.9 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 6D Mark II vs Canon M

The physical size and weight of the Canon 6D Mark II and the Canon M are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter. You can also use the toggle button to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left side – the 6D Mark II – represents the basis for the calculations across all the size and weight measures).

Compare Canon 6D Mark II vs Canon M

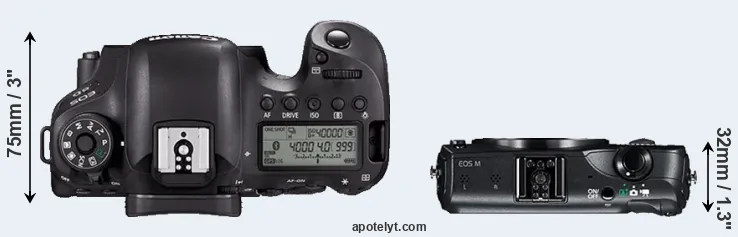

Compare 6D Mark II versus Canon M top

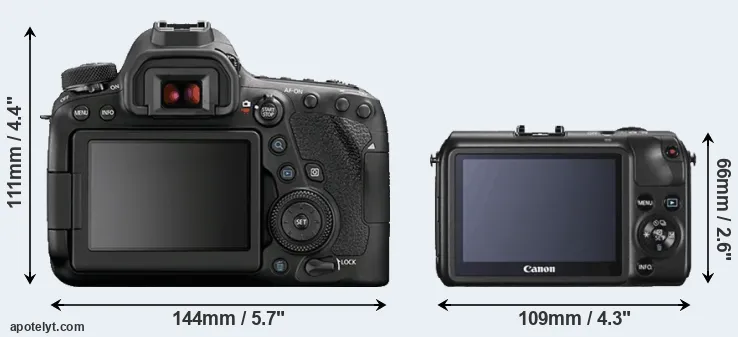

Compare 6D Mark II and Canon M rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M is considerably smaller (55 percent) than the Canon 6D Mark II. Moreover, the Canon M is substantially lighter (61 percent) than the 6D Mark II. It is worth mentioning in this context that the 6D Mark II is splash and dust resistant, while the Canon M does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 6D Mark II gets 1200 shots out of its LP-E6N battery, while the Canon M can take 230 images on a single charge of its LP-E12 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 6D Mark II» 5.7 in 4.4 in 3.0 in 27.0 oz 1200 Y Jun 2017 1,999 i i Canon 6D Mark II
Canon M« 4.3 in 2.6 in 1.3 in 10.5 oz 230 n Jul 2012 599- i Canon M
Canon R« » 5.5 in 3.9 in 3.3 in 23.3 oz 370 Y Sep 2018 2,299 i i Canon R
Canon M100« » 4.3 in 2.6 in 1.4 in 10.7 oz 295 n Aug 2017 499 i i Canon M100
Canon 5D Mark IV« » 5.9 in 4.6 in 3.0 in 31.4 oz 900 Y Aug 2016 3,499 i i Canon 5D Mark IV
Canon 80D« » 5.5 in 4.1 in 3.1 in 25.8 oz 960 Y Feb 2016 1,199 i i Canon 80D
Canon M10« » 4.3 in 2.6 in 1.4 in 10.6 oz 255 n Oct 2015 499- i Canon M10
Canon SL1« » 4.6 in 3.6 in 2.7 in 14.4 oz 380 n Mar 2013 549- i Canon SL1
Canon T5i« » 5.2 in 3.9 in 3.1 in 20.5 oz 440 n Mar 2013 649- i Canon T5i
Canon 5D Mark III« » 6.0 in 4.6 in 3.0 in 33.5 oz 950 Y Mar 2012 3,499- i Canon 5D Mark III
Canon 6D« » 5.7 in 4.4 in 2.8 in 27.2 oz 1090 Y Sep 2012 2,099- i Canon 6D
Canon T3i« » 5.2 in 3.9 in 3.1 in 20.1 oz 440 n Feb 2011 599- i Canon T3i
Canon 5D Mark II« » 6.0 in 4.5 in 3.0 in 30.0 oz 850 Y Sep 2008 3,499- i Canon 5D Mark II
Nikon D750« » 5.6 in 4.4 in 3.1 in 26.5 oz 1230 Y Sep 2014 2,299 i i Nikon D750
Nikon D610« » 5.6 in 4.4 in 3.2 in 30.0 oz 900 Y Oct 2013 1,999 i i Nikon D610
Nikon D600« » 5.6 in 4.4 in 3.2 in 30.0 oz 900 Y Sep 2012 2,099- i Nikon D600
Sony A7 III« » 5.0 in 3.8 in 2.9 in 22.9 oz 610 Y Feb 2018 1,999 i i Sony A7 III

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The Canon M was launched at a markedly lower price (by 70 percent) than the 6D Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Canon 6D Mark II vs Canon M

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 6D Mark II features a full frame sensor and the Canon M an APS-C sensor. The sensor area in the Canon M is 61 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the 6D Mark II uses a more advanced image processing engine (DIGIC 7) than the Canon M (DIGIC V), with benefits for noise reduction, color accuracy, and processing speed.

Canon 6D Mark II and Canon M sensor measures

With 26MP, the 6D Mark II offers a higher resolution than the Canon M (17.9MP), but the 6D Mark II nevertheless has larger individual pixels (pixel pitch of 5.76μm versus 4.31μm for the Canon M) due to its larger sensor. Moreover, the 6D Mark II is a somewhat more recent model (by 4 years and 11 months) than the Canon M, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

6D Mark II versus Canon M MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 6D Mark II provides substantially higher image quality than the Canon M, with an overall score that is 20 points higher. This advantage is based on 2.3 bits higher color depth, 0.7 EV in additional dynamic range, and 1.8 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 6D Mark II» Full Frame 26.0 6240 41601080/60p24.411.9286285Canon 6D Mark II
Canon M« APS-C 17.9 5184 34561080/30p22.111.282765Canon M
Canon R« » Full Frame 30.1 6720 44804K/30p----Canon R
Canon M100« » APS-C 24.0 6000 40001080/60p23.512.9127278Canon M100
Canon 5D Mark IV« » Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV
Canon 80D« » APS-C 24.0 6000 40001080/60p23.613.2113579Canon 80D
Canon M10« » APS-C 17.9 5184 34561080/30p22.211.475365Canon M10
Canon SL1« » APS-C 17.9 5184 34561080/30p21.811.384363Canon SL1
Canon T5i« » APS-C 17.9 5184 34561080/30p21.711.268161Canon T5i
Canon 5D Mark III« » Full Frame 22.1 5760 38401080/30p24.011.7229381Canon 5D Mark III
Canon 6D« » Full Frame 20.0 5472 36481080/30p23.812.1234082Canon 6D
Canon T3i« » APS-C 17.9 5184 34561080/30p22.111.579365Canon T3i
Canon 5D Mark II« » Full Frame 21.0 5616 37441080/30p23.711.9181579Canon 5D Mark II
Nikon D750« » Full Frame 24.2 6016 40161080/60p24.814.5295693Nikon D750
Nikon D610« » Full Frame 24.2 6016 40161080/30p25.114.4292594Nikon D610
Nikon D600« » Full Frame 24.2 6016 40161080/30p25.114.2298094Nikon D600
Sony A7 III« » Full Frame 24.0 6000 40004K/30p25.014.7373096Sony A7 III

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 6D Mark II provides a higher frame rate than the Canon M. It can shoot video footage at 1080/60p, while the Canon M is limited to 1080/30p.



Feature comparison: Canon 6D Mark II vs Canon M

Beyond body and sensor, cameras can and do differ across a range of features. For example, the 6D Mark II has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the Canon M relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 6D Mark II, the Canon M, and comparable cameras. The full specs-sheets can be found in the camera manual or in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 6D Mark II»optical Y 3.0 1040 swivel Y 4000 6.5 n n Canon 6D Mark II
Canon M«- n 3.0 1040 fixed Y 4000 4.3 n n Canon M
Canon R« »3690 n 3.2 2100 swivel Y 8000 8.0 n n Canon R
Canon M100« »- n 3.0 1040 tilting Y 4000 6.1 Y n Canon M100
Canon 5D Mark IV« »optical Y 3.2 1620 fixed Y 8000 7.0 n n Canon 5D Mark IV
Canon 80D« »optical Y 3.0 1040 swivel Y 8000 7.0 Y n Canon 80D
Canon M10« »- n 3.0 1040 tilting Y 4000 4.6 Y n Canon M10
Canon SL1« »optical n 3.0 1040 fixed Y 4000 4.9 Y n Canon SL1
Canon T5i« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon T5i
Canon 5D Mark III« »optical Y 3.2 1040 fixed n 8000 6.0 n n Canon 5D Mark III
Canon 6D« »optical Y 3.0 1040 fixed n 4000 4.5 n n Canon 6D
Canon T3i« »optical n 3.0 1040 swivel n 4000 3.7 Y n Canon T3i
Canon 5D Mark II« »optical Y 3.0 920 fixed n 8000 3.9 n n Canon 5D Mark II
Nikon D750« »optical Y 3.2 1229 tilting n 4000 6.0 Y n Nikon D750
Nikon D610« »optical Y 3.2 921 fixed n 4000 6.0 Y n Nikon D610
Nikon D600« »optical Y 3.0 921 fixed n 4000 5.5 Y n Nikon D600
Sony A7 III« »2359 n 3.0 922 tilting Y 8000 10.0 n Y Sony A7 III

One feature that is present on the 6D Mark II, but is missing on the Canon M is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

Both the 6D Mark II and the Canon M write their imaging data to SDXC cards.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon 6D Mark II»YstereomonoY-mini2.0YYYCanon 6D Mark II
Canon M«YstereomonoY-mini2.0---Canon M
Canon R« »YstereomonoY-mini3.1Y-YCanon R
Canon M100« »-stereomono--mini2.0YYYCanon M100
Canon 5D Mark IV« »YmonomonoYYmini3.0YY-Canon 5D Mark IV
Canon 80D« »YstereomonoYYmini2.0YY-Canon 80D
Canon M10« »-stereomono--mini2.0YY-Canon M10
Canon SL1« »YmonomonoY-mini2.0---Canon SL1
Canon T5i« »YstereomonoY-mini2.0---Canon T5i
Canon 5D Mark III« »YmonomonoYYmini2.0---Canon 5D Mark III
Canon 6D« »YmonomonoY-mini2.0Y--Canon 6D
Canon T3i« »YmonomonoY-mini2.0---Canon T3i
Canon 5D Mark II« »YmonomonoY-mini2.0---Canon 5D Mark II
Nikon D750« »YstereomonoYYmini2.0Y--Nikon D750
Nikon D610« »YmonomonoYYmini2.0---Nikon D610
Nikon D600« »YmonomonoYYmini2.0---Nikon D600
Sony A7 III« »YstereomonoYYmicro3.1YYYSony A7 III

The 6D Mark II is a current model that online retailers, such as amazon, will have in stock. In contrast, the Canon M has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the Canon M was succeeded by the Canon EOS M3.

Review summary: Canon 6D Mark II vs Canon M

So how do things add up? Which of the two cameras – the Canon 6D Mark II or the Canon M – has the upper hand? A synthesis of the relative strong points of each of the models is listed below.


Arguments in favor of the Canon EOS 6D Mark II:

  • More detail: Offers more megapixels (26 vs 17.9MP) with a 20% higher linear resolution.
  • Better image quality: Scores substantially higher (20 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (2.3 bits more color depth).
  • More dynamic range: Captures a larger spectrum of light and dark details (0.7 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (1.8 stops ISO advantage).
  • Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC V).
  • Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
  • Easier framing: Has an optical viewfinder for image framing and settings control.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • Faster burst: Shoots at higher frequency (6.5 vs 4.3 flaps/sec) to capture the decisive moment.
  • Longer lasting: Can take more shots (1200 versus 230) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Easier file upload: Has wifi build in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More modern: Reflects 4 years and 11 months of technical progress since the Canon M launch.


Reasons to prefer the Canon EOS M:

  • More compact: Is smaller (109x66mm vs 144x111mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 467g or 61 percent) and is thus easier to take along.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • More affordable: Was introduced into a lower priced category (70 percent cheaper at launch).
  • More heavily discounted: Has been around for much longer (launched in July 2012).

If the count of individual advantages (bullet points above) is taken as a guide, the 6D Mark II is the clear winner of the match-up (17 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision.

6D Mark II 17:05 Canon M

In any case, while the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the 6D Mark II or the Canon M. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is where reviews by experts come in. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 6D Mark II»Rec80/1004.5/54/54/5 Jun 2017 1,999 i i Canon 6D Mark II
Canon M«Rec-4/53.5/54/5 Jul 2012 599- i Canon M
Canon R« »rev-4.5/5-4/5 Sep 2018 2,299 i i Canon R
Canon M100« »Rec-4/5-3.5/5 Aug 2017 499 i i Canon M100
Canon 5D Mark IV« »HiRec87/1004.5/55/54.5/5 Aug 2016 3,499 i i Canon 5D Mark IV
Canon 80D« »HiRec84/1004.5/54.5/54.5/5 Feb 2016 1,199 i i Canon 80D
Canon M10« »---rev4/5 Oct 2015 499- i Canon M10
Canon SL1« »Rec78/1004/54/54/5 Mar 2013 549- i Canon SL1
Canon T5i« »-76/1004.5/54.5/54.5/5 Mar 2013 649- i Canon T5i
Canon 5D Mark III« »HiRec82/1004.5/55/54.5/5 Mar 2012 3,499- i Canon 5D Mark III
Canon 6D« »HiRec83/1004.5/54.5/54.5/5 Sep 2012 2,099- i Canon 6D
Canon T3i« »rev77/1004.5/55/54.5/5 Feb 2011 599- i Canon T3i
Canon 5D Mark II« »91/10079/1004/55/5- Sep 2008 3,499- i Canon 5D Mark II
Nikon D750« »HiRec90/1004.5/55/54.5/5 Sep 2014 2,299 i i Nikon D750
Nikon D610« »HiRec87/1004.5/54.5/54.5/5 Oct 2013 1,999 i i Nikon D610
Nikon D600« »HiRec87/1005/54.5/54.5/5 Sep 2012 2,099- i Nikon D600
Sony A7 III« »HiRec89/1005/55/55/5 Feb 2018 1,999 i i Sony A7 III

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
