Canon D30 vs Panasonic TS7

The Canon EOS-D30 and the Panasonic Lumix DC-TS7 (labelled Panasonic FT7 in some countries) are two digital cameras that were officially introduced, respectively, in May 2000 and May 2018. The D30 is a DSLR, while the TS7 is a fixed lens compact. The cameras are based on an APS-C (D30) and a 1/2.3-inch (TS7) sensor. The Canon has a resolution of 3.1 megapixels, whereas the Panasonic provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon D30
versus
Panasonic TS7
Canon D30   Panasonic TS7
Digital single lens reflex Fixed lens compact camera
Canon EF mount lenses 28-128mm f/3.3-5.9
3.1 MP – APS-C sensor 20.2 MP – 1/2.3" sensor
no Video 4K/30p Video
ISO 100-1,600 ISO 80-3,200 (80 - 6,400)
Optical viewfinder Electronic viewfinder (1170k dots)
1.8" LCD – 114k dots 3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
3 shutter flaps per second 10 shutter flaps per second
not weather sealedWaterproof body (31m)
540 shots per battery charge300 shots per battery charge
150 x 107 x 75 mm, 750 g 117 x 76 x 37 mm, 319 g
logo
Check D30 offers at
ebay.com
logo
Check TS7 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-D30 and the Panasonic Lumix DC-TS7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

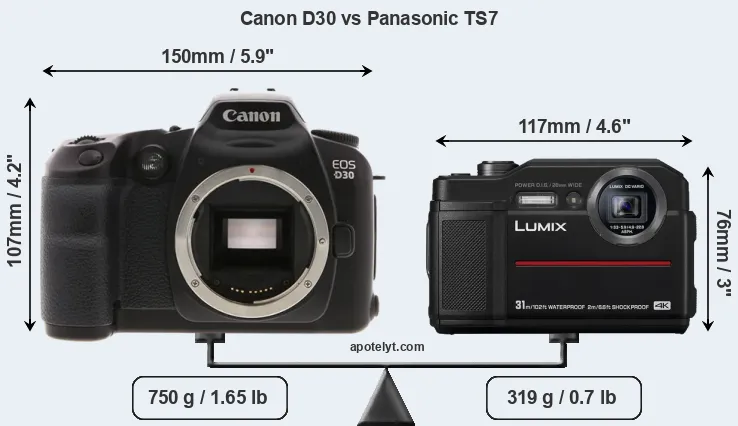

An illustration of the physical size and weight of the Canon D30 and the Panasonic TS7 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The TS7 can be obtained in three different colors (black, blue, orange), while the D30 is only available in black.

Size Canon D30 vs Panasonic TS7

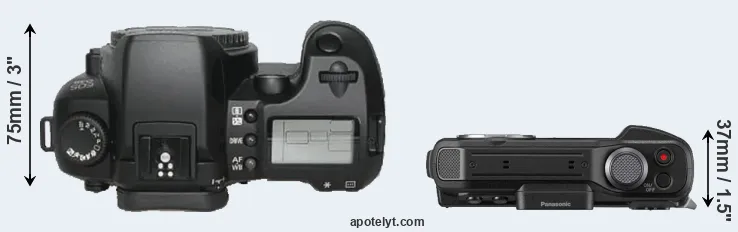

Compare D30 versus TS7 top
Comparison D30 or TS7 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic TS7 is considerably smaller (45 percent) than the Canon D30. It is noteworthy in this context that the TS7 is splash and dust-proof, while the D30 does not feature any corresponding weather-sealing. More than that, the TS7 is water-proof up to 31m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TS7 has a lens built in, whereas the D30 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D30 and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the D30 gets 540 shots out of its Canon BP-511 battery, while the TS7 can take 300 images on a single charge of its Panasonic DMW-BCM13 power pack. The power pack in the TS7 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Canon D30 150 mm 107 mm 75 mm 750 g 540 n May 2000 US$ 2 999ebay.com
2.

Panasonic TS7 117 mm 76 mm 37 mm 319 g 300 Y May 2018 US$ 449ebay.com
3.

Canon 5D Mark IV 151 mm 116 mm 76 mm 890 g 900 Y Aug 2016 US$ 3 499 amazon.com
4.

Canon 10D 150 mm 107 mm 75 mm 850 g 500 n Feb 2003 US$ 1 999ebay.com
5.

Canon 20D 144 mm 106 mm 72 mm 770 g 700 n Aug 2004 US$ 1 499ebay.com
6.

Canon 30D 144 mm 106 mm 74 mm 785 g 750 n Feb 2006 US$ 1 399ebay.com
7.

Canon 40D 146 mm 108 mm 74 mm 822 g 750 n Aug 2007 US$ 1 299ebay.com
8.

Canon 77D 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 US$ 899ebay.com
9.

Canon 80D 139 mm 105 mm 79 mm 730 g 960 Y Feb 2016 US$ 1 199ebay.com
10.

Canon 200D 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 US$ 549ebay.com
11.

Canon 300D 142 mm 99 mm 72 mm 649 g 400 n Aug 2003 US$ 899ebay.com
12.

Canon D60 150 mm 107 mm 75 mm 855 g 620 n Feb 2002 US$ 2 999ebay.com
13.

Canon SX730 110 mm 64 mm 40 mm 300 g 250 n Apr 2017 US$ 399ebay.com
14.

Panasonic FZ80 130 mm 94 mm 119 mm 616 g 330 n Jan 2017 US$ 399ebay.com
15.

Panasonic ZS70 112 mm 67 mm 41 mm 322 g 380 n Apr 2017 US$ 449ebay.com
16.

Panasonic ZS80 112 mm 69 mm 42 mm 327 g 380 n Feb 2019 US$ 449ebay.com
17.

Ricoh WG-6 118 mm 66 mm 33 mm 246 g 340 Y Feb 2019 US$ 399 amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The TS7 was launched at a lower price than the D30, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon D30 features an APS-C sensor and the Panasonic TS7 a 1/2.3-inch sensor. The sensor area in the TS7 is 91 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the D30 has a native 3:2 aspect ratio, while the one in the TS7 offers a 4:3 aspect.

Canon D30 and Panasonic TS7 sensor measures

Despite having a smaller sensor, the TS7 offers a higher resolution of 20.2 megapixels, compared with 3.1 MP of the D30. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 10.29μm for the D30). However, it should be noted that the TS7 is much more recent (by 17 years and 11 months) than the D30, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Panasonic TS7 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the TS7 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Canon D30 are 10.8 x 7.2 inches or 27.4 x 18.3 cm for good quality, 8.6 x 5.8 inches or 21.9 x 14.6 cm for very good quality, and 7.2 x 4.8 inches or 18.3 x 12.2 cm for excellent quality prints.

The Canon EOS-D30 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Panasonic Lumix DC-TS7 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-6400.

In terms of underlying technology, the D30 is build around a CMOS sensor, while the TS7 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

D30 versus TS7 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon D30 APS-C 3.1 2160 1440none........
2.

Panasonic TS7 1/2.3 20.2 5184 38884K/30p20.612.1102851
3.

Canon 5D Mark IV Full Frame 30.1 6720 44804K/30p24.813.6299591
4.

Canon 10D APS-C 6.3 3072 2048none21.110.957157
5.

Canon 20D APS-C 8.2 3504 2336none21.911.072162
6.

Canon 30D APS-C 8.2 3504 2336none21.510.873659
7.

Canon 40D APS-C 10.1 3888 2592none22.111.370364
8.

Canon 77D APS-C 24.0 6000 40001080/60p23.613.397178
9.

Canon 80D APS-C 24.0 6000 40001080/60p23.613.2113579
10.

Canon 200D APS-C 24.0 6000 40001080/60p23.613.4104179
11.

Canon 300D APS-C 6.3 3072 2048none21.010.854455
12.

Canon D60 APS-C 6.3 3072 2048none20.39.830147
13.

Canon SX730 1/2.3 20.2 5184 38881080/60p20.511.992450
14.

Panasonic FZ80 1/2.3 18.0 4896 36724K/30p20.511.990049
15.

Panasonic ZS70 1/2.3 20.2 5184 38884K/30p19.110.610636
16.

Panasonic ZS80 1/2.3 20.2 5184 38884K/30p20.712.2110352
17.

Ricoh WG-6 1/2.3 20.2 5184 38884K/30p20.712.2110452
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The TS7 indeed provides for movie recording, while the D30 does not. The highest resolution format that the TS7 can use is 4K/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the TS7 has an electronic viewfinder (1170k dots), while the D30 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the TS7 offers a wider field of view (100%) than the one in the D30 (95%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the D30 has a higher magnification (0.54x vs 0.45x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon D30, the Panasonic TS7, and comparable cameras.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon D30optical Y1.8 / 114 fixed n 1/4000s 3.0/s Y n
2.

Panasonic TS71170 n3.0 / 1040 fixed n 1/1300s 10.0/s Y Y
3.

Canon 5D Mark IVoptical Y3.2 / 1620 fixed Y 1/8000s 7.0/s n n
4.

Canon 10Doptical Y1.8 / 118 fixed n 1/4000s 3.0/s Y n
5.

Canon 20Doptical Y1.8 / 118 fixed n 1/8000s 5.0/s Y n
6.

Canon 30Doptical Y2.5 / 230 fixed n 1/8000s 5.0/s Y n
7.

Canon 40Doptical Y3.0 / 230 fixed n 1/8000s 6.5/s Y n
8.

Canon 77Doptical Y3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
9.

Canon 80Doptical Y3.0 / 1040 swivel Y 1/8000s 7.0/s Y n
10.

Canon 200Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
11.

Canon 300Doptical n1.8 / 118 fixed n 1/4000s 2.5/s Y n
12.

Canon D60optical Y1.8 / 114 fixed n 1/4000s 3.0/s Y n
13.

Canon SX730none n3.0 / 922 tilting n 1/3200s 5.9/s Y Y
14.

Panasonic FZ801166 n3.0 / 1040 fixed Y 1/2000s 10.0/s Y Y
15.

Panasonic ZS701166 n3.0 / 1040 tilting Y 1/2000s 10.0/s Y Y
16.

Panasonic ZS802330 n3.0 / 1040 tilting Y 1/2000s 10.0/s Y Y
17.

Ricoh WG-6none n3.0 / 1040 fixed n 1/4000s 1.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the D30, but is missing on the TS7 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the TS7 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The D30 writes its imaging data to Compact Flash cards, while the TS7 uses SDXC cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-D30 and Panasonic Lumix DC-TS7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon D30Y- / ----1.0---
2.

Panasonic TS7-stereo / mono--micro2.0Y--
3.

Canon 5D Mark IVYmono / monoYYmini3.0YY-
4.

Canon 10DY- / ----1.1---
5.

Canon 20DY- / ----1.1---
6.

Canon 30DY- / ----2.0---
7.

Canon 40DY- / ----2.0---
8.

Canon 77DYstereo / monoY-mini2.0YYY
9.

Canon 80DYstereo / monoYYmini2.0YY-
10.

Canon 200DYstereo / monoY-mini2.0YYY
11.

Canon 300DY- / ----1.1---
12.

Canon D60Y- / ----1.1---
13.

Canon SX730-stereo / mono--micro2.0YYY
14.

Panasonic FZ80Ystereo / mono--micro2.0Y--
15.

Panasonic ZS70-stereo / mono--micro2.0Y--
16.

Panasonic ZS80-stereo / mono--micro2.0Y-Y
17.

Ricoh WG-6-mono / mono--micro3.0---

It is notable that the D30 has a hotshoe, while the TS7 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Canon D30 (unlike the TS7) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the D30 and the TS7 have been discontinued, but can regularly be found used on ebay. The D30 was replaced by the Canon D60, while the TS7 does not have a direct successor. Further information on the features and operation of the D30 and TS7 can be found, respectively, in the Canon D30 Manual (free pdf) or the online Panasonic TS7 Manual.

ad

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon D30 and the Panasonic TS7? Which camera is better? The listing below highlights the relative strengths of the two models.

ilogo

Arguments in favor of the Canon EOS-D30:

  • Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
  • Richer colors: The pixel size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.54x vs 0.45x).
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1300s) to freeze action.
  • More flexible: Can take a variety of interchangeable lenses, including specialty optics.
  • Longer lasting: Can take more shots (540 versus 300) on a single battery charge.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • More heavily discounted: Has been available for much longer (launched in May 2000).

ilogo

Reasons to prefer the Panasonic Lumix DC-TS7:

  • More detail: Has more megapixels (20.2 vs 3.1MP), which boosts linear resolution by 150%.
  • Broader imaging potential: Can capture not only stills but also 4K/30p video.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 114k dots).
  • Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Ready to shoot: Comes with an integrated lens, while the D30 requires a separate lens.
  • More compact: Is smaller (117x76mm vs 150x107mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight even though it has a lens built in (unlike the D30).
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 31m).
  • Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More modern: Reflects 17 years and 11 months of technical progress since the D30 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the TS7 is the clear winner of the contest (19 : 13 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

D30 13:19 TS7

How about other alternatives? Do the specifications of the Canon D30 and the Panasonic TS7 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the D30 and the TS7 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Canon D30......+ +.... May 2000 US$ 2 999ebay.com
2.

Panasonic TS7..+......3.5/5 May 2018 US$ 449ebay.com
3.

Canon 5D Mark IV4.5/5+ +4/587/1004.5/54.5/5 Aug 2016 US$ 3 499 amazon.com
4.

Canon 10D......+ +.... Feb 2003 US$ 1 999ebay.com
5.

Canon 20D......+ +.... Aug 2004 US$ 1 499ebay.com
6.

Canon 30D..+ +..+ +o.. Feb 2006 US$ 1 399ebay.com
7.

Canon 40D..+ +..+ +4.5/54.5/5 Aug 2007 US$ 1 299ebay.com
8.

Canon 77D4.5/5..4/582/1004.5/54/5 Feb 2017 US$ 899ebay.com
9.

Canon 80D4/5+ +4.5/584/1004.5/54.5/5 Feb 2016 US$ 1 199ebay.com
10.

Canon 200D4/5+ +4/578/1004.5/54.5/5 Jun 2017 US$ 549ebay.com
11.

Canon 300D......+ +.... Aug 2003 US$ 899ebay.com
12.

Canon D60......+ +o.. Feb 2002 US$ 2 999ebay.com
13.

Canon SX730..+....4/54/5 Apr 2017 US$ 399ebay.com
14.

Panasonic FZ80..+ +....4.5/54.5/5 Jan 2017 US$ 399ebay.com
15.

Panasonic ZS70..+ +....4/54/5 Apr 2017 US$ 449ebay.com
16.

Panasonic ZS80..+ +....4.5/5.. Feb 2019 US$ 449ebay.com
17.

Ricoh WG-6........3.5/53.5/5 Feb 2019 US$ 399 amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check D30 offers at
ebay.com
logo
Check TS7 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications: Canon D30 vs Panasonic TS7

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon D30 Panasonic TS7
    Camera Type Digital single lens reflex Fixed lens compact camera
    Camera Lens Canon EF mount lenses 28-128mm f/3.3-5.9
    Launch Date May 2000 May 2018
    Launch Price USD 2,999 USD 449
    Sensor Specs Canon D30 Panasonic TS7
    Sensor Technology CMOS BSI-CMOS
    Sensor Format APS-C Sensor 1/2.3" Sensor
    Sensor Size 22.0 x 14.9 mm 6.17 x 4.55 mm
    Sensor Area 327.8 mm2 28.0735 mm2
    Sensor Diagonal 26.6 mm 7.7 mm
    Crop Factor 1.6x 5.6x
    Sensor Resolution 3.1 Megapixels 20.2 Megapixels
    Image Resolution 2160 x 1440 pixels 5184 x 3888 pixels
    Pixel Pitch 10.29 μm 1.18 μm
    Pixel Density 0.95 MP/cm2 71.80 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability no Video 4K/30p Video
    ISO Setting 100 - 1,600 ISO 80 - 3,200 ISO
    ISO Boost no Enhancement 80 - 6,400 ISO
    Screen Specs Canon D30 Panasonic TS7
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.54x 0.45x
    Viewfinder Resolution 1170k dots
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View
    Rear LCD Size 1.8inch 3.0inch
    LCD Resolution 114k dots 1040k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Canon D30 Panasonic TS7
    Focus System Phase-detect AF Contrast-detect AF
    Continuous Shooting 3 shutter flaps/s 10 shutter flaps/s
    Electronic Shutterno E-Shutterup to 1/16000s
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium CF cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    Connectivity Specs Canon D30 Panasonic TS7
    External Flash Hotshoe no Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 1.0 USB 2.0
    HDMI Port no HDMI micro HDMI
    Wifi Support no Wifi Wifi built-in
    Body Specs Canon D30 Panasonic TS7
    Environmental Sealingnot weather sealedWaterproof body (31m)
    Battery Type Canon BP-511 Panasonic DMW-BCM13
    Battery Life (CIPA)540 shots per charge300 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 150 x 107 x 75 mm
    (5.9 x 4.2 x 3.0 in)
    117 x 76 x 37 mm
    (4.6 x 3.0 x 1.5 in)
    Camera Weight 750 g (26.5 oz) 319 g (11.3 oz)
    logo
    Check D30 offers at
    ebay.com
    logo
    Check TS7 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon D30 vs Panasonic TS7
