Canon D30 vs Leica X2

The Canon EOS-D30 and the Leica X2 are two digital cameras that were revealed to the public, respectively, in May 2000 and May 2012. The D30 is a DSLR, while the X2 is a fixed lens compact. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 3.1 megapixels, whereas the Leica provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon D30
versus
Leica X2
Canon D30   Leica X2
Digital single lens reflex Fixed lens compact camera
Canon EF mount lenses 36mm f/2.8
3.1 MP – APS-C sensor 16.1 MP – APS-C sensor
no Video no Video
ISO 100-1,600 ISO 100-12,500
Optical viewfinder Viewfinder optional
1.8" LCD – 114k dots 2.7" LCD – 230k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
3 shutter flaps per second 5 shutter flaps per second
540 shots per battery charge450 shots per battery charge
150 x 107 x 75 mm, 750 g 124 x 69 x 52 mm, 345 g
logo
Check D30 offers at
ebay.com
logo
Check X2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-D30 and the Leica X2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

An illustration of the physical size and weight of the Canon D30 and the Leica X2 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The X2 can be obtained in two different colors (black, silver), while the D30 is only available in black.

Size Canon D30 vs Leica X2
Compare D30 versus X2 top

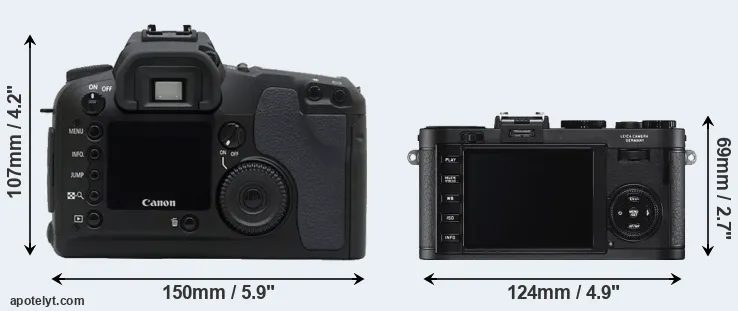

Comparison D30 or X2 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica X2 is considerably smaller (47 percent) than the Canon D30. In this context, it is worth noting that neither the D30 nor the X2 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X2 has a lens built in, whereas the D30 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D30 and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the D30 gets 540 shots out of its Canon BP-511 battery, while the X2 can take 450 images on a single charge of its Leica BP-DC8 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon D30 150 mm 107 mm 75 mm 750 g 540 n May 2000 2,999ebay.com
2.

Leica X2 124 mm 69 mm 52 mm 345 g 450 n May 2012 1,995ebay.com
3.

Canon T7 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 amazon.com
4.

Canon SL2 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549ebay.com
5.

Canon T7i 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749ebay.com
6.

Canon 80D 139 mm 105 mm 79 mm 730 g 960 Y Feb 2016 1,199ebay.com
7.

Canon 40D 146 mm 108 mm 74 mm 822 g 750 n Aug 2007 1,299ebay.com
8.

Canon 30D 144 mm 106 mm 74 mm 785 g 750 n Feb 2006 1,399ebay.com
9.

Canon 20D 144 mm 106 mm 72 mm 770 g 700 n Aug 2004 1,499ebay.com
10.

Canon 10D 150 mm 107 mm 75 mm 850 g 500 n Feb 2003 1,999ebay.com
11.

Canon Rebel 142 mm 99 mm 72 mm 649 g 400 n Aug 2003 899ebay.com
12.

Canon D60 150 mm 107 mm 75 mm 855 g 620 n Feb 2002 2,999ebay.com
13.

Fujifilm X100S 127 mm 74 mm 54 mm 445 g 330 n Jan 2013 1,299ebay.com
14.

Fujifilm X-E2 129 mm 75 mm 37 mm 350 g 350 n Oct 2013 999ebay.com
15.

Leica X Typ 113 133 mm 73 mm 78 mm 486 g 350 n Sep 2014 2,295ebay.com
16.

Leica X1 124 mm 60 mm 32 mm 306 g 260 n Sep 2009 1,995ebay.com
17.

Nikon Coolpix A 111 mm 64 mm 40 mm 299 g 230 n Mar 2013 1,099ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The X2 was launched at a lower price than the D30, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X2 is 13 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (D30) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Canon D30 and Leica X2 sensor measures

With 16.1MP, the X2 offers a higher resolution than the D30 (3.1MP), but the X2 has smaller individual pixels (pixel pitch of 4.79μm versus 10.29μm for the D30). Yet, the X2 is a much more recent model (by 11 years and 11 months) than the D30, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Leica X2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X2 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Canon D30 are 10.8 x 7.2 inches or 27.4 x 18.3 cm for good quality, 8.6 x 5.8 inches or 21.9 x 14.6 cm for very good quality, and 7.2 x 4.8 inches or 18.3 x 12.2 cm for excellent quality prints.

The Canon EOS-D30 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Leica X2 are ISO 100 to ISO 12500 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

D30 versus X2 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon D30 APS-C 3.1 2160 1440none........
2.

Leica X2 APS-C 16.1 4928 3264none23.212.4127574
3.

Canon T7 APS-C 24.0 6000 40001080/30p23.813.3168481
4.

Canon SL2 APS-C 24.0 6000 40001080/60p23.613.4104179
5.

Canon T7i APS-C 24.0 6000 40001080/60p23.713.1158680
6.

Canon 80D APS-C 24.0 6000 40001080/60p23.613.2113579
7.

Canon 40D APS-C 10.1 3888 2592none22.111.370364
8.

Canon 30D APS-C 8.2 3504 2336none21.510.873659
9.

Canon 20D APS-C 8.2 3504 2336none21.911.072162
10.

Canon 10D APS-C 6.3 3072 2048none21.110.957157
11.

Canon Rebel APS-C 6.3 3072 2048none21.010.854455
12.

Canon D60 APS-C 6.3 3072 2048none20.39.830147
13.

Fujifilm X100S APS-C 16.0 4896 32641080/60p23.312.5132975
14.

Fujifilm X-E2 APS-C 16.0 4896 32641080/60p23.412.6140077
15.

Leica X Typ 113 APS-C 16.1 4928 32641080/30p23.612.8149178
16.

Leica X1 APS-C 12.2 4272 2856none22.611.8103769
17.

Nikon Coolpix A APS-C 16.1 4928 32641080/30p23.413.8116480
Note: DXO values in italics represent estimates based on sensor size and age.
padding
Neither the D30 nor the X2 offer Live View, so that they cannot project the live image that the sensor receives onto the rear screen. Moreover, both cameras are still-image focused and cannot record videos.
ad

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the D30 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X2 relies on live view and the rear LCD for framing. That said, the X2 can be equipped with an optional viewfinder – the EVF 2. The following table reports on some other key feature differences and similarities of the Canon D30, the Leica X2, and comparable cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon D30optical Y1.8 / 114 fixed n 1/4000s 3.0/s Y n
2.

Leica X2optional n2.7 / 230 fixed n 1/2000s 5.0/s Y n
3.

Canon T7optical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
4.

Canon SL2optical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
5.

Canon T7ioptical n3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
6.

Canon 80Doptical Y3.0 / 1040 swivel Y 1/8000s 7.0/s Y n
7.

Canon 40Doptical Y3.0 / 230 fixed n 1/8000s 6.5/s Y n
8.

Canon 30Doptical Y2.5 / 230 fixed n 1/8000s 5.0/s Y n
9.

Canon 20Doptical Y1.8 / 118 fixed n 1/8000s 5.0/s Y n
10.

Canon 10Doptical Y1.8 / 118 fixed n 1/4000s 3.0/s Y n
11.

Canon Rebeloptical n1.8 / 118 fixed n 1/4000s 2.5/s Y n
12.

Canon D60optical Y1.8 / 114 fixed n 1/4000s 3.0/s Y n
13.

Fujifilm X100S2360 n2.8 / 460 fixed n 1/4000s 6.0/s Y n
14.

Fujifilm X-E22360 n3.0 / 1040 fixed n 1/4000s 7.0/s Y n
15.

Leica X Typ 113optional n3.0 / 920 fixed n 1/2000s 5.0/s Y n
16.

Leica X1none n2.7 / 230 fixed n 1/2000s 3.0/s Y n
17.

Nikon Coolpix Aoptional n3.0 / 921 fixed n 1/2000s 4.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One feature that is present on the D30, but is missing on the X2 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The D30 writes its imaging data to Compact Flash cards, while the X2 uses SDHC cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-D30 and Leica X2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon D30Y- / ----1.0---
2.

Leica X2Y- / ---mini2.0---
3.

Canon T7Ymono / mono--mini2.0YY-
4.

Canon SL2Ystereo / monoY-mini2.0YYY
5.

Canon T7iYstereo / monoY-mini2.0YYY
6.

Canon 80DYstereo / monoYYmini2.0YY-
7.

Canon 40DY- / ----2.0---
8.

Canon 30DY- / ----2.0---
9.

Canon 20DY- / ----1.1---
10.

Canon 10DY- / ----1.1---
11.

Canon RebelY- / ----1.1---
12.

Canon D60Y- / ----1.1---
13.

Fujifilm X100SYstereo / mono--micro2.0---
14.

Fujifilm X-E2Ystereo / monoY-micro2.0Y--
15.

Leica X Typ 113Ystereo / mono--mini2.0---
16.

Leica X1Y- / ---mini2.0---
17.

Nikon Coolpix AYstereo / mono---2.0---
padding

Studio photographers will appreciate that the Canon D30 (unlike the X2) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the D30 and the X2 have been discontinued, but can regularly be found used on ebay. The D30 was replaced by the Canon D60, while the X2 does not have a direct successor. Further information on the features and operation of the D30 and X2 can be found, respectively, in the Canon D30 Manual (free pdf) or the online Leica X2 Manual.

ad

Review summary

So how do things add up? Is the Canon D30 better than the Leica X2 or vice versa? The listing below highlights the relative strengths of the two models.

ilogo

Reasons to prefer the Canon EOS-D30:

  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
  • More flexible: Can take a variety of interchangeable lenses, including specialty optics.
  • Longer lasting: Can take more shots (540 versus 450) on a single battery charge.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • More heavily discounted: Has been available for much longer (launched in May 2000).

ilogo

Arguments in favor of the Leica X2:

  • More detail: Has more megapixels (16.1 vs 3.1MP), which boosts linear resolution by 128%.
  • Larger screen: Has a bigger rear LCD (2.7" vs 1.8") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (230k vs 114k dots).
  • Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
  • Ready to shoot: Comes with an integrated lens, while the D30 requires a separate lens.
  • More compact: Is smaller (124x69mm vs 150x107mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight even though it has a lens built in (unlike the D30).
  • Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.0).
  • More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More modern: Reflects 11 years and 11 months of technical progress since the D30 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the X2 is the clear winner of the contest (11 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

D30 07:11 X2

How about other alternatives? Do the specifications of the Canon D30 and the Leica X2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the D30 or the X2 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon D30......+ +.... May 2000 2,999ebay.com
2.

Leica X23/5......3/54/5 May 2012 1,995ebay.com
3.

Canon T7..o3.5/5..3.5/53.5/5 Feb 2018 449 amazon.com
4.

Canon SL24/5+ +4/578/1004.5/54.5/5 Jun 2017 549ebay.com
5.

Canon T7i4.5/5..3.5/580/1004.5/54/5 Feb 2017 749ebay.com
6.

Canon 80D4/5+ +4.5/584/1004.5/54.5/5 Feb 2016 1,199ebay.com
7.

Canon 40D..+ +..+ +4.5/54.5/5 Aug 2007 1,299ebay.com
8.

Canon 30D..+ +..+ +o.. Feb 2006 1,399ebay.com
9.

Canon 20D......+ +.... Aug 2004 1,499ebay.com
10.

Canon 10D......+ +.... Feb 2003 1,999ebay.com
11.

Canon Rebel......+ +.... Aug 2003 899ebay.com
12.

Canon D60......+ +o.. Feb 2002 2,999ebay.com
13.

Fujifilm X100S5/5+ +..81/1004.5/55/5 Jan 2013 1,299ebay.com
14.

Fujifilm X-E24/5....80/1004.5/55/5 Oct 2013 999ebay.com
15.

Leica X Typ 1133.5/5......3.5/54/5 Sep 2014 2,295ebay.com
16.

Leica X13/5....+..4/5 Sep 2009 1,995ebay.com
17.

Nikon Coolpix A4/5+..75/1004/54/5 Mar 2013 1,099ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check D30 offers at
ebay.com
logo
Check X2 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Canon D30 vs Leica X2

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon D30 Leica X2
    Camera Type Digital single lens reflex Fixed lens compact camera
    Camera Lens Canon EF mount lenses 36mm f/2.8
    Launch Date May 2000 May 2012
    Launch Price USD 2,999 USD 1,995
    Sensor Specs Canon D30 Leica X2
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor APS-C Sensor
    Sensor Size 22.0 x 14.9 mm 23.7 x 15.6 mm
    Sensor Area 327.8 mm2 369.72 mm2
    Sensor Diagonal 26.6 mm 28.4 mm
    Crop Factor 1.6x 1.5x
    Sensor Resolution 3.1 Megapixels 16.1 Megapixels
    Image Resolution 2160 x 1440 pixels 4928 x 3264 pixels
    Pixel Pitch 10.29 μm 4.79 μm
    Pixel Density 0.95 MP/cm2 4.35 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability no Video no Video
    ISO Setting 100 - 1,600 ISO 100 - 12,500 ISO
    Screen Specs Canon D30 Leica X2
    Viewfinder Type Optical viewfinder Viewfinder optional
    Viewfinder Field of View 95%
    Viewfinder Magnification 0.54x
    Top-Level Screen Control Panel no Top Display
    Rear LCD Size 1.8inch 2.7inch
    LCD Resolution 114k dots 230k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Canon D30 Leica X2
    Focus System Phase-detect AF Contrast-detect AF
    Continuous Shooting 3 shutter flaps/s 5 shutter flaps/s
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium CF cards SDHC cards
    Single or Dual Card Slots Single card slot Single card slot
    Connectivity Specs Canon D30 Leica X2
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 1.0 USB 2.0
    HDMI Port no HDMI mini HDMI
    Wifi Support no Wifi no Wifi
    Body Specs Canon D30 Leica X2
    Battery Type Canon BP-511 Leica BP-DC8
    Battery Life (CIPA)540 shots per charge450 shots per charge
    Body Dimensions 150 x 107 x 75 mm
    (5.9 x 4.2 x 3.0 in)
    124 x 69 x 52 mm
    (4.9 x 2.7 x 2.0 in)
    Camera Weight 750 g (26.5 oz) 345 g (12.2 oz)
    logo
    Check D30 offers at
    ebay.com
    logo
    Check X2 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon D30 vs Leica X2
