Canon D30 vs Panasonic GX800

The Canon EOS-D30 and the Panasonic Lumix DMC-GX800 (labelled Panasonic GX850 in some countries) are two digital cameras that were officially introduced, respectively, in May 2000 and January 2017. The D30 is a DSLR, while the GX800 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D30) and a Four Thirds (GX800) sensor. The Canon has a resolution of 3.1 megapixels, whereas the Panasonic provides 15.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon D30		Panasonic GX800
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Micro Four Thirds lenses
3.1 MP – APS-C sensor		15.8 MP – Four Thirds sensor
no Video		4K/30p Video
ISO 100-1,600		ISO 200-25,600
Optical viewfinder		No viewfinder, LCD framing
1.8" LCD – 114k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3 shutter flaps per second		10 shutter flaps per second
540 shots per battery charge		210 shots per battery charge
150 x 107 x 75 mm, 750 g		107 x 65 x 33 mm, 269 g

Check D30 offers at
ebay.com
Check GX800 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-D30 and the Panasonic Lumix DMC-GX800? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

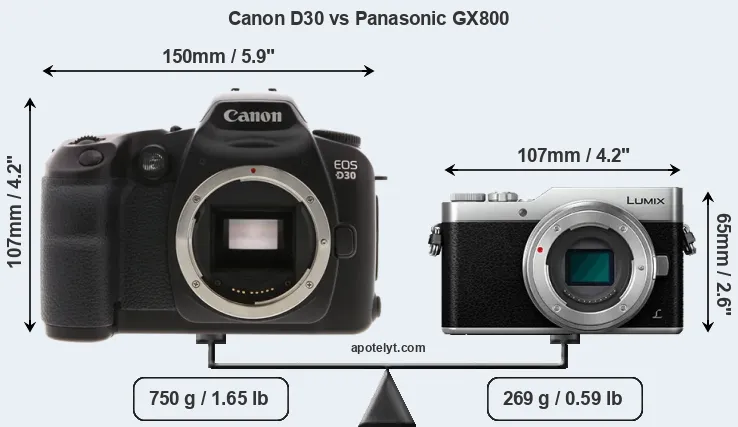

The side-by-side display below illustrates the physical size and weight of the Canon D30 and the Panasonic GX800. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The GX800 can be obtained in three different colors (black, silver, red), while the D30 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GX800 is considerably smaller (57 percent) than the Canon D30. Moreover, the GX800 is substantially lighter (64 percent) than the D30. In this context, it is worth noting that neither the D30 nor the GX800 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (D30) and the Micro Four Thirds Lens Catalog (GX800). Mirrorless cameras, such as the GX800, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the D30 gets 540 shots out of its Canon BP-511 battery, while the GX800 can take 210 images on a single charge of its Panasonic DMW-BLH7 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon D30	150 mm	107 mm	75 mm	750 g	540	n	May 2000	EUR 2 999	ebay.com
2.		Panasonic GX800	107 mm	65 mm	33 mm	269 g	210	n	Jan 2017	EUR 549	ebay.com
3.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	EUR 4 065	amazon.com
4.		Canon 10D	150 mm	107 mm	75 mm	850 g	500	n	Feb 2003	EUR 1 999	ebay.com
5.		Canon 20D	144 mm	106 mm	72 mm	770 g	700	n	Aug 2004	EUR 1 599	ebay.com
6.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	EUR 1 399	ebay.com
7.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	EUR 1 299	ebay.com
8.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	EUR 899	ebay.com
9.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	EUR 1 285	ebay.com
10.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	EUR 599	ebay.com
11.		Canon 300D	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	EUR 1 095	ebay.com
12.		Canon D60	150 mm	107 mm	75 mm	855 g	620	n	Feb 2002	EUR 2 999	ebay.com
13.		Panasonic G5	120 mm	83 mm	71 mm	396 g	320	n	Jul 2012	EUR 649	ebay.com
14.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	EUR 549	ebay.com
15.		Panasonic GF5	108 mm	67 mm	37 mm	267 g	360	n	Apr 2012	EUR 449	ebay.com
16.		Panasonic GF6	111 mm	65 mm	38 mm	323 g	340	n	Apr 2013	EUR 499	ebay.com
17.		Panasonic GF7	107 mm	65 mm	33 mm	266 g	230	n	Jan 2015	EUR 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The GX800 was launched at a markedly lower price (by 82 percent) than the D30, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon D30 features an APS-C sensor and the Panasonic GX800 a Four Thirds sensor. The sensor area in the GX800 is 31 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the D30 has a native 3:2 aspect ratio, while the one in the GX800 offers a 4:3 aspect.

Despite having a smaller sensor, the GX800 offers a higher resolution of 15.8 megapixels, compared with 3.1 MP of the D30. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.77μm versus 10.29μm for the D30). However, it should be noted that the GX800 is much more recent (by 16 years and 7 months) than the D30, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the GX800 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Panasonic GX800 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GX800 for good quality output (200 dots per inch) amounts to 23 x 17.2 inches or 58.3 x 43.8 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.7 x 35 cm, and for excellent quality (300 dpi) 15.3 x 11.5 inches or 38.9 x 29.2 cm. The corresponding values for the Canon D30 are 10.8 x 7.2 inches or 27.4 x 18.3 cm for good quality, 8.6 x 5.8 inches or 21.9 x 14.6 cm for very good quality, and 7.2 x 4.8 inches or 18.3 x 12.2 cm for excellent quality prints.

The Canon EOS-D30 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Panasonic Lumix DMC-GX800 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon D30	APS-C	3.1	2160	1440	none	..	..	..	..
2.		Panasonic GX800	Four Thirds	15.8	4592	3448	4K/30p	23.2	13.3	586	73
3.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
4.		Canon 10D	APS-C	6.3	3072	2048	none	21.1	10.9	571	57
5.		Canon 20D	APS-C	8.2	3504	2336	none	21.9	11.0	721	62
6.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
7.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
8.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
9.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
10.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
11.		Canon 300D	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
12.		Canon D60	APS-C	6.3	3072	2048	none	20.3	9.8	301	47
13.		Panasonic G5	Four Thirds	15.9	4608	3456	1080/60p	21.4	11.6	618	61
14.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
15.		Panasonic GF5	Four Thirds	12.0	4000	3000	1080/60i	20.5	10.0	573	50
16.		Panasonic GF6	Four Thirds	15.8	4592	3448	1080/60i	20.7	10.6	622	54
17.		Panasonic GF7	Four Thirds	15.8	4592	3448	1080/60p	22.7	12.3	874	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The GX800 indeed provides for movie recording, while the D30 does not. The highest resolution format that the GX800 can use is 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the D30 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the GX800 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon D30 and Panasonic GX800 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon D30	optical	Y	1.8 / 114	fixed	n	1/4000s	3.0/s	Y	n
2.		Panasonic GX800	none	n	3.0 / 1040	tilting	Y	1/500s	10.0/s	Y	n
3.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
4.		Canon 10D	optical	Y	1.8 / 118	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon 20D	optical	Y	1.8 / 118	fixed	n	1/8000s	5.0/s	Y	n
6.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
7.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
8.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
9.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
10.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon 300D	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
12.		Canon D60	optical	Y	1.8 / 114	fixed	n	1/4000s	3.0/s	Y	n
13.		Panasonic G5	1440	n	3.0 / 920	swivel	Y	1/4000s	6.0/s	Y	n
14.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
15.		Panasonic GF5	none	n	3.0 / 920	fixed	Y	1/4000s	4.0/s	Y	n
16.		Panasonic GF6	none	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
17.		Panasonic GF7	none	n	3.0 / 1040	tilting	Y	1/500s	5.8/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the D30, but is missing on the GX800 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GX800 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic GX800 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D30 writes its imaging data to Compact Flash cards, while the GX800 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-D30 and Panasonic Lumix DMC-GX800 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon D30	Y	- / -	-	-	-	1.0	-	-	-
2.		Panasonic GX800	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
4.		Canon 10D	Y	- / -	-	-	-	1.1	-	-	-
5.		Canon 20D	Y	- / -	-	-	-	1.1	-	-	-
6.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
7.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
8.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
10.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
11.		Canon 300D	Y	- / -	-	-	-	1.1	-	-	-
12.		Canon D60	Y	- / -	-	-	-	1.1	-	-	-
13.		Panasonic G5	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
15.		Panasonic GF5	-	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic GF6	-	stereo / mono	-	-	mini	2.0	Y	Y	-
17.		Panasonic GF7	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the D30 has a hotshoe, while the GX800 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Canon D30 (unlike the GX800) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the D30 and the GX800 have been discontinued, but can regularly be found used on ebay. The D30 was replaced by the Canon D60, while the GX800 does not have a direct successor. Further information on the features and operation of the D30 and GX800 can be found, respectively, in the Canon D30 Manual (free pdf) or the online Panasonic GX800 Manual.

Review summary

So what conclusions can be drawn? Is the Canon D30 better than the Panasonic GX800 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS-D30:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/500s) to freeze action.
• Longer lasting: Can take more shots (540 versus 210) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in May 2000).

Reasons to prefer the Panasonic Lumix DMC-GX800:

• More detail: Has more megapixels (15.8 vs 3.1MP), which boosts linear resolution by 121%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Broader imaging potential: Can capture not only stills but also 4K/30p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 114k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (107x65mm vs 150x107mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 481g or 64 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.0).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced into a lower priced category (82 percent cheaper at launch).
• More modern: Reflects 16 years and 7 months of technical progress since the D30 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the GX800 is the clear winner of the contest (18 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon D30 and the Panasonic GX800 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the D30 or the GX800 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon D30	..	..	..	+ +	..	..	May 2000	EUR 2 999	ebay.com
2.		Panasonic GX800	..	+	..	76/100	4.5/5	4.5/5	Jan 2017	EUR 549	ebay.com
3.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	EUR 4 065	amazon.com
4.		Canon 10D	..	..	..	+ +	..	..	Feb 2003	EUR 1 999	ebay.com
5.		Canon 20D	..	..	..	+ +	..	..	Aug 2004	EUR 1 599	ebay.com
6.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	EUR 1 399	ebay.com
7.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	EUR 1 299	ebay.com
8.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	EUR 899	ebay.com
9.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	EUR 1 285	ebay.com
10.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	EUR 599	ebay.com
11.		Canon 300D	..	..	..	+ +	..	..	Aug 2003	EUR 1 095	ebay.com
12.		Canon D60	..	..	..	+ +	o	..	Feb 2002	EUR 2 999	ebay.com
13.		Panasonic G5	3/5	+ +	..	..	4.5/5	4.5/5	Jul 2012	EUR 649	ebay.com
14.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	EUR 549	ebay.com
15.		Panasonic GF5	3/5	..	..	..	4.5/5	4.5/5	Apr 2012	EUR 449	ebay.com
16.		Panasonic GF6	..	+ +	..	..	4.5/5	4.5/5	Apr 2013	EUR 499	ebay.com
17.		Panasonic GF7	4/5	+	..	..	4.5/5	4.5/5	Jan 2015	EUR 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
