Canon 750D vs Panasonic GX800
The Canon EOS 750D (called Canon T6i in some regions) and the Panasonic Lumix DMC-GX800 (labelled Panasonic GX850 in some countries) are two digital cameras that were revealed to the public, respectively, in February 2015 and January 2017. The 750D is a DSLR, while the GX800 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (750D) and a Four Thirds (GX800) sensor. The Canon has a resolution of 24 megapixels, whereas the Panasonic provides 15.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 750D and the Panasonic Lumix DMC-GX800? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

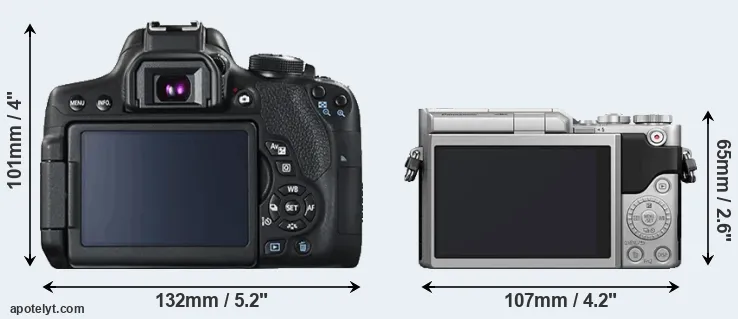

The side-by-side display below illustrates the physical size and weight of the Canon 750D and the Panasonic GX800. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The GX800 can be obtained in three different colors (black, silver, red), while the 750D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GX800 is considerably smaller (48 percent) than the Canon 750D. Moreover, the GX800 is substantially lighter (52 percent) than the 750D. In this context, it is worth noting that neither the 750D nor the GX800 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (750D) and the Micro Four Thirds Lens Catalog (GX800). Mirrorless cameras, such as the GX800, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|2.||Panasonic GX800||107 mm||65 mm||33 mm||269 g||210||n||Jan 2017||549|
|3.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|4.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|5.||Canon 800D||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|6.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|7.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|8.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|9.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|10.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|11.||Canon 700D||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|12.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|13.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|14.||Panasonic GF7||107 mm||65 mm||33 mm||266 g||230||n||Jan 2015||499|
|15.||Panasonic G6||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599|
|16.||Panasonic GF6||111 mm||65 mm||38 mm||323 g||340||n||Apr 2013||499|
|17.||Panasonic GF5||108 mm||67 mm||37 mm||267 g||360||n||Apr 2012||499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The GX800 was launched at a markedly lower price (by 27 percent) than the 750D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 750D features an APS-C sensor and the Panasonic GX800 a Four Thirds sensor. The sensor area in the GX800 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 750D has a native 3:2 aspect ratio, while the one in the GX800 offers a 4:3 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

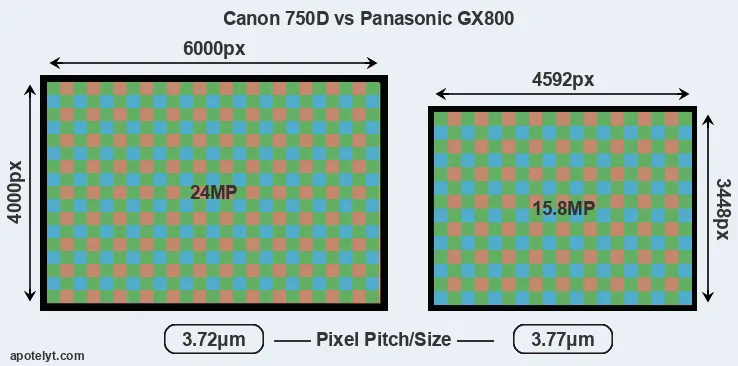

With 24MP, the 750D offers a higher resolution than the GX800 (15.8MP), but the 750D has marginally smaller individual pixels (pixel pitch of 3.72μm versus 3.77μm for the GX800). Moreover, the GX800 is a somewhat more recent model (by 1 year and 10 months) than the 750D, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the GX800 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 750D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 750D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic GX800 are 23 x 17.2 inches or 58.3 x 43.8 cm for good quality, 18.4 x 13.8 inches or 46.7 x 35 cm for very good quality, and 15.3 x 11.5 inches or 38.9 x 29.2 cm for excellent quality prints.
The 750D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 750D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DMC-GX800 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|2.||Panasonic GX800||Four Thirds||15.8||4592||3448||4K/30p||23.2||13.3||586||73|
|10.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|14.||Panasonic GF7||Four Thirds||15.8||4592||3448||1080/60p||..||..||..||..|
|15.||Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|16.||Panasonic GF6||Four Thirds||15.8||4592||3448||1080/60i||20.7||10.6||622||54|
|17.||Panasonic GF5||Four Thirds||12.0||4000||3000||1080/60i||21.4||11.6||618||61|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GX800 provides a better video resolution than the 750D. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 750D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the GX800 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon 750D and Panasonic GX800 in connection with corresponding information for a sample of similar cameras.
|10.||Canon G7 X||none||n||3.0||1040||tilting||Y||1/2000s||6.5||Y||Y|
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GX800 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic GX800 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 750D and the GX800 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 750D and Panasonic Lumix DMC-GX800 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|10.||Canon G7 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the 750D has a hotshoe, while the GX800 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
The GX800 is a recent model that features in the current product line-up of Panasonic. In contrast, the 750D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 750D was succeeded by the Canon 800D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what conclusions can be drawn? Which of the two cameras – the Canon 750D or the Panasonic GX800 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS 750D:
- More detail: Offers more megapixels (24 vs 15.8MP) with a 26% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better low-light sensitivity: Requires less light for good images (0.6 stops ISO advantage).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/500s) to freeze action.
- Longer lasting: Can take more shots (440 versus 210) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More heavily discounted: Has been on the market for longer (launched in February 2015).
Reasons to prefer the Panasonic Lumix DMC-GX800:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- More dynamic range: Captures a broader range of light and dark details (1.3 EV of extra DR).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- Faster burst: Shoots at higher frequency (10 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (107x65mm vs 132x101mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 286g or 52 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (27 percent cheaper at launch).
- More modern: Was introduced somewhat (1 year and 10 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the 750D comes out slightly ahead of the GX800 (12 : 11 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 750D and the Panasonic GX800 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 750D and the GX800 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 750D||5/5||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|2.||Panasonic GX800||..||+||76/100||4.5/5||4.5/5||Jan 2017||549|
|3.||Canon 2000D||..||o||..||3.5/5||3.5/5||Feb 2018||449|
|4.||Canon 77D||4.5/5||..||82/100||4.5/5||4/5||Feb 2017||899|
|5.||Canon 800D||4.5/5||..||80/100||4.5/5||4/5||Feb 2017||749|
|6.||Canon 760D||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|7.||Canon M3||4/5||o||75/100||4.5/5||4/5||Feb 2015||679|
|8.||Canon M10||..||..||..||..||4/5||Oct 2015||499|
|9.||Canon 1200D||3/5||+||..||4/5||4.5/5||Feb 2014||449|
|10.||Canon G7 X||4/5||+ +||77/100||4.5/5||4.5/5||Sep 2014||699|
|11.||Canon 700D||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|12.||Canon 650D||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|13.||Nikon D5600||4/5||..||79/100||4.5/5||4/5||Nov 2016||699|
|14.||Panasonic GF7||4/5||+||..||4.5/5||4.5/5||Jan 2015||499|
|15.||Panasonic G6||4/5||+ +||..||5/5||4.5/5||Apr 2013||599|
|16.||Panasonic GF6||..||+ +||..||4.5/5||4.5/5||Apr 2013||499|
|17.||Panasonic GF5||3/5||..||..||4.5/5||4.5/5||Apr 2012||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 750D vs Panasonic GX800
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 750D||Panasonic GX800|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2015||January 2017|
|Launch Price||USD 749||USD 549|
|Sensor Specs||Canon 750D||Panasonic GX800|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||15.8 Megapixels|
|Image Resolution||6000 x 4000 pixels||4592 x 3448 pixels|
|Pixel Pitch||3.72 μm||3.77 μm|
|Pixel Density||7.22 MP/cm2||7.04 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100 - 12,800 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 6||Venus|
|DXO Sensor Quality (score)||71||73|
|DXO Color Depth (bits)||22.7||23.2|
|DXO Dynamic Range (EV)||12.0||13.3|
|DXO Low Light (ISO)||919||586|
|Screen Specs||Canon 750D||Panasonic GX800|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Canon 750D||Panasonic GX800|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/500s|
|Continuous Shooting||5 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 750D||Panasonic GX800|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon 750D||Panasonic GX800|
|Battery Life (CIPA)||440 shots per charge||210 shots per charge|
132 x 101 x 78 mm
(5.2 x 4.0 x 3.1 in)
107 x 65 x 33 mm
(4.2 x 2.6 x 1.3 in)
|Camera Weight||555 g (19.6 oz)||269 g (9.5 oz)|
