Canon 750D vs Sony NEX-5
The Canon EOS 750D (called Canon T6i in some regions) and the Sony Alpha NEX-5 are two digital cameras that were officially introduced, respectively, in February 2015 and May 2010. The 750D is a DSLR, while the NEX-5 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Sony provides 14 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 750D and the Sony Alpha NEX-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

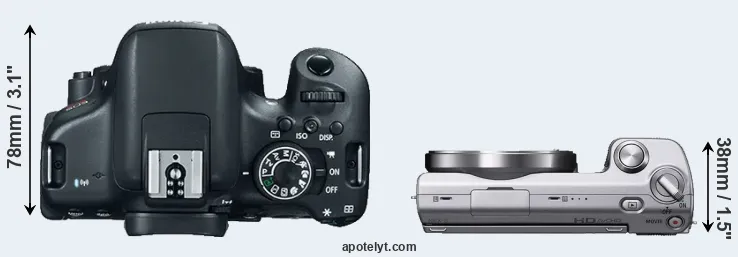

The side-by-side display below illustrates the physical size and weight of the Canon 750D and the Sony NEX-5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The NEX-5 can be obtained in two different colors (black, silver), while the 750D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5 is considerably smaller (51 percent) than the Canon 750D. Moreover, the NEX-5 is substantially lighter (48 percent) than the 750D. In this context, it is worth noting that neither the 750D nor the NEX-5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (750D) and the Sony E-Mount Lens Catalog (NEX-5). Mirrorless cameras, such as the NEX-5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 750D||5.2 in||4.0 in||3.1 in||19.6 oz||440||n||Feb 2015||749|
|Sony NEX-5||4.4 in||2.3 in||1.5 in||10.1 oz||330||n||May 2010||699|
|Canon 2000D||5.1 in||4.0 in||3.1 in||16.8 oz||500||n||Feb 2018||449|
|Canon 77D||5.2 in||3.9 in||3.0 in||19.0 oz||600||n||Feb 2017||899|
|Canon 800D||5.2 in||3.9 in||3.0 in||18.8 oz||600||n||Feb 2017||749|
|Canon 760D||5.2 in||4.0 in||3.1 in||19.9 oz||440||n||Feb 2015||649|
|Canon M3||4.4 in||2.7 in||1.7 in||12.9 oz||250||n||Feb 2015||679|
|Canon 1200D||5.1 in||3.9 in||3.1 in||16.9 oz||500||n||Feb 2014||449|
|Canon G7 X||4.1 in||2.4 in||1.6 in||10.7 oz||210||n||Sep 2014||699|
|Canon 700D||5.2 in||3.9 in||3.1 in||20.5 oz||440||n||Mar 2013||649|
|Canon 650D||5.2 in||3.9 in||3.1 in||20.3 oz||440||n||Jun 2012||849|
|Nikon D5600||4.9 in||3.8 in||2.8 in||16.4 oz||970||n||Nov 2016||699|
|Sony NEX-5R||4.4 in||2.3 in||1.5 in||9.7 oz||330||n||Aug 2012||749|
|Sony NEX-F3||4.6 in||2.6 in||1.7 in||11.1 oz||470||n||May 2012||599|
|Sony NEX-5N||4.4 in||2.3 in||1.5 in||9.5 oz||460||n||Aug 2011||699|
|Sony NEX-C3||4.3 in||2.4 in||1.3 in||7.9 oz||400||n||Jun 2011||599|
|Sony NEX-3||4.6 in||2.4 in||1.3 in||10.5 oz||330||n||May 2010||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The NEX-5 was somewhat cheaper (by 7 percent) than the 750D at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NEX-5 is 10 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (750D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.
Despite having a smaller sensor, the Canon 750D offers a higher resolution of 24 megapixels, compared with 14 MP of the Sony NEX-5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 5.11μm for the NEX-5). However, it should be noted that the 750D is much more recent (by 4 years and 8 months) than the NEX-5, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon 750D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 750D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Sony NEX-5 are 23 x 15.3 inches or 58.3 x 38.8 cm for good quality, 18.4 x 12.2 inches or 46.7 x 31 cm for very good quality, and 15.3 x 10.2 inches or 38.9 x 25.9 cm for excellent quality prints.
The 750D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 750D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Sony Alpha NEX-5 are ISO 200 to ISO 12800 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the NEX-5 provides a faster frame rate than the 750D. It can shoot movie footage at 1080/60i, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 750D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NEX-5 relies on live view and the rear LCD for framing. That said, the NEX-5 can be equipped with an optional viewfinder – the FDA-SV1. The table below summarizes some of the other core capabilities of the Canon 750D and Sony NEX-5 in connection with corresponding information for a sample of similar cameras.
|Canon G7 X||none||n||3.0||1040||tilting||Y||1/2000s||6.5||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The 750D has one, while the NEX-5 does not. While the built-in flash of the 750D is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The 750D writes its imaging data to SDXC cards, while the NEX-5 uses SDXC or Memory Stick PRO Duo cards. The 750D supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the NEX-5 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 750D and Sony Alpha NEX-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|Canon G7 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the 750D has a microphone port, which is missing on the NEX-5. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the 750D and the NEX-5 have been discontinued, but can regularly be found used on eBay. The NEX-5 was replaced by the Sony NEX-5N, while the 750D was followed by the Canon 800D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Sony websites.
So what conclusions can be drawn? Is the Canon 750D better than the Sony NEX-5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS 750D:
- More detail: Offers more megapixels (24 vs 14MP) with a 31% higher linear resolution.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Longer lasting: Can take more shots (440 versus 330) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 4 years and 8 months of technical progress since the NEX-5 launch.
Advantages of the Sony Alpha NEX-5:
- Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
- Faster burst: Shoots at higher frequency (7 vs 5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (111x59mm vs 132x101mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 268g or 48 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More heavily discounted: Has been around for much longer (launched in May 2010).
If the count of relative strengths (bullet points above) is taken as a measure, the 750D is the clear winner of the match-up (13 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 750D and the Sony NEX-5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 750D and the NEX-5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 750D||..||75/100||4.5/5||4.5/5||4.5/5||Feb 2015||749|
|Sony NEX-5||+ +||71/100||4.5/5||4/5||4/5||May 2010||699|
|Canon 2000D||o||..||3.5/5||..||3.5/5||Feb 2018||449|
|Canon 77D||..||82/100||4.5/5||4.5/5||4/5||Feb 2017||899|
|Canon 800D||..||80/100||4.5/5||4/5||4/5||Feb 2017||749|
|Canon 760D||+||77/100||4.5/5||4.5/5||4.5/5||Feb 2015||649|
|Canon M3||o||75/100||4.5/5||4.5/5||4/5||Feb 2015||679|
|Canon 1200D||+||..||4/5||4/5||4.5/5||Feb 2014||449|
|Canon G7 X||+ +||77/100||4.5/5||3.5/5||4.5/5||Sep 2014||699|
|Canon 700D||..||76/100||4.5/5||4.5/5||4.5/5||Mar 2013||649|
|Canon 650D||+ +||77/100||4.5/5||4.5/5||4.5/5||Jun 2012||849|
|Nikon D5600||..||79/100||4.5/5||4.5/5||4/5||Nov 2016||699|
|Sony NEX-5R||..||..||4.5/5||..||4.5/5||Aug 2012||749|
|Sony NEX-F3||..||74/100||4.5/5||4.5/5||4.5/5||May 2012||599|
|Sony NEX-5N||+ +||79/100||4.5/5||5/5||4.5/5||Aug 2011||699|
|Sony NEX-C3||+ +||74/100||4.5/5||4.5/5||4/5||Jun 2011||599|
|Sony NEX-3||..||70/100||4.5/5||5/5||4/5||May 2010||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon 750D vs Sony NEX-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 750D||Sony NEX-5|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Sony E mount lenses|
|Launch Date||February 2015||May 2010|
|Launch Price||USD 749||USD 699|
|Sensor Specs||Canon 750D||Sony NEX-5|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.4 x 15.6 mm|
|Sensor Area||332.27 mm2||365.04 mm2|
|Sensor Diagonal||26.8 mm||28.1 mm|
|Sensor Resolution||24 Megapixels||14 Megapixels|
|Image Resolution||6000 x 4000 pixels||4592 x 3056 pixels|
|Pixel Pitch||3.72 μm||5.11 μm|
|Pixel Density||7.22 MP/cm2||3.84 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/60i Video|
|ISO Setting||100 - 12,800 ISO||200 - 12,800 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC 6||BIONZ|
|DXO Sensor Quality (score)||71||69|
|DXO Color Depth (bits)||22.7||22.2|
|DXO Dynamic Range (EV)||12.0||12.2|
|DXO Low Light (ISO)||919||796|
|Screen Specs||Canon 750D||Sony NEX-5|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||920k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 750D||Sony NEX-5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||5 shutter flaps/s||7 shutter flaps/s|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon 750D||Sony NEX-5|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon 750D||Sony NEX-5|
|Battery Life (CIPA)||440 shots per charge||330 shots per charge|
132 x 101 x 78 mm
(5.2 x 4.0 x 3.1 in)
111 x 59 x 38 mm
(4.4 x 2.3 x 1.5 in)
|Camera Weight||555 g (19.6 oz)||287 g (10.1 oz)|
