Canon 5D Mark IV vs Olympus E-M10 III
The Canon EOS 5D Mark IV and the Olympus OM-D E-M10 Mark III are two digital cameras that were revealed to the public, respectively, in August 2016 and August 2017. The 5D Mark IV is a DSLR, while the E-M10 III is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5D Mark IV) and a Four Thirds (E-M10 III) sensor. The Canon has a resolution of 30.1 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark IV and the Olympus OM-D E-M10 Mark III? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Canon 5D Mark IV and the Olympus E-M10 III are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The E-M10 III can be obtained in two different colors (black, silver), while the 5D Mark IV is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 III is considerably smaller (41 percent) than the Canon 5D Mark IV. Moreover, the E-M10 III is substantially lighter (54 percent) than the 5D Mark IV. It is worth mentioning in this context that the 5D Mark IV is splash and dust resistant, while the E-M10 III does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D Mark IV) and the Micro Four Thirds Lens Catalog (E-M10 III). Mirrorless cameras, such as the E-M10 III, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|2.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|4.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|5.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|6.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|7.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|8.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|9.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|10.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|11.||Nikon D850||146 mm||124 mm||79 mm||1005 g||1840||Y||Jul 2017||3,299|
|12.||Nikon D810||146 mm||123 mm||82 mm||980 g||1200||Y||Jun 2014||3,299|
|13.||Olympus E-M10 IV||122 mm||84 mm||49 mm||383 g||360||n||Aug 2020||699|
|14.||Olympus E-PL9||117 mm||68 mm||39 mm||380 g||350||n||Feb 2018||599|
|15.||Olympus E-PL8||115 mm||67 mm||38 mm||357 g||350||n||Sep 2016||549|
|16.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|17.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-M10 III was launched at a markedly lower price (by 81 percent) than the 5D Mark IV, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 5D Mark IV features a full frame sensor and the Olympus E-M10 III a Four Thirds sensor. The sensor area in the E-M10 III is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the 5D Mark IV has a native 3:2 aspect ratio, while the one in the E-M10 III offers a 4:3 aspect.

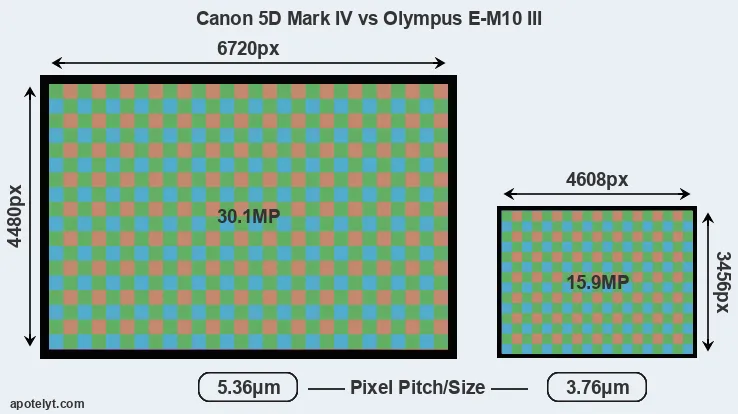

With 30.1MP, the 5D Mark IV offers a higher resolution than the E-M10 III (15.9MP), but the 5D Mark IV nevertheless has larger individual pixels (pixel pitch of 5.36μm versus 3.76μm for the E-M10 III) due to its larger sensor. However, the E-M10 III is a somewhat more recent model (by 1 year) than the 5D Mark IV, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the E-M10 III has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inches or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inches or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inches or 56.9 x 37.9 cm. The corresponding values for the Olympus E-M10 III are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D Mark IV has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Olympus OM-D E-M10 Mark III are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|1.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|2.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||23.1||12.8||1120||74|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|4.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|6.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|7.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|8.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|9.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|10.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|11.||Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|12.||Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97|
|13.||Olympus E-M10 IV||Four Thirds||20.2||5184||3888||4K/30p||23.3||13.2||1402||76|
|14.||Olympus E-PL9||Four Thirds||15.9||4608||3456||4K/30p||23.1||12.8||1162||74|
|15.||Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.6||1030||73|
|16.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|17.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).
Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M10 III has an electronic viewfinder (2360k dots), while the 5D Mark IV has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 5D Mark IV has a higher magnification than the one of the E-M10 III (0.71x vs 0.62x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 5D Mark IV, the Olympus E-M10 III, and comparable cameras.
|1.||Canon 5D Mark IV||optical||Y||3.2 / 1620||fixed||Y||1/8000s||7.0/s||n||n|
|2.||Olympus E-M10 III||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.6/s||Y||Y|
|3.||Canon 6D Mark II||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.5/s||n||n|
|4.||Canon 1D X Mark II||optical||Y||3.2 / 1620||fixed||Y||1/8000s||16.0/s||n||n|
|5.||Canon 80D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0/s||Y||n|
|6.||Canon 5DS||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0/s||n||n|
|7.||Canon 5DS R||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0/s||n||n|
|8.||Canon 5D Mark III||optical||Y||3.2 / 1040||fixed||n||1/8000s||6.0/s||n||n|
|9.||Canon 6D||optical||Y||3.0 / 1040||fixed||n||1/4000s||4.5/s||n||n|
|10.||Canon 5D Mark II||optical||Y||3.0 / 920||fixed||n||1/8000s||3.9/s||n||n|
|11.||Nikon D850||optical||Y||3.2 / 2359||tilting||Y||1/8000s||9.0/s||n||n|
|12.||Nikon D810||optical||Y||3.2 / 1229||fixed||n||1/8000s||5.0/s||Y||n|
|13.||Olympus E-M10 IV||2360||n||3.0 / 1040||tilting||Y||1/4000s||15.0/s||Y||Y|
|14.||Olympus E-PL9||none||n||3.0 / 1040||tilting||Y||1/4000s||8.6/s||Y||Y|
|15.||Olympus E-PL8||optional||n||3.0 / 1037||tilting||Y||1/4000s||8.0/s||n||Y|
|16.||Olympus E-M10 II||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||Y|
|17.||Olympus E-M10||1440||n||3.0 / 1037||tilting||Y||1/4000s||8.0/s||Y||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One feature that is present on the 5D Mark IV, but is missing on the E-M10 III is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M10 III is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon 5D Mark IV and the Olympus E-M10 III both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5D Mark IV writes its imaging data to Compact Flash or SDXC cards, while the E-M10 III uses SDXC cards. The 5D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-M10 III only has one slot. The E-M10 III supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the 5D Mark IV can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark IV and Olympus OM-D E-M10 Mark III and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 5D Mark IV||Y||mono / mono||Y||Y||mini||3.0||Y||Y||-|
|2.||Olympus E-M10 III||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Canon 6D Mark II||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 1D X Mark II||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|5.||Canon 80D||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|6.||Canon 5DS||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|7.||Canon 5DS R||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|8.||Canon 5D Mark III||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|9.||Canon 6D||Y||mono / mono||Y||-||mini||2.0||Y||-||-|
|10.||Canon 5D Mark II||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|11.||Nikon D850||Y||stereo / mono||Y||Y||mini||3.0||Y||Y||Y|
|12.||Nikon D810||Y||stereo / mono||Y||Y||mini||3.0||Y||-||-|
|13.||Olympus E-M10 IV||Y||stereo / mono||-||-||micro||2.0||Y||-||Y|
|14.||Olympus E-PL9||Y||stereo / mono||-||-||micro||2.0||Y||-||Y|
|15.||Olympus E-PL8||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|16.||Olympus E-M10 II||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|17.||Olympus E-M10||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
It is notable that the 5D Mark IV has a microphone port, which is missing on the E-M10 III. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Canon 5D Mark IV (unlike the E-M10 III) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the E-M10 III has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-M10 III was succeeded by the Olympus E-M10 IV. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Which of the two cameras – the Canon 5D Mark IV or the Olympus E-M10 III – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS 5D Mark IV:
- More detail: Offers more megapixels (30.1 vs 15.9MP) with a 40% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.62x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (900 versus 330) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been on the market for longer (launched in August 2016).
Arguments in favor of the Olympus OM-D E-M10 Mark III:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Faster burst: Shoots at higher frequency (8.6 vs 7 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More compact: Is smaller (122x84mm vs 151x116mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 480g or 54 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More affordable: Was introduced into a lower priced category (81 percent cheaper at launch).
- More modern: Was introduced somewhat (1 year) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the 5D Mark IV is the clear winner of the match-up (23 : 13 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark IV and the Olympus E-M10 III place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D Mark IV or the E-M10 III. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D Mark IV||4.5/5||+ +||4/5||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|2.||Olympus E-M10 III||..||+||5/5||80/100||4.5/5||4.5/5||Aug 2017||649|
|3.||Canon 6D Mark II||4/5||+||4/5||80/100||4.5/5||4/5||Jun 2017||1,999|
|4.||Canon 1D X Mark II||..||..||4.5/5||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|5.||Canon 80D||4/5||+ +||4.5/5||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|6.||Canon 5DS||..||+||..||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|7.||Canon 5DS R||5/5||+||..||83/100||5/5||4.5/5||Feb 2015||3,699|
|8.||Canon 5D Mark III||..||+ +||..||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|9.||Canon 6D||5/5||+ +||..||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|10.||Canon 5D Mark II||4/5||91/100||..||79/100||4/5||..||Sep 2008||3,499|
|11.||Nikon D850||4.5/5||+ +||5/5||89/100||4.5/5||5/5||Jul 2017||3,299|
|12.||Nikon D810||5/5||..||5/5||86/100||5/5||4.5/5||Jun 2014||3,299|
|13.||Olympus E-M10 IV||4.5/5||..||5/5||81/100||4.5/5||4.5/5||Aug 2020||699|
|14.||Olympus E-PL9||..||+||..||..||4.5/5||4/5||Feb 2018||599|
|15.||Olympus E-PL8||..||..||..||..||4.5/5||4/5||Sep 2016||549|
|16.||Olympus E-M10 II||4.5/5||+ +||..||80/100||5/5||5/5||Aug 2015||649|
|17.||Olympus E-M10||4/5||..||..||80/100||5/5||5/5||Jan 2014||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1D C vs Canon 5D Mark IV
- Canon 20D vs Canon 5D Mark IV
- Canon 5D Mark IV vs Olympus E-520
- Canon 5D Mark IV vs Panasonic G7
- Canon 5D Mark IV vs Panasonic G90
- Canon 5D Mark IV vs Panasonic GX85
- Canon R vs Olympus E-M10 III
- Fujifilm X-T1 vs Olympus E-M10 III
- Kodak S-1 vs Olympus E-M10 III
- Nikon L840 vs Olympus E-M10 III
- Olympus E-M10 III vs Sony HX350
- Olympus E-M10 III vs Sony RX1R II
Specifications: Canon 5D Mark IV vs Olympus E-M10 III
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark IV||Olympus E-M10 III|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2016||August 2017|
|Launch Price||USD 3,499||USD 649|
|Sensor Specs||Canon 5D Mark IV||Olympus E-M10 III|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||36.0 x 24.0 mm||17.3 x 13.0 mm|
|Sensor Area||864 mm2||224.9 mm2|
|Sensor Diagonal||43.3 mm||21.6 mm|
|Sensor Resolution||30.1 Megapixels||15.9 Megapixels|
|Image Resolution||6720 x 4480 pixels||4608 x 3456 pixels|
|Pixel Pitch||5.36 μm||3.76 μm|
|Pixel Density||3.48 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/30p Video||4K/30p Video|
|ISO Setting||100 - 32,000 ISO||200 - 25,600 ISO|
|ISO Boost||50 - 102,400 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 6+||TruePic VIII|
|DXO Sensor Quality (score)||91||..|
|DXO Color Depth (bits)||24.8||..|
|DXO Dynamic Range (EV)||13.6||..|
|DXO Low Light (ISO)||2995||..|
|Screen Specs||Canon 5D Mark IV||Olympus E-M10 III|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||1040k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Canon 5D Mark IV||Olympus E-M10 III|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||7 shutter flaps/s||8.6 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF or SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Canon 5D Mark IV||Olympus E-M10 III|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 5D Mark IV||Olympus E-M10 III|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||900 shots per charge||330 shots per charge|
151 x 116 x 76 mm
(5.9 x 4.6 x 3.0 in)
122 x 84 x 50 mm
(4.8 x 3.3 x 2.0 in)
|Camera Weight||890 g (31.4 oz)||410 g (14.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
