Panasonic GX80 vs Ricoh WG-60

The Panasonic Lumix DMC-GX80 (called Panasonic GX85 in some regions) and the Ricoh WG-60 are two digital cameras that were officially introduced, respectively, in April 2016 and October 2018. The GX80 is a mirrorless interchangeable lens camera, while the WG-60 is a fixed lens compact. The cameras are based on a Four Thirds (GX80) and a 1/2.3-inch (WG-60) sensor. The Panasonic has a resolution of 15.8 megapixels, whereas the Ricoh provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Panasonic GX80		Ricoh WG-60
Mirrorless system camera		Fixed lens compact camera
Micro Four Thirds lenses		28-140mm f/3.5-5.5
15.8 MP – Four Thirds sensor		15.9 MP – 1/2.3" sensor
4K/30p Video		1080/60p Video
ISO 200-25,600		ISO 125-6,400
Electronic viewfinder (2765k dots)		No viewfinder, LCD framing
3.0" LCD – 1040k dots		2.7" LCD – 230k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
8 shutter flaps per second		8 shutter flaps per second
In-body stabilization		no shake reduction
not weather sealed		Waterproof body (14m)
290 shots per battery charge		300 shots per battery charge
122 x 71 x 44 mm, 426 g		123 x 62 x 30 mm, 193 g

Check GX80 price at
amazon.com
Check WG-60 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DMC-GX80 and the Ricoh WG-60? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

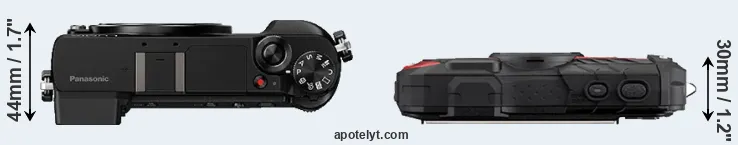

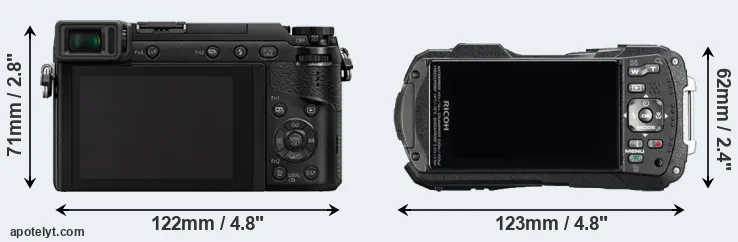

The physical size and weight of the Panasonic GX80 and the Ricoh WG-60 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The GX80 can be obtained in two different colors (black, silver), while the WG-60 is also available in two color-versions, but different ones (black, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Ricoh WG-60 is notably smaller (12 percent) than the Panasonic GX80. It is noteworthy in this context that the WG-60 is splash and dust-proof, while the GX80 does not feature any corresponding weather-sealing. More than that, the WG-60 is water-proof up to 14m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the WG-60 has a lens built in, whereas the GX80 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the GX80 and their specifications in the Micro Four Thirds Lens Catalog.

The power pack in the GX80 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Panasonic GX80	122 mm	71 mm	44 mm	426 g	290	n	Apr 2016	799	amazon.com
2.		Ricoh WG-60	123 mm	62 mm	30 mm	193 g	300	Y	Oct 2018	279	ebay.com
3.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	229	ebay.com
4.		Fujifilm XP120	110 mm	71 mm	28 mm	203 g	210	Y	Jan 2017	229	ebay.com
5.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	389	ebay.com
6.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	649	ebay.com
7.		Olympus PEN-F	125 mm	72 mm	37 mm	427 g	330	n	Jan 2016	1,199	ebay.com
8.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	1,099	ebay.com
9.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	649	ebay.com
10.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	699	ebay.com
11.		Panasonic GX9	124 mm	72 mm	47 mm	407 g	260	n	Feb 2018	849	ebay.com
12.		Panasonic G80	128 mm	89 mm	74 mm	505 g	330	Y	Sep 2016	899	ebay.com
13.		Panasonic G7	125 mm	86 mm	77 mm	410 g	350	n	May 2015	649	ebay.com
14.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	999	ebay.com
15.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	899	ebay.com
16.		Pentax WG-90	123 mm	62 mm	30 mm	194 g	300	Y	Nov 2023	279	amazon.com
17.		Sony WX800	102 mm	58 mm	36 mm	233 g	370	n	Oct 2018	399	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The WG-60 was launched at a lower price than the GX80, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

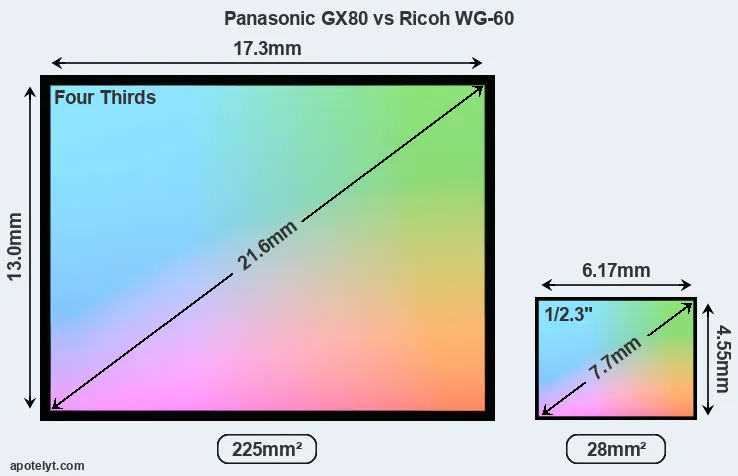

Of the two cameras under consideration, the Panasonic GX80 features a Four Thirds sensor and the Ricoh WG-60 a 1/2.3-inch sensor. The sensor area in the WG-60 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the WG-60 offers a slightly higher resolution of 15.9 megapixels, compared with 15.8 MP of the GX80. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 3.77μm for the GX80). However, it should be noted that the WG-60 is much more recent (by 2 years and 6 months) than the GX80, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Panasonic Lumix DMC-GX80 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Ricoh WG-60 are ISO 125 to ISO 6400 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Panasonic GX80	Four Thirds	15.8	4592	3448	4K/30p	22.9	12.6	662	71
2.		Ricoh WG-60	1/2.3	15.9	4608	3456	1080/60p	20.6	12.2	1072	51
3.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
4.		Fujifilm XP120	1/2.3	15.9	4608	3456	1080/60p	20.5	11.9	900	49
5.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
6.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
7.		Olympus PEN-F	Four Thirds	20.2	5184	3888	1080/60p	23.1	12.4	894	74
8.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
9.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
10.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
11.		Panasonic GX9	Four Thirds	20.2	5184	3888	4K/30p	23.1	12.8	1163	74
12.		Panasonic G80	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.5	656	71
13.		Panasonic G7	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.4	904	71
14.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
15.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
16.		Pentax WG-90	1/2.3	15.9	4608	3456	1080/60p	20.9	12.8	1570	54
17.		Sony WX800	1/2.3	18.0	4896	3672	4K/30p	20.6	12.2	1070	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GX80 provides a higher video resolution than the WG-60. It can shoot video footage at 4K/30p, while the Ricoh is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the GX80 has an electronic viewfinder (2765k dots), which can be very helpful when shooting in bright sunlight. In contrast, the WG-60 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Panasonic GX80 and Ricoh WG-60 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Panasonic GX80	2765	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
2.		Ricoh WG-60	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
3.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
4.		Fujifilm XP120	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
5.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
6.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
7.		Olympus PEN-F	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
8.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
9.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
10.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
11.		Panasonic GX9	2760	n	3.0 / 1240	tilting	Y	1/4000s	9.0/s	Y	Y
12.		Panasonic G80	2360	n	3.0 / 1040	swivel	Y	1/4000s	9.0/s	Y	Y
13.		Panasonic G7	2360	n	3.0 / 1040	swivel	Y	1/4000s	7.0/s	Y	n
14.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
15.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
16.		Pentax WG-90	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
17.		Sony WX800	none	n	3.0 / 922	tilting	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The GX80 has a touchscreen, while the WG-60 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GX80 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic GX80 and the Ricoh WG-60 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the GX80 and the WG-60 write their files to SDXC cards. The GX80 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the WG-60 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DMC-GX80 and Ricoh WG-60 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Panasonic GX80	Y	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Ricoh WG-60	-	mono / mono	-	-	micro	2.0	-	-	-
3.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
4.		Fujifilm XP120	-	mono / mono	-	-	micro	2.0	Y	-	-
5.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
6.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Olympus PEN-F	Y	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
9.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Panasonic GX9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
12.		Panasonic G80	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
13.		Panasonic G7	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
14.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
15.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Pentax WG-90	-	mono / mono	-	-	micro	2.0	-	-	-
17.		Sony WX800	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the GX80 has a hotshoe, while the WG-60 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

The GX80 is a recent model that features in the current product line-up of Panasonic. In contrast, the WG-60 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the WG-60 from Ricoh. Further information on the features and operation of the GX80 and WG-60 can be found, respectively, in the Panasonic GX80 Manual (free pdf) or the online Ricoh WG-60 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Panasonic GX80 or the Ricoh WG-60 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Panasonic Lumix DMC-GX80:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been available for much longer (launched in April 2016).

Advantages of the Ricoh WG-60:

• Ready to shoot: Has an integrated lens, whereas the GX80 necessitates an extra lens.
• More compact: Is smaller (123x62mm vs 122x71mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the GX80).
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 14m).
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 2 years and 6 months of technical progress since the GX80 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the GX80 is the clear winner of the match-up (18 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Panasonic GX80 and the Ricoh WG-60 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the GX80 and the WG-60 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Panasonic GX80	4.5/5	+ +	..	82/100	5/5	5/5	Apr 2016	799	amazon.com
2.		Ricoh WG-60	..	..	..	..	..	..	Oct 2018	279	ebay.com
3.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	229	ebay.com
4.		Fujifilm XP120	..	o	..	..	3.5/5	4/5	Jan 2017	229	ebay.com
5.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	389	ebay.com
6.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	649	ebay.com
7.		Olympus PEN-F	..	..	4/5	82/100	4.5/5	5/5	Jan 2016	1,199	ebay.com
8.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	1,099	ebay.com
9.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	649	ebay.com
10.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	699	ebay.com
11.		Panasonic GX9	4/5	+	4/5	84/100	4.5/5	4.5/5	Feb 2018	849	ebay.com
12.		Panasonic G80	..	+ +	..	84/100	5/5	4.5/5	Sep 2016	899	ebay.com
13.		Panasonic G7	4/5	+ +	3.5/5	80/100	5/5	4.5/5	May 2015	649	ebay.com
14.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	999	ebay.com
15.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	899	ebay.com
16.		Pentax WG-90	..	..	..	..	..	..	Nov 2023	279	amazon.com
17.		Sony WX800	..	..	..	..	..	..	Oct 2018	399	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check GX80 price at
amazon.com
Check WG-60 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check GX80 price at
amazon.com
Check WG-60 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
